100W LED High Bay Light UFO IP65 Philips SMD 3030 | Ledison
- Vendor
- Ledison
- SKU
- 110332
- Availability
- In stock
- Weight
- 7.0 kg
£100.75inc VAT £83.96exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

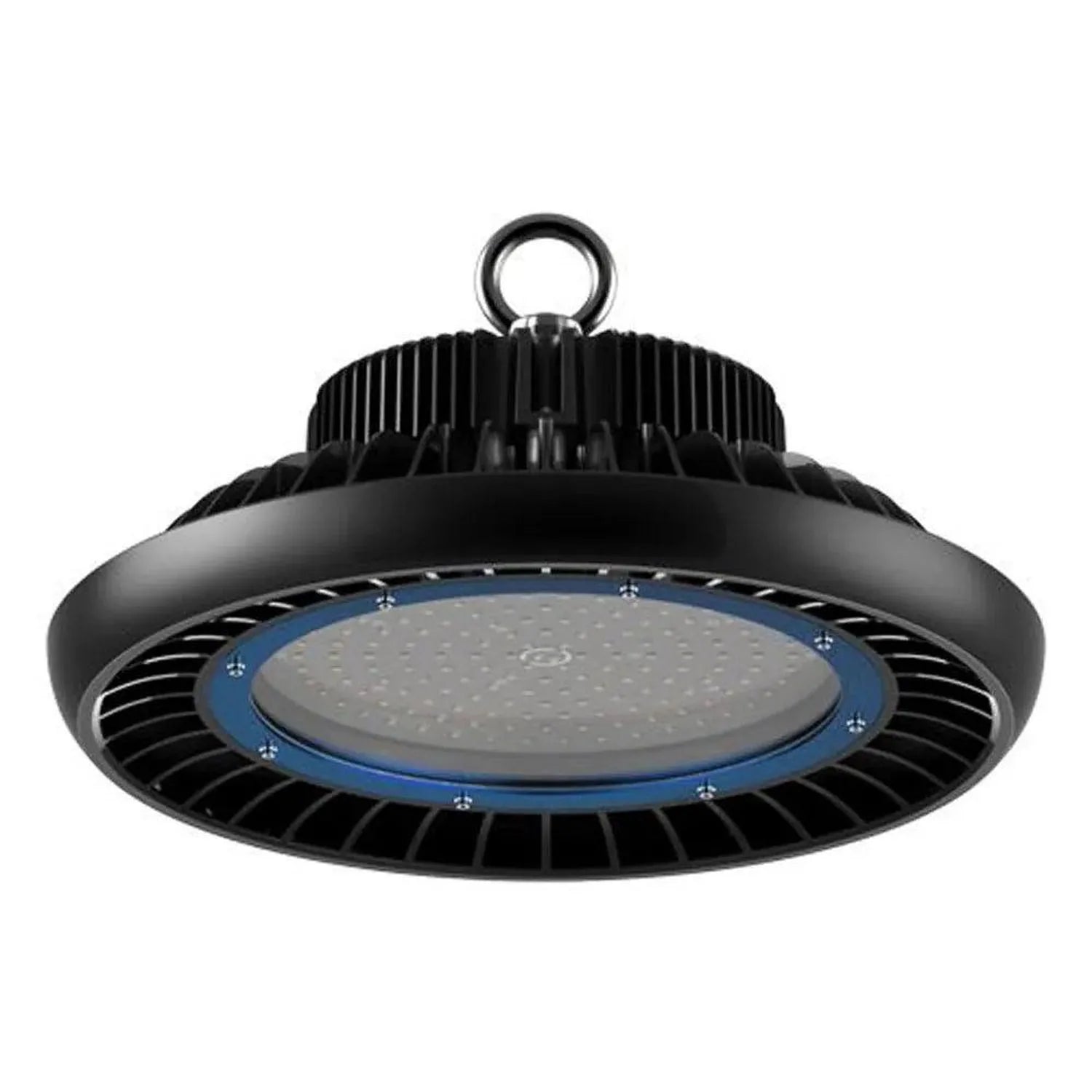

This 100W LED high bay light has a UFO showerhead body, 140 Philips SMD 3030 chips and an IP65 rating. It hangs as a low bay or a high bay on ceilings from 3 metres up to 15 metres. In warehouses, factories and other commercial or industrial buildings, it replaces metal halide, high-pressure sodium and SON bay lights up to 250W.
100W LED high bay light at a glance
- Power: 100 watts
- LED chips: Philips SMD 3030, 140 pieces
- Protection: IP65
- Input voltage: 100-265Volt
- Beam angle: 110 degrees as standard
- Warranty: 5 years
Housing and cooling

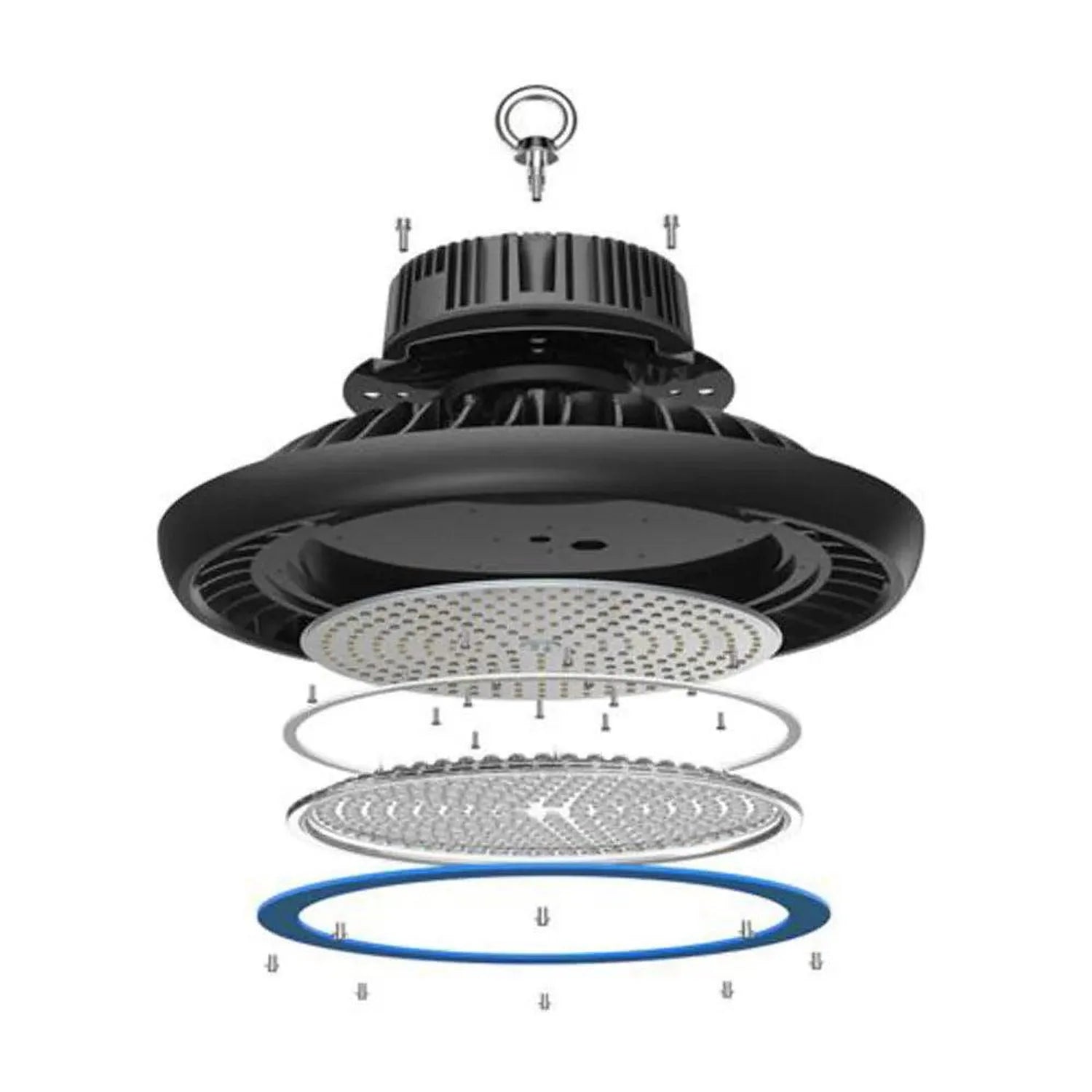

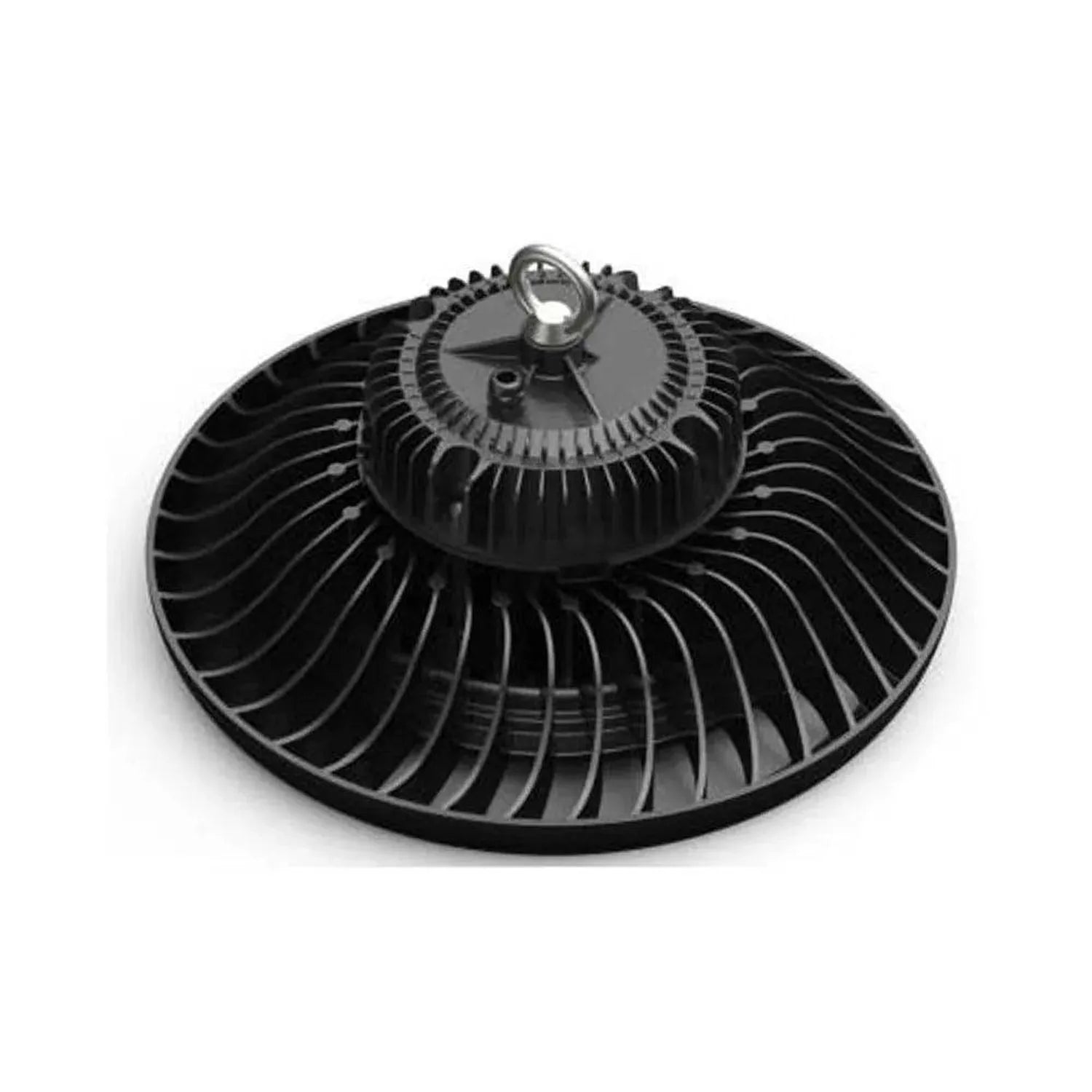

The body is die-cast aluminium. The integrated power supply sits on top, and fins on the solid aluminium heatsink shed heat by natural convection. A gap between the LED driver and the copper-based light engine lets air circulate between the two.
Choosing your version

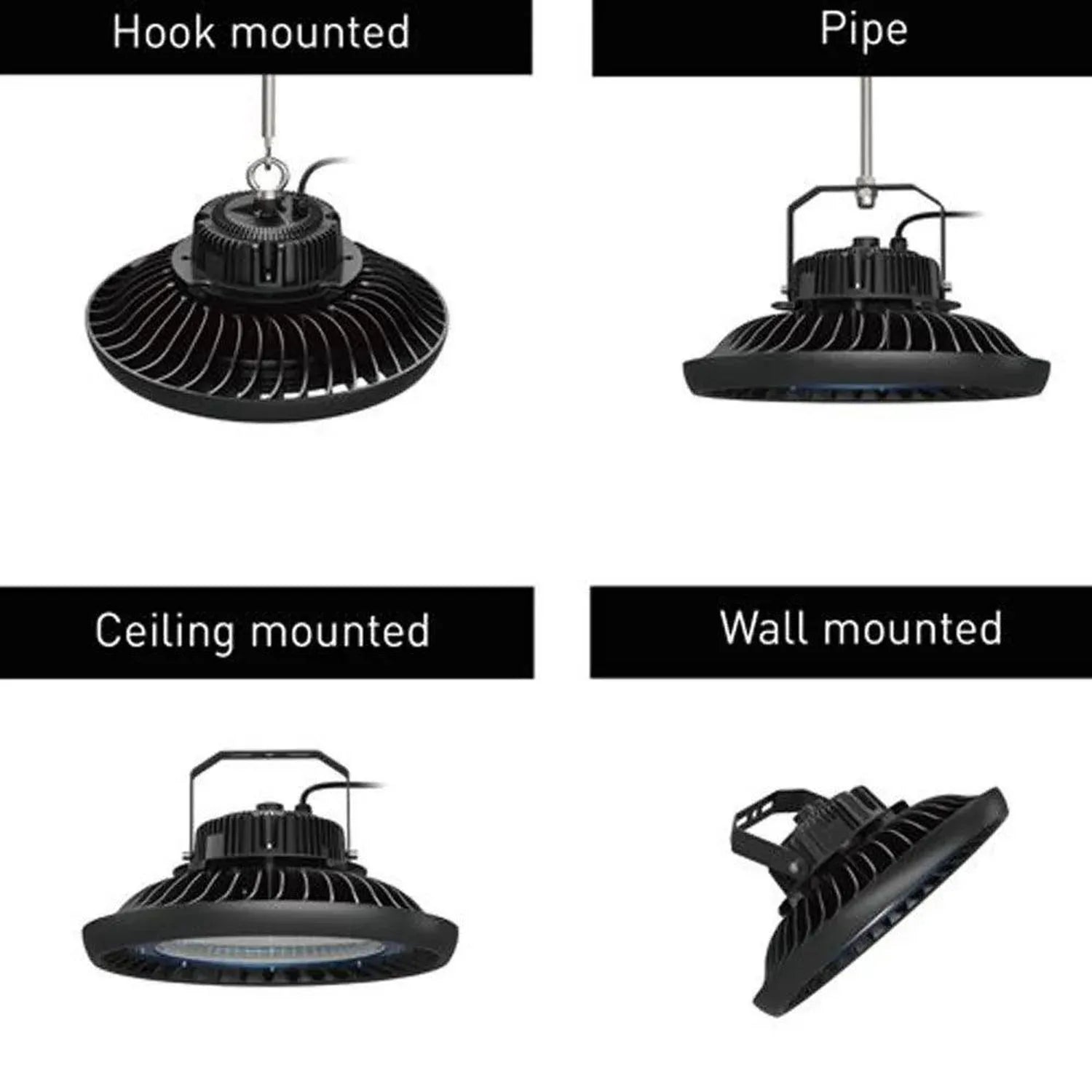

Pick natural white (4000K) or cool white (5500K). Mounting comes as either an eye bolt steel hook or a steel mounting bracket. For dimming, choose non dimmable, 1-10V or DALI.
Microwave sensor option

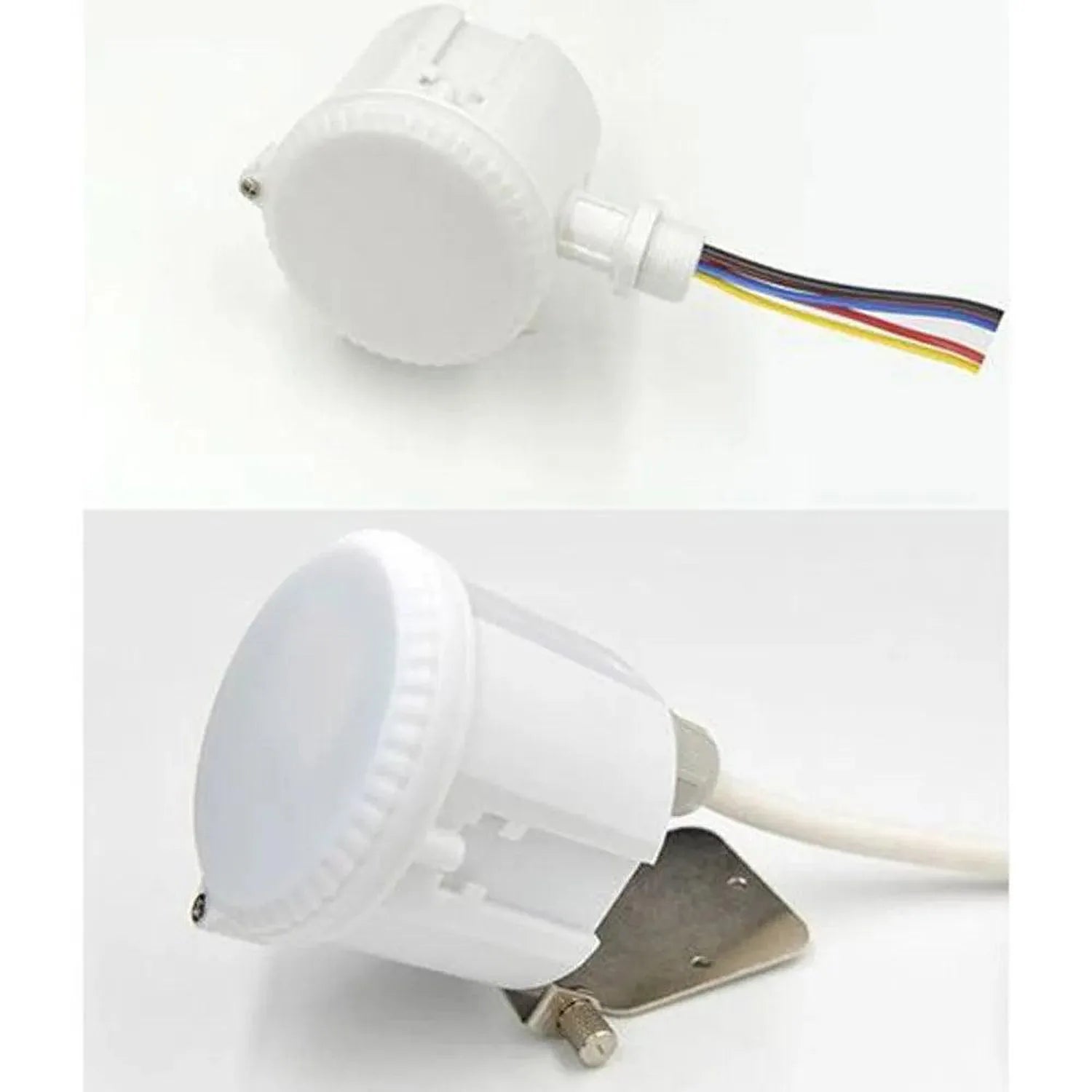

Want the light to switch on with movement? Add the Hytronik microwave sensor, MC054 RC + MH01, which mounts on the bay light itself. Its maximum detection range is 15 metres. Detection range and hold time are adjusted from the remote control, so nobody needs lifting equipment to change them. Combined with the 1-10V LED driver, the sensor gives automatic dimming.
Supplied with
- Pre-installed cables
- Eye hooks
Technical Specifications 20 rows Show
| Fitting | High Low Bay |
| Power | 100 Watt |
| LED chips | Philips SMD 3030 (140 pieces) |
| Colour temperature | Natural white: 4000K, Cool white: 5500K |
| Colour rendering index | >80 |
| Voltage | 100-265Volt |
| Line frequency | 50/60Hz |
| Beam angle | 110deg. |
| IP rating | IP65 |
| Diameter | Φ340*340*200 |
| Weight | 3.5kg |
| Dimmable | YES as an option |
| Lifetime | 50,000 hours |
| Ambient temperature | -40~+50℃ |
| Storage temperature | -40~+80℃ |
| Dielectric strength | 3.75kVac |
| Safety features | Open circuit protection, Short circuit protection, Overvoltage protection |
| Certification | TUV, ROHS Compliant, CE, UL |
| Energy class | A+ & A++ |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
