LED High Bay Light 200W Adjustable 28000lm IP65 UGR<19 | SOFOS
- Vendor
- Ledison
- SKU
- 110343
- Availability
- In stock
- Weight
- 7.0 kg
£112.30inc VAT £93.58exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
The SOFOS LED high bay light is built for commercial and industrial buildings with ceilings from 3 metres up to 15 metres. It replaces 400W metal halide and sodium lighting. Output tops out at 28000 lumen at 140lm/W. Need less? Set the driver to 200, 150, 120 or 100 watts to suit the space.
LED high bay light features
- Adjustable power: 200 Watt, with 150, 120 and 100 watt settings.
- Light output: 28000 lumen max, 140lm/W, colour rendering index >80.

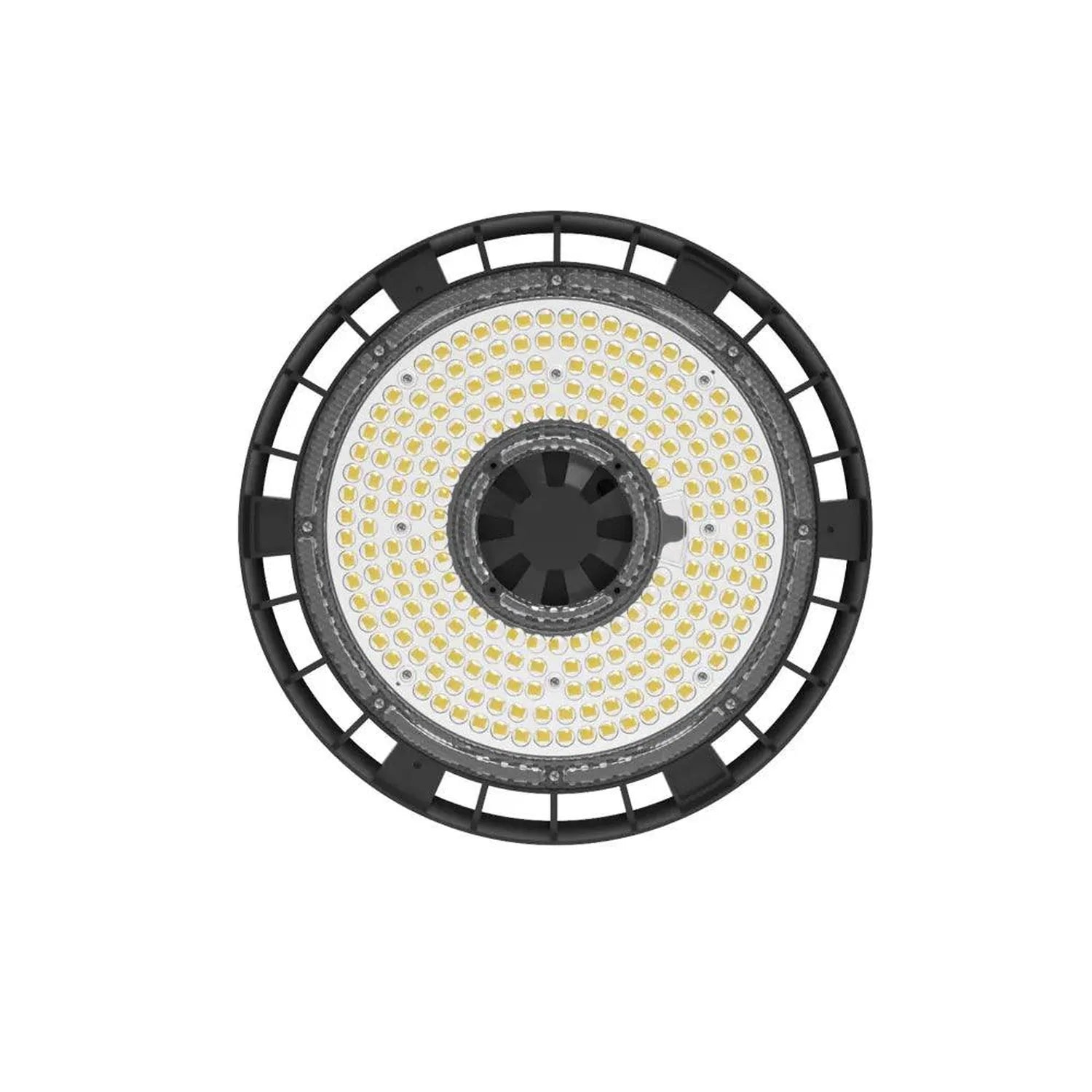

- LED chips: Philips SMD 3030 (196 pieces) on a copper-based board.
- Optics: 120deg. beam angle with low glare UGR<19.
- Protection: IP65 rated, with open circuit, short circuit and overvoltage protection.
- Lifetime and warranty: over 50,000 hours, backed by a 5-year warranty.
Housing and cooling

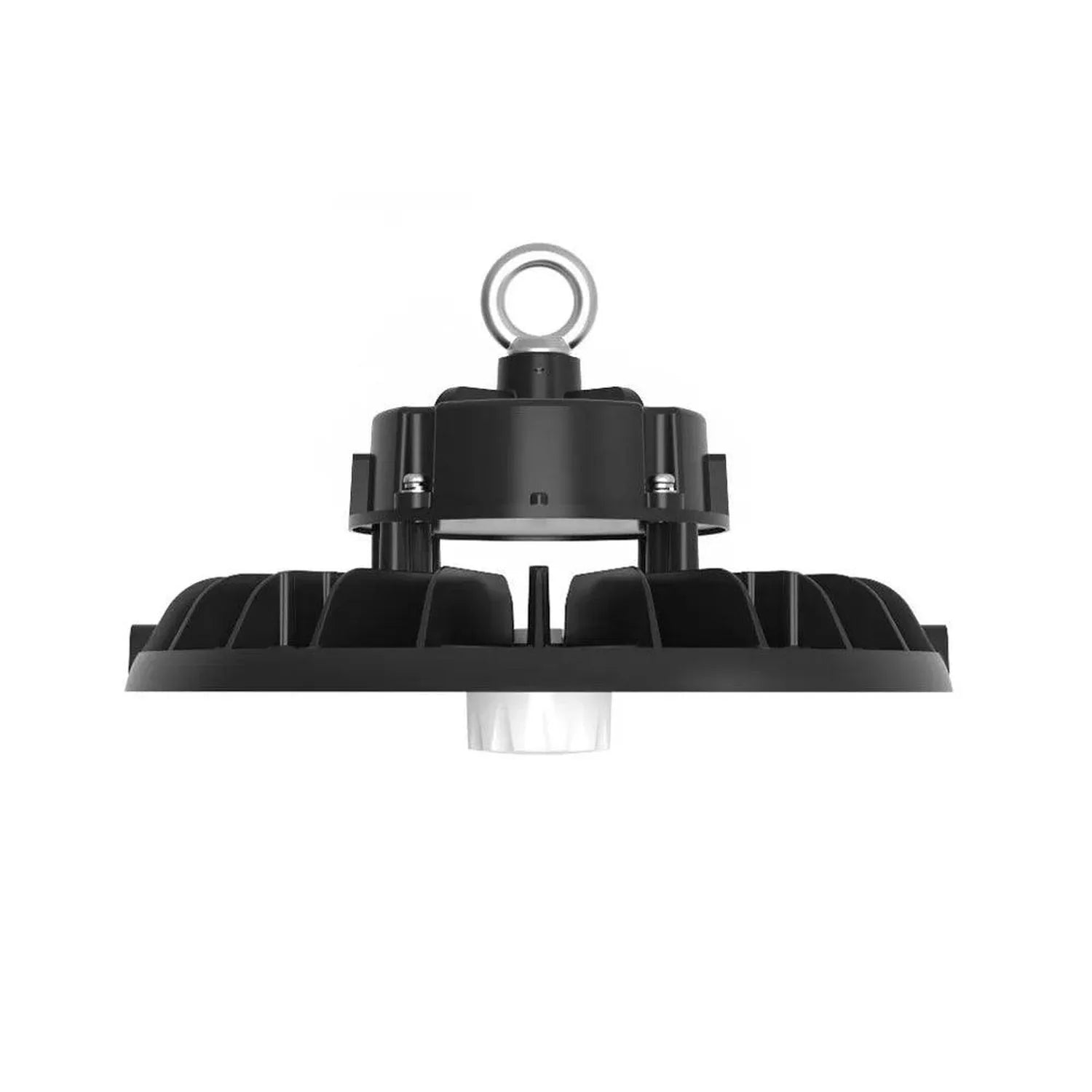

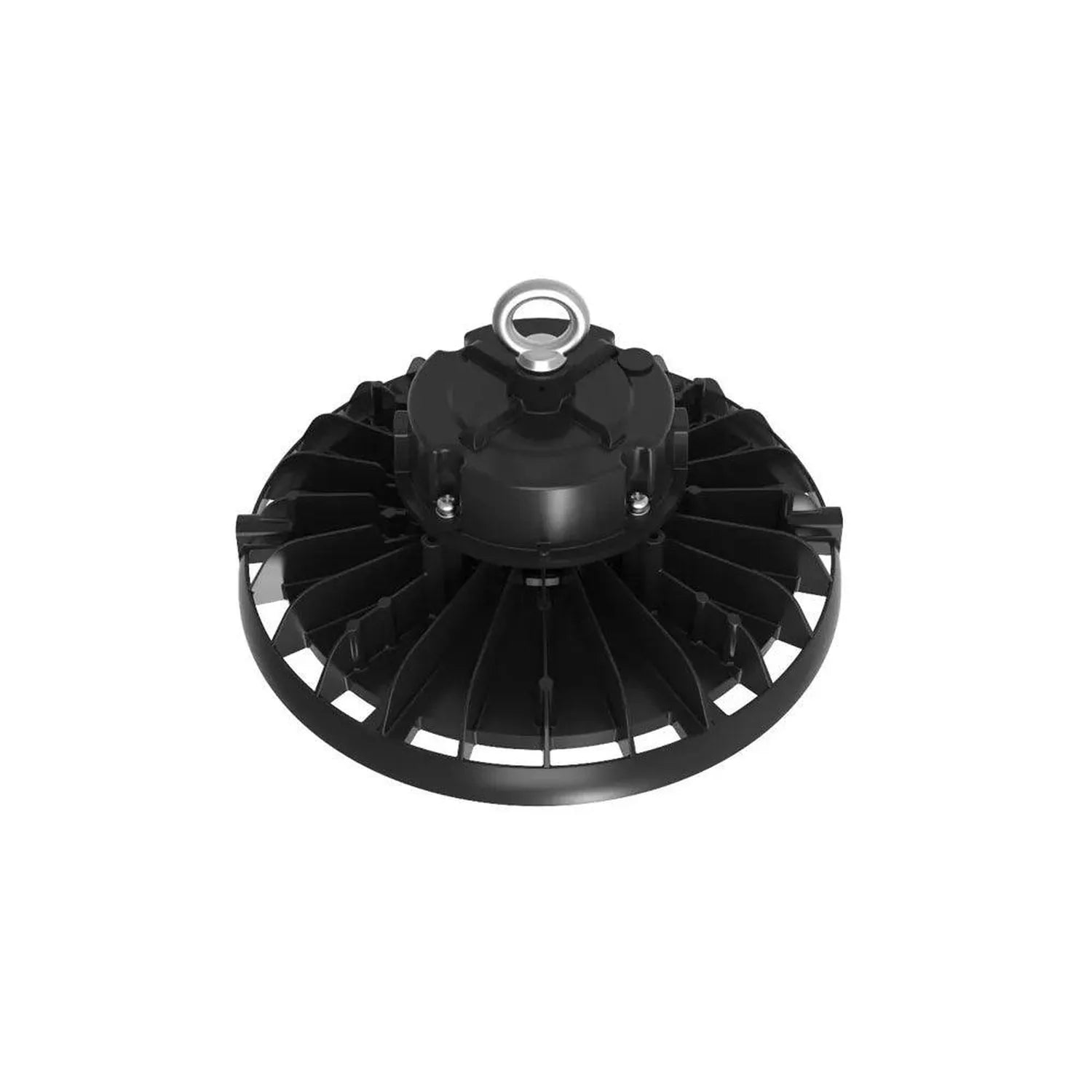

The housing is die-cast aluminium, and the driver sits on top with a gap to the light engine so air can pass between them. Hollow fins on the aluminium alloy heatsink help with cooling. They also collect less dust.
Choose your version
Pick natural white 4000K or cool white 5700K, then choose how the light is controlled:
- Standard: no control module fitted.
- Bluetooth: Bluetooth module fitted and supplied with the Haisen remote control, so you can group lights and set scenes from an app.
- Microwave Sensor: the light switches on with movement.
Installation
Each fitting arrives with pre-installed cables and eye hooks, and it runs on 100-265Volt, 50/60Hz. The unit is ready for a sensor or wireless control module. It measures Φ365 x 365 x156 mm and weighs 7kg.
Emergency versions
Emergency versions are available on request. Email us for details.
Technical Specifications 28 rows Show
| Fitting | High Low Bay |
| Wattage (rated) | 200 Watt (150, 120, 100 Adjustable) |
| Luminous flux | 28000 lumen max |
| Typical efficiency | 140lm/W |
| Colour rendering index | >80 |
| LED chips | Philips SMD 3030 (196 pieces) |
| Voltage | 100-265Volt |
| Line frequency | 50/60Hz |
| Beam angle | 120deg. |
| Glare | UGR<19 |
| IP rating | IP65 |
| Dimensions | Φ365 x 365 x156 mm |
| Net weight per piece | 7kg |
| Dielectric strength | 3.75kVac |
| Safety features | Open circuit protection, Short circuit protection, Overvoltage protection |
| Storage temperature | -40~+80℃ |
| Colour temperature | Natural white: 4000K, Cool white: 5700K |
| Housing | Aluminium die-cast |
| Heatsink | Aluminium alloy, hollow fins |
| LED board | Copper-based |
| Supplied with | Pre-installed cables and eye hooks |
| Mounting height | 3 metres up to 15 metres |
| Bluetooth version | Pre-installed Bluetooth module and Haisen remote control |
| Replaces | 400W metal halide and sodium |
| Average lifetime | 50,000 hours |
| Certificates | American market: UL, DLC Premium, cUL. European market: TUV, GS, CB, CE, D-Mark. Australian market: SAA, CTick, RCM |
| Energy class | A+ & A++ |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
