All LED Fire Rated Spot Downlight

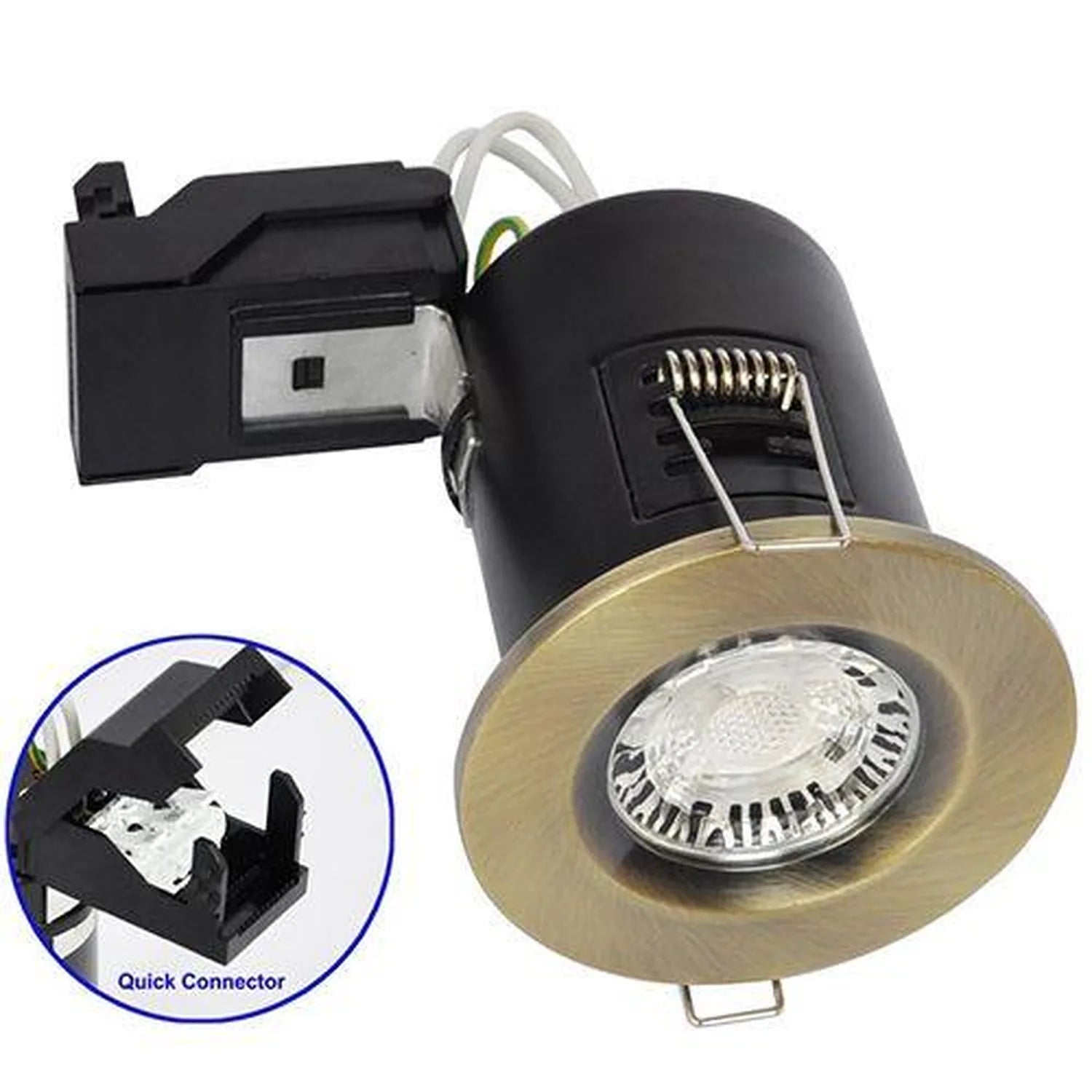

Brass fire-rated LED downlight with quick connector terminal shown from front and rear angle views.

Fire Rated Downlight GU10 6W 4000K Dimmable 90 Minute | Voltaled

White Ring
£16.79
Skip to product information
Brass fire-rated LED downlight with quick connector terminal shown from front and rear angle views.

Fire Rated Downlight GU10 6W 4000K Dimmable 90 Minute | Voltaled

Vendor
Ledison
SKU
FR-LED-840-FX
Availability
In stock
Weight
0.15 kg

£16.79inc VAT £13.99exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This Voltaled fire rated downlight comes fitted with a GU10 6W LED lamp in 4000K natural white. It puts out 550 lumens. That makes it a direct replacement for 50W and 35W halogen downlights, and the fitting is fire rated for use in 30, 60 and 90 minute ceilings.

Fire rated downlight features

  • Lamp: 6W GU10 LED, 550 lumens
  • Colour: 4000K natural white
  • Beam: 60° beam angle, 1500cd
  • Dimmable: yes
  • Fire rating: 30, 60 and 90 minute ceilings, to BS EN 1365-2: 2014
  • Construction: steel body, plastic housing for the power connections and an aluminium lamp

Where to fit it

Bathrooms, corridors, bedrooms, kitchens and shops are all listed uses. Anywhere a ceiling needs to keep its fire rating once a downlight has been cut into it, this fitting is the one to specify. Dimming suits rooms where a softer level of light is wanted in the evening.

Installation

Wiring goes into screwless quick connectors. No terminal screws to tighten, so the fitting goes in faster and the chance of a loose connection drops.

  • Cut-out: 72mm
  • Width: 82mm
  • Height: 120mm (including connectors)

Warranty

The downlight is covered by a 5-year warranty.

Technical Specifications 17 rows Show
FittingFire rated GU10 downlight
LampGU10 6Watt LED
Power6Watt
Colour temperature4000K
Lumen550lumens
Beam angle60°
Intensity1500cd (candela)
DimmableYes
Fire rating30, 60, 90-minute fire-rated ceilings
StandardBS EN 1365-2: 2014
Cut-out72mm
Width82mm
Height120mm (including connectors)
BodySteel body, plastic housing for power connections
Lamp materialHigh-grade aluminium
TerminalsQuick connectors (screwless terminals)
Warranty5 Years

Manufacturer datasheet. Figures as published by the manufacturer.
