All LED Fire Rated Spot Downlight

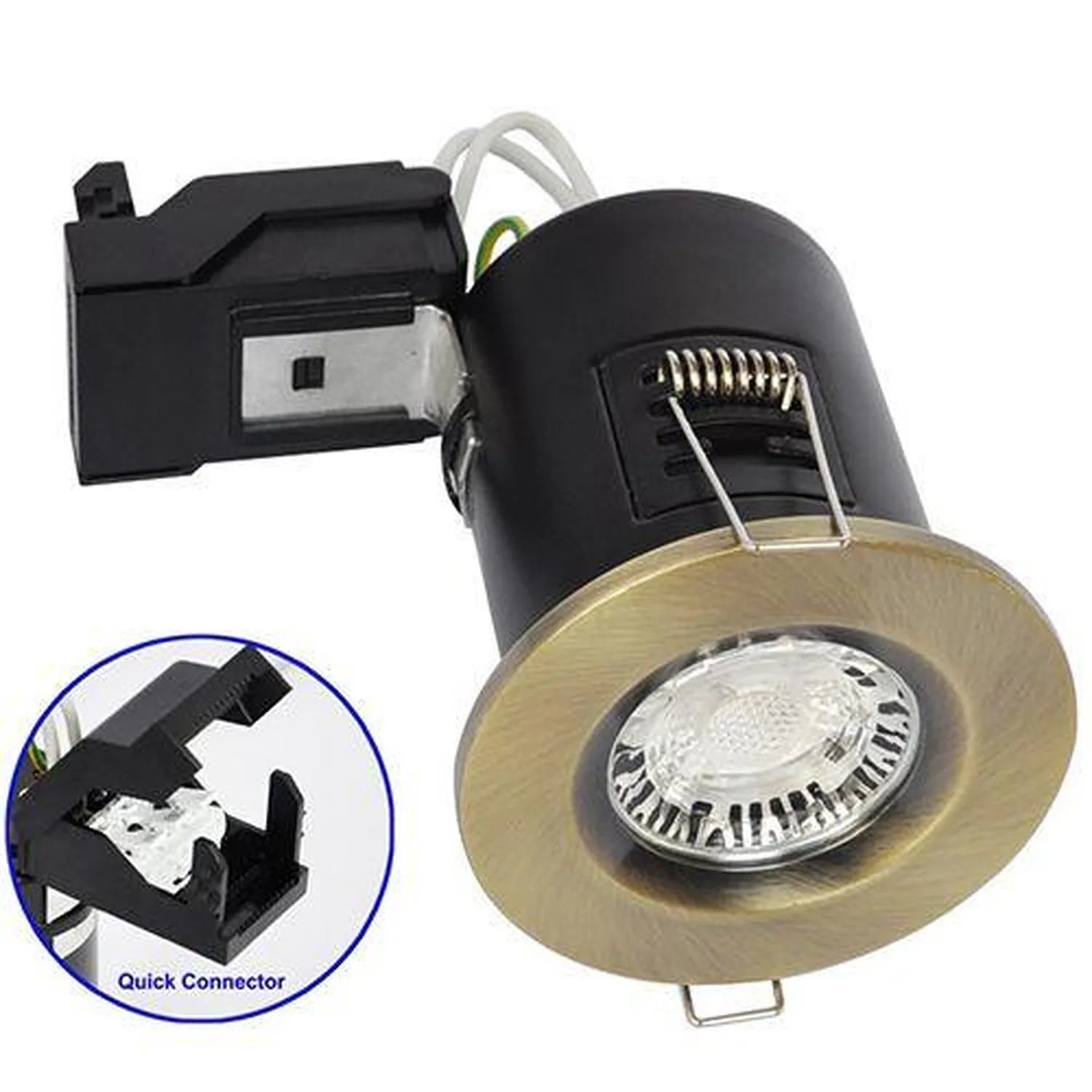

Brass fire-rated LED downlight with quick connector housing detail and wiring visible on white background.

Fire Rated Downlight GU10 6W 2700K Dimmable 90 Minute | Voltaled

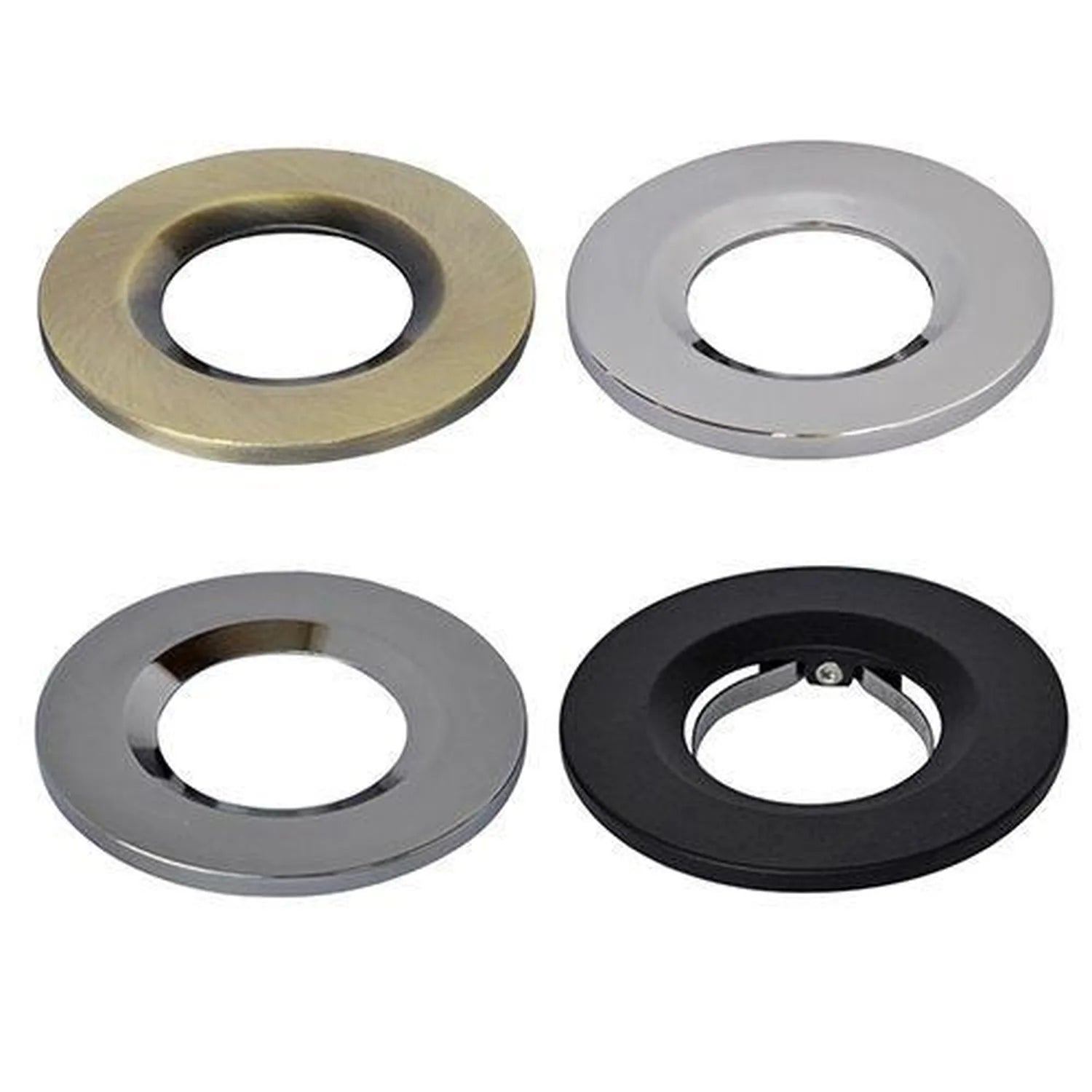

White Ring
£16.79
Skip to product information
Brass fire-rated LED downlight with quick connector housing detail and wiring visible on white background.

Fire Rated Downlight GU10 6W 2700K Dimmable 90 Minute | Voltaled

Vendor
Ledison
SKU
FR-LED-827-FX
Availability
In stock
Weight
0.15 kg

£16.79inc VAT £13.99exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This fire rated downlight from the Voltaled range comes fitted with a dimmable GU10 6W LED lamp in 2700K warm white. Output is 550 lumens. It replaces 50W and 35W halogens, and the fitting is rated for 30, 60 and 90 minute fire-rated ceilings.

Fire rated downlight features

  • Lamp: 6W GU10 LED, 550 lumens
  • Colour temperature: 2700K warm white
  • Beam: 60° beam angle, 1500cd
  • Dimming: dimmable
  • Fire rating: suitable for 30, 60 and 90 minute ceilings, to BS EN 1365-2: 2014
  • Construction: steel body, plastic housing for the power connections and a high-grade aluminium lamp

Where to fit it

Bathrooms, corridors, bedrooms, kitchens and shops are all listed uses. Swapping out an old 50W or 35W halogen spot is the usual job. Warm white at 2700K gives a soft tone for living spaces, and the 60° beam spreads light across the room rather than into a tight spot.

Installation details

Wiring is done through screwless quick connectors. They make the job quicker and cut the risk of a loose connection. Check your ceiling void against the measurements below before you start.

  • Cut-out: 72mm
  • Width: 82mm
  • Height: 120mm (including connectors)

Warranty

The downlight is covered by a 5-year warranty.

Technical Specifications 18 rows Show
FittingFire rated GU10 downlight
LampGU10 6Watt LED
Power6Watt
Colour temperature2700K
Lumen550lumens
Beam angle60°
Intensity1500cd (candela)
Replaces50W and 35W halogens
DimmableYes
Fire rating30, 60, 90-minute fire-rated ceilings
StandardBS EN 1365-2: 2014
Cut-out72mm
Width82mm
Height120mm (including connectors)
BodySteel body, plastic housing for power connections
Lamp materialHigh-grade aluminium
TerminalsQuick connectors (screwless terminals)
Warranty5 Years

Manufacturer datasheet. Figures as published by the manufacturer.
