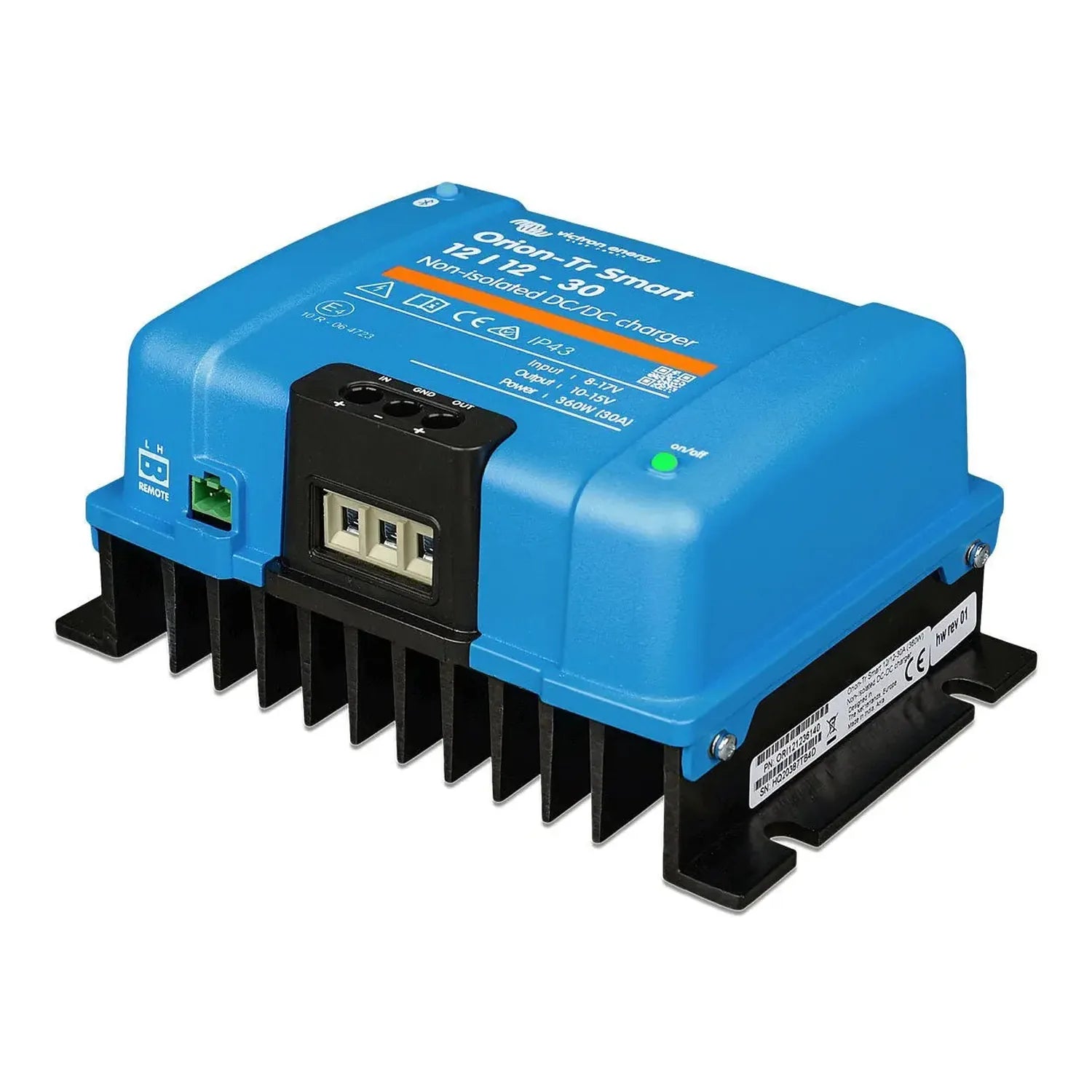

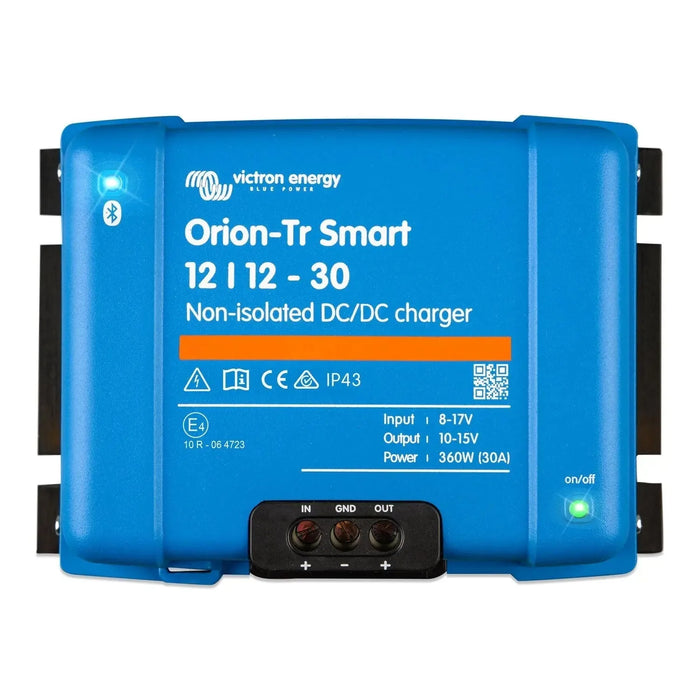

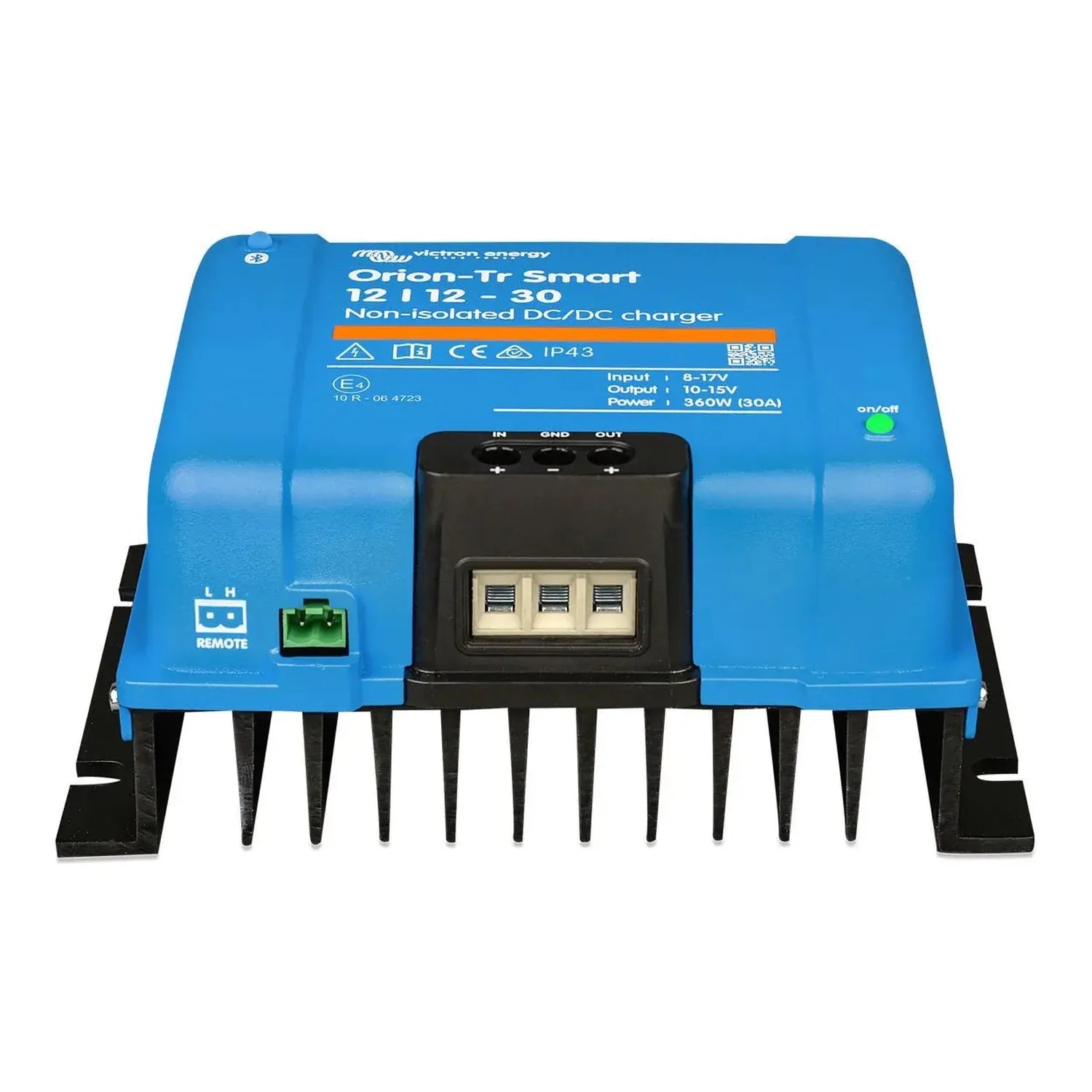

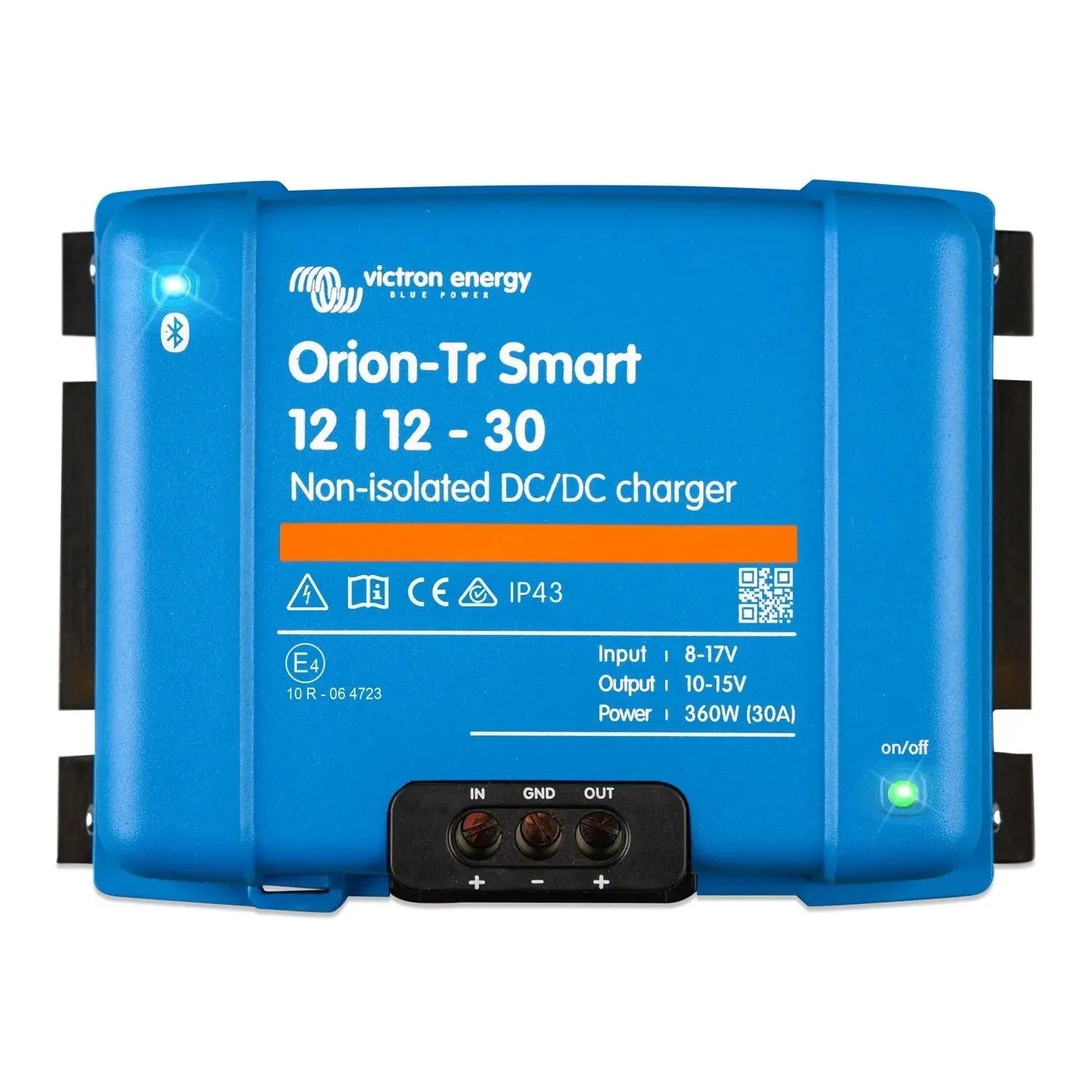

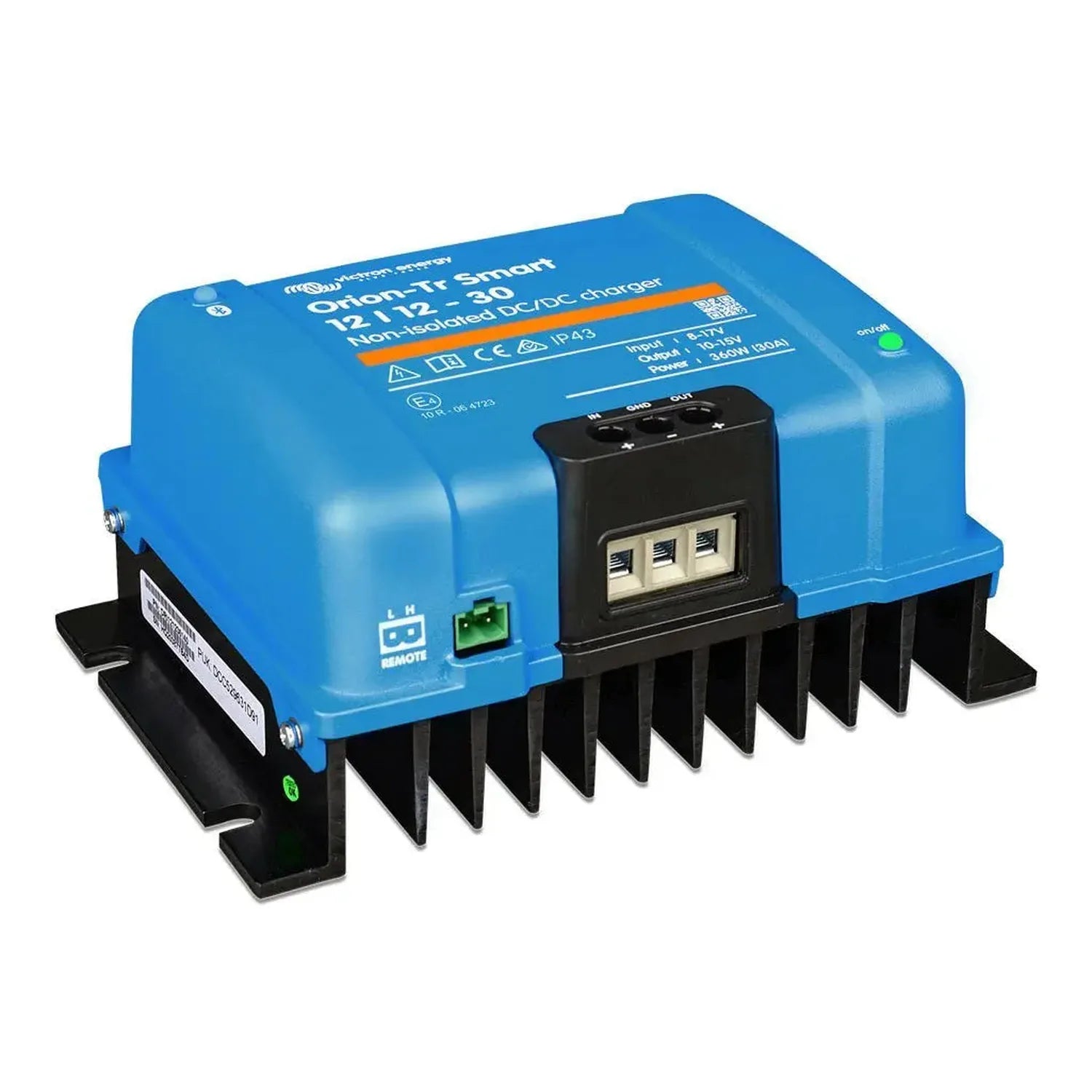

Victron Orion-Tr Smart 12/12-30A Non-Isolated DC-DC Charger 360W | ORI121236140

The Victron Orion-Tr Smart 12/12-30A is a non-isolated DC-DC battery-to-battery charger built for 12V vehicle and marine dual-battery systems. It supplies up to 30A of charge current, delivering up to 360W from a 12V source battery, and is configured over Bluetooth using the VictronConnect app. It suits van conversions, motorhomes, narrowboats and off-grid mobile setups.

Key features of this DC to DC battery charger

• Output: up to 30A at 12V, giving up to 360W of charging power.
• Bluetooth control: built-in Bluetooth with VictronConnect app for setup, monitoring and firmware updates.
• Non-isolated design: shared negative between input and output, simplifying wiring where both batteries sit on one chassis ground.
• Battery profiles: adaptive charge algorithm with selectable profiles for lithium (LiFePO4), AGM, gel and flooded lead-acid.
• Engine detection: senses alternator voltage so the starter battery is not drawn down when the engine is off.
• BMS integration: two-wire BMS connection lets a compatible Victron lithium battery or BMS halt charging on command.

How it works

The Orion-Tr Smart non-isolated range uses a synchronous buck converter. Sharing a common negative between input and output makes it suited to installations where both battery banks sit within the same chassis ground, the usual arrangement in road vehicles and inland waterway craft. Configuration runs entirely through VictronConnect over Bluetooth, where charge voltage, absorption time, float voltage and tail current are set to match the service battery chemistry. For lithium service batteries the two-wire BMS port lets the BMS tell the charger to stop when the battery is full or a cell protection event occurs. Engine detection works from an input voltage threshold, so charging only starts once the alternator raises bus voltage above a configurable level.

The unit weighs 1.8kg and has a compact footprint, so it can be mounted in an engine bay, under a seat or in a battery compartment.

Applications

• Van conversions and campervan builds charging a lithium or lead-acid service battery from the alternator.
• Motorhomes needing split charging between starter and leisure battery banks.
• Narrowboats and canal boats with 12V single-chassis electrical systems.
• Off-grid trailers and expedition vehicles charging a secondary battery from the tow vehicle's alternator.
• Light commercial vehicles running auxiliary loads such as refrigeration, tools or communications equipment.

Installation note

This charger is non-isolated and requires a shared negative between the source and service battery banks. It is not suitable where the two battery systems must be electrically separated, such as most marine installations with separate AC grounding.

What's in the box

• 1x Victron Orion-Tr Smart 12/12-30A Non-Isolated DC-DC Charger (ORI121236140)
