Easy Plan Light 195mm Coplanar Solar Mounting Rail | Voltacon

The Easy Plan Light is a 195mm coplanar solar panel mounting rail built for industrial and residential roofs with a natural pitch. Each piece measures just 195mm, keeping the system light and easy to carry up onto the roof. It's sold per module, with orders covering 1 to 15 modules.

Key features

• Profile length, 195mm per piece
• Weight, 0.55kg per m2
• Fixing, two self-tapping screws with EPDM weatherproof washers per piece
• Max support spacing, 1m
• Orientation, landscape
• Roof type, coplanar, for roofs with a natural tilt angle

Product overview

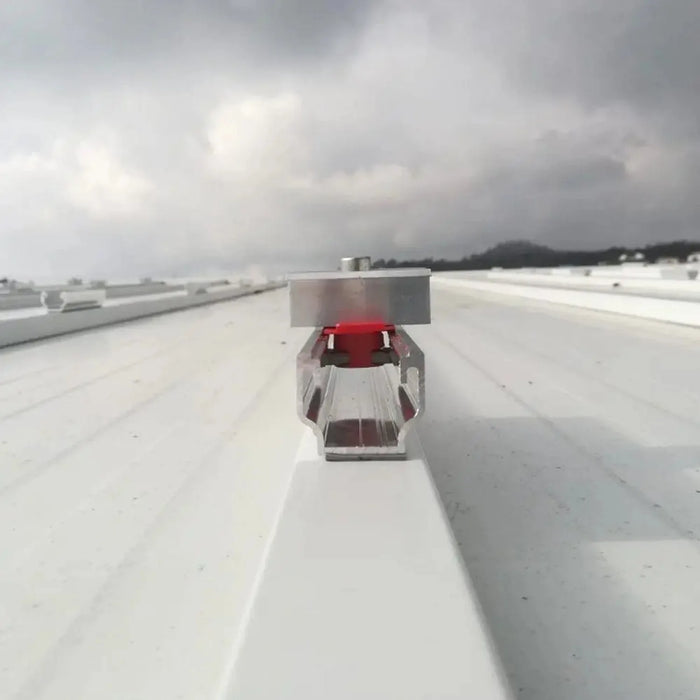

Short 195mm sections replace full-length rails, cutting the weight added to the roof and making the parts far easier to handle, especially on large commercial or industrial rooftops. Each section fixes directly to the roof surface or substructure with two self-tapping screws and EPDM-sealed washers, which stop water getting in at the fixing point.

Applications

Used for coplanar solar PV on industrial and commercial roofs with a natural tilt, and on residential roofs where keeping the added roof load low matters. The lightweight sections also suit large arrays where transport and installation speed are a priority.

Installation and safety notes

Installation must be carried out by a qualified solar installer. Check the roof structure can take self-tapping screw fixings and that every penetration is sealed correctly with an EPDM washer. Confirm roof load capacity before fitting on large arrays.
