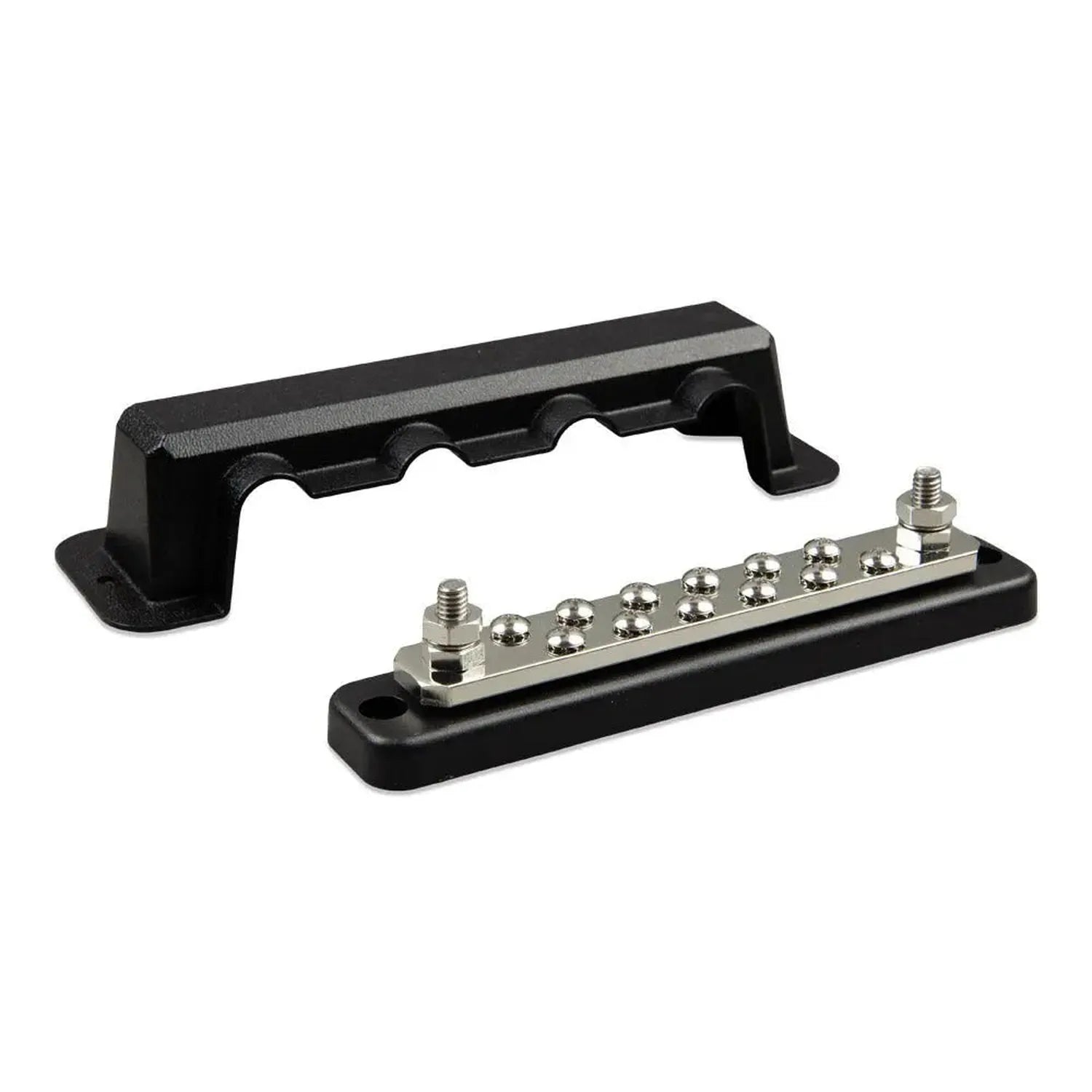

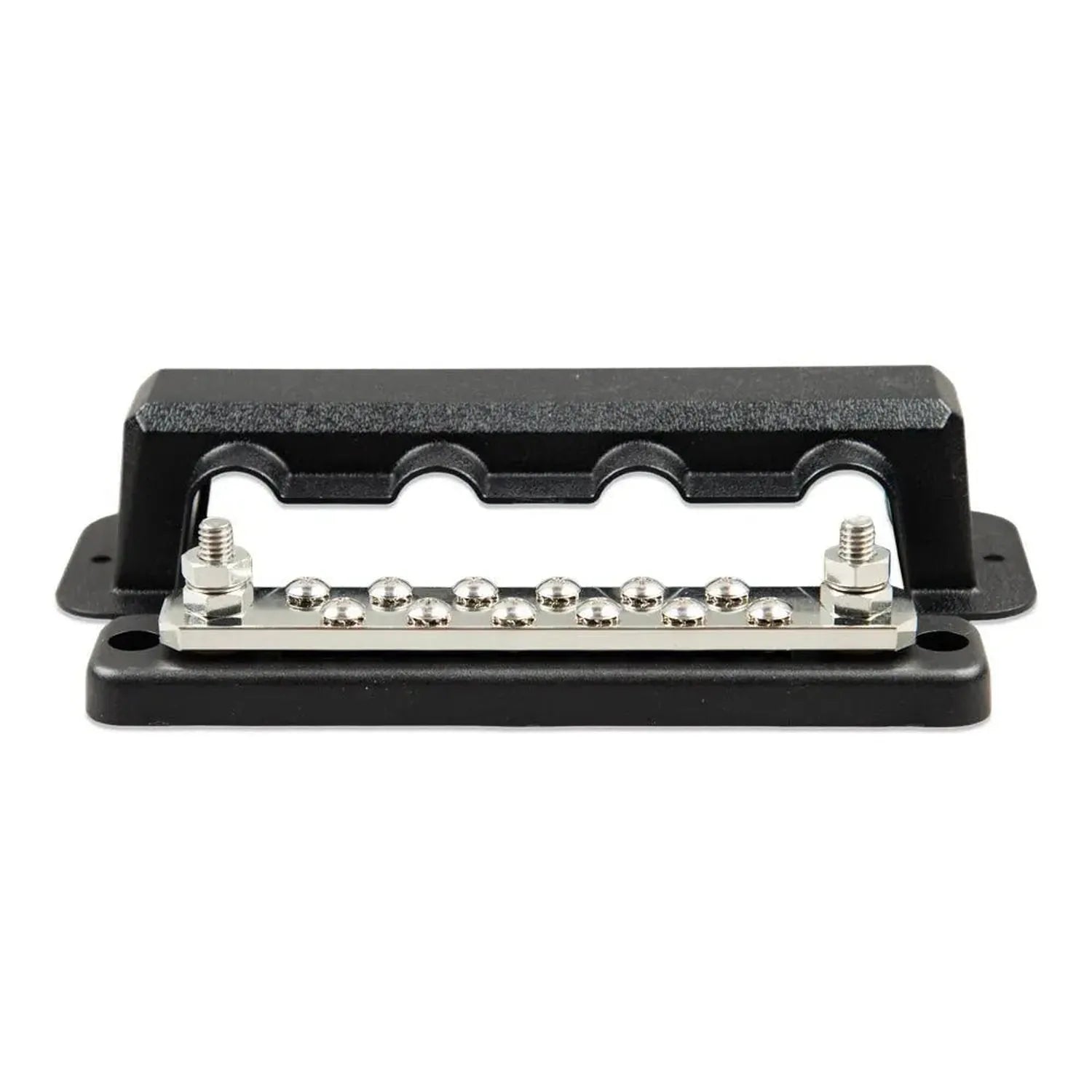

Victron Busbar 250A 2-Pole with 12 Screws and Cover | VBB125021220

The Victron Busbar 250A 2P is a dual-pole busbar rated at 250A, supplied with 12 screws and a protective cover. It gives DC distribution systems, battery banks and inverter installations a single point for terminating multiple positive and negative cables.

Key features

• Current rating, 250A continuous, suitable for high-current DC distribution.
• Configuration, 2-pole design combines positive and negative busbars in one unit.
• Termination points, supplied with 12 screws for cables and fuses.
• Safety cover, protective cover included to guard against accidental contact with live conductors.
• Weight, 0.389 kg, suitable for panel mounting in enclosures and distribution boards.
• Part number, Victron VBB125021220.

Product overview

A busbar replaces daisy-chained cable connections with one low-resistance common point. That matters in battery-based systems, where current paths need to stay short and terminations need to be mechanically secure. Handling both positive and negative rails in one unit keeps the panel layout tidy and reduces the number of separate parts needed.

The included cover prevents accidental short circuits and contact with energised conductors once wiring is complete.

Applications

• DC distribution in off-grid solar systems with battery banks.
• Common termination point in Victron MultiPlus or Quattro inverter installations.
• Marine and motorhome 12V or 24V DC distribution panels.
• Battery cabinet wiring where multiple loads and charge sources share a common bus.
• Commercial and industrial DC distribution boards requiring a rated, covered busbar.

What's in the box

• 1 x Victron Busbar 250A 2-Pole
• 12 x Fixing screws
• 1 x Protective cover
