All 48V Off Grid 230VAC

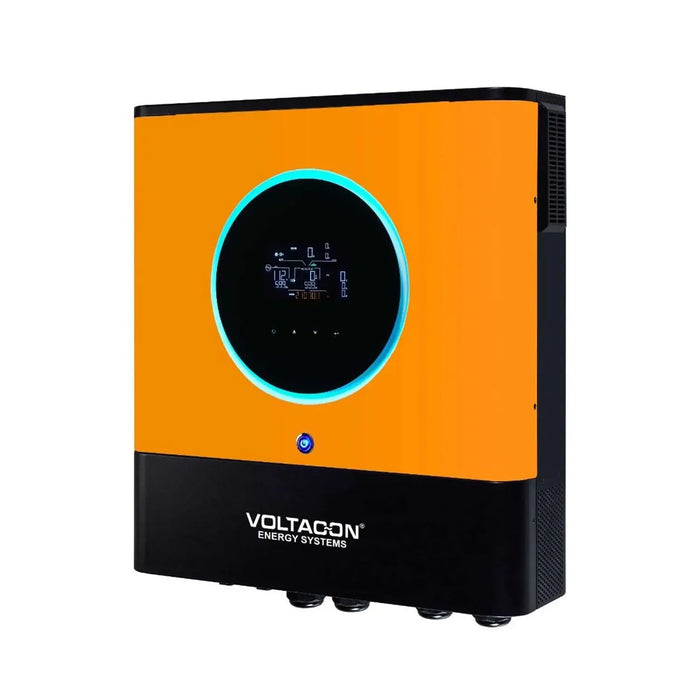

Voltagon Energy Systems orange and black hybrid inverter with cyan circular display screen and control buttons, mounted unit

Conversol Max-II 11kW Off Grid Inverter MPPT Charger 48V Twin Output

£1,155.00
Skip to product information
Voltagon Energy Systems orange and black hybrid inverter with cyan circular display screen and control buttons, mounted unit
Conversol Max-II 11kW Off Grid Inverter MPPT Charger 48V Twin Output

Conversol Max-II 11kW Off Grid Inverter MPPT Charger 48V Twin Output

Vendor
Voltacon
SKU
002691
Availability
Available to order
Weight
24.0 kg

Not in stock right now. We will confirm the lead time before dispatch.

£1,155.00inc VAT £962.50exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Conversol Max-II combines an 11kW off-grid inverter, MPPT solar charger and battery charger in one unit. Its dual MPPT design offers 5500W per controller with 27A PV input current, so it copes with smaller string configurations as well as larger 660W modules. Twin AC outputs, built-in Wi-Fi and broad lithium battery compatibility make it suited to demanding off-grid and hybrid residential or light commercial systems.

11kW off grid inverter features

  • Rated output, 11000VA / 11000W pure sine wave
  • Dual MPPT solar charger, 5500W per tracker, 500VDC max PV input, 90 to 450VDC MPPT range
  • Charge current, up to 150A solar and 150A AC
  • Twin AC outputs, for smart load management across separate circuits
  • Battery compatibility, Pylontech, WECO and Soltaro lithium batteries (LIB, LIC, PYL protocols), plus AGM and lead-acid
  • Monitoring, built-in Wi-Fi, 5-inch colour LCD touchscreen, RS485, CAN-BUS and RS232 BMS communication ports

Product overview

The Max-II runs at 48VDC battery voltage with a 54VDC floating charge voltage. In inverter mode it reaches 93% peak efficiency with a 16,000VA surge capacity. Transfer time is 15ms for PC-grade loads and 20ms for home appliances, keeping supply steady during mains outages or generator switching.

Twin outputs let an installer assign loads to different circuits, giving priority power to critical equipment while secondary loads are managed separately. That matters in off-grid systems where battery capacity has to be watched closely. A built-in anti-dust kit protects internal components where airborne particles are a concern, cutting down on manual cleaning.

Applications

  • Residential and light commercial off-grid solar power systems
  • Hybrid installations with lithium or lead-acid battery storage
  • Backup power for homes and small businesses
  • Three phase systems when several units are run in parallel

Installation and safety notes

This inverter must be installed by a qualified electrician or solar installer. Battery wiring, DC fusing, earthing and ventilation must comply with the manufacturer's guidelines and IET Wiring Regulations. Lithium battery BMS communication must be correctly configured before operation. Do not attempt DIY installation of inverter or battery systems.

Parallel operation is supported for up to 6 units, and the unit carries CE certification.

Technical Specifications 28 rows Show
ParameterValue
ModelConversol MAX II 11000
Power Output11000VA / 11000W
Parallel OperationYes, up to 6 units
Input Voltage230 VAC
Selectable Voltage Range170–280 VAC (computers) / 90–280 VAC (appliances)
Frequency Range50 Hz / 60 Hz (auto sensing)
WaveformPure sine wave
AC Voltage Regulation (Battery Mode)230 VAC ±5%
Surge Capacity16000 VA
Peak Efficiency93%
Transfer Time15 ms (computers) / 20 ms (appliances)
No-Load Consumption<75 W
Battery Voltage48 VDC
Floating Charge Voltage54 VDC
Overcharge Protection66 VDC
Solar Charger TypeMPPT
Maximum PV Array Power11000 W (2 x 5500 W)
MPPT Range90–450 VDC
Maximum PV Open Circuit Voltage500 VDC
Maximum Solar Charge Current150 A
Maximum AC Charge Current150 A
Communication InterfaceUSB / RS232 / RS485 / Wi-Fi / Dry-contact
Dimensions (D x W x H)158.4 x 503.6 x 530.8 mm
Net Weight20 kg
Operating Temperature-10°C to 50°C
Storage Temperature-15°C to 60°C
Humidity5–95% RH (non-condensing)
ComplianceCE

Manufacturer datasheet. Figures as published by the manufacturer.
