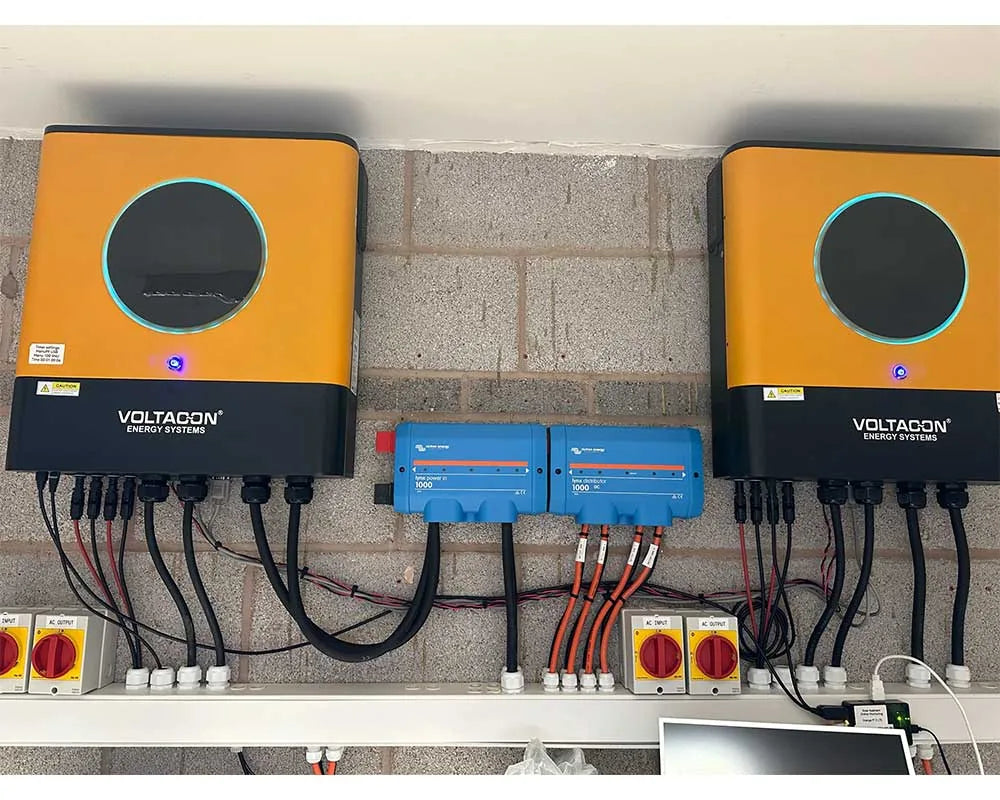

Single Phase Off-Grid System with 8kW Conversol MAX

Voltacon installed a domestic off-grid system built around an 8kW Conversol MAX inverter, delivering a 16kW power supply for a 5-bedroom house.

This configuration is one of the most requested setups Voltacon supplies. It doesn't require a licence or DNO approval, and the inverters don't feed power back to the grid, so the consumer has flexibility over how they use the energy they produce.

The system has built-in redundancy. If one inverter fails, the other keeps supplying electricity, giving the household backup even in a worst-case scenario. It's sized to run a full 5-bedroom house, and it only switches back to grid power on rare occasions when extra energy is needed.

A programmable timer connects the inverter to the mains to charge the batteries during low-cost tariff periods, reducing running costs further.

The batteries installed in this system store 30kWh, with capacity to add more batteries at any time as demand grows.

• Inverter: 8kW Conversol MAX
• Power supply: 16kW
• Battery storage: 30kWh, expandable
• Property type: 5-bedroom house
• Grid connection: No DNO approval or licence required

Products used in this project

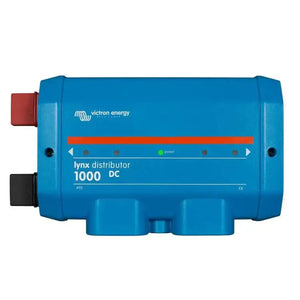

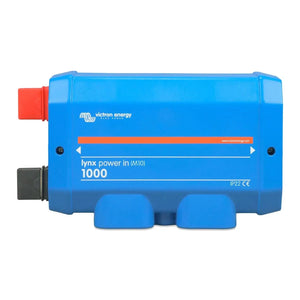

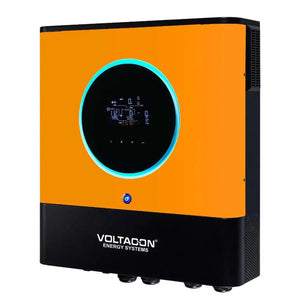

8kW Off Grid Inverter Charger 150A MPPT £1,092.00 inc VAT £910.00 exc VAT Victron Lynx Distributor M10 DC Busbar Module £146.98 inc VAT £122.48 exc VAT Victron Lynx Power In M10 DC Busbar Module £106.04 inc VAT £88.37 exc VAT Pylontech US2000C 48V 2.4kWh Lithium Ion Phosphate Battery £682.50 inc VAT £568.75 exc VAT Indoor Silent Power Cabinet for Pylontech US2000C 2.4kWh Batteries £672.53 inc VAT £560.44 exc VAT
