LED AR111 12.5W G53 230V - Dimmable

Ref: AR111-15750-3K

£21.90

Price inc VAT

Professional AR111 Reflector CREE 12W 230VAC Input

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £21.24 Save 3%
12 Items £20.59 Save 6%
24 Items £20.15 Save 8%
Description
Specification
Downloads
Description

Professional AR111-Reflector 12.5Watt

The AR111 Vegas series is also available with external driver which is connected directly to the mains voltage 110-240VAC. This solution offer greater flexibility because there is no need for a 12V bus. The AR111 LED fits into standard gimbles widely used in the hospitality and retail sector. You can view the full specifications and size of the LED driver in the next tab.

Built in TCS (Temperature Control System)

This built-in control system protects the electronics inside the lamp against overheating and guarantees its life time.

Energy savings without compromises

This is direct replacement for halogen AR-111 (50Watt and 75Watt). The LEDISON AR-111 can be connected to 110V or 230Vac supply. Modifications or rewiring is not required.

Vega AR111 dimming functions

The AR111 is dimmable with the most popular dimming methods such as DALI, AC triac and 1-10V. The Glacial LED driver (a leading manufacturer of power supplies) will provide stable, smooth and flicker-free dimming.

Accentuate the colours and features of your products

The accent light of AR111 (with special lens) focuses the 28deg beam on the specific objects.

/media/s_products/library/ar111-led-dimmable-ac-triac-driver.jpg

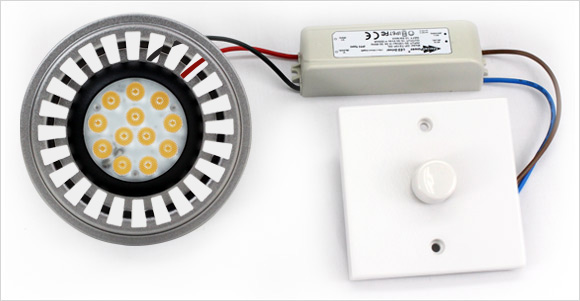

AR111 with external 230VAC driver connected to an AC-Triac dimmer switch

Accredited Certification

/live/pages/cree-leds-rohs-kema.jpg

Incandescent wattage equivalent suggested by Voltacon: 75watt



Installation of LED AR111 lamps in a shopping centre

Specification

Electrical Specifications

Fitting:

G53

Luminous Flux

>1125lm

Watt:

12.5 Watt

Color Rendering Index

>80

Voltage:

110-230VAC

Typical Efficiency

>90lm/watt

Line Frequency:

50/60Hz

Beam Angle

28 deg

Average Lifetime:

50,000hours

Outer diameter

111mm

Color Temperature:



Height

62mm

Warm White:

2700k

Inner diameter

88.6mm

Natural White:

4200k

Dimmable

Ultra Dimmable

Intensity (cd)

1600

Warranty

5 Year

Operating Temp:

-25 OC to 50 OC

Power Factor

0.95



Bundle LED drivers, included in the package.

GP-TS10P-42L (for AC-TRIAC 100-120V AC). GP-TS10P-42H (for AC-TRIAC 200-240V AC)

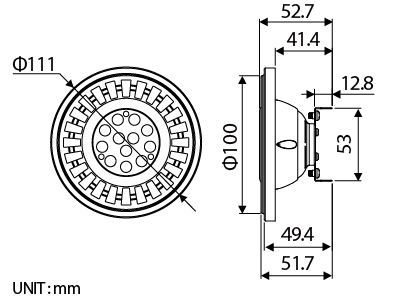

Mechanical Dimensions

/media/s_products/library/ar111-v2-dimensions-12w.gif

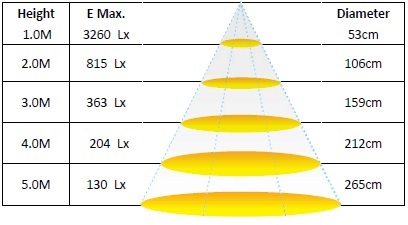

Luminous Intensity Distribution Diagram 28deg

/media/s_products/library/ar111-light-distribution-diagram.jpg

Light Distribution in Candelas

 /media/s_products/library/led-ar111-v2-12-light-distribution.gif

Downloads

Technical Manual

AR111 Gimbal housing installation instructions

AR111 LED Gimbal installation instructions

Download

LED AR111 VEGA G53 external LED driver wiring instructions

LED AR111 Spot Light with external power supply - installation instructions

Download

Operation of Multiple LED AR111

Multiple AR111 LED connection to one LED driver Wiring Instrucitons

Download
