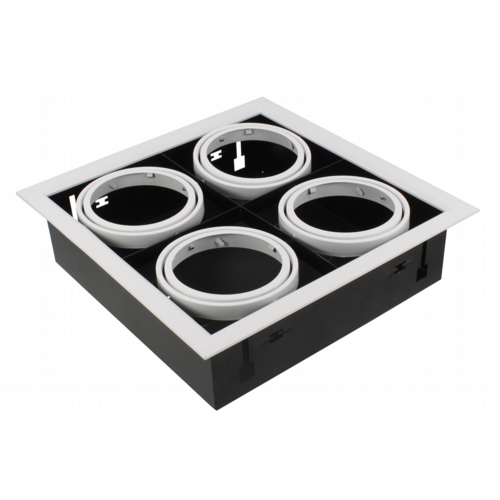

Gimbal Quadruple fixture AR111 housing without lamp

Ref: AR111GL4W

£41.50

Price inc VAT

AR111 Vega adjustable gimbal fo Four LED G53 & GU10 Spots

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £40.26 Save 3%
12 Items £39.01 Save 6%
24 Items £38.18 Save 8%
Description
Specification
Downloads
Description

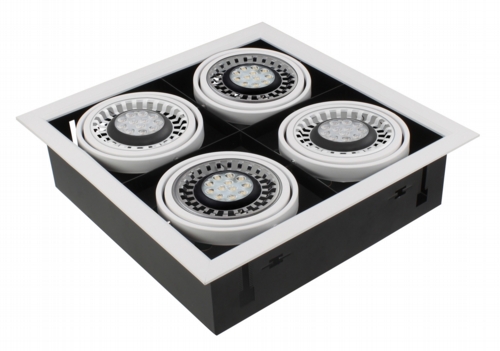

VEGA Gimbal 4 AR111 LED

The AR111 Square Gimbal kit is made with a dual ring "gimbal" system for rotating horizontally and vertically up to 180 degrees. The VEGA trim is made of aluminum and steel housing. It has a very sturdy and flexible structure that makes it number one solution for accent lighting in shops, restaurants and showrooms.

Compatibility

The AR111 Square Gimbal Housing Kit will accomodate  the AR111 LED 12V and AR111 LED 230V in dimmable and non-dimmable versions . This housing is drop-in replacements for old fashioned AR111 Halogen bulbs.

Dimensions: 357x 357mm. Cut-Out: 320x320mm

Functions

  • The gimbals allow free rotation in 2 axis.
  • Standard Square shape for easier installation
  • Compatible with high efficiency Vega AR111 LED
  • IP20 rated for safe installation in hospitality and retail sectors.
  • You can read our installation guide, it is easy and quick to install one of this.

 Mechanical Dimensions

Specification

Specification Table

Type Triple fixture (for 3 lamps) Quadruple fixture (for 4 lamps)
Part No. AR111GL3W AR111GL4W
External Dimensions 500mm(L) x 190mm(W) x 130mm(H) 357mm(L) x 357mm(W) x 165mm(H)
Fixture Hole 460mm x 160mm 320mm x 320mm
Compatible With GL-AR111 series
Materials/ Color Aluminum trim with steel housing
Net Weight 1200 g 1500 g
Packing 9 PCS / carton 4 PCS / carton
Downloads

Technical Manual

AR111 Gimbal housing installation instructions

AR111 LED Gimbal installation instructions
