DRACO LED Flood Light 30W
Ref: FL-DR30W£36.20
Price inc VAT
| Bulk Savings £££ | ||
|---|---|---|
| # Items | Our Price | Savings |
| 6 Items | £35.11 | Save 3% |
| 12 Items | £34.03 | Save 6% |
| 24 Items | £33.30 | Save 8% |
Description
Specification
Description
draco led fLOOD LIGHT 30wATT
An affordable solution for outdoor lighting in gardens, yards, loading bays or as a security light with motion detection sensor. The Surface Mounted Devices (SMD) are
Ideal replacement for 100W Halogen
Electrical Specifications
- 30Watt Total Energy Consumption
- 3750 Luminous Flux
- IP65 Suitable for Outdoor Use
- Universal Input Voltage 100-240VAC

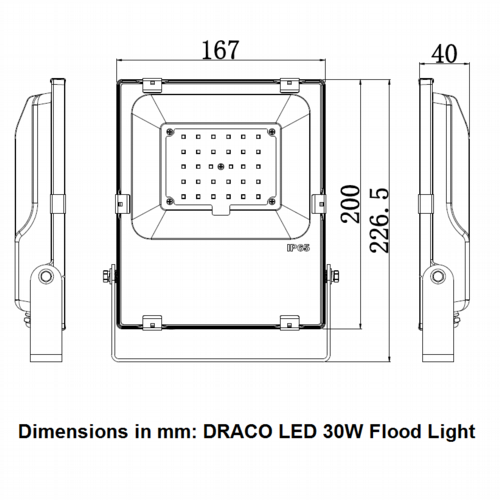

MECHANICAL DIMENSIONS
200*167*40mm
Specification
Specifications
| Electrical Data | Photometrical Data | ||
|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | Warm;Natural;Daylight |
| Type of current | AC100-277V | Available color temperatures | 3000K;4000K;5000K; |
| Power factor | >0.9 | Color rendering index Ra | >70 |
| Efficiency in % | >90% | Standard deviation of color matching | <5 |
| Start time (0.2s / 0.5s / ) | 0.1S | UGR (Unified Glare Rating) | <23 |
| Warm-up time to 60 % (2s) | 0.5S | Available beam angles | 120° |
| Standards Certification | Temperatures Operating Conditions | ||
|---|---|---|---|
| Type of protection | IP65 | Operating temp | 20~+60℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -30~+45℃ |
| Safety features | Open circuit protection; short circuit protection ; overvoltage protection |
Storage temperature | -40~+80℃ |
| Certificates | CE ROHS | ||
| Energy efficiency class | A+ | ||
