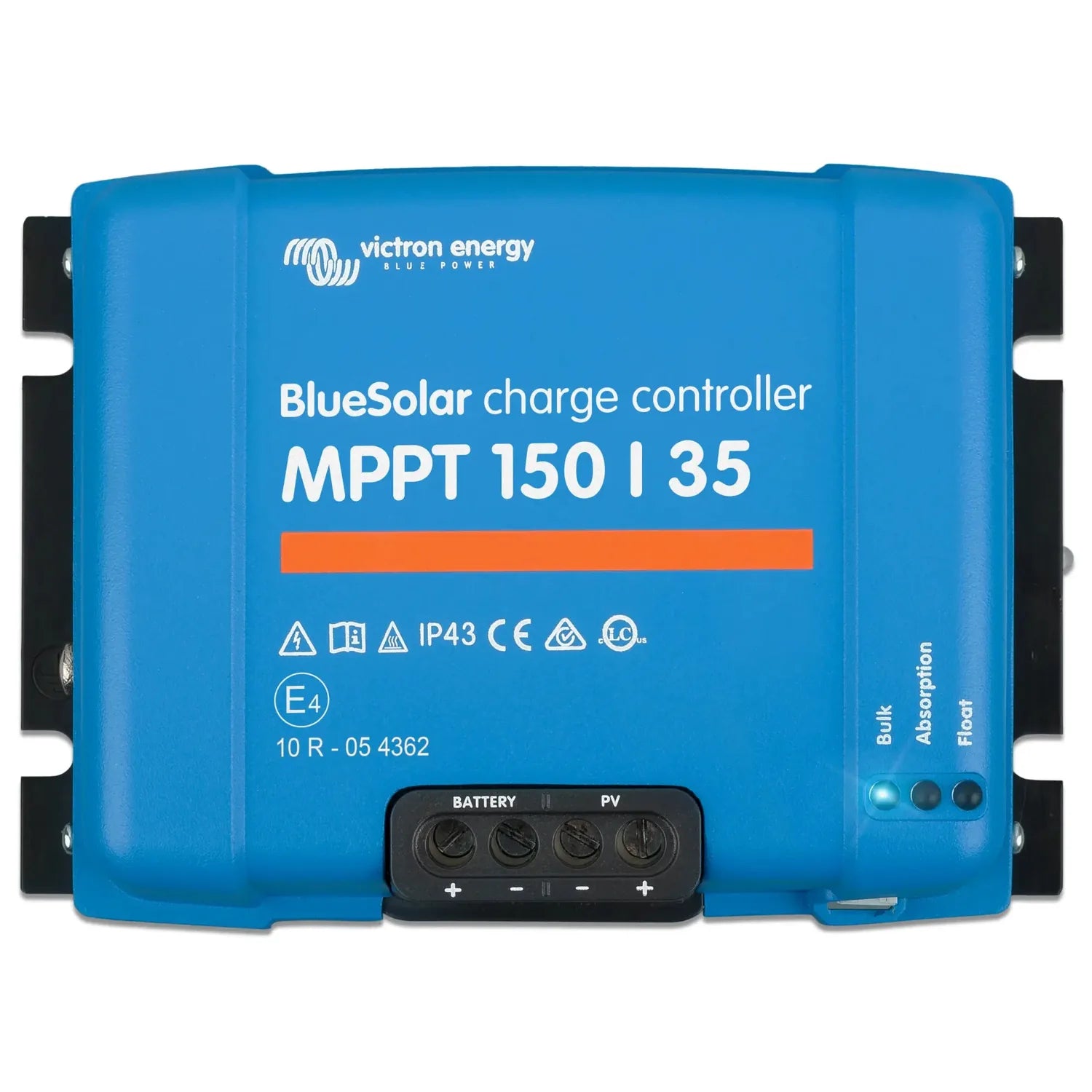

Victron BlueSolar MPPT 150/35 Solar Charge Controller | SCC020035000

The Victron BlueSolar MPPT 150/35 is a solar charge controller for off-grid and battery-based systems, rated for a 150V open-circuit input and a 35A maximum charge current. It suits installations where dependable battery charging matters more than wireless monitoring.

Key features

• Input voltage, up to 150V PV open-circuit, allowing panels wired in series.
• Charge current, 35A maximum output.
• Battery systems, 12V, 24V and 48V, detected automatically on start-up.
• Battery types, lithium (LiFePO4), AGM, gel and flooded, with configurable charge profiles.
• Load output, built-in DC load terminal with programmable low-voltage disconnect.
• Weight, 1.4 kg, suitable for panel or wall mounting.

How it works

The unit uses Victron's multi-point MPPT algorithm to track the peak power point of the connected array, which helps in changing light conditions where a fixed-voltage controller would lose available energy. Series-wired panel strings up to 150V reduce cable losses and give more flexibility in array layout.

Monitoring and configuration

This model has no Bluetooth. Setup and monitoring go through the VE.Direct port, using a VE.Direct cable with a Color Control GX, Cerbo GX or a PC running VictronConnect. Anyone wanting wireless monitoring should look at Victron's SmartSolar range instead.

Applications

Used in off-grid cabins, marine and narrowboat systems, motorhomes with series-wired panels, and rural or small commercial battery banks connected to Victron GX monitoring equipment.

What's in the box

• Victron BlueSolar MPPT 150/35 charge controller
