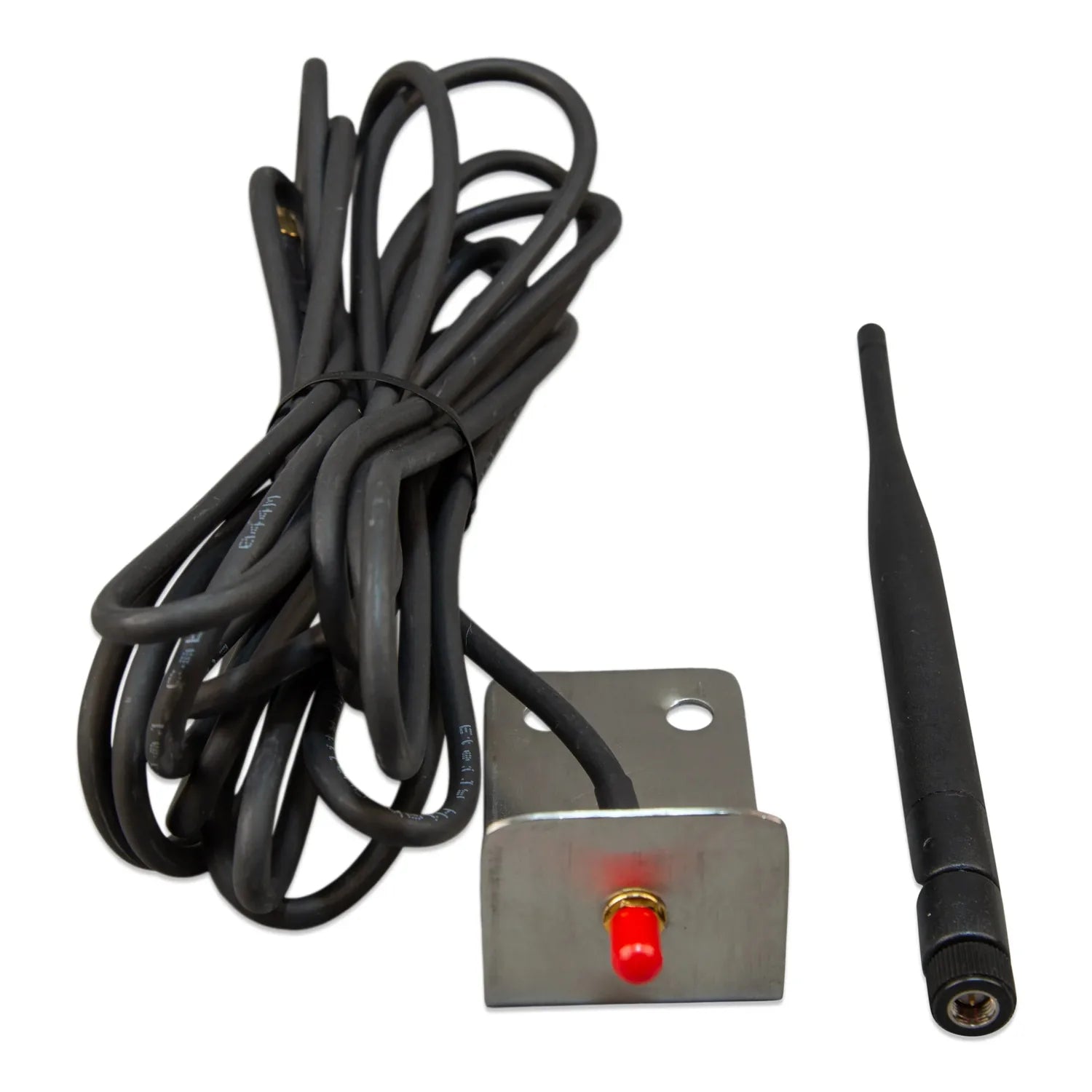

Victron outdoor LTE-M antenna kit with metal wall-mount bracket, red indicator light, black coaxial cable, and external anten

Victron Outdoor LTE-M Wall-Mount Antenna 5m Cable | ANT100200100

£40.31 £44.59
Skip to product information
Victron outdoor LTE-M antenna kit with metal wall-mount bracket, red indicator light, black coaxial cable, and external anten
Victron Outdoor LTE-M Wall-Mount Antenna 5m Cable | ANT100200100

Victron Outdoor LTE-M Wall-Mount Antenna 5m Cable | ANT100200100

Vendor
Victron Energy
SKU
ANT100200100
Availability
In stock
Weight
0.335 kg

Was£44.59£37.16Save £4.28Save £3.57

£40.31inc VAT £33.59exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Victron Outdoor LTE-M Wall-Mount Antenna extends the reach of Victron cellular monitoring equipment into locations where the internal antenna cannot hold a signal. Supplied with a 5 metre cable, it lets you fix the antenna to an exterior wall while the monitoring unit stays inside a building or enclosure.

Key features

  • Built for LTE-M frequency bands used by Victron cellular monitoring devices
  • Outdoor-rated for permanent exterior wall mounting
  • Supplied with a 5m cable for flexible positioning away from the monitoring unit
  • Wall-mount form factor keeps the antenna fixed and correctly orientated
  • Weighs 0.25 kg
  • Compatible with Victron monitoring products that support an external LTE-M antenna connection

Applications

Off-grid solar systems in areas with marginal LTE-M coverage benefit most, along with remote battery storage sites where the monitoring device sits inside a metal enclosure that blocks internal reception. It also suits marine or static installations that need a permanently mounted external antenna, or any setup where the monitoring unit is housed indoors with poor cellular signal.

Installation notes

Check that your Victron monitoring device has an external antenna port before fitting. Mount the antenna on an exterior wall, ideally with a clear line towards the nearest cell tower, and route the cable without sharp bends that could damage the coaxial core. Seal any wall penetrations against moisture. Fitting the connected equipment should be carried out by a qualified installer familiar with Victron systems.

What's in the box

  • 1x Outdoor LTE-M wall-mount antenna
  • 1x 5m antenna cable
