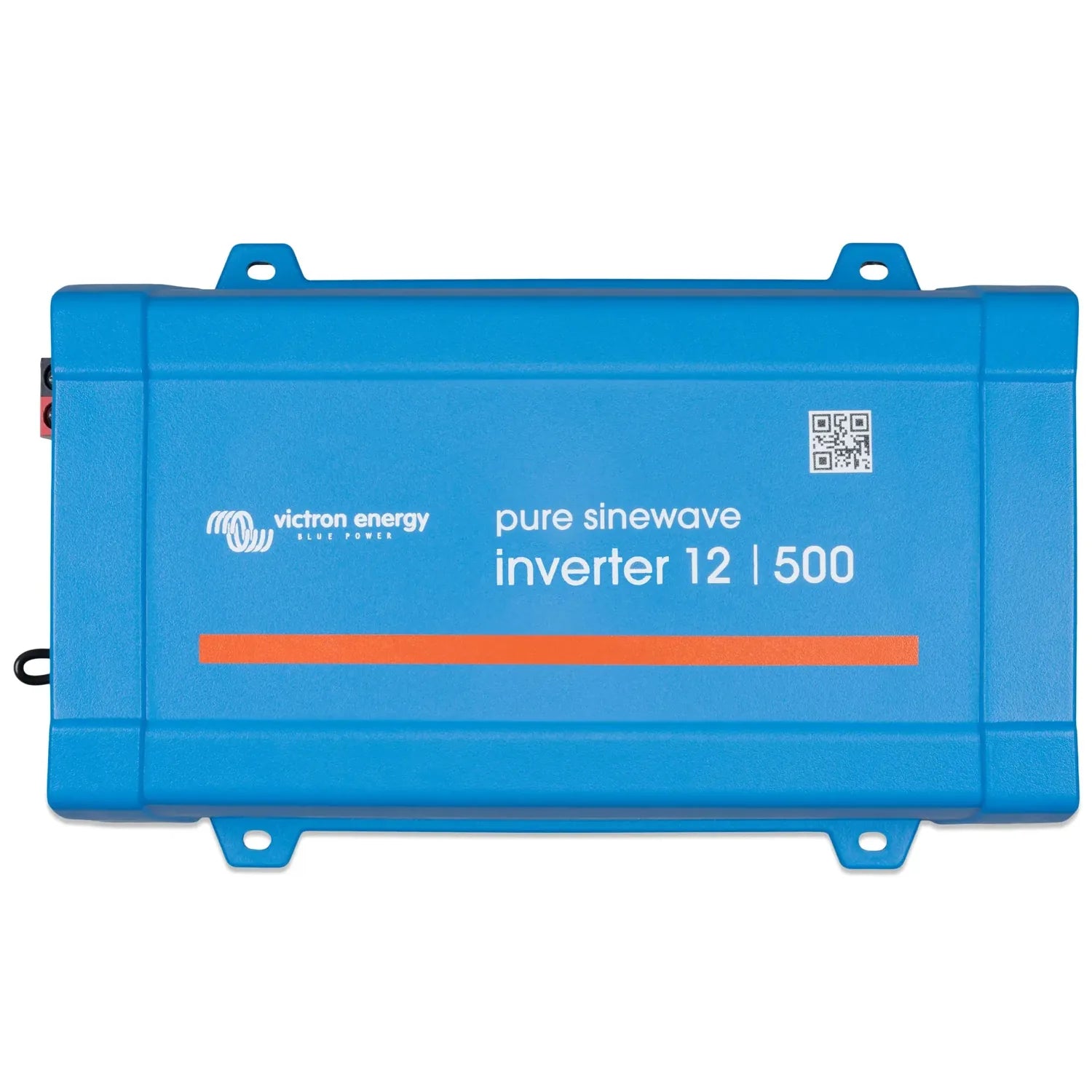

Victron Inverter 12/500 230V VE.Direct SCHUKO | PIN121501200

The Victron Inverter 12/500 converts 12V DC from a battery bank into 230V AC pure sine wave output, rated at 500VA continuous. It's built for mobile, marine and small off-grid setups where a dependable AC supply is needed from a 12V system. A SCHUKO socket is fitted as standard, and a VE.Direct port lets it talk to Victron monitoring gear.

Key features of this Victron inverter

• Output, 500VA continuous, 230V AC, from a 12V DC input.
• Waveform, pure sine wave, suitable for motor-driven appliances, medical devices and audio equipment.
• Communication, VE.Direct port for connection to a Color Control GX, Cerbo GX, or a PC via a VE.Direct to USB interface.
• Output socket, SCHUKO (Type F), ready for European-standard plugs.
• Protections, low and high battery voltage shutdown, overload, short circuit and over-temperature.
• Weight, 4.1kg.

Product overview

The 12/500 sits at the entry point of Victron's VE.Direct inverter range, covering loads such as laptops, LED lighting circuits, small power tools and low-wattage kitchen appliances. Many switch-mode power supplies and motor-driven loads run cooler and more efficiently on pure sine wave than on a modified sine wave, and some equipment simply won't run on anything else.

The VE.Direct port sets it apart from basic inverters at this size. It reports AC output power, battery voltage and alarm states to a GX device, or to VictronConnect through a compatible interface, so installers building monitored off-grid or vehicle systems can see consumption in real time.

Protection thresholds are factory-set for standard lead-acid and AGM batteries. Low-voltage shutdown guards against deep discharge, and over-temperature protection reduces output or shuts the unit down if it runs too hot, which matters in poorly ventilated installations. Keep clearance around the unit for airflow.

Applications

• Campervans and motorhomes needing a 230V AC supply from a 12V leisure battery.
• Small vessels needing AC power for navigation equipment or domestic appliances.
• Off-grid cabins or garden buildings running a 12V battery system.
• Vehicle-based work setups powering tools or laptop chargers.
• Backup power for low-wattage critical loads during short mains outages.

What's in the box

• Victron Inverter 12/500 230V VE.Direct SCHUKO unit
• DC connection cables
• Documentation and quick-start guide
