Victron EM24 3-Phase Energy Meter Ethernet 65A | REL200200100
Sale price
£75.59
Regular price £85.04
Skip to product information
Victron EM24 3-Phase Energy Meter Ethernet 65A | REL200200100
- Vendor
- Victron Energy
- SKU
- REL200200100
- Availability
- In stock
- Weight
- 0.44 kg
Was£85.04£70.87Save £9.45Save £7.88
£75.59inc VAT £62.99exc VAT
Secure checkout
Talk to our sales team
Product Description

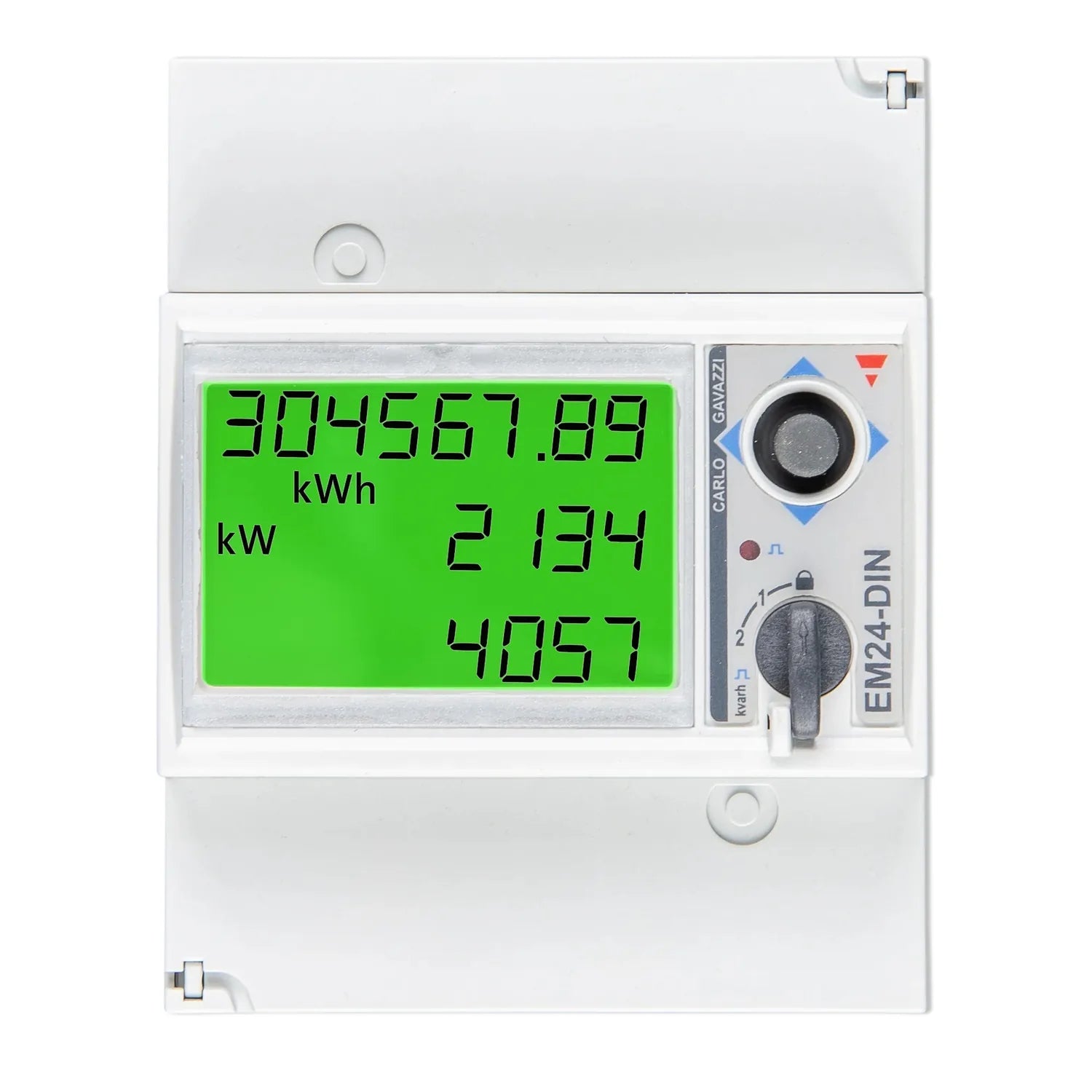

The Victron EM24 is a 3-phase energy meter built for use with Victron GX devices. It reads energy consumption and generation across all three phases and connects over Ethernet, giving installers real-time data for grid management on commercial, industrial and larger residential solar systems.
Victron EM24 ethernet energy meter: key features
- Phases, measures energy across all three phases.
- Maximum current, 65A per phase.
- Connectivity, Ethernet, for direct integration with Victron GX devices and the VRM portal.
- Bidirectional reading, measures both import and export energy, suitable for grid-tied solar and feed-in tracking.
- Mounting, DIN rail.
- Compatibility, works with the full range of Victron GX products, including Cerbo GX and Venus GX.
How it fits into a Victron system
The EM24 connects directly to a Victron GX device over Ethernet, so no extra converter or gateway is needed. Because it reads energy flow in both directions, it correctly accounts for grid consumption and export. Placed at the grid connection point, it lets the GX system calculate self-consumption, import and export figures. Positioned on a sub-circuit instead, it can monitor a specific load or generator input.
Applications
- Grid consumption and export monitoring in 3-phase solar PV systems.
- Self-consumption optimisation in commercial Victron installations.
- Feed-in metering for systems with grid export capability.
- Sub-metering of specific loads or circuits.
- Generator monitoring in off-grid or hybrid 3-phase systems.
- Remote monitoring and reporting through the Victron VRM portal.
Installation notes
Installation must be carried out by a qualified electrician, connecting directly into the AC distribution board or consumer unit at the measurement point. For grid-connected solar PV systems in the UK, work must comply with G98 or G99 requirements as applicable, carried out by an MCS-accredited installer or suitably qualified engineer. Check GX device firmware is up to date before fitting.
What's in the box
- 1 x Victron Energy Meter EM24 3-phase Ethernet unit
