Victron Ekrano GX Touchscreen Monitoring Panel | BPP900480100

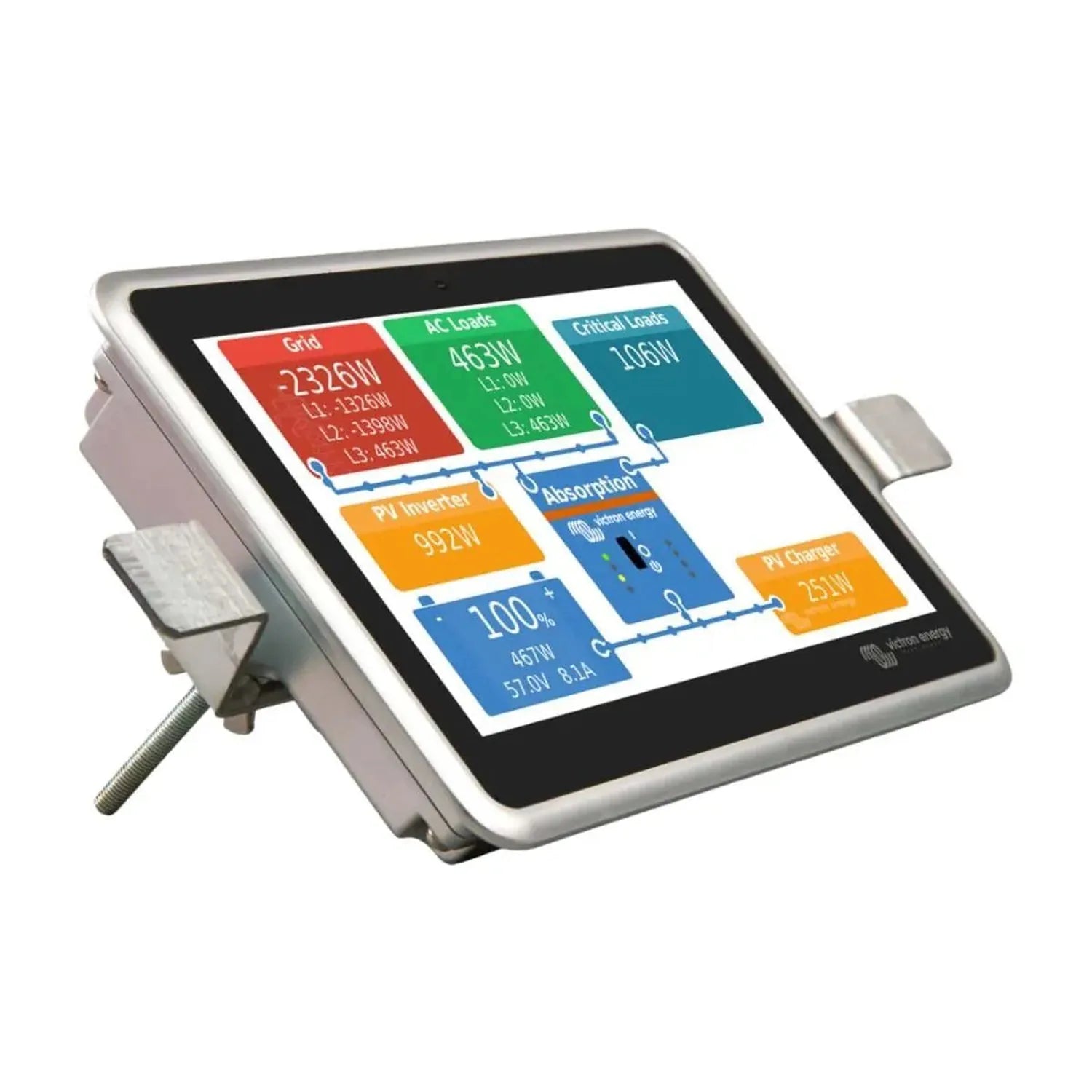

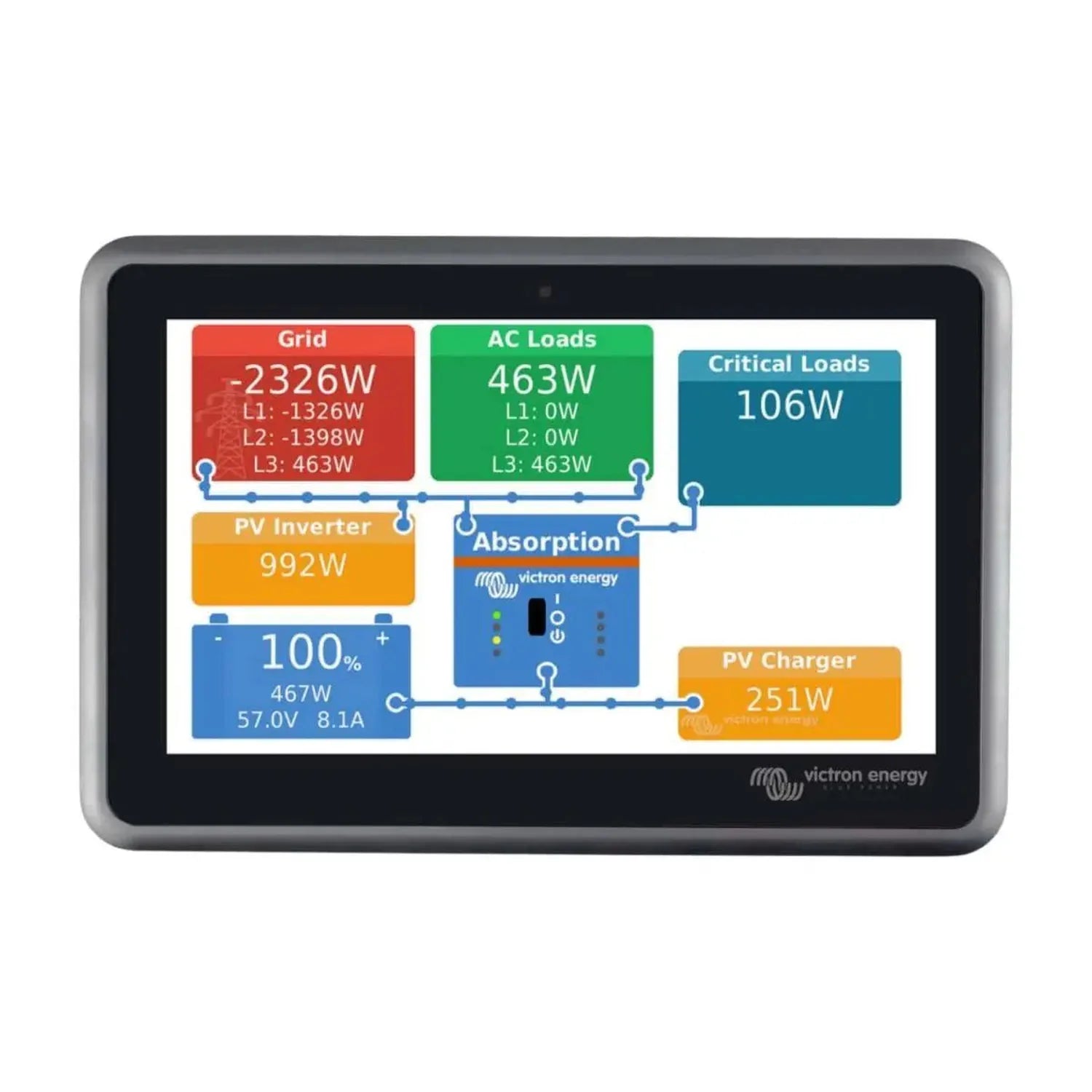

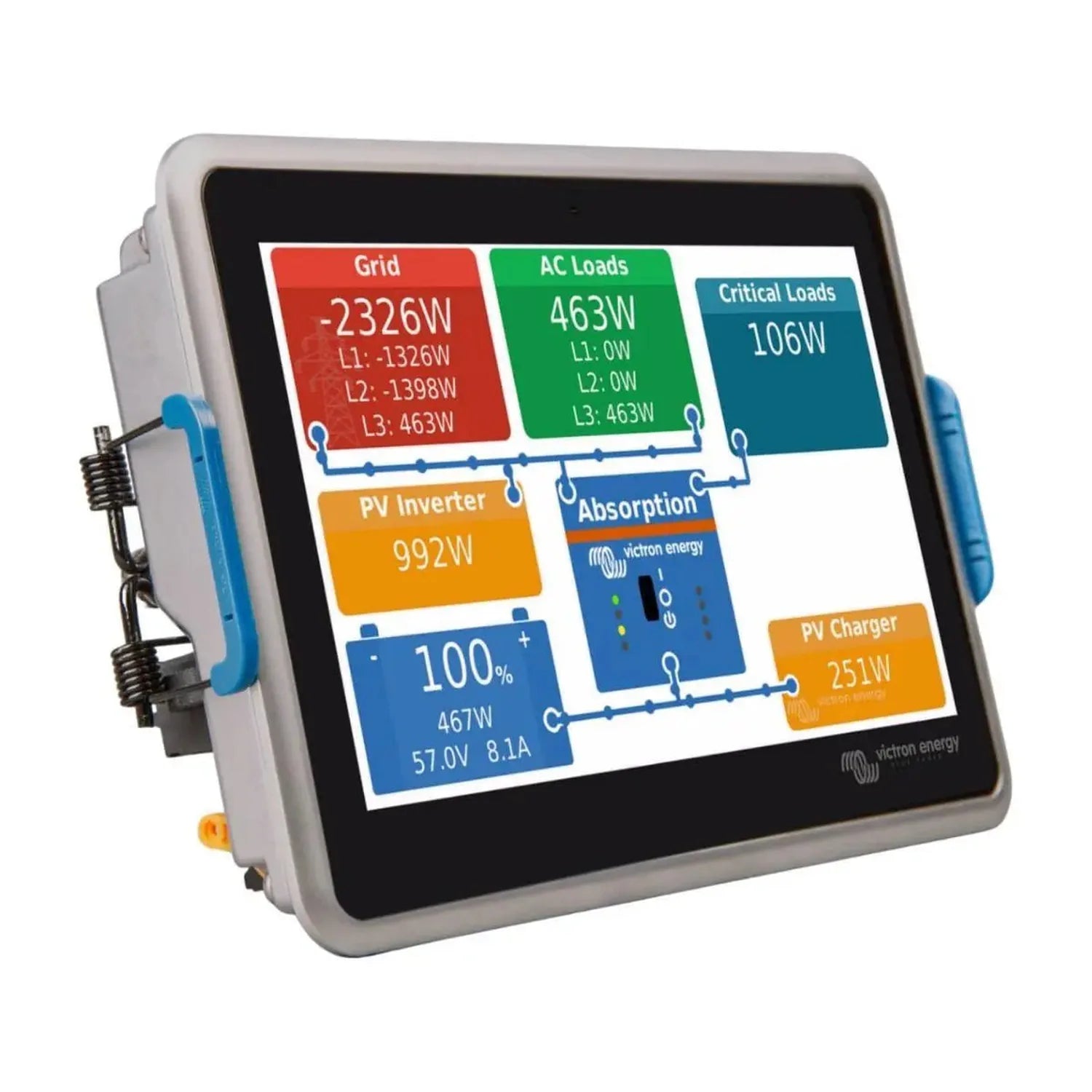

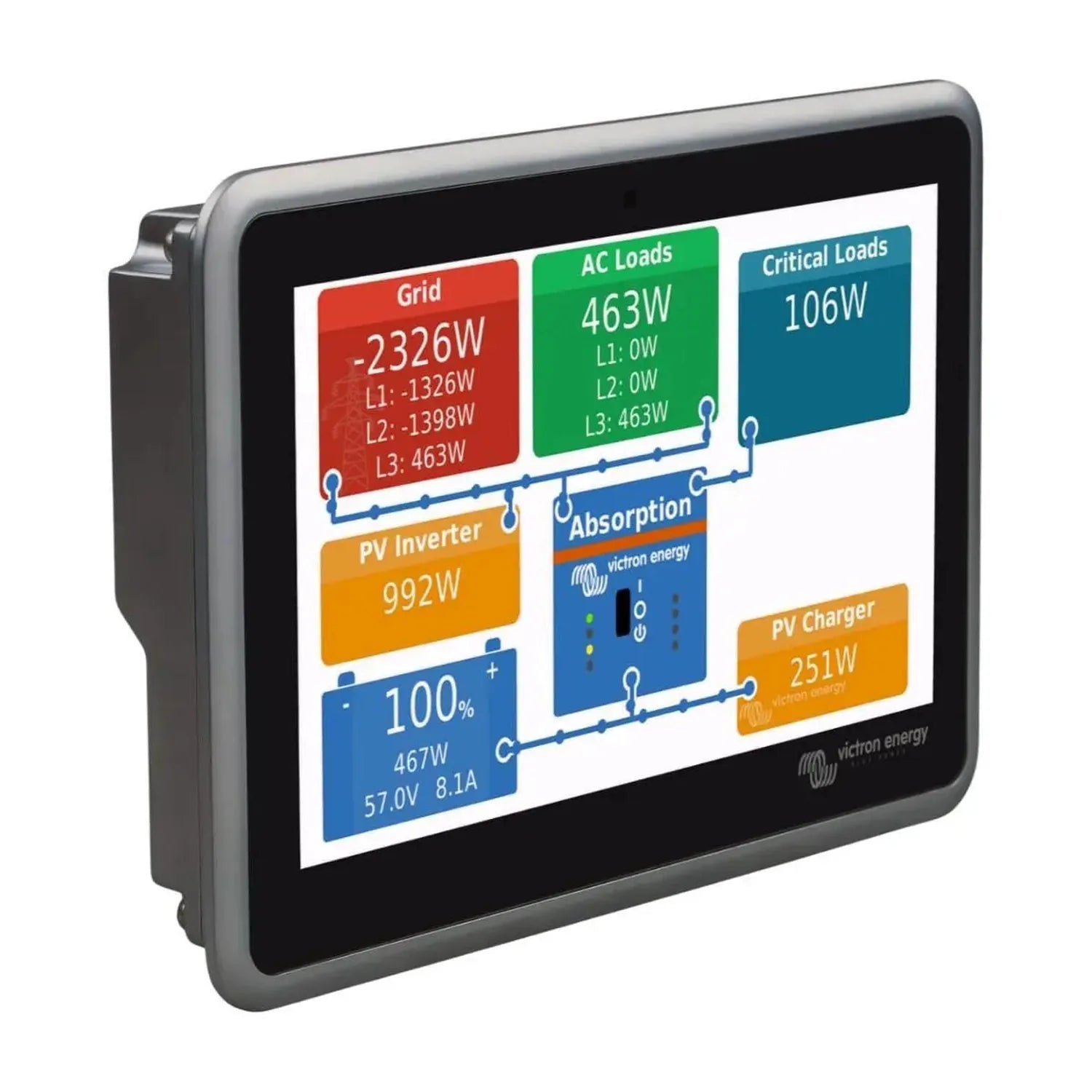

The Ekrano GX is Victron Energy's touchscreen GX monitoring and control device for solar, off-grid and backup power installations. It combines a built-in display with the full GX platform, giving installers and system operators on-site visibility and control without a separate panel or external screen. Suitable for residential and light commercial systems where a wall-mounted interface is required.

Key features

• Integrated touchscreen, on-site system monitoring and control without additional hardware.
• Full GX operating system, compatible with the VRM online portal for remote monitoring.
• Broad compatibility, connects to Victron inverter/chargers, MPPT solar charge controllers, battery monitors and other GX-compatible devices.

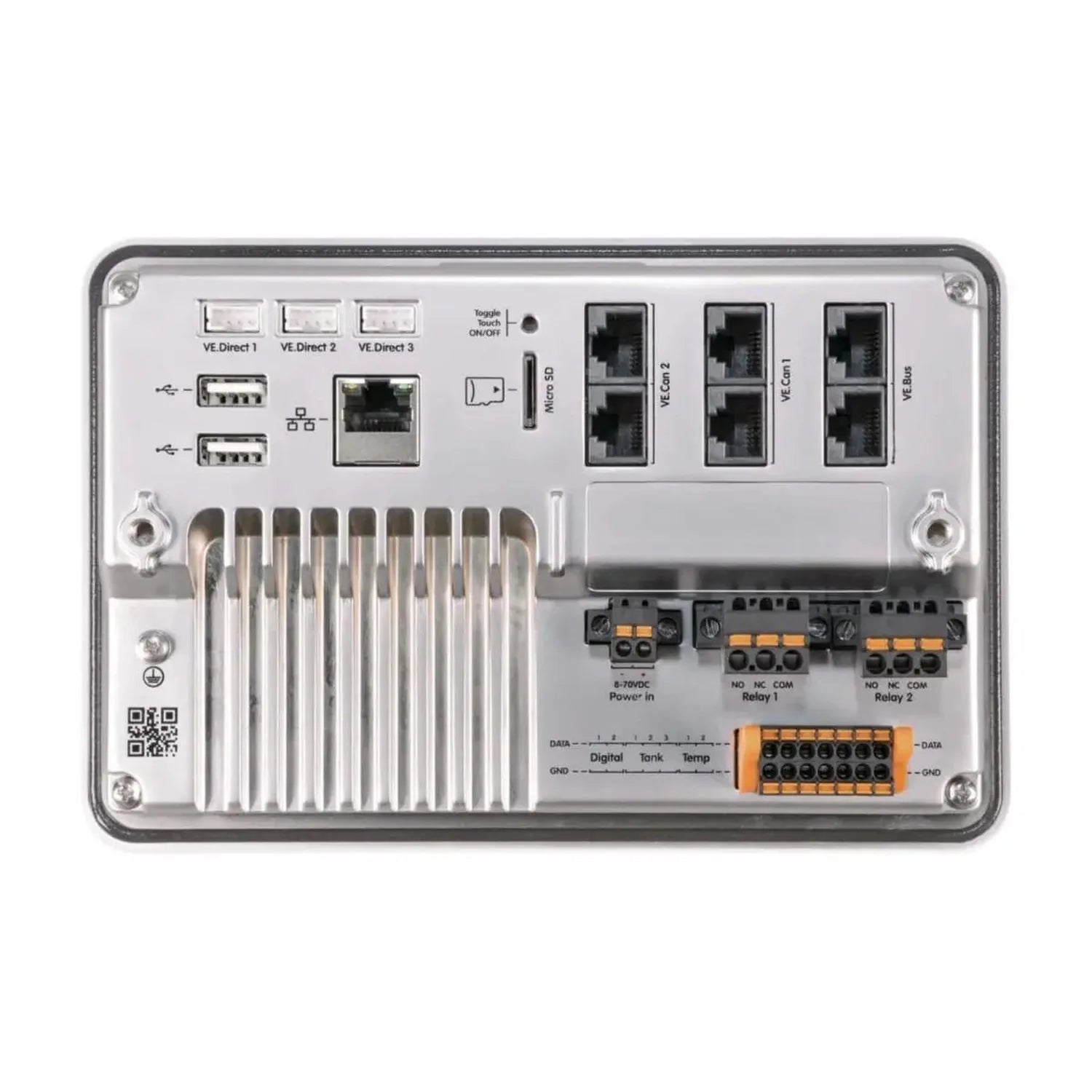

• Connectivity, supports VE.Bus, VE.Direct, VE.Can and Ethernet.

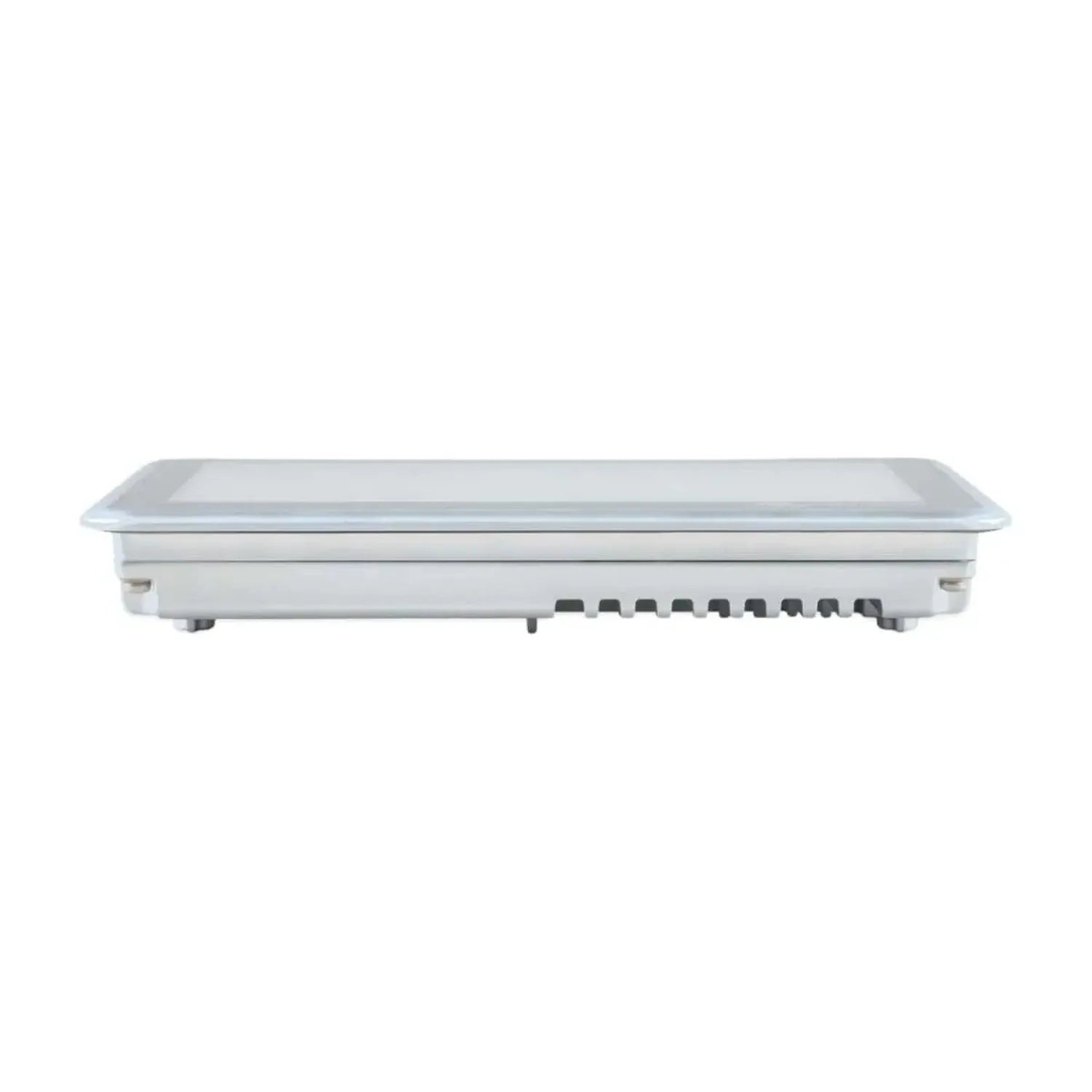

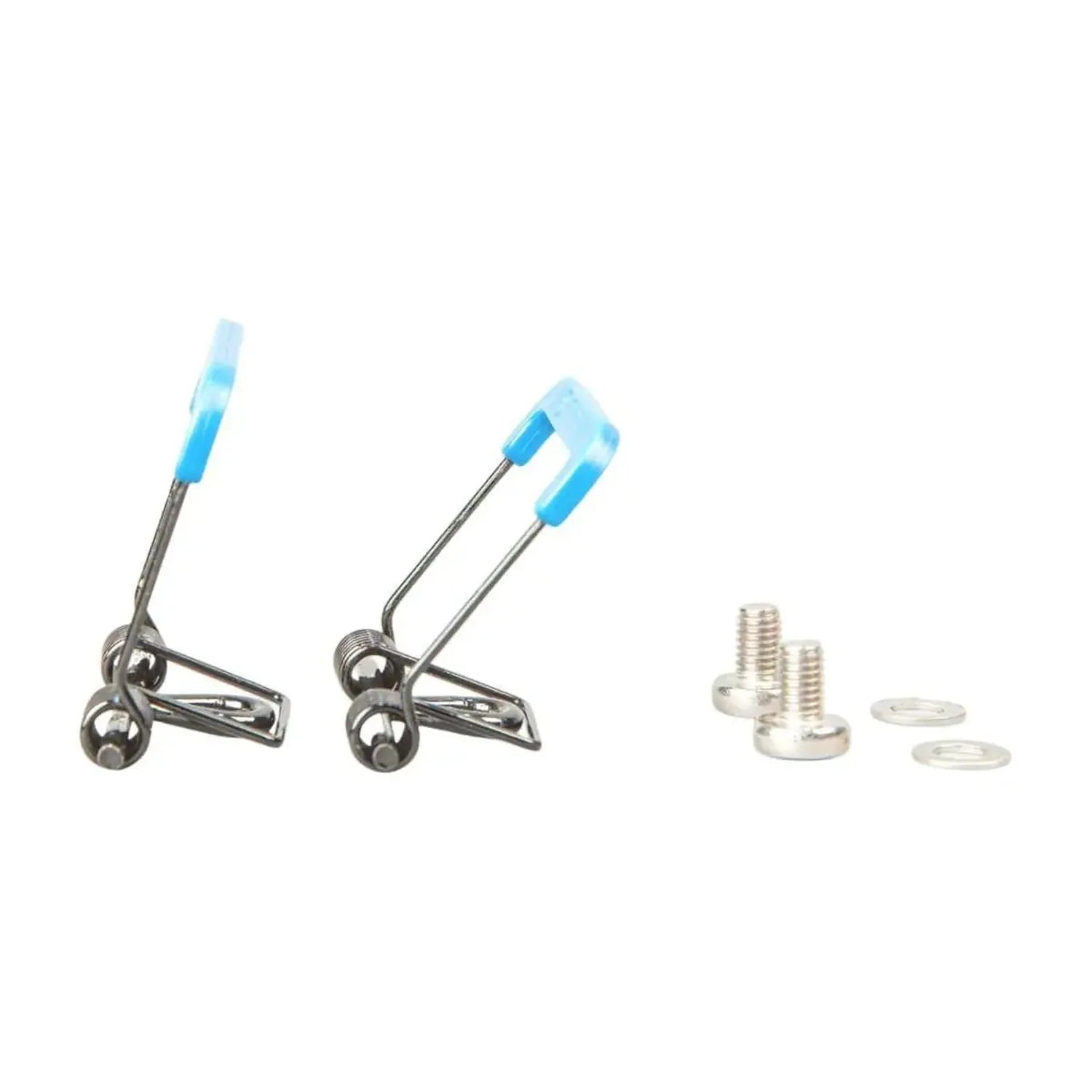

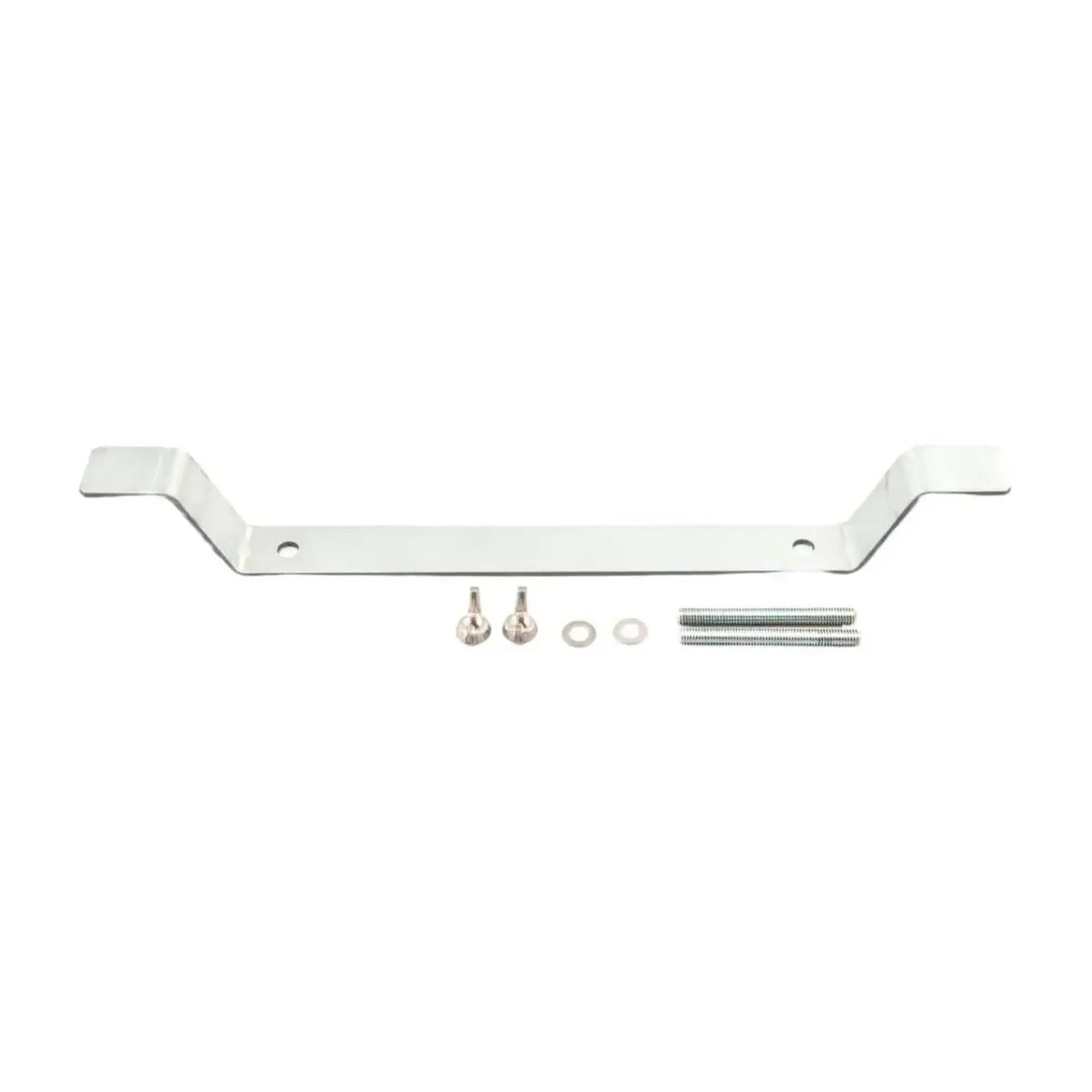

• Form factor, wall-mountable, suited to plant rooms, battery enclosures and control panels.
• Weight, 0.56 kg.

Product overview

The Ekrano GX sits within Victron's GX product family, which acts as the communication and control hub of a Victron system. Where other GX devices such as the Cerbo GX need a separate display, the Ekrano GX integrates the screen directly into the unit, reducing wiring and the number of components on the wall.

As a full GX device it logs system data locally and transmits it to the VRM portal when an internet connection is available via Ethernet or a connected router. Installers can configure the system, set charge parameters, monitor state of charge, and check generator or grid input status from the touchscreen itself. That suits sites where remote access is not always available or where the end user wants a clear, permanent display of system status.

The Ekrano GX works with the full range of Victron GX-compatible equipment. It is not a standalone inverter or charger; it is the monitoring, control and communications layer of a Victron installation.

Applications

Off-grid solar systems needing a permanent, wall-mounted monitoring interface. Hybrid solar and battery backup installations in residential or light commercial premises. Marine and vehicle installations where a compact GX display unit is needed. Generator and grid-tied systems using Victron MultiPlus or Quattro inverter/chargers, and sites where the end user wants direct touchscreen access to system data without logging into a portal.

What's in the box

• 1 x Victron Ekrano GX unit (BPP900480100)

Installation notes

Install using a qualified electrician or accredited installer familiar with Victron GX systems. Correct configuration of VE.Bus, VE.Direct and VE.Can connections is essential for accurate system monitoring. For grid-connected installations, ensure the wider system complies with G98 or G99 requirements as applicable.
