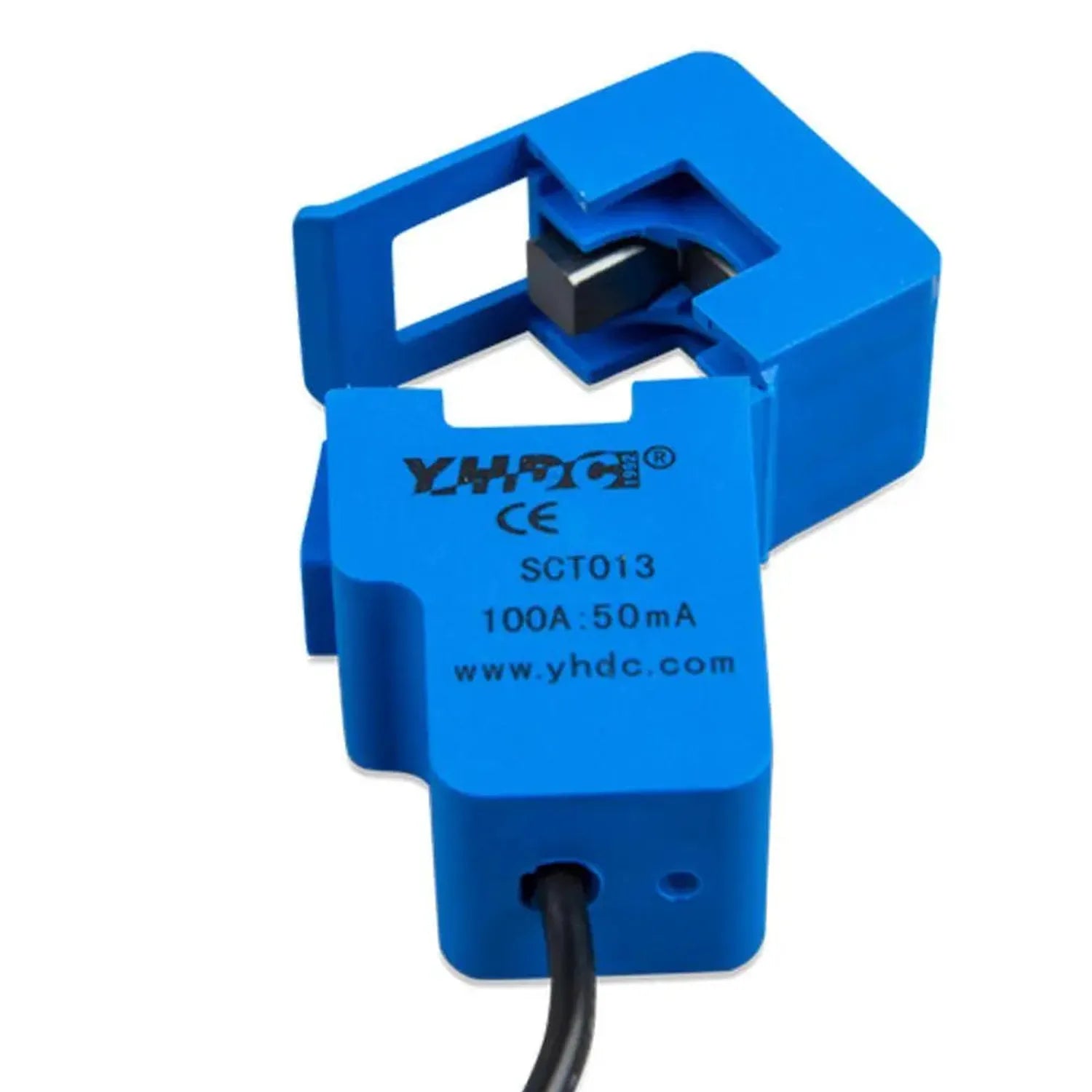

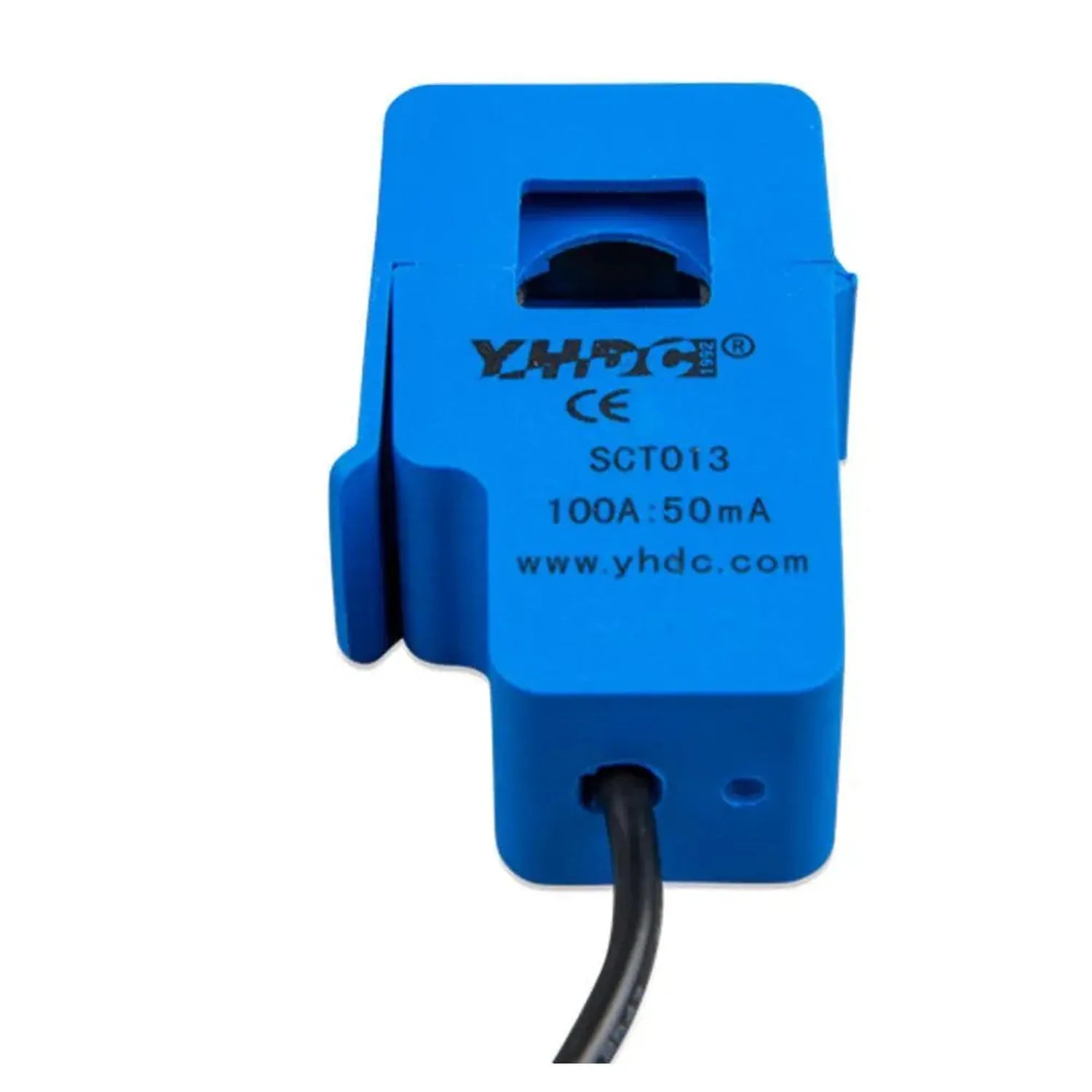

Blue current transformer with cable, model SCT013 rated 100A:50mA, front view showing sensor opening and mounting clip.

Victron Current Transformer 100A:50mA for MultiPlus-II 5m | CTR110000550

£23.09
Skip to product information
Blue current transformer with cable, model SCT013 rated 100A:50mA, front view showing sensor opening and mounting clip.
Victron Current Transformer 100A:50mA for MultiPlus-II 5m | CTR110000550

Victron Current Transformer 100A:50mA for MultiPlus-II 5m | CTR110000550

Vendor
Victron Energy
SKU
CTR110000550
Availability
In stock
Weight
0.095 kg

£23.09inc VAT £19.24exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

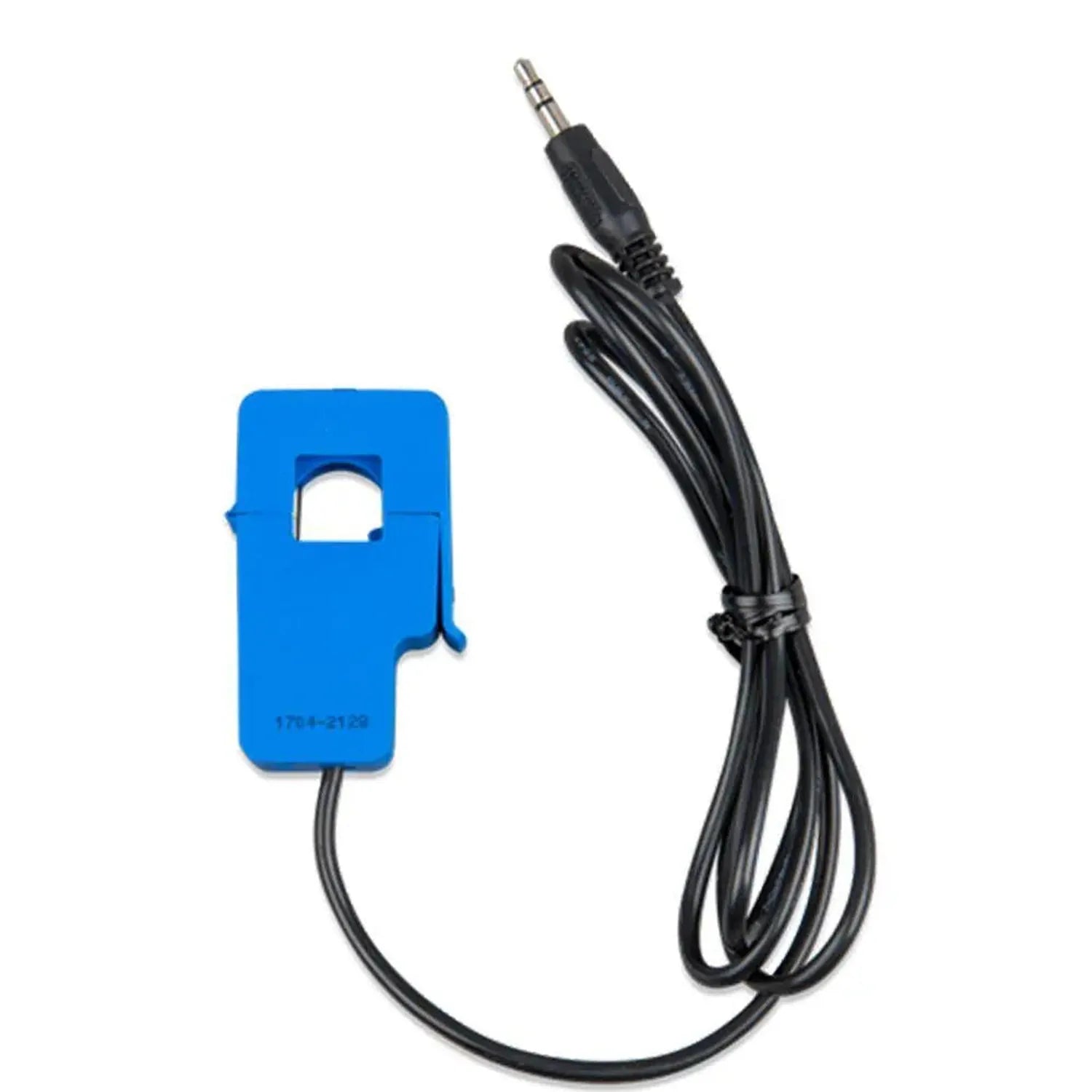

This Victron current sensor pairs with the MultiPlus-II inverter/charger to give it an accurate read on AC current. The clamp-style transformer fits around a single conductor and outputs a 50mA signal for every 100A flowing through it, with a 5-metre cable so it can sit at the measurement point while the MultiPlus-II is mounted elsewhere.

Victron current sensor key features

  • Ratio, 100A:50mA output signal
  • Cable length, 5 metres, reaching the incomer or a separate load circuit without extension
  • Fitting, clamp-style, fits around one AC conductor without breaking the circuit
  • Weight, 85g, easy to route and secure inside an enclosure
  • Compatibility, designed for the Victron MultiPlus-II inverter/charger series
  • Identifiers, SKU CTR110000550, GTIN 8719076054634

Applications

Used for grid or load current monitoring on MultiPlus-II systems, including off-grid and hybrid solar setups and battery storage installations that need AC current feedback for energy management. It also suits retrofits where a CT wasn't supplied with the original MultiPlus-II installation.

Installation notes

Fit around a single AC conductor only. Placing it around two conductors, or a twin-and-earth cable, will give a wrong or zero reading. Route and secure the cable away from heat, sharp edges and moving parts, and follow Victron's wiring guidance for the MultiPlus-II. Installation should be carried out by a qualified electrician, and UK grid-connected systems must meet G98 or G99 requirements as applicable.

What's included

  • 1x Current Transformer 100A:50mA with 5m cable
