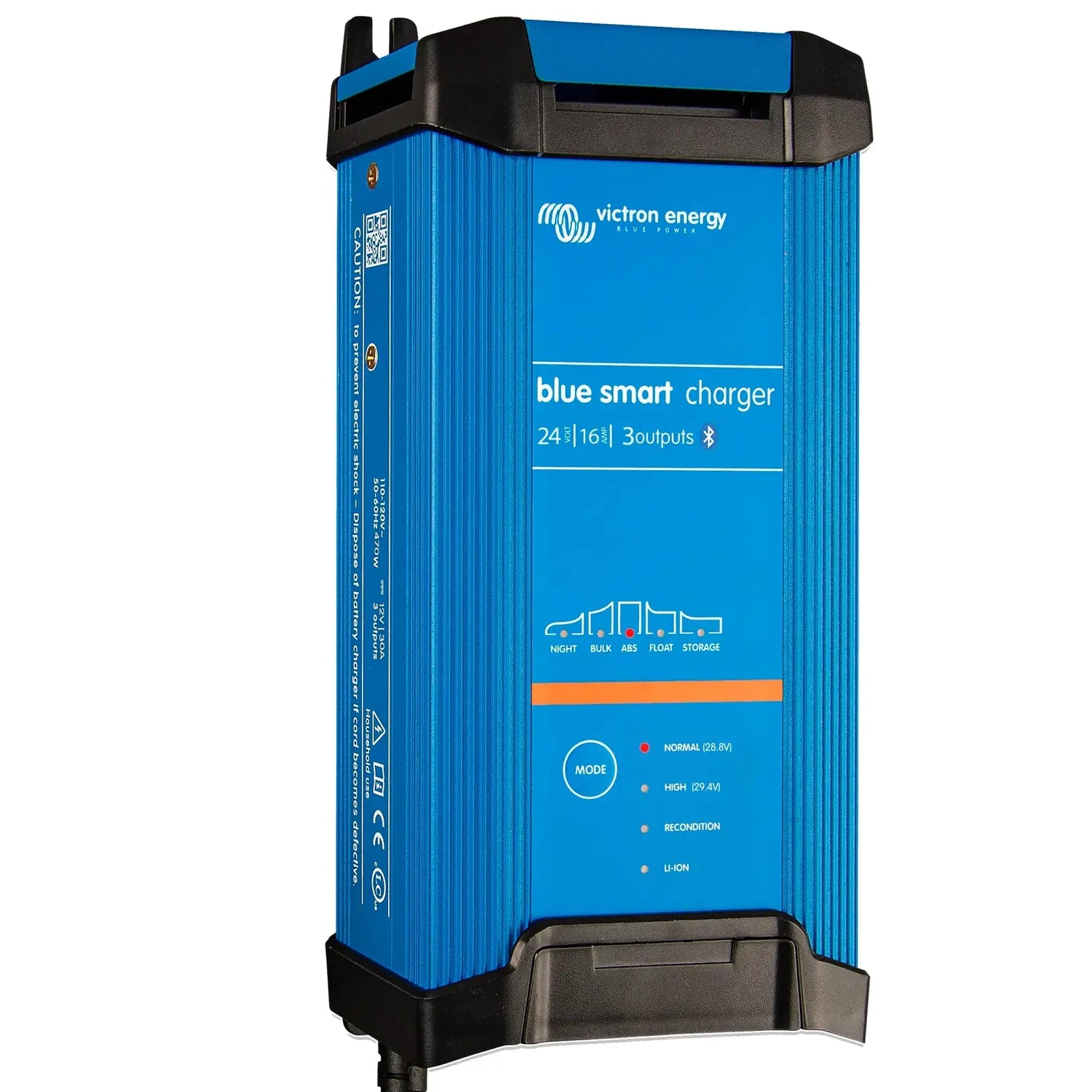

Victron Blue Smart IP22 Charger 24/16(3) 230V UK | BPC241648022

The Victron Blue Smart IP22 24/16 is a three-output battery charger with Bluetooth built in, charging 24V lead-acid and lithium battery banks at up to 16A. Charge profiles and status are managed from the VictronConnect app on a phone or tablet, no dongle needed.

Key features of the Victron Blue Smart charger

• Charge current, 16A for 24V battery banks, across three independent outputs.
• Bluetooth built-in, configure and monitor via VictronConnect on iOS or Android.
• Battery chemistries, AGM, Gel, flooded lead-acid and lithium (LiFePO4) via selectable profiles.
• Charge algorithm, adaptive 7-stage: bulk, absorption, float, storage, equalisation and temperature-compensated charging.
• Protection rating, IP22, for sheltered indoor environments and enclosed compartments.
• Mains connection, UK BS 1363 plug fitted, 230V AC input.
• Weight, 0.9kg, in a wall-mountable enclosure.

How the adaptive charging works

Absorption time adjusts based on how the battery responds during the bulk phase. A deeply discharged battery gets a longer absorption period; a battery already in good condition cycles through more quickly. The three output terminals let one unit maintain up to three separate battery banks at once, sharing the 16A total capacity between them, which suits top-up and maintenance charging rather than simultaneous rapid bulk charging of all three.

Applications

• Charging and maintaining 24V battery banks in campervans, motorhomes and commercial vehicles.
• Marine installations needing simultaneous maintenance of starter and service battery banks.
• Workshop maintenance for 24V lead-acid and lithium packs.
• Off-grid cabins and outbuildings with periodic mains access.
• Backup power systems needing regular float maintenance of 24V strings.

What's in the box

• Victron Blue Smart IP22 24/16 charger with UK BS 1363 mains plug.
• DC output cables with ring terminals (3 outputs).
• Mounting hardware.

Installation notes

Connects to a standard 230V UK mains socket via the fitted plug. Output cables should be correctly rated and battery connections secure and appropriately fused. For lithium installations, confirm the battery BMS is compatible with the lithium charge profile first. The IP22 rating covers dripping water, not direct rain or spray, so plan the mounting location accordingly. Fixed wiring should be carried out by a qualified electrician.
