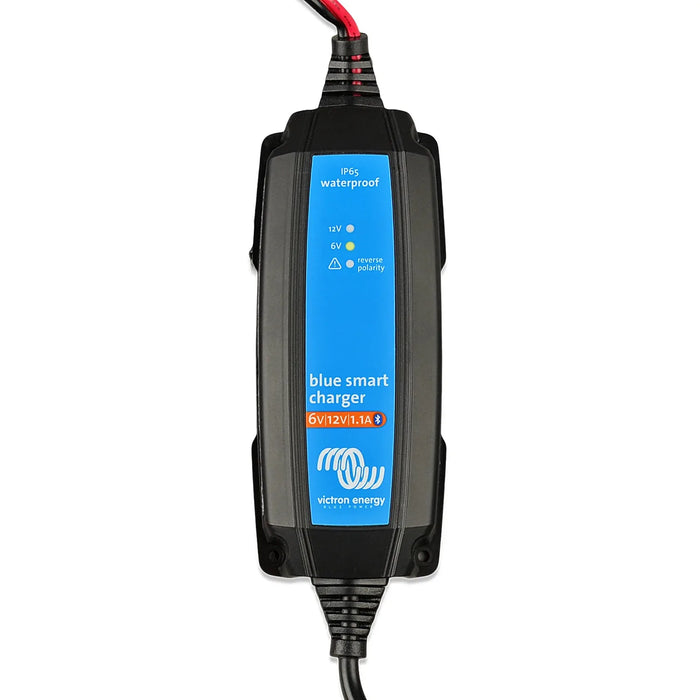

Victron Blue Smart IP65 Charger 6V/12V-1.1A 230V CEE 7/16 | BPC120134034R

The Victron Blue Smart IP65 charger is a compact, weatherproof charger for 6V and 12V lead-acid and lithium batteries. It draws 230V AC through a CEE 7/16 mains lead and delivers a 1.1A charge current, making it suited to smaller batteries rather than large capacity banks. Bluetooth connectivity links the charger to the free VictronConnect app on iOS and Android for monitoring and configuration.

Key features of the Victron blue smart charger

• IP65 enclosure, sealed against dust and low-pressure water jets for outdoor or workshop use.
• Bluetooth built-in, view charge status, adjust settings and check charge history through VictronConnect.
• 6V/12V selectable output, compatible with AGM, gel, flooded lead-acid and LiFePO4 batteries.
• 1.1A charge current, sized for small batteries in motorcycles, scooters, mowers and similar equipment.
• Seven-stage adaptive charging, conditions, bulk charges, absorbs and maintains the battery.
• Storage mode, automatically lowers float voltage for long-term preservation.
• CEE 7/16 mains plug, 230V AC input, supplied with a DC connector output lead.
• Protection, reverse polarity and short-circuit protection included.

Applications

Suited to motorcycle, scooter and moped batteries over winter storage, lawnmowers and garden machinery, small leisure craft and jet ski 12V batteries, and 6V systems in classic or specialist vehicles. It is intended for float maintenance of a single small battery, not for charging grid-connected or off-grid solar battery banks.

Installation notes

Connect using the supplied DC connector lead and select the correct voltage in the VictronConnect app before connecting to the battery. Match the battery chemistry setting to the battery being charged. Ensure adequate ventilation when charging lead-acid batteries and keep the charger away from flammable materials.

What's in the box

• Victron Blue Smart IP65 Charger 6V/12V 1.1A
• DC output connector lead
• CEE 7/16 mains cable
