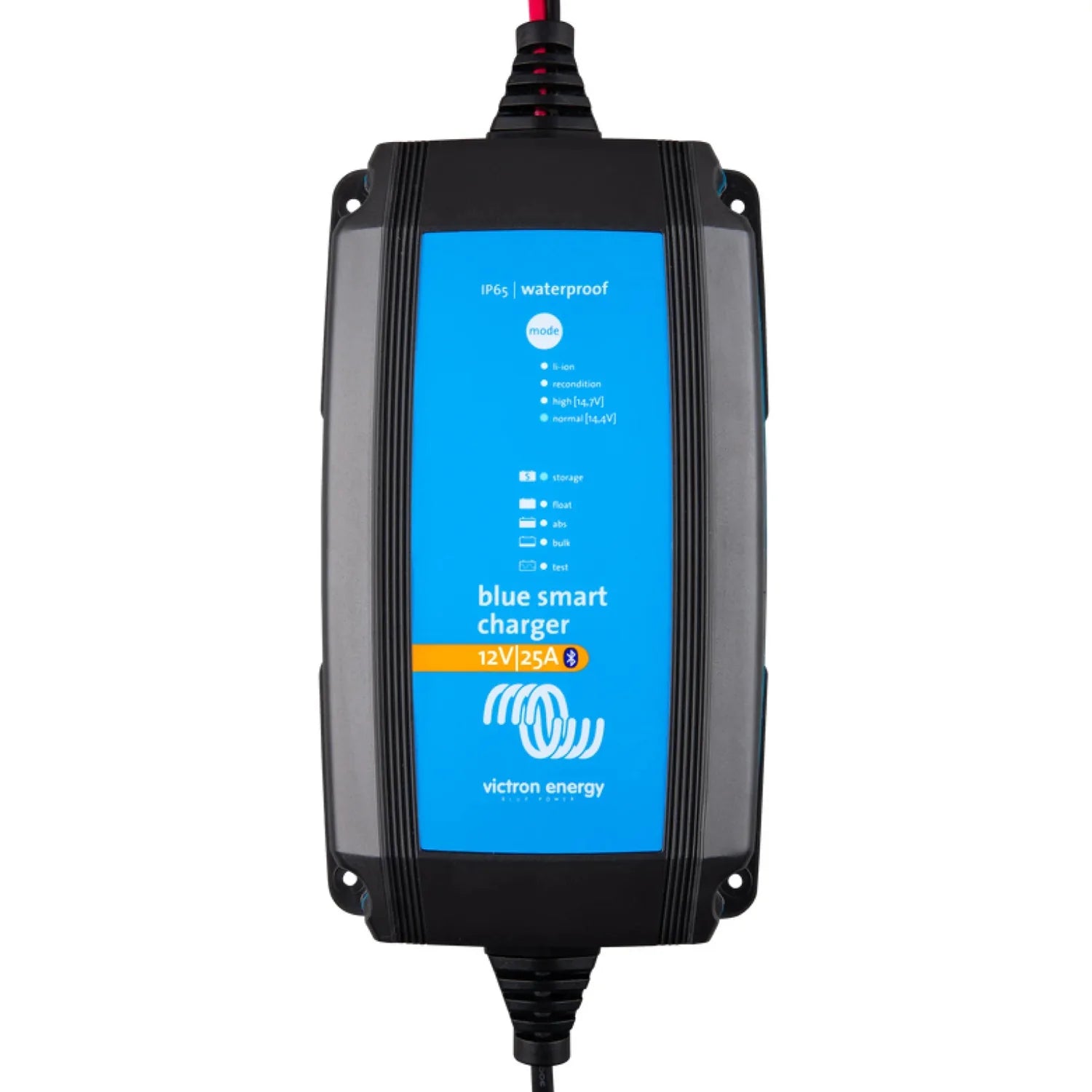

Victron Blue Smart IP65 Charger 12/25(1) 230V UK | BPC122531024

The Victron Blue Smart IP65 Charger 12/25 is a single-output, 25A battery charger for 12V lead-acid and lithium battery banks. It plugs straight into a UK 230V mains socket via a fitted BS 1363 plug and connects over Bluetooth to the VictronConnect app, so installers can check charge status without extra hardware.

Key features of the Victron Blue Smart IP65 25A charger

• Output, 25A at 12V, single output channel
• Enclosure, IP65 rated against dust and low-pressure water jets
• Connectivity, built-in Bluetooth, monitored and configured through VictronConnect on iOS and Android
• Battery compatibility, AGM, Gel, flooded and lithium (LiFePO4) chemistries
• Charging algorithm, seven stages including a storage mode to maintain charge without overcharging
• Mains plug, UK BS 1363, fitted as standard

Product overview

The sealed IP65 housing copes with dust and water far better than a standard workshop charger, which matters in engine bays, battery compartments, bilge areas and outdoor enclosures. Charge voltage, current, state of charge and algorithm stage are all visible in real time on a phone or tablet, and the charger can be reconfigured for different battery chemistries through the app. The seven-stage algorithm covers bulk, absorption, float and storage phases with an automatic equalisation option for flooded lead-acid batteries; the storage mode applies a periodic refresh charge to counter self-discharge during long standby periods.

Applications

Suited to charging and maintaining 12V banks in motorhomes, campervans and caravans, marine craft with exposed or damp compartments, off-grid and backup power systems, commercial vehicle fleets during downtime, and trade or workshop use where one charger has to handle several battery types.

What's in the box

• Victron Blue Smart IP65 Charger 12/25 (1 output)
• UK BS 1363 mains plug fitted

Installation notes

Plug directly into a standard UK 230V socket. Position the unit with adequate ventilation and avoid submersion, as IP65 does not cover immersion. For fixed vehicle or marine installations, secure the charger and fuse the DC output cables close to the battery terminals. Confirm lithium charge profiles against the battery manufacturer's data before use. Permanent wiring into a vehicle or vessel should be carried out by a competent auto or marine electrician.
