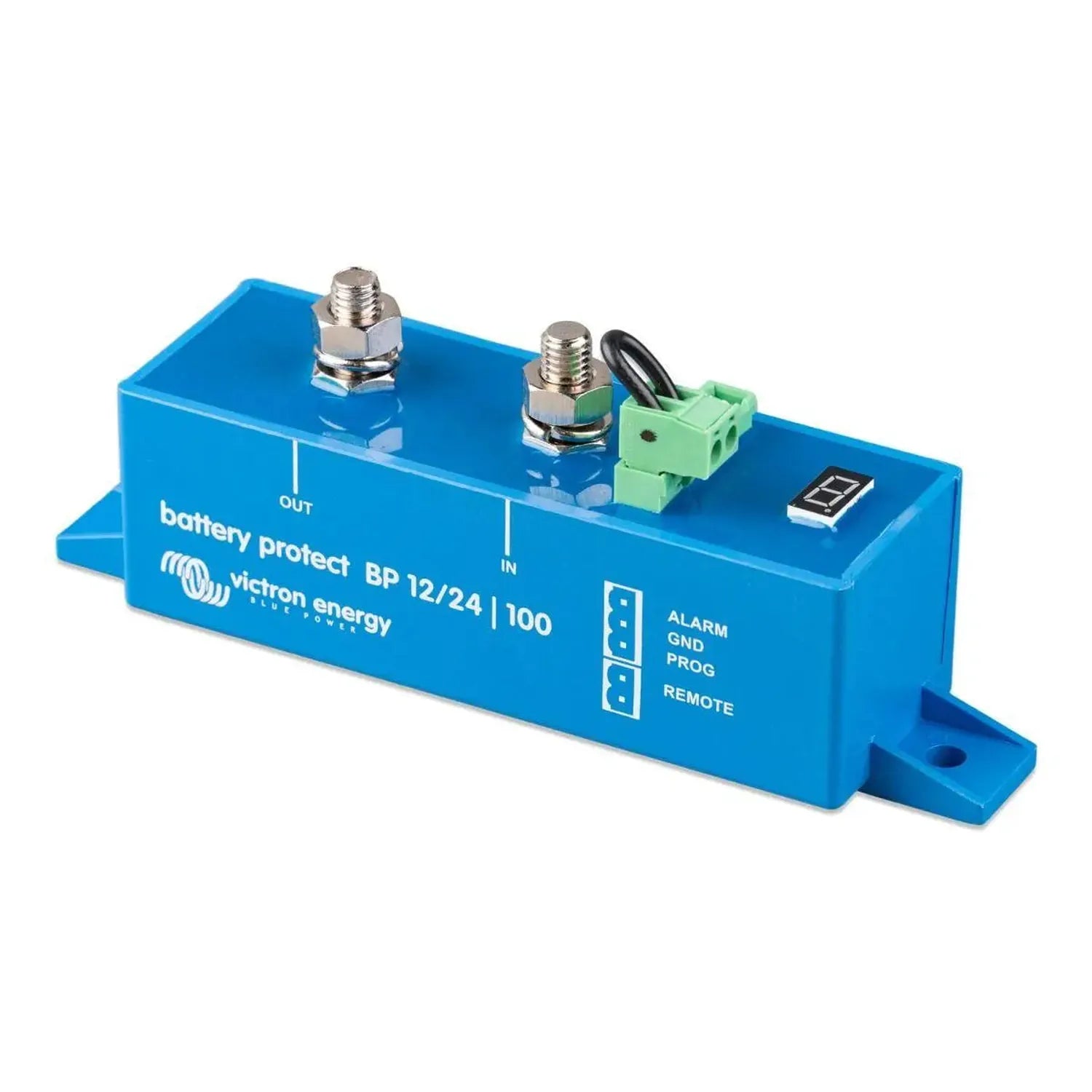

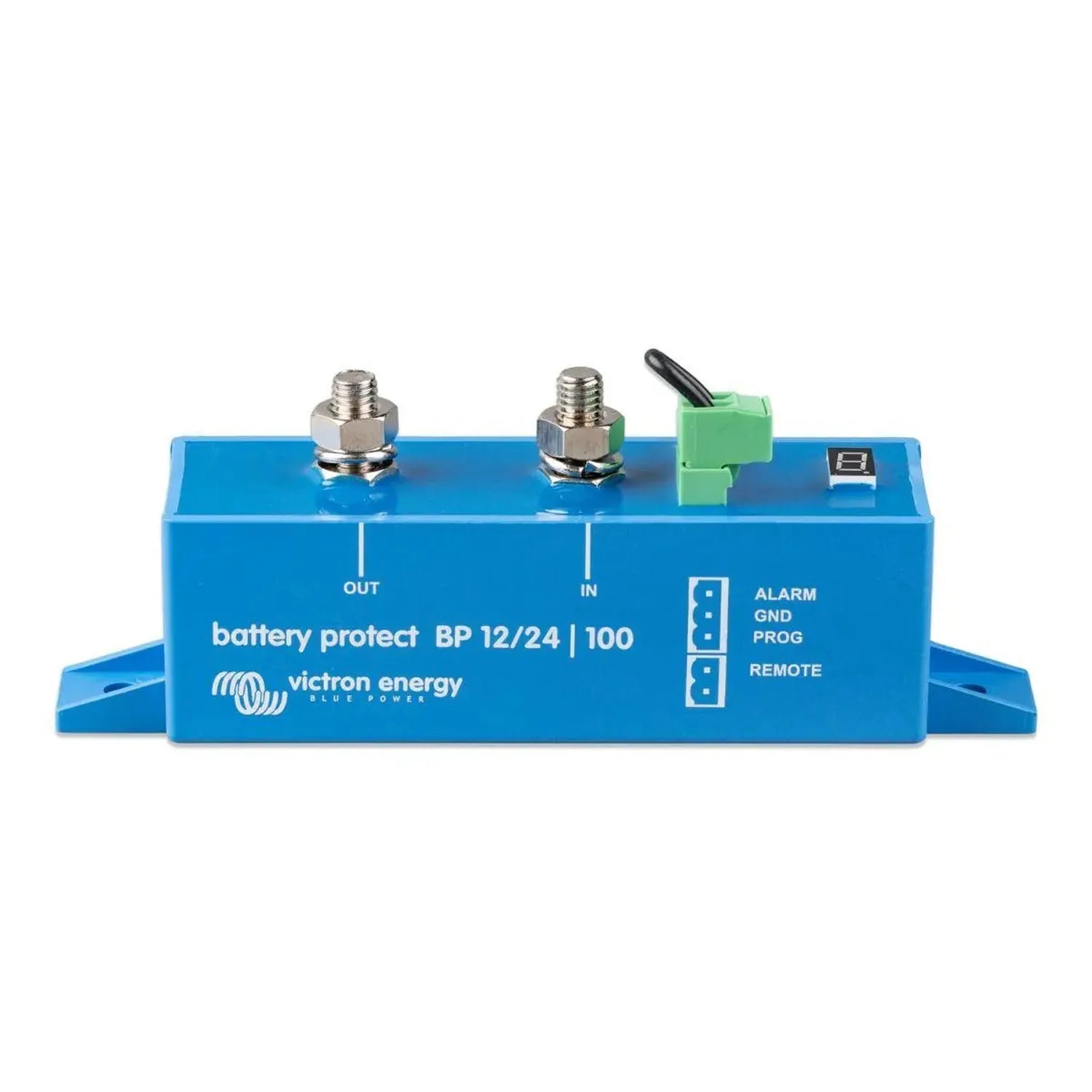

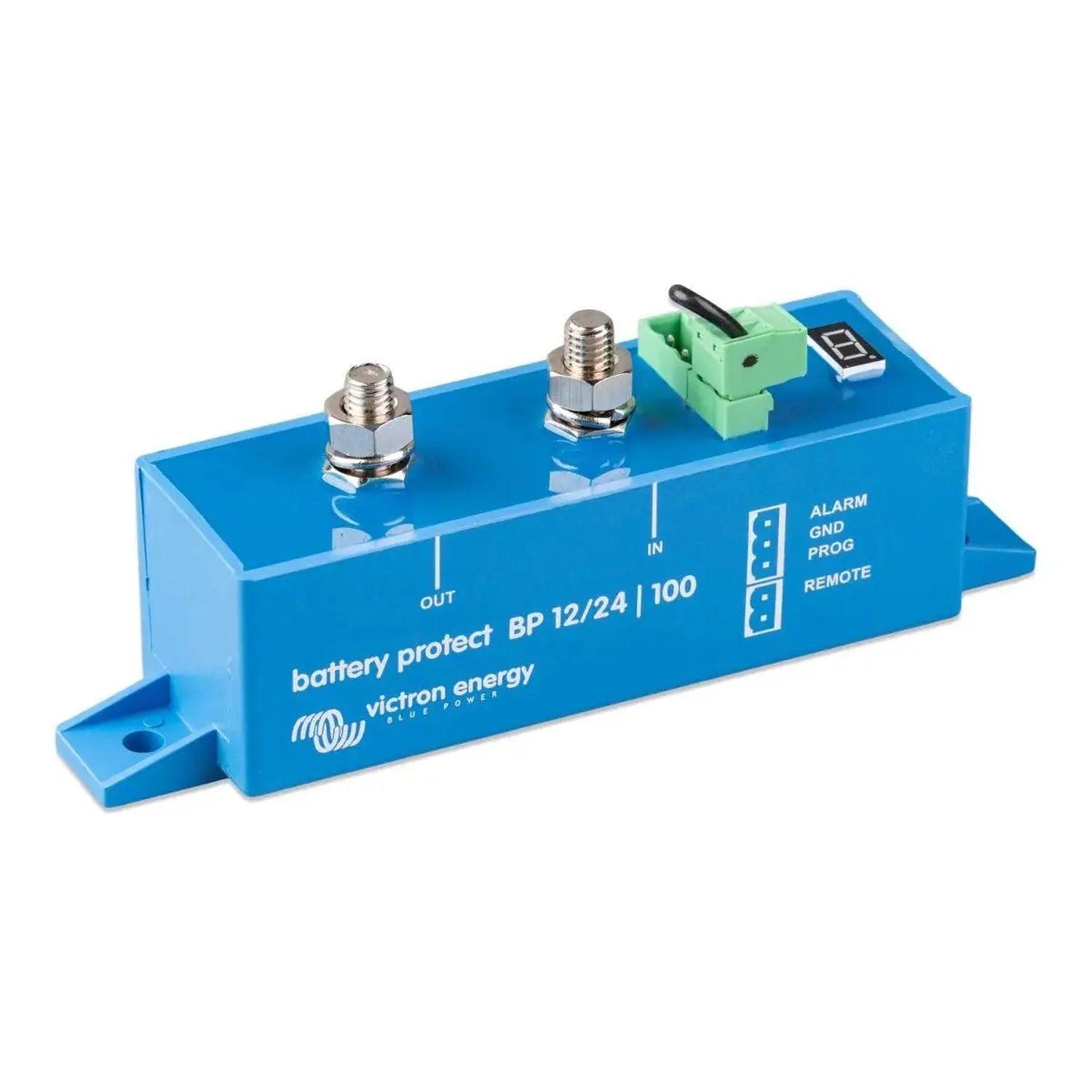

Victron BatteryProtect 12/24V-100A Battery Isolator | BPR000100400

The Victron BatteryProtect 12/24V-100A is an automatic battery isolator switch that protects 12V and 24V lead-acid and lithium batteries from over-discharge. It sits between the battery and its DC loads, opening the circuit once voltage falls to a preset threshold and closing it again automatically once the battery recovers.

Key features of this battery isolator switch

• Continuous current rating: 100A, suitable for substantial DC load banks in 12V and 24V systems.
• Automatic disconnect: triggered by a user-selectable low-voltage threshold.
• Automatic reconnect: resumes supply once battery voltage recovers to the preset level.
• Dual voltage: works with both 12V and 24V battery systems.
• Low voltage drop: minimises resistive losses across the device.
• Weight: 0.5 kg, easy to fit into tight enclosures.
• Remote on/off input: allows control from an external BMS, a charge controller or a toggle switch.

Applications

Fitted in caravans, motorhomes and campervans to stop leisure batteries being drained by DC appliances. Used on narrowboats, yachts and motorboats with 12V or 24V house banks, in off-grid solar systems where loads need disconnecting during periods of low solar input, and in vehicle conversions or mobile workshops running tools and lighting from a battery supply. Also suited to remote telecoms and monitoring installations on battery-backed DC power.

Installation notes

This is a load-side disconnect device only and must not be placed in the charging circuit. Wiring should be rated for 100A continuous current, with appropriate fusing fitted on the battery side. A qualified installer should set the disconnect and reconnect thresholds correctly for the battery chemistry in use.

What's in the box

• 1 x Victron BatteryProtect 12/24V-100A
