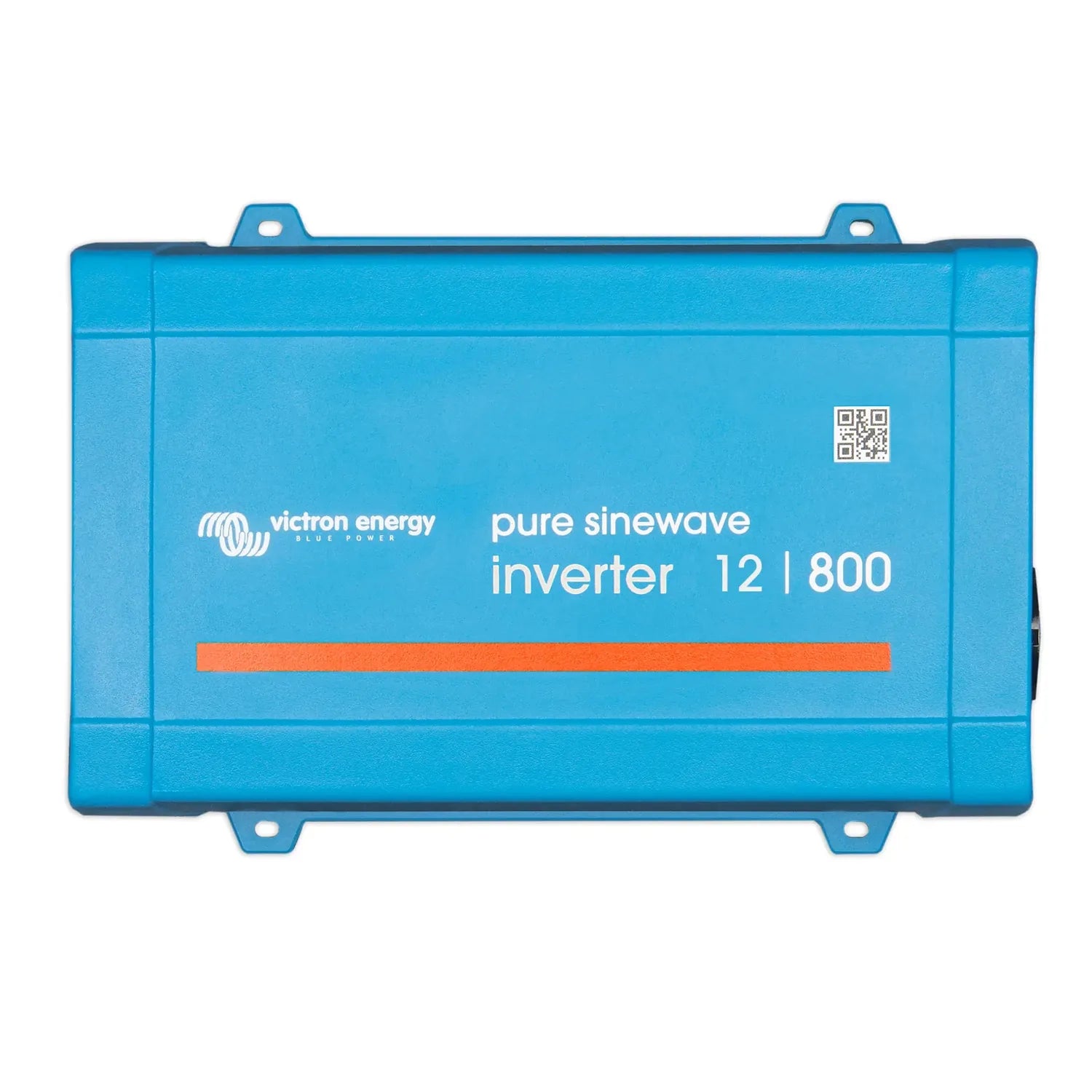

Victron Inverter 12/800 230V VE.Direct IEC | PIN121801100

The Victron Inverter 12/800 converts 12V DC from a battery bank into a 230V AC pure sine wave output, with 800VA continuous power. It suits installers working on off-grid, mobile and backup power systems where compact DC-to-AC conversion is needed. A VE.Direct port allows direct communication with compatible Victron monitoring equipment.

Key features

• Output, 800VA continuous power from a 12V DC battery bank to 230V AC
• Waveform, pure sine wave, suitable for sensitive electronics and motor loads
• Communication, VE.Direct port for integration with Victron monitoring devices such as the Color Control GX and MPPT displays
• AC connector, IEC output socket for direct connection of standard IEC-compatible loads
• Protections, low battery voltage shutdown, over-temperature and overload cutoff
• Weight, 6 kg, compact enough for confined spaces

Product overview

Pure sine wave output matters when powering loads sensitive to waveform quality: variable-speed motors, medical equipment, audio gear and modern switch-mode power supplies. A modified sine wave inverter can cause these devices to overheat or malfunction; the 12/800 avoids that. The VE.Direct port lets the inverter connect to Victron GX devices for remote monitoring, and configuration is also possible through VictronConnect with the right VE.Direct adapter.

At 800VA, the unit is suited to moderate loads such as lighting circuits, small appliances and power tools. It is not intended for high-draw loads like inverter air conditioning units or electric water heaters. Correct sizing against expected load and battery capacity matters for reliable operation.

Applications

• Off-grid cabins, lodges and outbuildings run from a 12V battery and solar system
• Marine and narrowboat installations needing 230V AC from a 12V DC bank
• Vehicle conversions such as campervans and motorhomes needing a mains-quality AC supply
• Backup power for small office or domestic loads during grid outages
• Telecoms and remote monitoring enclosures needing a clean AC supply

What's in the box

• Victron Inverter 12/800 230V VE.Direct IEC unit

Installation notes

The inverter runs on 12V DC and needs an appropriately rated battery bank with correctly sized DC cabling and fusing. DC wiring for inverters carries high current and should be installed by someone competent with low-voltage DC systems. The IEC AC output is not intended for connection to fixed building wiring without proper isolation and protection. Work forming part of a fixed electrical installation must be carried out by a qualified electrician to BS 7671. This is not a grid-tied device and does not require G98 or G99 notification.
