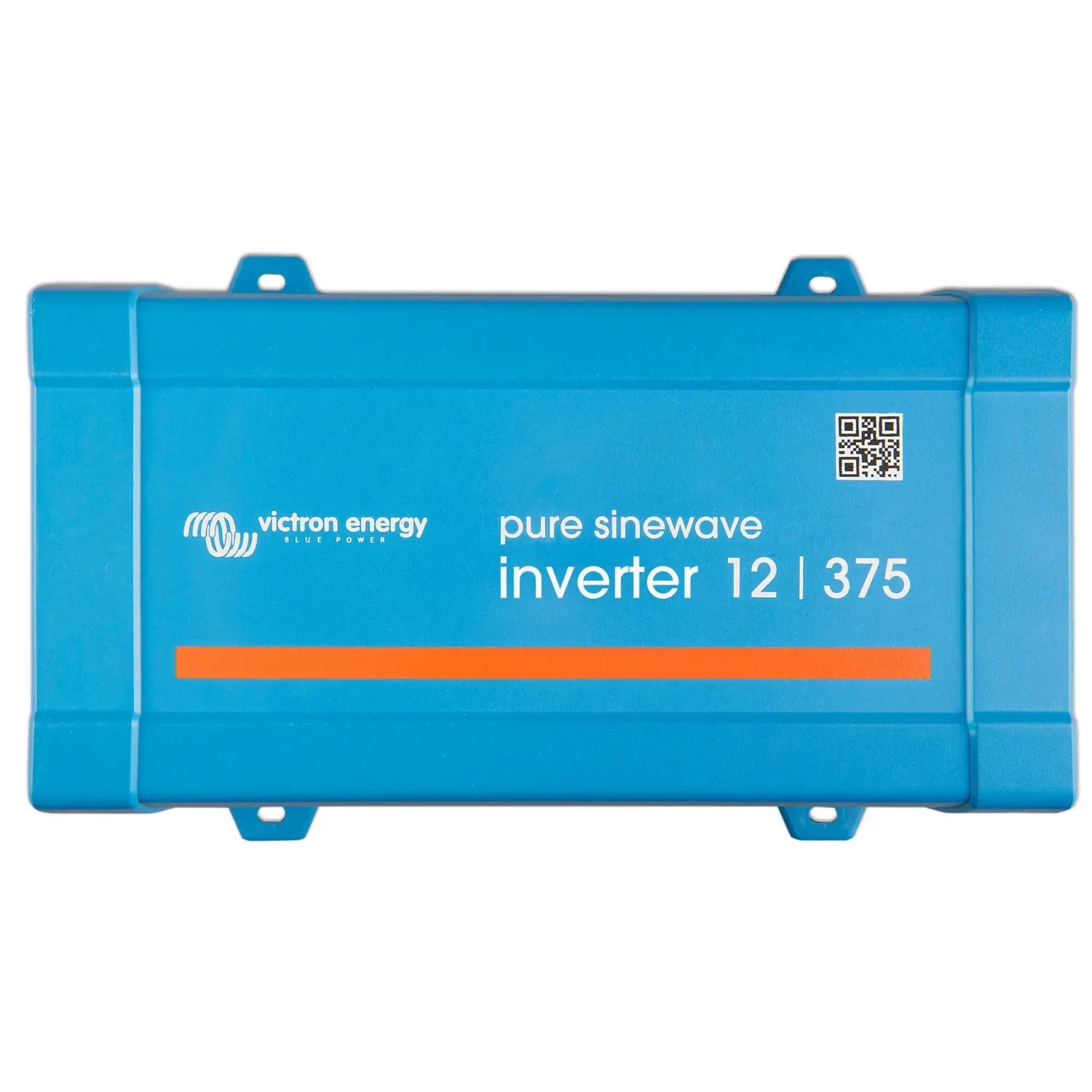

Victron Inverter 12/375 230V VE.Direct UK | PIN121371400

The Victron Inverter 12/375 is a compact 12V DC to 230V AC pure sine wave inverter for small off-grid and mobile power setups. It draws from a 12V battery bank and delivers up to 375VA of continuous AC output at 230V, enough for small appliances, tools or electronics where mains power is not available. A VE.Direct port allows connection to compatible Victron monitoring accessories.

Key features of the victron inverter

• Output, 375VA continuous at 230V AC from a 12V DC source
• Waveform, pure sine wave, suitable for sensitive electronics and motor loads
• Communication, VE.Direct port for use with devices such as the Color Control GX or MPPT displays
• Socket, UK plug configuration included as standard
• Weight, 3.25 kg, suited to mobile and space-constrained installations
• Protections, over-temperature, low battery voltage and overload shutdown built in

Product overview

This model sits at the entry level of Victron's VE.Direct inverter range. It converts 12V DC battery power into a clean 230V AC sine wave, so it can run loads a modified sine wave inverter cannot, including variable-speed motors and electronics with switch-mode power supplies. At 375VA it suits single appliances or light loads rather than whole-system backup.

The VE.Direct interface sets this apart from basic inverters. With a VE.Direct to USB cable or a compatible GX device, installers can monitor status, input voltage and output load remotely. That matters in fixed installations such as caravans, boats or small off-grid cabins. The port supports data logging and integration into a wider Victron system, but not two-way control.

Protection is automatic. The unit shuts down on low battery voltage to prevent deep discharge damage, on overload to protect connected equipment, and on over-temperature if ventilation is insufficient. These thresholds are factory-set and not user-adjustable.

Applications

• Caravans and motorhomes needing 230V AC from a 12V leisure battery
• Narrowboats and small marine vessels with 12V DC systems
• Off-grid cabins or garden buildings with a 12V battery bank
• Portable power for tools or electronics at remote work sites
• Backup power for a single critical appliance in a 12V off-grid system

What's included

• Victron Inverter 12/375 230V VE.Direct (UK socket version)

Installation notes

Connect directly to a 12V battery bank with DC cabling and fusing sized for the current draw at full load. Keep the unit ventilated to avoid thermal shutdown. It is not grid-connected and does not require G98 or G99 compliance, but fixed installation should be carried out by a qualified electrician familiar with DC and AC wiring. VE.Direct accessories are sold separately.
