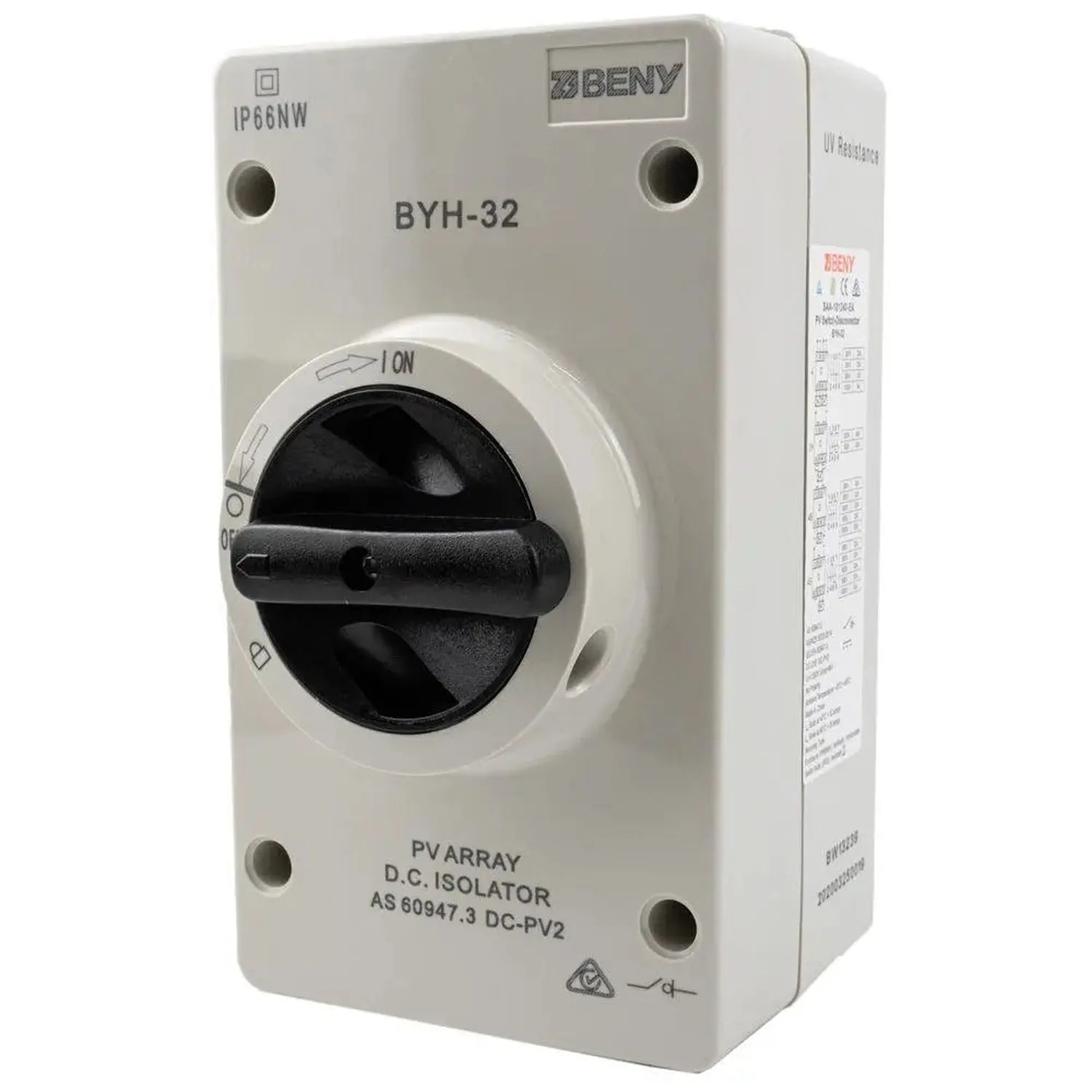

BENY BYH-32 DC isolator switch with black lever handle in ON position, mounted on white faceplate, IP66 rated.

Solar DC Isolator Switch 32A 1000V IP66 | Volta-Switch

£24.26
Skip to product information
BENY BYH-32 DC isolator switch with black lever handle in ON position, mounted on white faceplate, IP66 rated.
Solar DC Isolator Switch 32A 1000V IP66 | Volta-Switch

Solar DC Isolator Switch 32A 1000V IP66 | Volta-Switch

Vendor
Voltacon
SKU
738662
Availability
In stock
Weight
0.8 kg

£24.26inc VAT £20.22exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Volta-Switch is a DC isolator switch built for solar PV strings, rated up to 32A and 1000VDC. Housed in an IP66 enclosure, it gives installers a safe way to disconnect PV arrays from inverters for maintenance or fault work. It is IEC60947-3 and AS60947.3 DC-PV2 certified and includes 3ms arc suppression.

Key features of this pv dc isolator switch

  • Current rating, 32A
  • Maximum voltage, 1000VDC
  • Enclosure, IP66 weatherproof
  • Certification, IEC60947-3 and AS60947.3 DC-PV2
  • Arc suppression, 3ms
  • Handle, lockable at the off position

Applications

Used for DC string isolation on residential and commercial solar PV systems up to 1000VDC, and as a maintenance disconnect point between panels and inverter.

Installation and safety

DC solar circuits carry dangerous voltages. This switch must be installed by a qualified electrician and never operated under load.

Technical Specifications 6 rows Show
ParameterValue
Current Rating32A
Voltage Rating1000V
Enclosure RatingIP66
Arc Suppression Time3ms
CertificationsIEC60947-3, AS60947.3 DC-PV2
Handle TypeLockable at off position

Manufacturer datasheet. Figures as published by the manufacturer.
