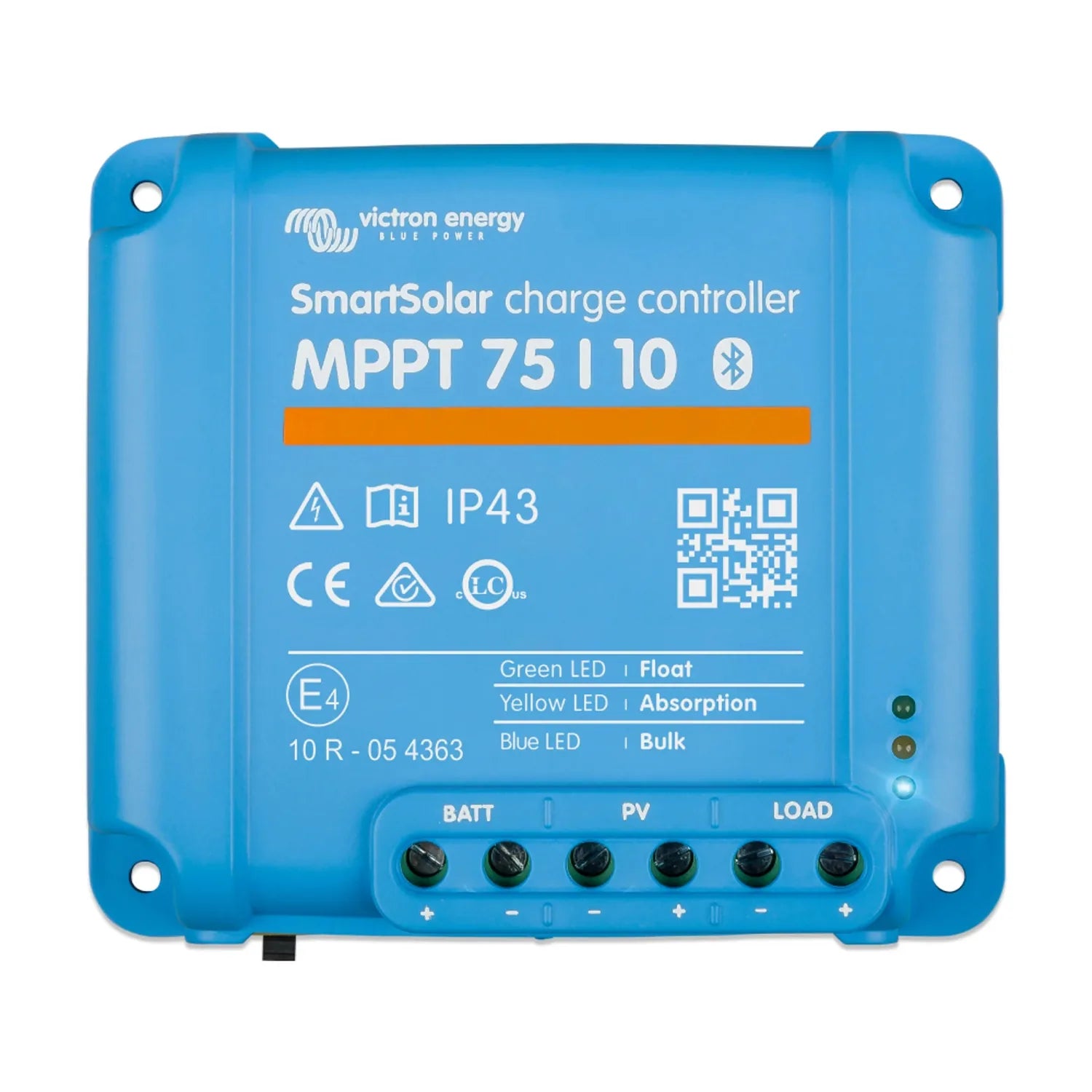

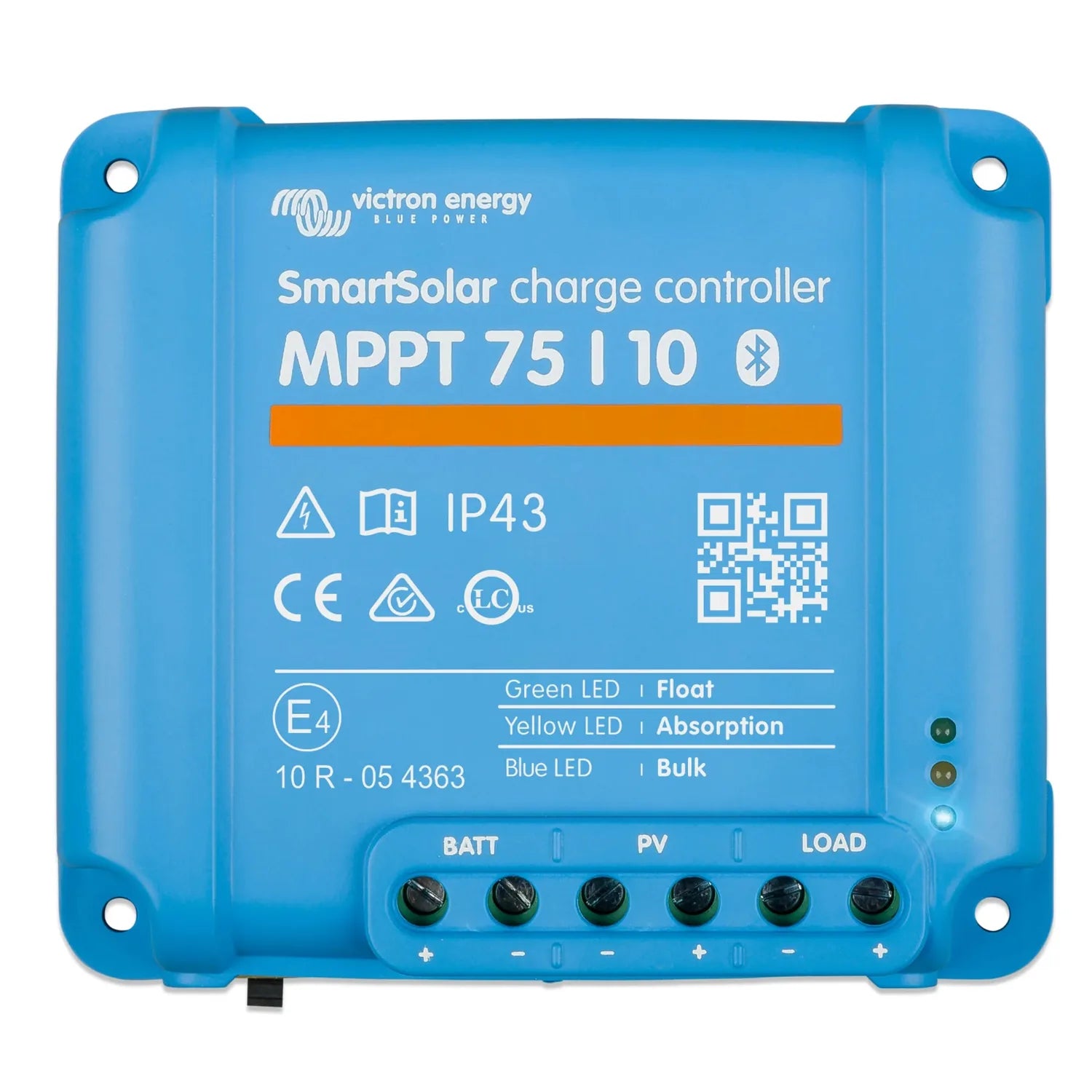

Victron SmartSolar MPPT 75/10 Solar Charge Controller | SCC075010060R

The Victron SmartSolar MPPT 75/10 is a solar charge controller built for small 12V and 24V off-grid systems. It handles panel voltages up to 75V open circuit and charge currents up to 10A, with Bluetooth built in so no extra dongle is needed to configure or monitor it.

Key features

• PV input, maximum open circuit voltage of 75V, maximum charge current of 10A.
• Bluetooth built in, direct configuration and monitoring via the VictronConnect app on iOS and Android.
• True MPPT tracking, extracts maximum available power from the array as light and temperature change.
• Battery compatibility, works with 12V and 24V systems with automatic voltage detection.
• Charge profiles, configurable for lithium (LiFePO4), AGM, gel and flooded lead-acid batteries.
• Load output, supports street lighting and timer functions for direct connection of DC loads.
• Weight, 0.36kg.

Product overview

The true MPPT algorithm tracks the array's maximum power point continuously, which matters most during partial shading or low irradiance at dawn and dusk. On a battery bank of this size, that extra recovered energy adds up over a day of charging.

Bluetooth is integrated into the unit itself, so there's no separate VE.Direct Bluetooth Smart dongle to fit. VictronConnect gives real-time data, yield history and full control over charge settings from a phone or tablet.

The load output can run dusk-to-dawn lighting or a programmable timer, useful for small lighting circuits or gate controllers that need automatic switching without a separate relay.

Applications

• Small off-grid cabins and garden buildings on 12V or 24V systems.
• Marine and narrowboat installations with modest panel voltage and current needs.
• Campervans and motorhomes running a single or dual panel array.
• Remote monitoring stations, gate controllers and other low-power DC equipment.
• Small solar lighting systems needing programmable load control.

What's in the box

• Victron SmartSolar MPPT 75/10 charge controller (retail packaging).

Installation notes

Fit this only by a competent electrician or qualified solar installer. PV open circuit voltage must not exceed 75V under any condition, including cold weather, which raises Voc. Set the correct battery chemistry profile in VictronConnect before commissioning. Follow the wiring standards relevant to boats or vehicles where applicable. Not intended for grid-connected use.
