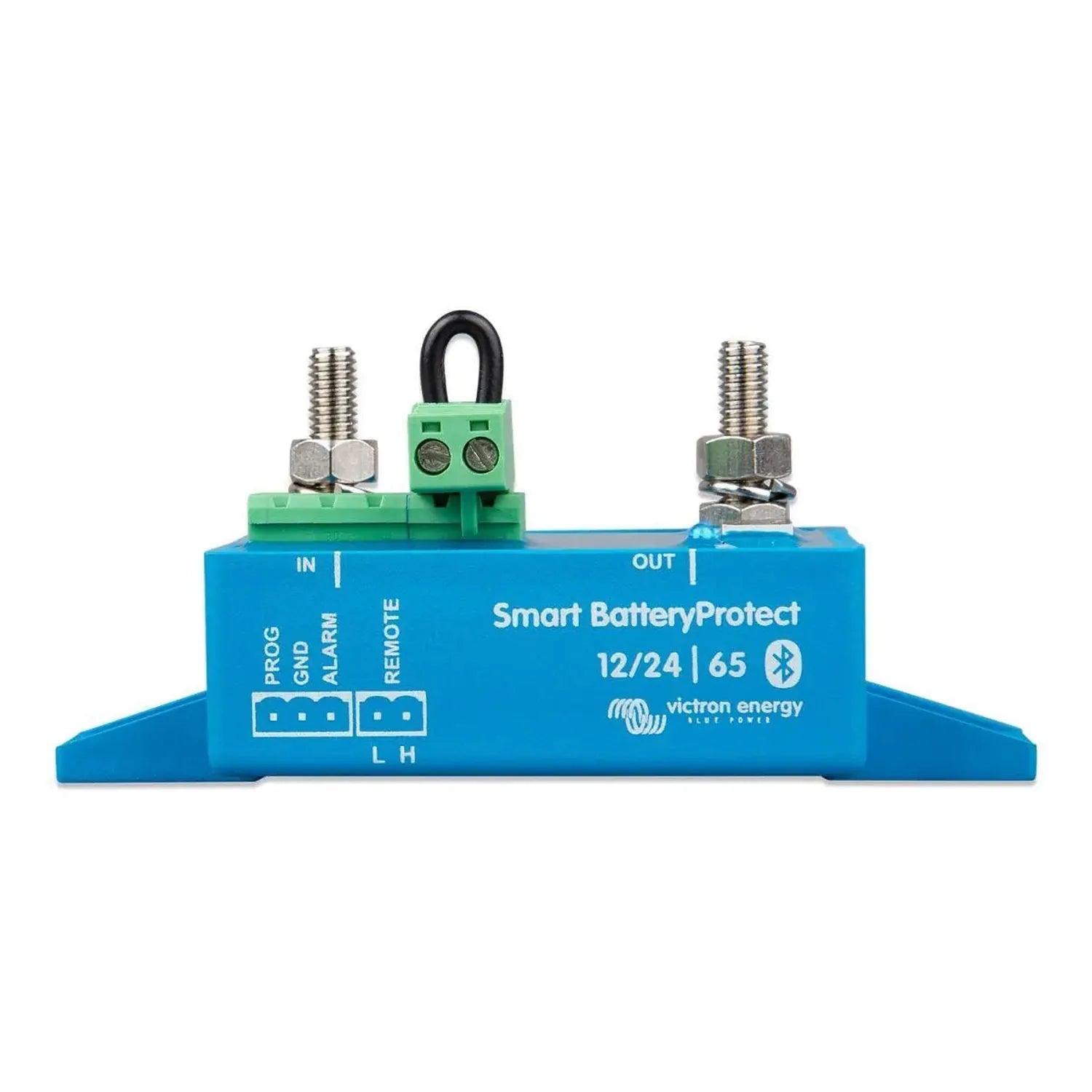

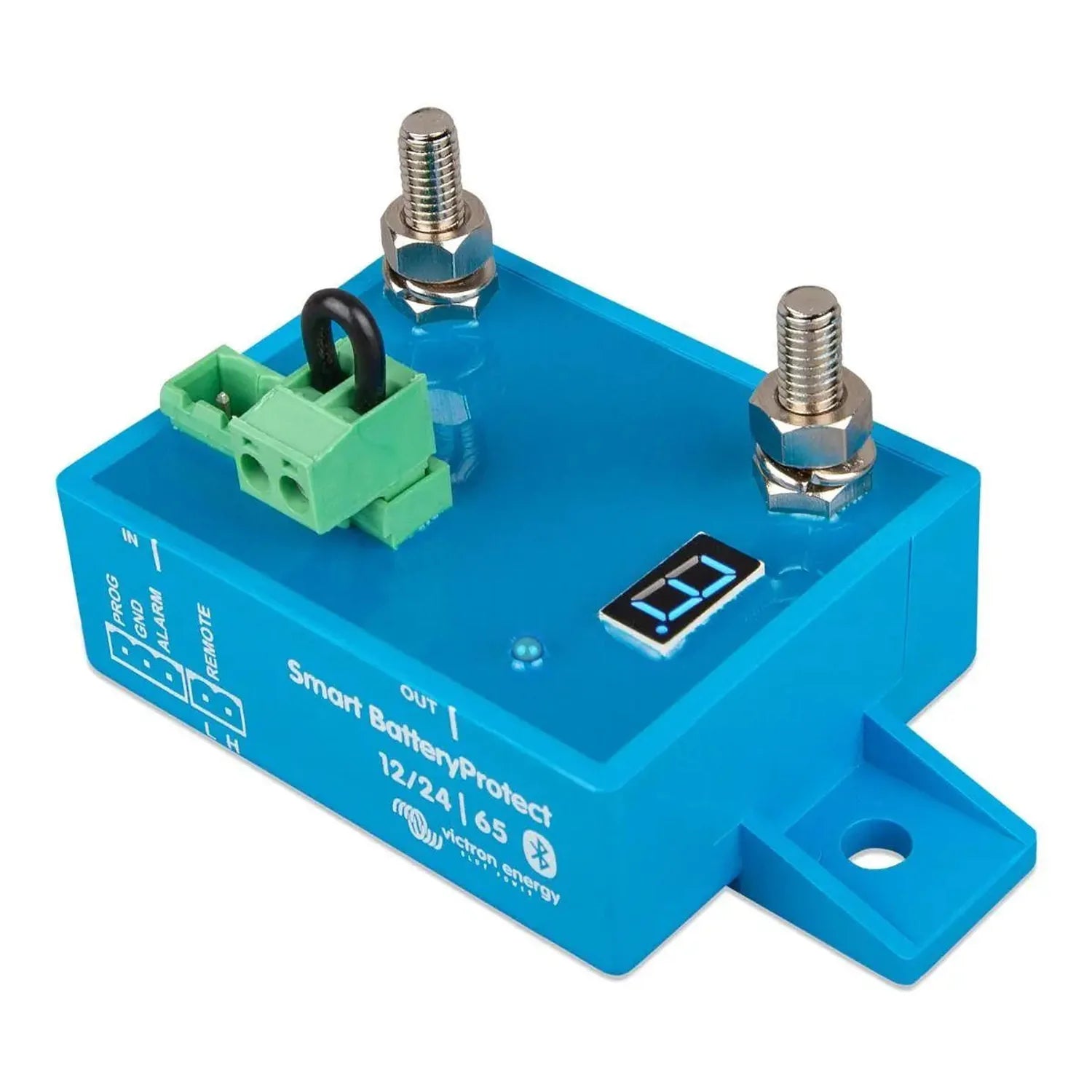

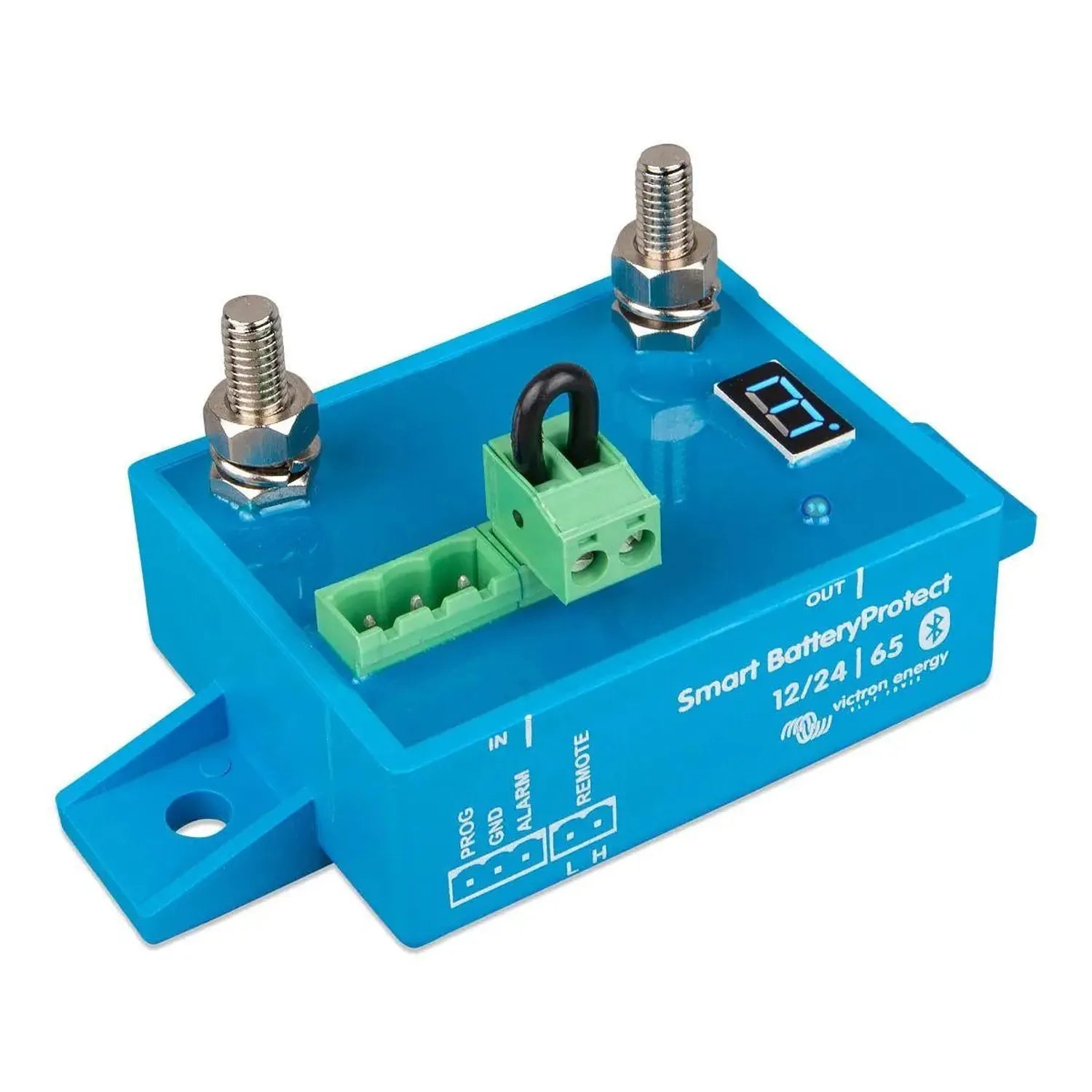

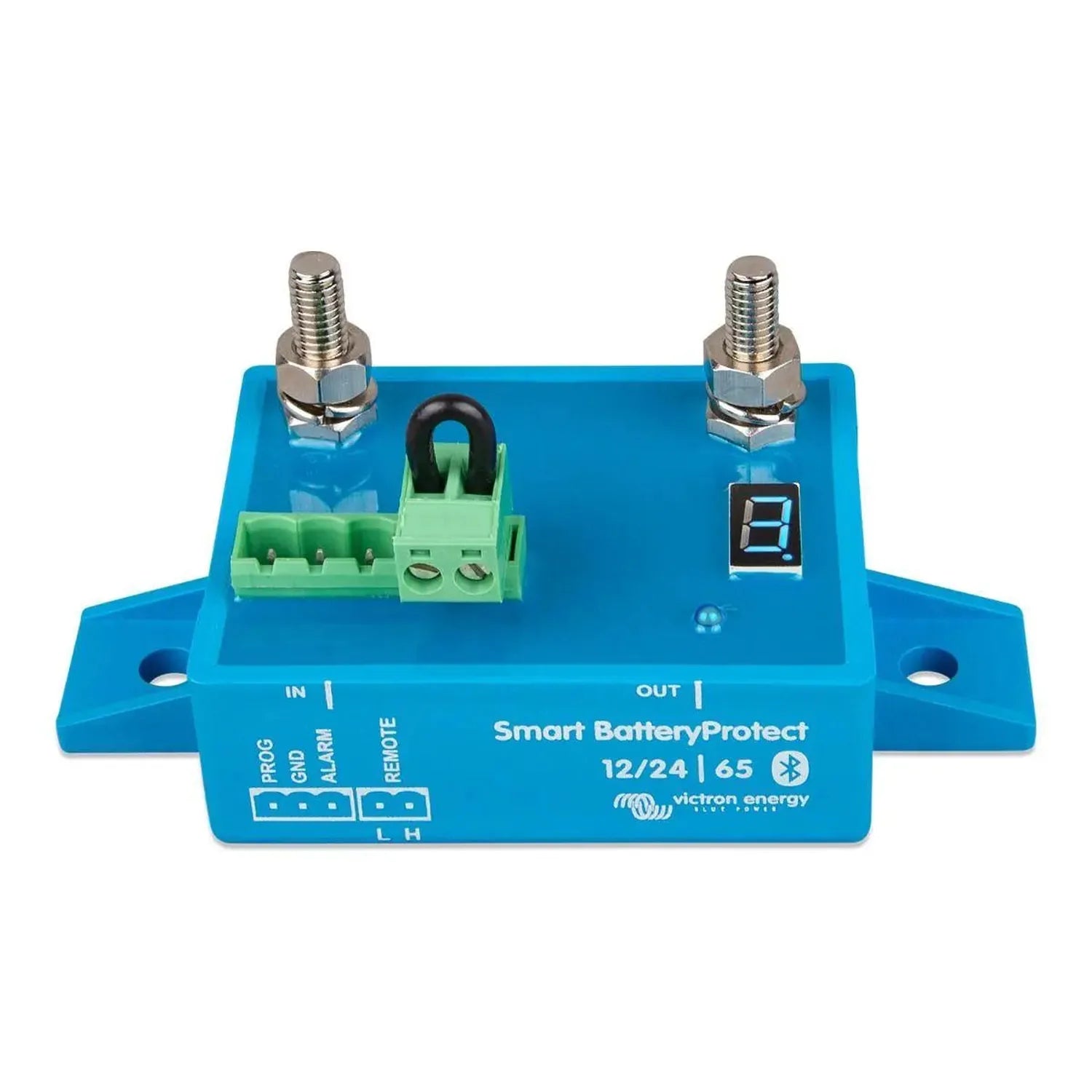

Victron Smart BatteryProtect 12/24V 65A Load Disconnect | BPR065022000

The Victron Smart BatteryProtect is a load disconnect device that protects 12V and 24V batteries from over-discharge and over-voltage damage. Rated at 65A continuous, it suits off-grid systems, marine installations, campervans and any setup where load management matters. Bluetooth connectivity links it to the VictronConnect app, so installers and owners can check status and adjust settings without opening the unit.

Key features of the Victron Smart BatteryProtect

• Load disconnect rating, 65A continuous, for 12V and 24V battery systems.
• Bluetooth connectivity, configure and monitor via the VictronConnect app on iOS and Android.
• Programmable thresholds, low-voltage disconnect and reconnect points can be set to suit different battery chemistries.
• Over-voltage protection, programmable high-voltage disconnect guards sensitive loads from spikes.
• Li-ion mode, communicates directly with compatible Victron lithium battery management systems through a dedicated port.
• Alarm output, signals low-voltage conditions to external indicators or devices.
• Weight, 205g, for installation in confined spaces.
• No quiescent draw, draws no current when switched off, so battery charge is preserved.

How it works

The unit tracks battery voltage and disconnects the load once voltage falls below a threshold set by the installer, preventing the deep discharge that shortens battery life. When voltage recovers to the reconnect point, the load switches back on automatically. The delay between disconnect and reconnect is configurable, which stops rapid cycling where voltage recovery is slow.

This is a one-way protection device for load circuits. It must not be fitted between a charger and a battery, since it is not designed to carry charging current.

Applications

Used for auxiliary load protection in off-grid solar systems, marine circuits, campervans, caravans, motorhomes, light commercial vehicles and remote monitoring or telecoms equipment running on 12V or 24V batteries.

Installation notes

Fit the BatteryProtect in the load circuit only, between battery and DC loads. Size cables and fuses on both sides for the 65A rating. Check BMS compatibility before enabling Li-ion mode on lithium systems. Installation should be carried out by a qualified electrician or experienced DC systems integrator.

What's in the box

• 1x Victron Smart BatteryProtect 12/24V-65A (BPR065022000)
