Product Description

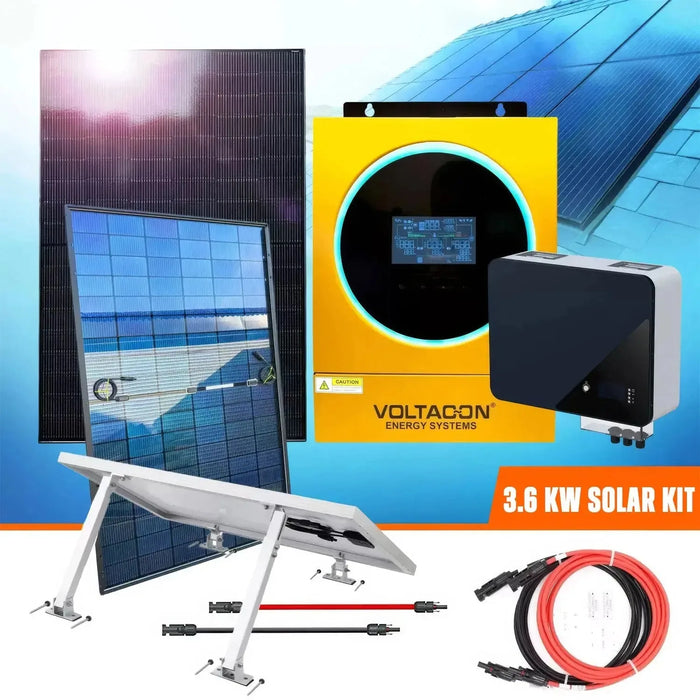

A complete off-grid solar power kit built around a Voltacon 3.6kW solar inverter with integrated MPPT battery charger. The kit delivers 3600W continuous AC output and pairs the inverter with 6 x 440W bifacial panels, a 2.5kWh 24V lithium battery and the cabling, protection devices and mounting hardware needed to get the system running.

Off grid solar panel kit with battery and inverter

  • Inverter output, 3.6kW continuous AC, pure sine wave
  • Battery, 2.5kWh 24V lithium with active cell balancing, IP65 enclosure
  • Solar array, 2640W from 6 x 440W bifacial panels
  • Expansion, additional battery units can be added, up to 16 in parallel
  • DC cabling, 25 metres red and 25 metres black 6mm² solar cable
  • Protection, AC consumer unit with surge protection, Mersen DC battery isolator with 2 x 100A fuses, solar string fuses, 25A AC isolator

Applications

Suited to off-grid homes, remote buildings and cabins, backup power for essential loads, and agricultural buildings or workshops without a grid connection.

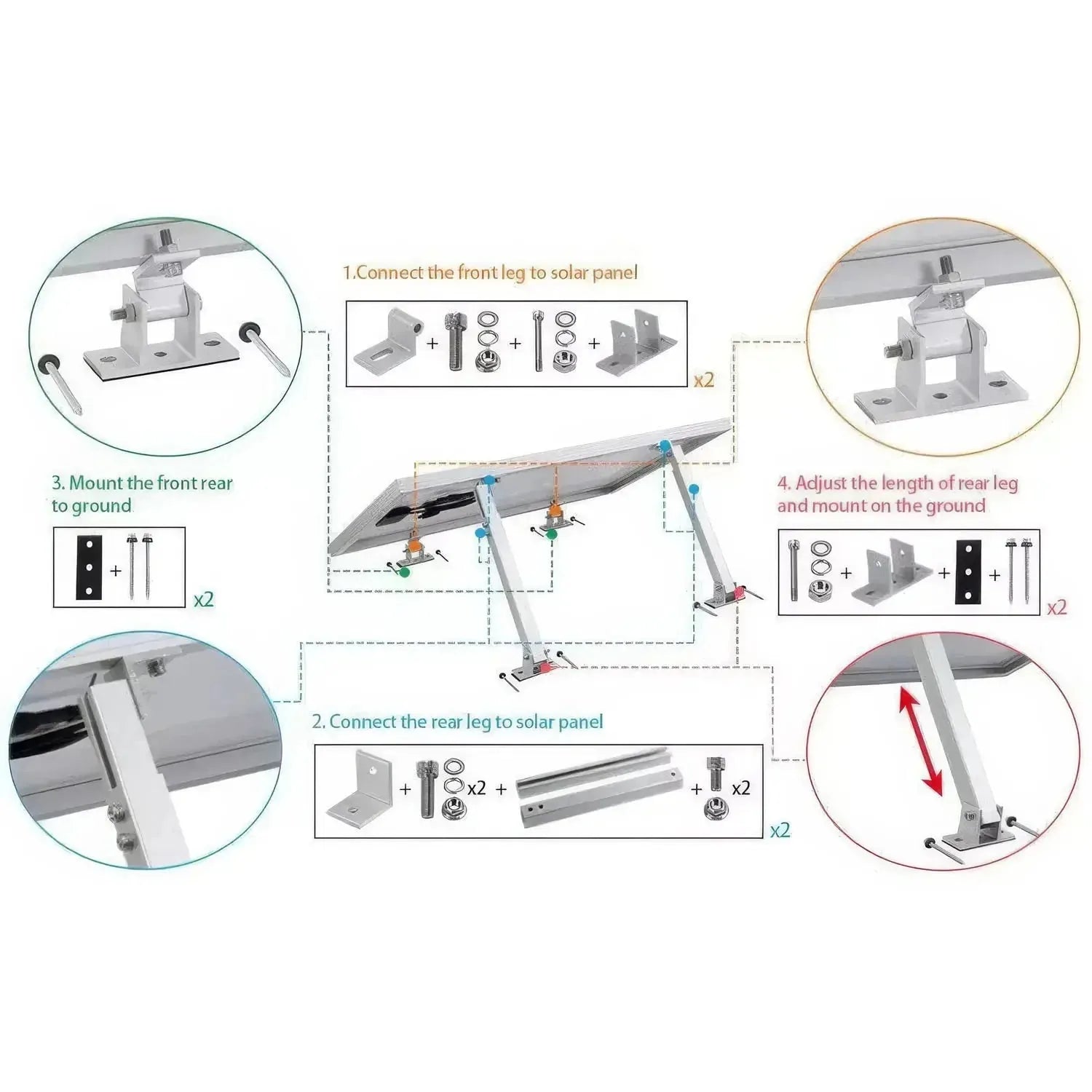

Mounting and setup

The mounting kit for the 6 panels allows an adjustable tilt of 15 to 30 degrees. A full wiring diagram and setup instructions are included, and installation should be carried out by a qualified installer.

What's in the box

  • 1 x Voltacon 3.6kW solar inverter with MPPT charger, 230VAC
  • 1 x 2.5kWh 24V lithium battery (expandable)
  • 6 x 440W bifacial solar panels (2640W total)

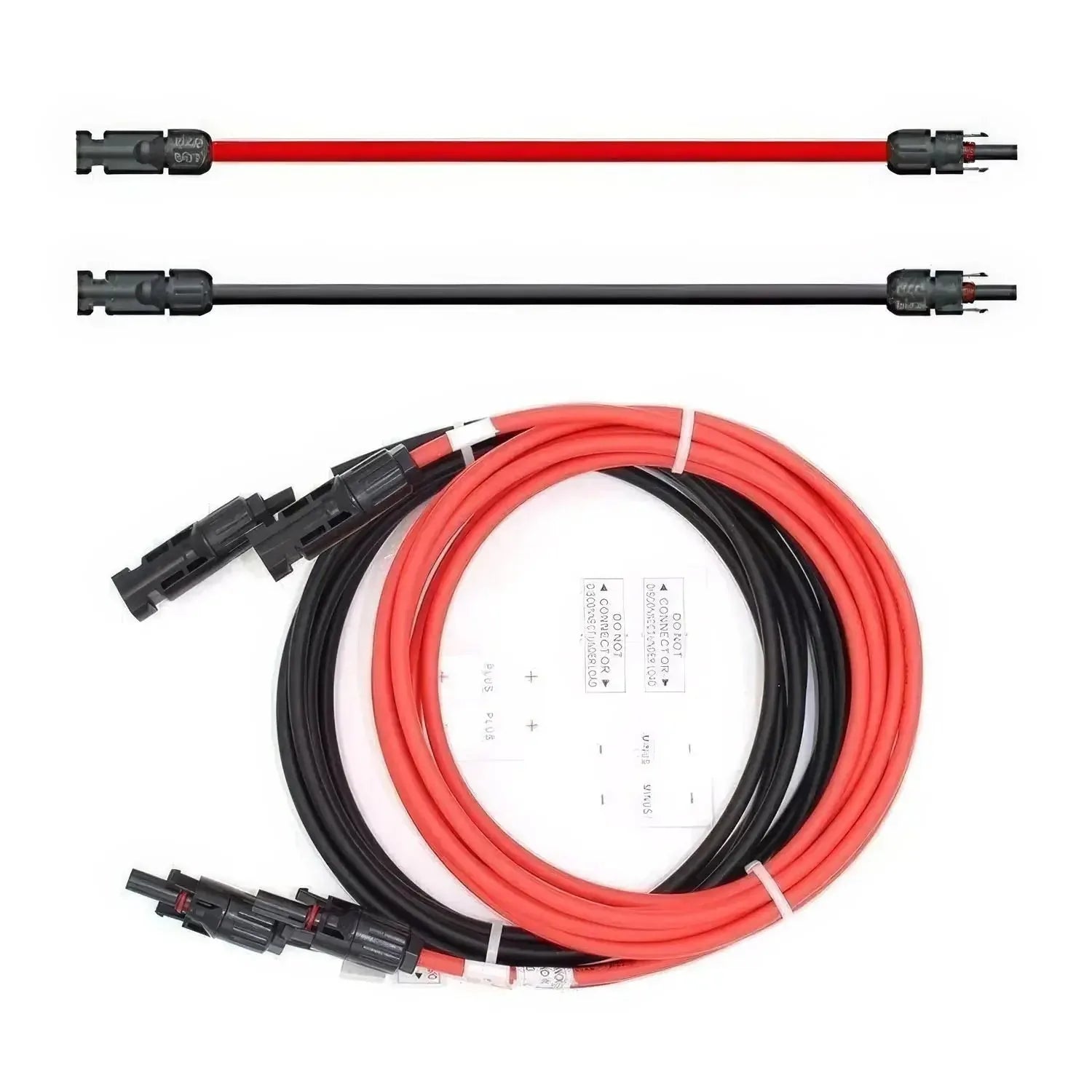

  • 25m red and 25m black 6mm² solar DC cable
  • 2 x solar panel connectors
  • 5m 6mm² 3-core AC cable, 230V
  • 1 x AC consumer unit with surge protection

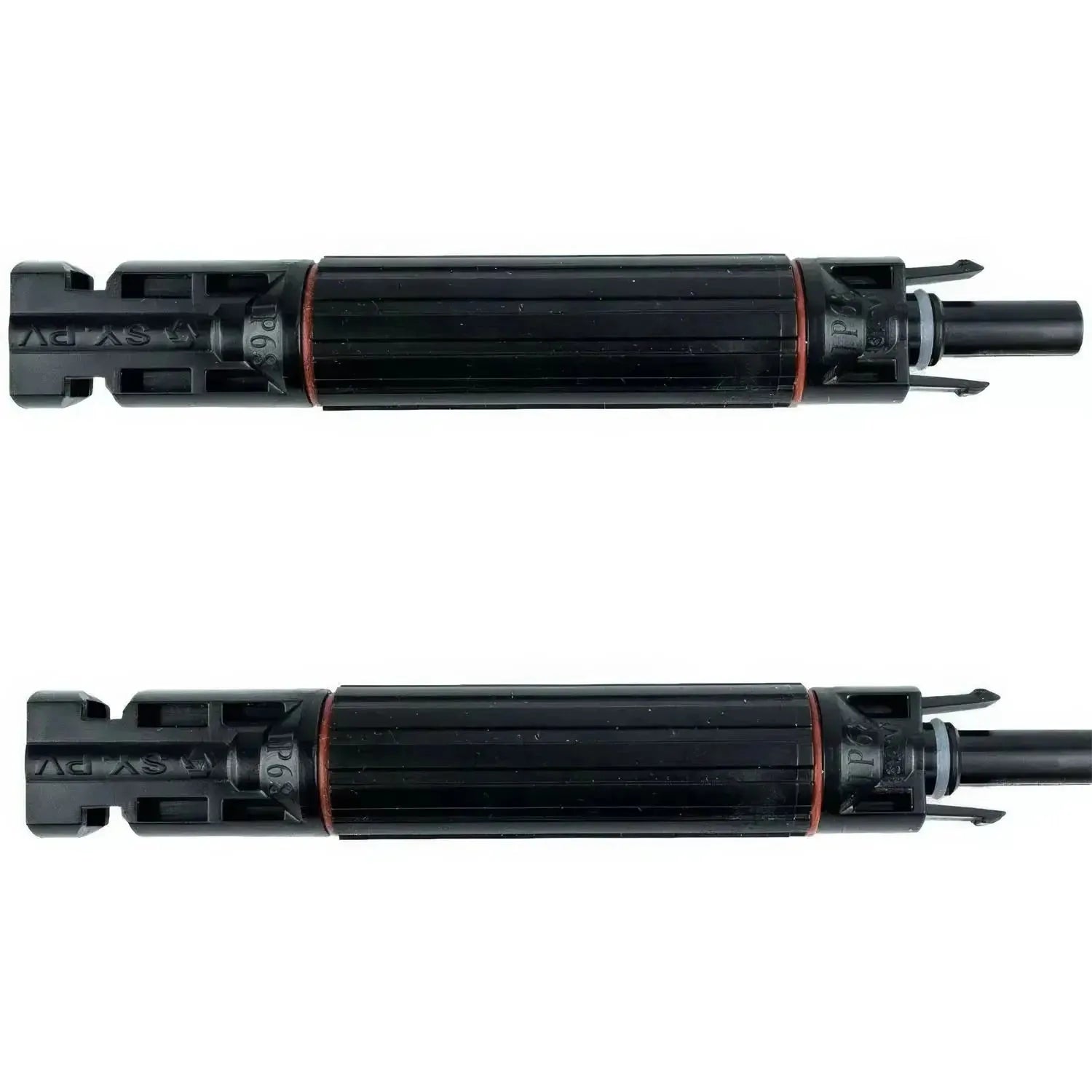

  • 2 x solar string fuses
  • 1 x solar panel DC isolator
  • 1 x AC isolator 25A
  • 6 x panel mounting kit, adjustable 15 to 30 degree tilt
  • 1 x Mersen DC battery isolator with 2 x 100A fuses
  • Wiring diagram and setup instructions

Battery specification

Parameter Value
Model LIO-II-2410
Nominal capacity 2.5kWh / 100Ah
Nominal voltage 25.6V DC
Continuous discharge 50A
Peak discharge 100A
Enclosure IP65 aluminium, indoor or outdoor
Dimensions 165 x 375 x 400mm / 26kg
Max parallel units Up to 16

Warranty: 1 year on the inverter, 5 years on the battery, 30 years on the panels.

  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
M
Mike H.
Off grid

Do not think that you are buying a small lightweight system you are buying a sturdy hard-core system. It will take time. If you are not a qualified electrician you will need to read the instructions carefully. Do not rush. Make sure if your communication cable doesn’t appear to be working that you read the instructions and enter the correct battery type after doing this. It will work just fine. I have taken my time running a business and trying to read instructions and put things together. It is best not to rush so far. The equipment is without doubt outstanding it is powering everything I am using a generator to top the system up when needed. I am getting about four days before I need to think about charging the system back up again saving me a lot of money on petrol. If I had any thing to say that was negative it would be the instruction manual is so small that it is difficult to read especially for an older person. It would be great if the instruction manual could be larger thereby making it easier to read and understand otherwise guys it is a great system.
