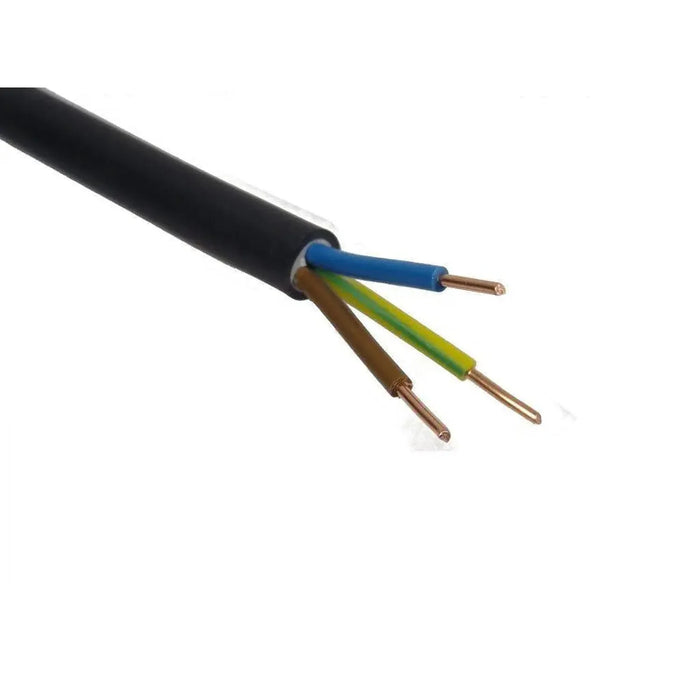

Close-up of three-core electrical cable with black outer sheath and blue, brown, and green-yellow copper conductors exposed a

Helukabel NYY-J 3 Core 6mm² AC Cable 0.6/1kV | Per Metre

£6.20
Skip to product information
Close-up of three-core electrical cable with black outer sheath and blue, brown, and green-yellow copper conductors exposed a
Helukabel NYY-J 3 Core 6mm² AC Cable 0.6/1kV | Per Metre

Helukabel NYY-J 3 Core 6mm² AC Cable 0.6/1kV | Per Metre

Vendor
Helukabel
SKU
NYY-J-6mm
Availability
In stock
Weight
0.25 kg

£6.20inc VAT £5.17exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

Helukabel NYY-J 3 core 6mm² black AC power cable, sold per metre. Manufactured in Germany with double PVC insulation and VDE approval, it is built for outdoor runs, underground burial and installation in brick and concrete walls. It is commonly used as the main AC output cable from solar inverters.

Key features

  • Construction, 3 core 6mm² black NYY-J cable
  • Rated voltage, 0.6/1kV
  • Approval, VDE approved, manufactured in Germany by Helukabel
  • Insulation, double PVC, UV resistant
  • Installation, suitable for outdoor, underground and in-wall use, compliant with BS7671 for buried ground installation
  • Operating temperature, -40°C to +70°C

Applications

Used as the AC output cable from single phase solar inverters, and as a power and control cable in solar PV systems. Also suited to general underground and outdoor electrical cable runs.

Installation and safety notes

All AC cable installation must be carried out by a qualified electrician in accordance with IET Wiring Regulations BS7671.

Sold per metre

This cable is supplied per metre, allowing you to order the exact length needed for your run.
