MR16 GU5.3 LED Spotlight 3.5W 230lm 12V AC/DC 38° Non-Dimmable | LEDON
- Vendor
- LEDON
- SKU
- 001005
- Availability
- In stock
- Weight
- 0.15 kg
£5.62inc VAT £4.68exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

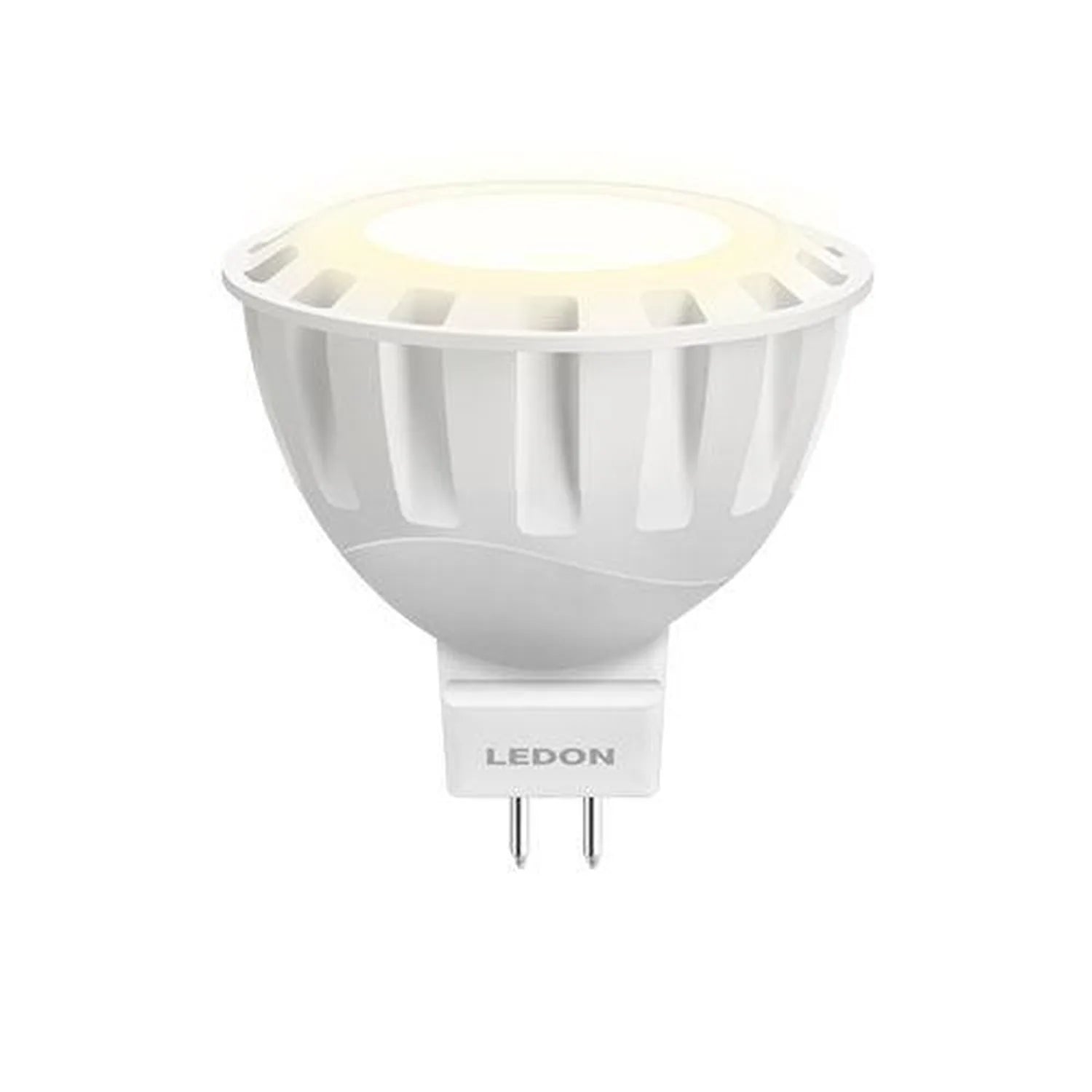

This LEDON MR16 spotlight takes the place of a 20W halogen lamp while drawing just 3.5W. It fits a GU5.3 socket, runs on 12V AC or DC and puts out 230 lumens through a 38° beam. It is non-dimmable.
MR16 GU5.3 LED lamp at a glance
- Power draw: 3.5W
- Light output: 230 lumens
- Beam angle: 38°
- Supply: 12V AC/DC
- Cap: GU5.3, MR16 format
- Dimming: not supported
Replacing halogen spotlights
Many low-voltage downlights and track heads were built around 20W halogen MR16 lamps. This LED version uses the same GU5.3 bi-pin base and the same 12V supply, so it can go into those existing fittings. Because it accepts both AC and DC, it suits circuits fed by either type of 12V source.
It cannot be dimmed. Fit it on a standard switched circuit, not one controlled by a dimmer.
About the halogen comparison
The 20W halogen equivalence is based on table 6 of EU Regulation 1194/2012. How bright the lamp looks against your old one will depend on the type of halogen lamp it replaces, so treat the figure as a guide to the class of lamp rather than a direct match for every bulb.
Ordering reference
The LEDON manufacturer code for this lamp is 29001042. Trade buyers can use it to cross-check against supplier lists when replacing a batch of fittings.
Technical Specifications 10 rows Show
| Brand | LEDON |
| Type | LED LAMP MR16 |
| Base | GU5.3 |
| Energy consumption | 3,5 Watt |
| Luminous flux | 230 lumen |
| Beam angle | 38D |
| Supply voltage | 12V AC/DC |
| Replaces | 20 Watt* halogen lamps |
| Dimmable | Non-dimmable |
| Manufacturer code | 29001042 |
Manufacturer datasheet. Figures as published by the manufacturer.
