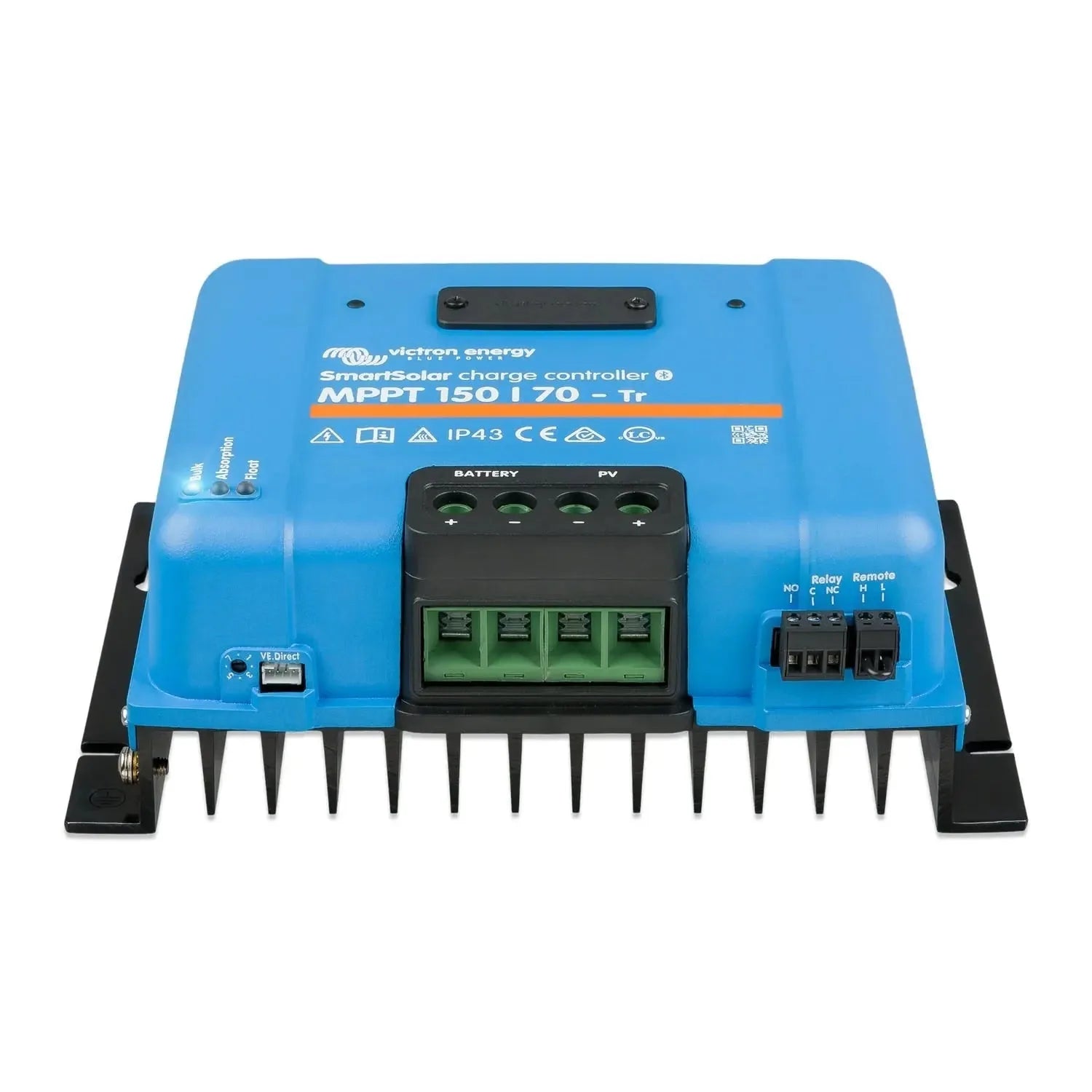

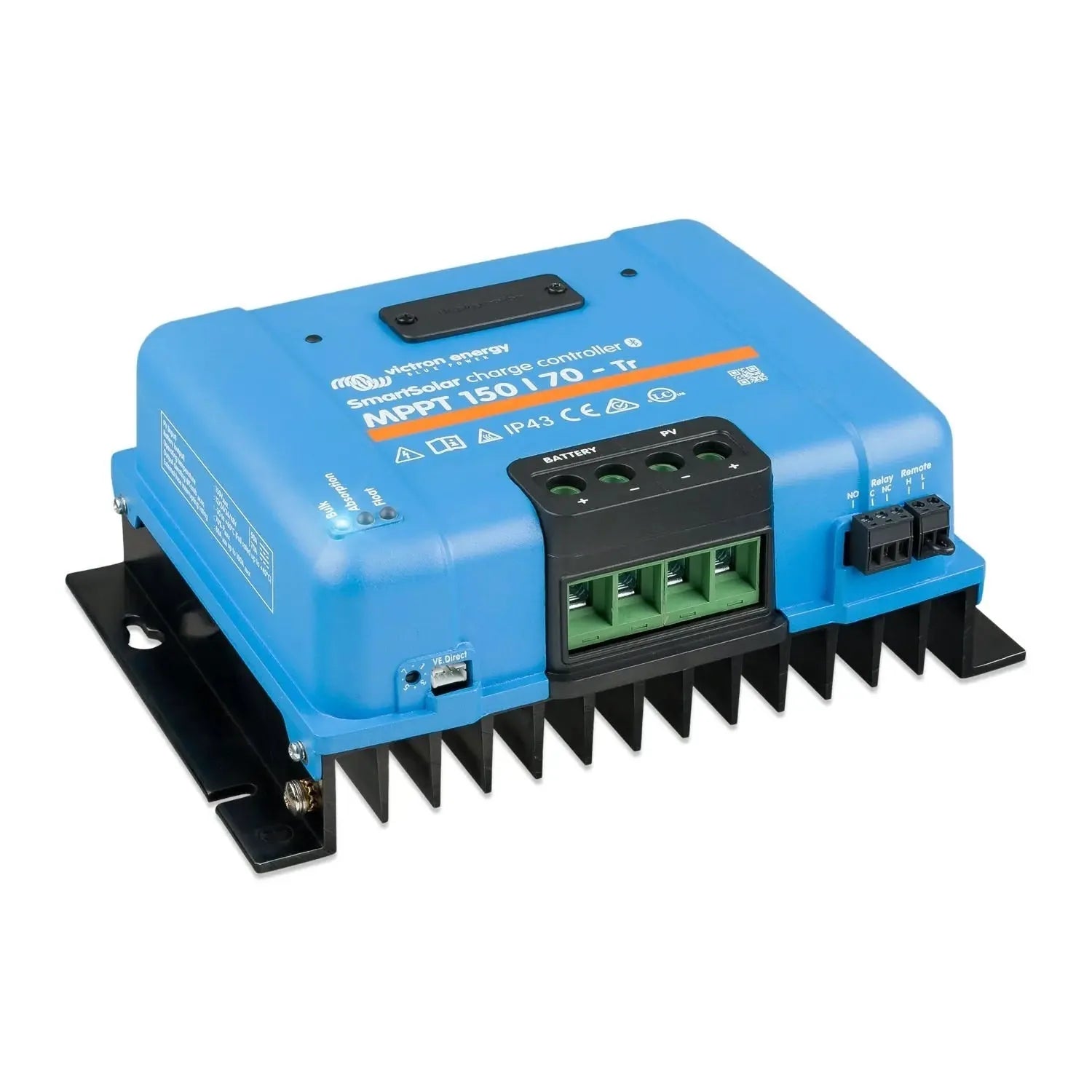

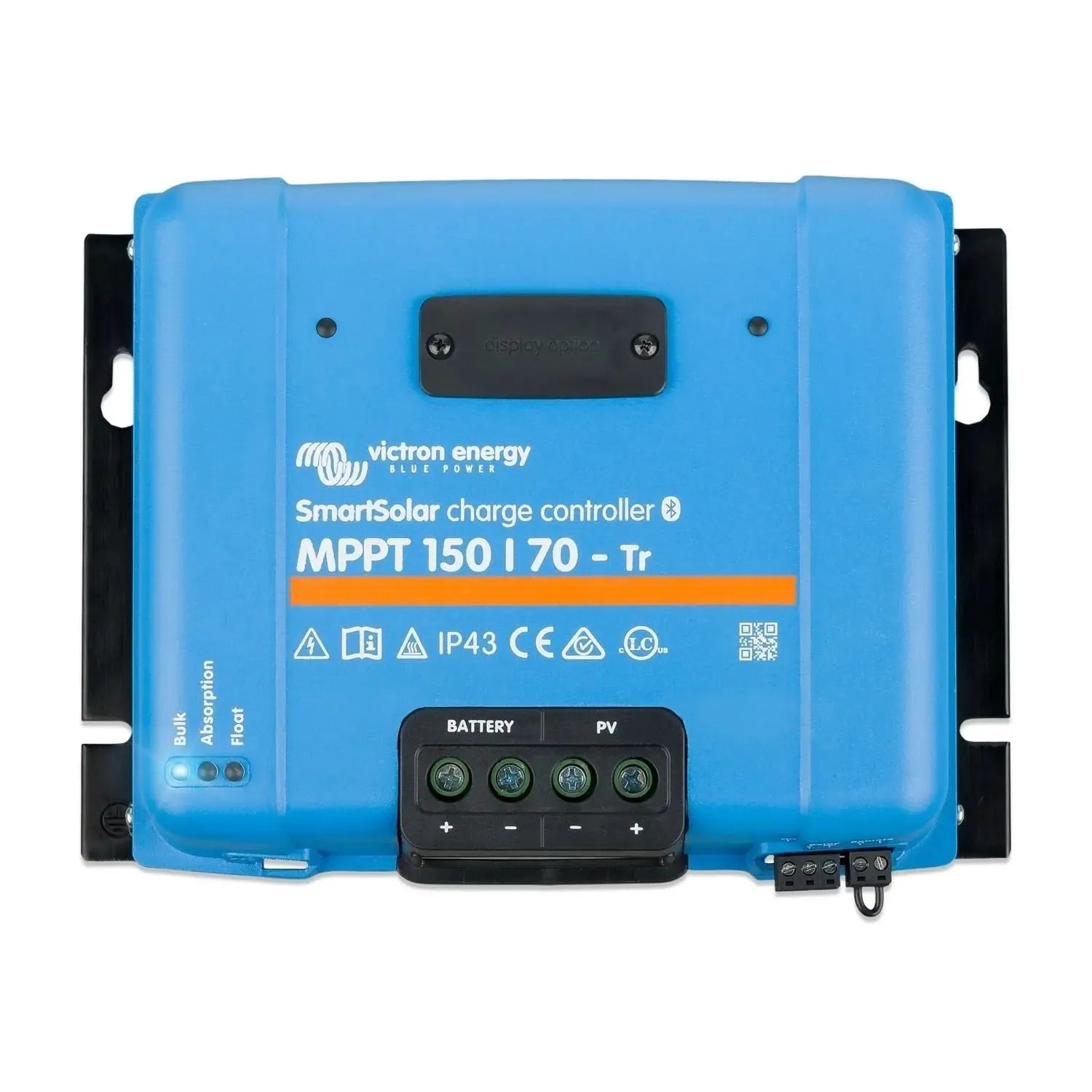

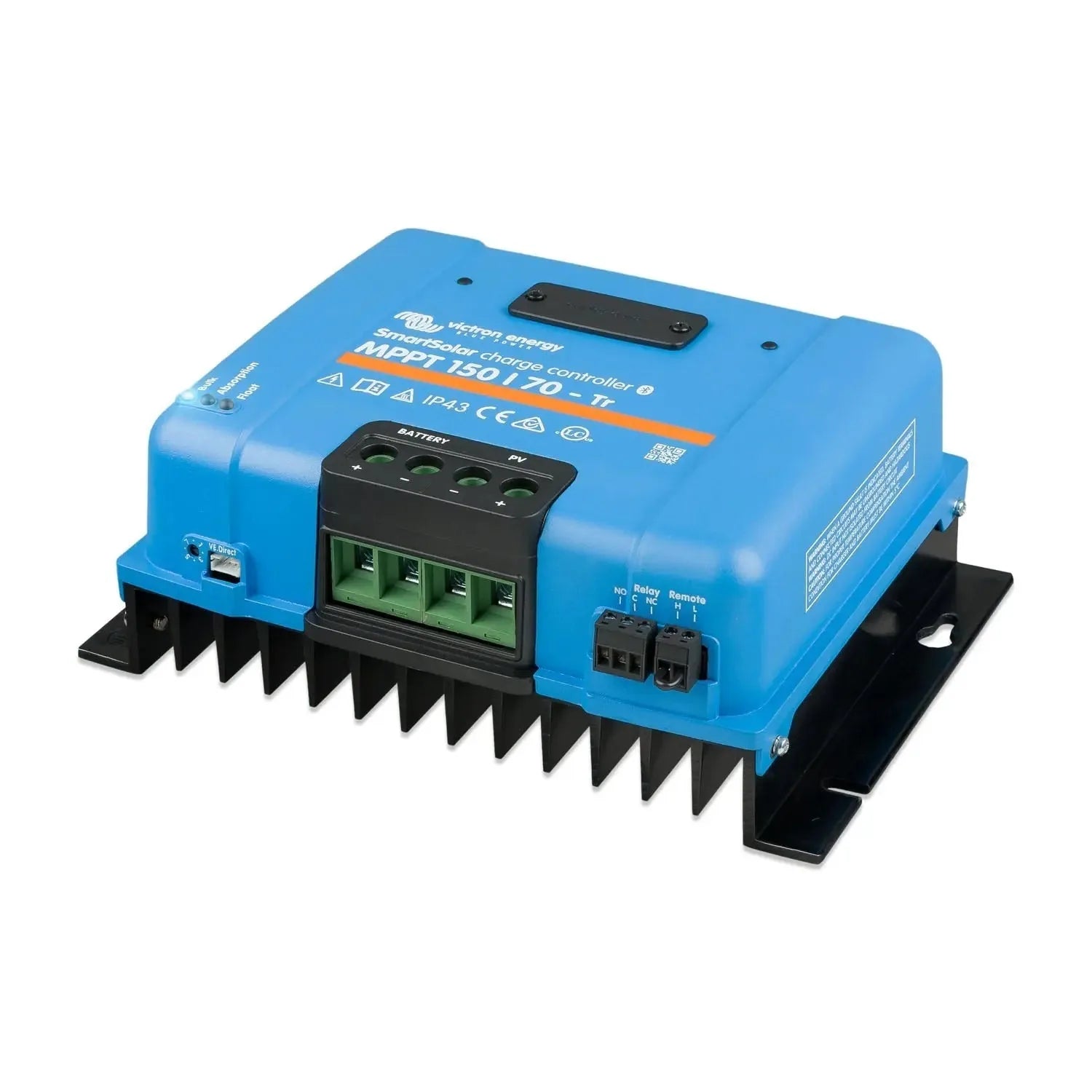

Victron Energy SmartSolar MPPT 150/70-Tr charge controller, blue front view with battery and PV terminal connections.

Victron SmartSolar MPPT 150/70-Tr Solar Charge Controller | SCC115070211

£296.08 £296.09
Skip to product information
Victron Energy SmartSolar MPPT 150/70-Tr charge controller, blue front view with battery and PV terminal connections.
Victron SmartSolar MPPT 150/70-Tr Solar Charge Controller | SCC115070211

Victron SmartSolar MPPT 150/70-Tr Solar Charge Controller | SCC115070211

Vendor
Victron Energy
SKU
SCC115070211
Availability
In stock
Weight
3.52 kg

Was£296.09£246.74Save £0.01Save £0.01

£296.08inc VAT £246.73exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Victron SmartSolar MPPT 150/70-Tr is a solar charge controller built for off-grid and battery-based installations that need precise charging and remote oversight. It accepts up to 150V from the PV array and delivers up to 70A of charge current, with built-in Bluetooth for direct setup and monitoring through the VictronConnect app.

Key features

  • PV input, 150V maximum open-circuit voltage, suitable for series-strung panels feeding 12V, 24V or 48V battery banks (auto-select).
  • Charge current, 70A rated output for larger battery banks from a single unit.
  • Efficiency, up to 98% maximum efficiency from the MPPT tracking stage.
  • Bluetooth, built-in wireless connection to VictronConnect for configuration, monitoring and firmware updates.

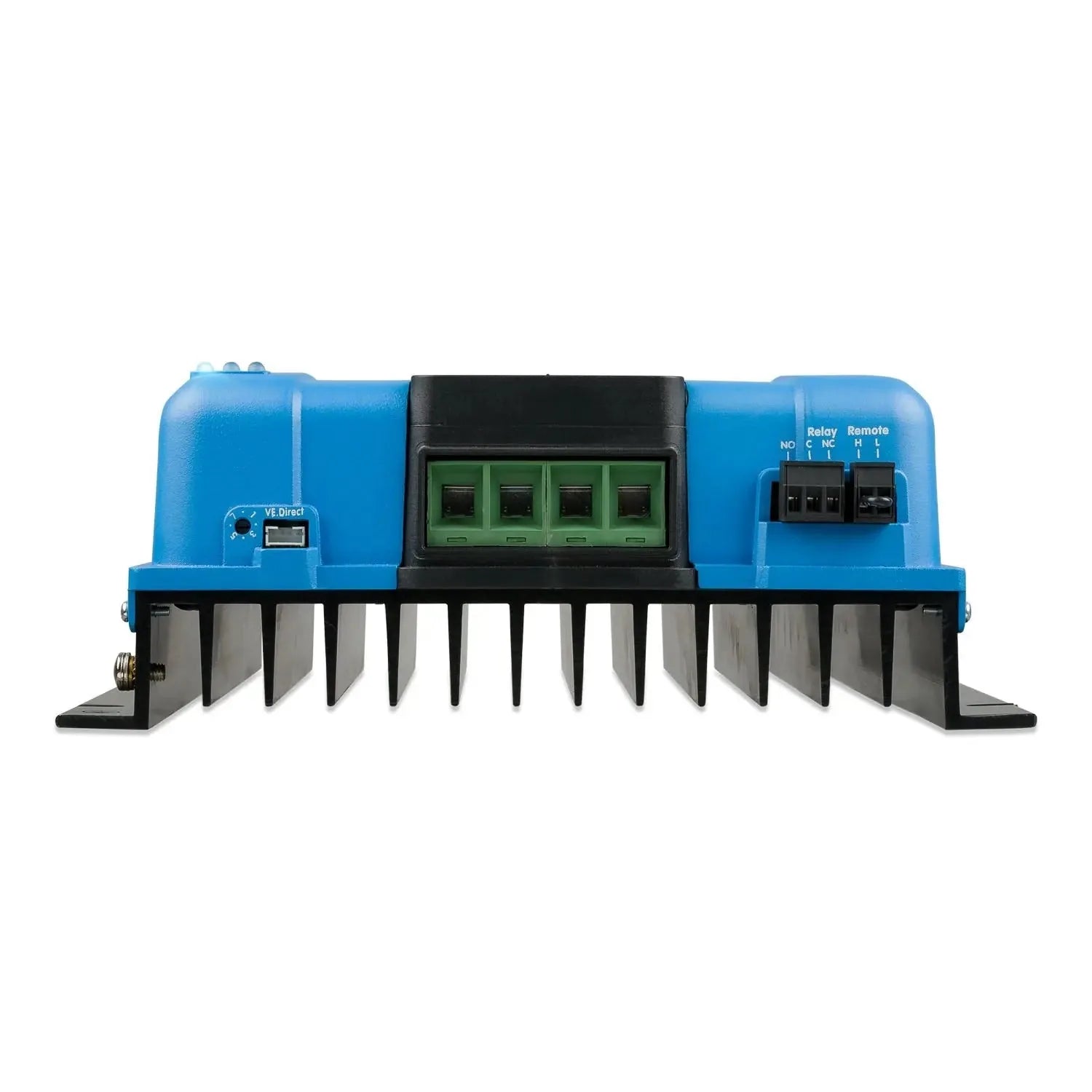

  • TR terminals, screw terminal connections on PV and battery sides for field-serviceable wiring.
  • VE.Direct port, connects to Victron GX devices such as Cerbo GX for system integration and VRM portal access.

Battery compatibility

Charge algorithms are configurable through VictronConnect for lithium (LiFePO4), AGM, gel and flooded batteries, with a dedicated lithium algorithm and support for a stop signal from a Victron Battery Management System. A load output terminal allows DC loads to be switched directly from the controller based on battery state of charge.

Applications

The 150/70-Tr suits off-grid cabins and homes, marine and narrowboat systems, motorhomes and other vehicle-based arrays, and agricultural or rural sites where remote monitoring through VRM is useful. It also fits Victron-integrated installations built around a Cerbo GX or other GX device.

Installation notes

Fitting should be carried out by a qualified electrician or experienced solar installer. PV open-circuit voltage can reach 150V, so string sizing must account for cold-weather Voc rise and stay within that limit at all times. Battery-side wiring needs fusing sized for the 70A charge current, and lithium installations require a compatible BMS connection following the battery manufacturer's guidance.

What's in the box

  • Victron SmartSolar MPPT 150/70-Tr charge controller
Technical Specifications 33 rows Show
SpecificationDetails
Compatible Battery Voltage12 / 24 / 48 V Auto Select (software tool needed to select 36 V)
Charge Current Rating70 A
Nominal PV Array Power (12V)1000 W
Nominal PV Array Power (24V)2000 W
Nominal PV Array Power (36V)3000 W
Nominal PV Array Power (48V)4000 W
Maximum PV Short-Circuit Current50 A
Maximum PV Open-Circuit Voltage150 V at minimum operating temperature; 145 V at 25°C startup
Peak Efficiency98%
Self-ConsumptionLess than 35 mA @ 12 V
Absorption Voltage (Default)Default setting: 14.4/28.8/43.2/57.6 V
Float Voltage (Default)Default setting: 13.8/27.6/41.4/55.2 V
Equalisation Voltage (Default, Adjustable)Default setting: 16.2/32.4/48.6/64.8 V (adjustable)
Charging AlgorithmMulti-stage adaptive (eight pre-programmed algorithms or user defined)
Temperature Compensation-16 mV / °C
Protection FeaturesPV reverse polarity / Output short circuit / Over temperature
Operating Temperature Range-30 to +60 °C (full rated output up to 40 °C)
Humidity Tolerance95%, non-condensing
Maximum Operating Altitude5000m (full rated output up to 2000m)
Pollution Degree RatingPD3
Communication PortVE.Direct Bluetooth
Remote On/Off CapabilityYes
Programmable Relay OutputYes
Parallel Unit OperationYes, up to 10 units can be synchronized with Bluetooth
Housing ColourBlue (RAL 5012)
PV Terminal Size35 mm² / AWG2
Battery Terminal Size35 mm² / AWG2
Ingress Protection RatingIP43 (electronic components), IP22 (connection area)
Unit Weight3 kg
Dimensions (H x W x D)215 x 250 x 95 mm
Compliance StandardsEN/IEC 62109-1, UL 1741, CSA C22.2
Logged Data ParametersBattery voltage, current and temperature, as well as load output current, PV voltage and PV current.
Trend Data Storage Duration46 days

Manufacturer datasheet. Figures as published by the manufacturer.
