Victron Dual Terminal Stud M8 Linked Set | VBB413020010

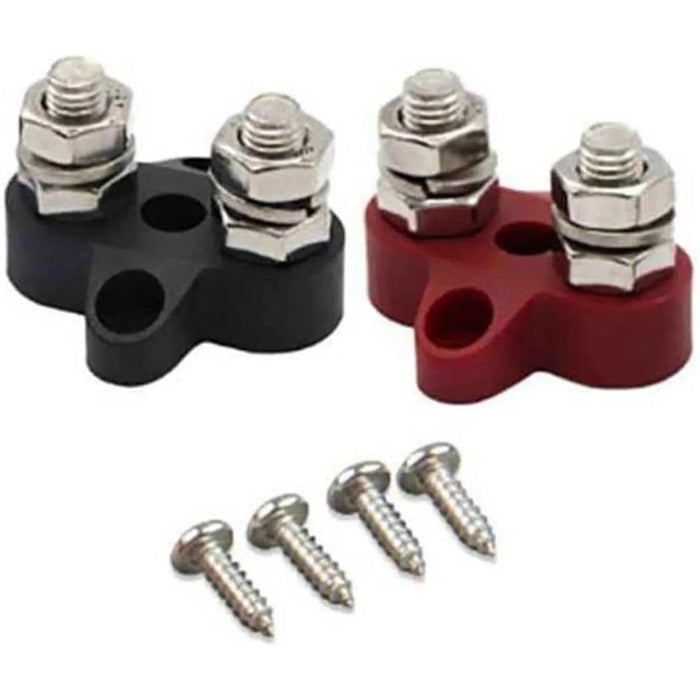

The Victron Dual Terminal Stud M8 Linked Set gives you a matched positive and negative M8 stud terminal pair for busbar and battery connection work. Supplied as one red and one black stud joined by an internal link, it suits DC wiring installations where a clean, secure dual-pole termination point is needed.

Key features

• Linked pair: one red (positive) and one black (negative) terminal stud
• M8 stud size, compatible with standard M8 ring terminals and busbars
• Internal link connects the two terminals, removing the need for extra bridging hardware
• Colour-coded housings help with correct polarity identification during installation
• Weighs 131 g, suited to panel builds and enclosure work
• Genuine Victron Energy component, SKU VBB413020010

Product overview

This linked stud set works well in DC distribution panels, busbar assemblies and battery connection points where positive and negative terminations sit close together. The internal link lets current pass between the two studs without any extra bridging piece.

M8 is a common stud size across 12V, 24V and 48V DC systems and takes a wide range of ring terminals and cable lugs. The red and black housings cut the risk of polarity mix-ups when several conductors are being wired at once.

Applications

• DC busbar assemblies in off-grid and marine electrical panels
• Battery positive and negative distribution points in 12V, 24V and 48V systems
• Motorhome, caravan and van conversion wiring builds
• Enclosure and cabinet wiring needing dual-pole stud termination
• Replacement or expansion of existing Victron busbar installations

What's in the box

• 1 x red M8 terminal stud
• 1 x black M8 terminal stud
• Internal link connecting the two terminals

Installation notes

Fitting should be carried out by a competent person experienced with DC electrical systems. Torque all connections correctly to the M8 specification and isolate the system before fitting. On battery and inverter installations forming part of a larger solar or off-grid system, a qualified installer should carry out the work.
