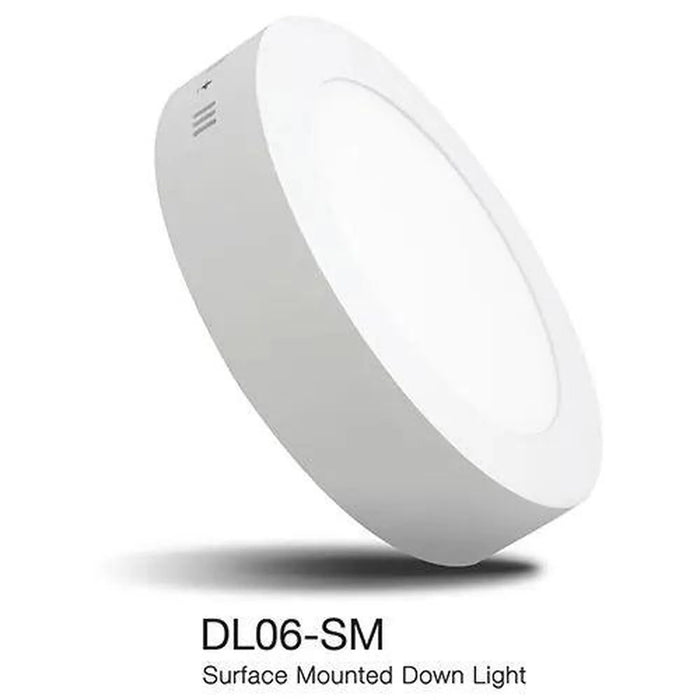

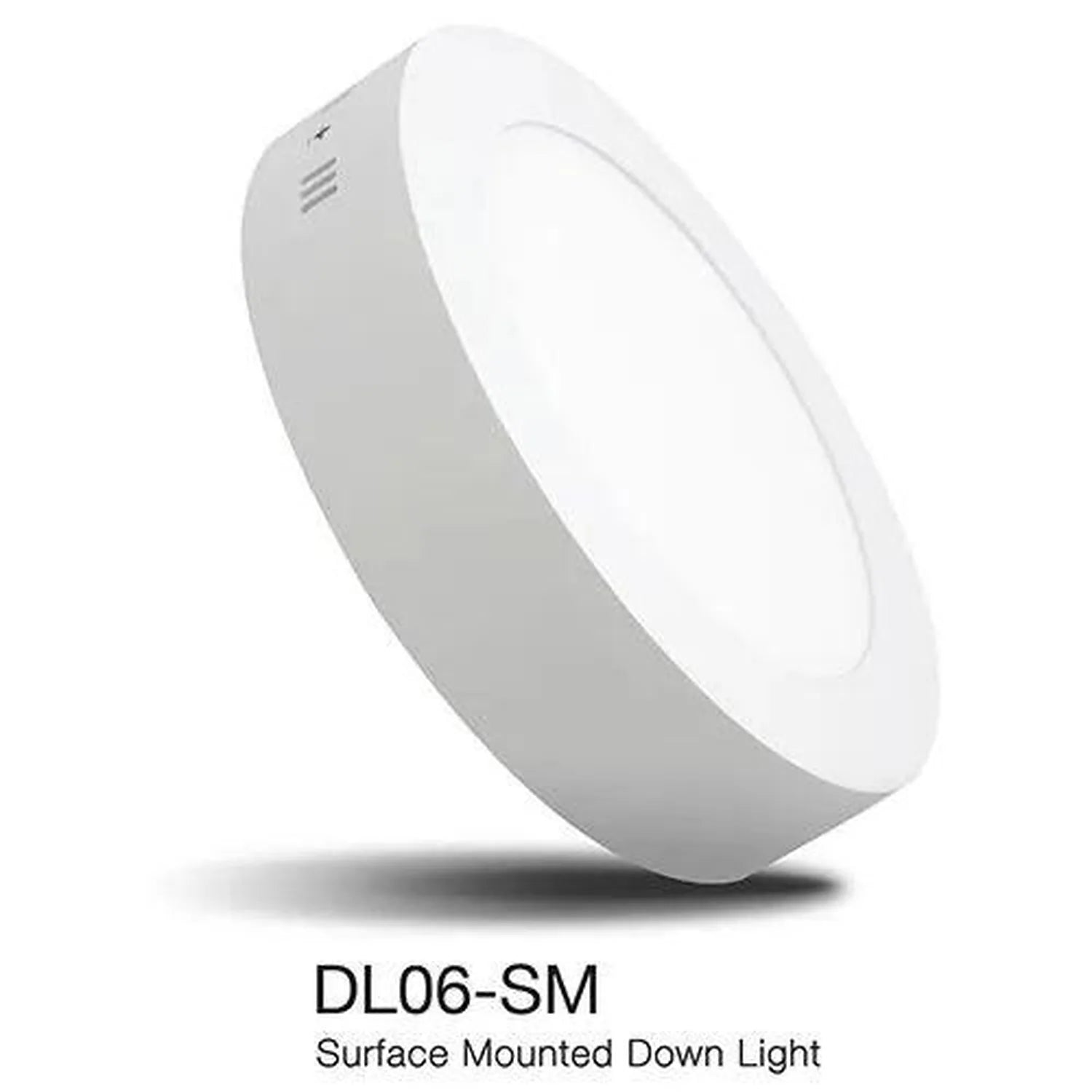

LED Surface Mounted Panel 10W 1000lm IP40 | Glacial

This Glacial LED surface mounted panel delivers 1000lm from a rated power of 10.3 Watt, giving a typical efficacy of 100lm/W. Built with a die-cast aluminium body, it fixes directly to a wall or ceiling and can also be suspended using a rod pendant for a round panel look.

Key features of this led surface light

• Luminous flux, 1000lm
• Colour temperature, available in 3000K, 4000K and 5700K
• Voltage, 100-240VAC, 50/60Hz, with DC models compatible with 11-15V or 20-30V DC
• Dimmable, 3-in-1 dimmable, AC-TRIAC or DALI control
• Colour rendering index, greater than 80
• IP rating, IP40

The wide AC input range makes the fitting usable across different mains supplies without a separate transformer, and the die-cast aluminium body keeps it light while staying sturdy enough for regular commercial use.

Applications

Suited to installation in offices, shopping centres, airports and residential buildings where a flush, low-profile ceiling or wall fitting is needed. Its 110 degree beam angle spreads light across a room without harsh shadowing.

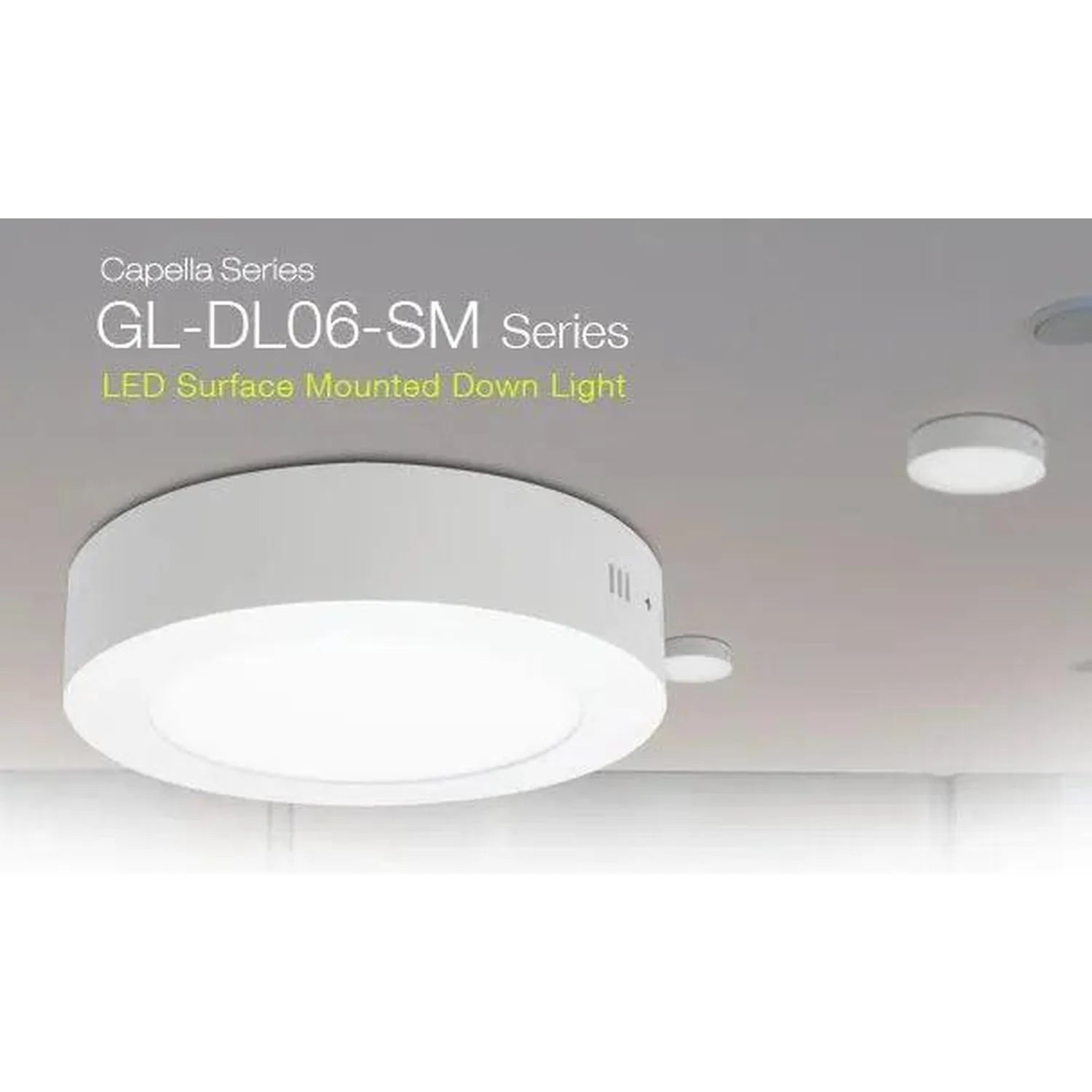

Fixing method

The panel mounts flush to a surface, or can be suspended on a rod pendant where a hanging round panel is preferred.

It ships with a Glacial GP-HS10P-36C driver, delivering constant current output of 350mA at 24 to 36V, and is available under part numbers GL-DL06-SM-WW, GL-DL06-SM-NW and GL-DL06-SM-CW depending on the colour temperature ordered.
