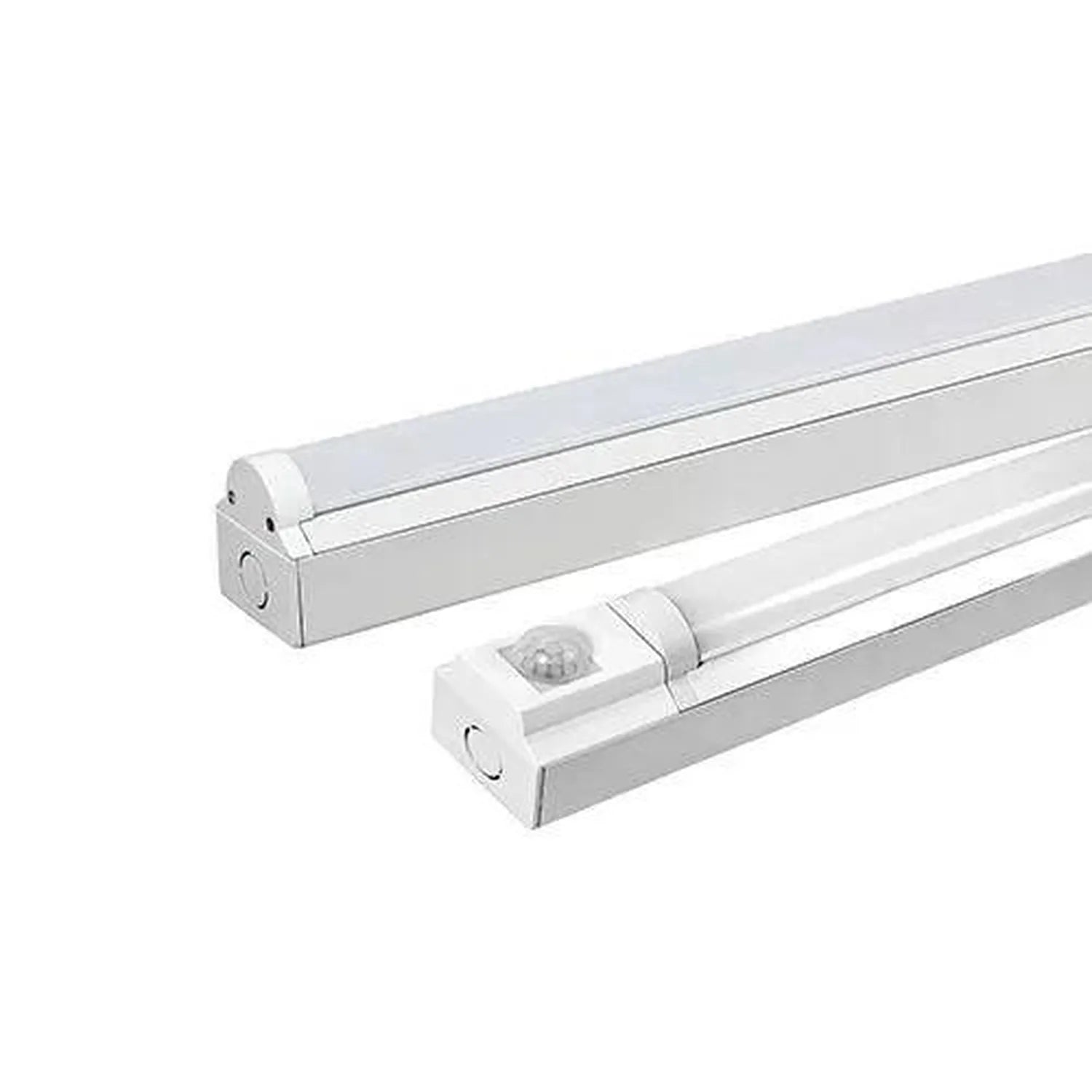

Two white LED batten lights with slim profiles displayed at angles, one with motion sensor visible.

120cm LED Batten Light 4ft 18W Tri-Colour Standard or PIR | Ledison

Standard
£32.54
Skip to product information
Two white LED batten lights with slim profiles displayed at angles, one with motion sensor visible.

120cm LED Batten Light 4ft 18W Tri-Colour Standard or PIR | Ledison

Vendor
Ledison
SKU
110564
Availability
In stock
Weight
0.625 kg

£32.54inc VAT £27.12exc VAT

Delivery from £18.50 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

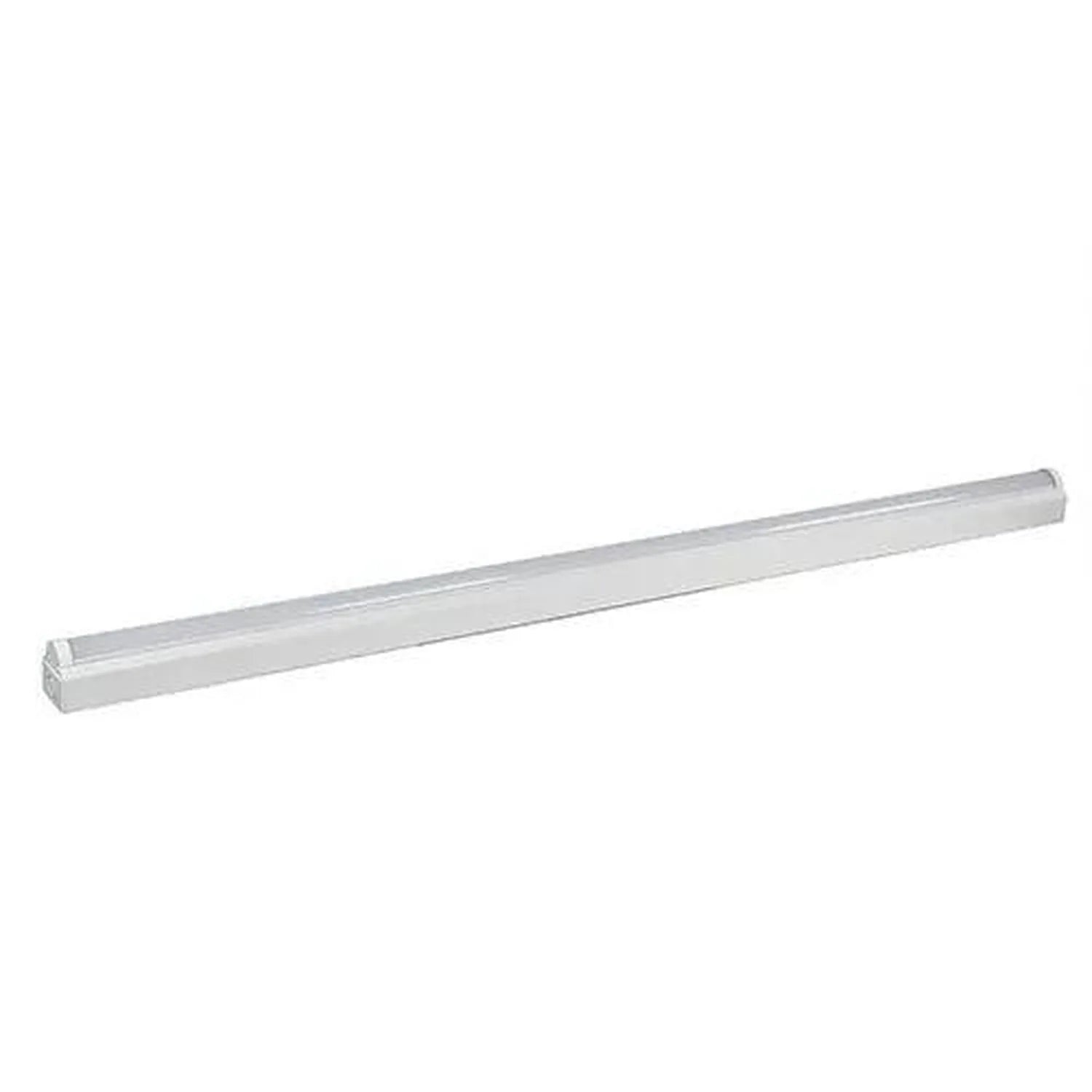

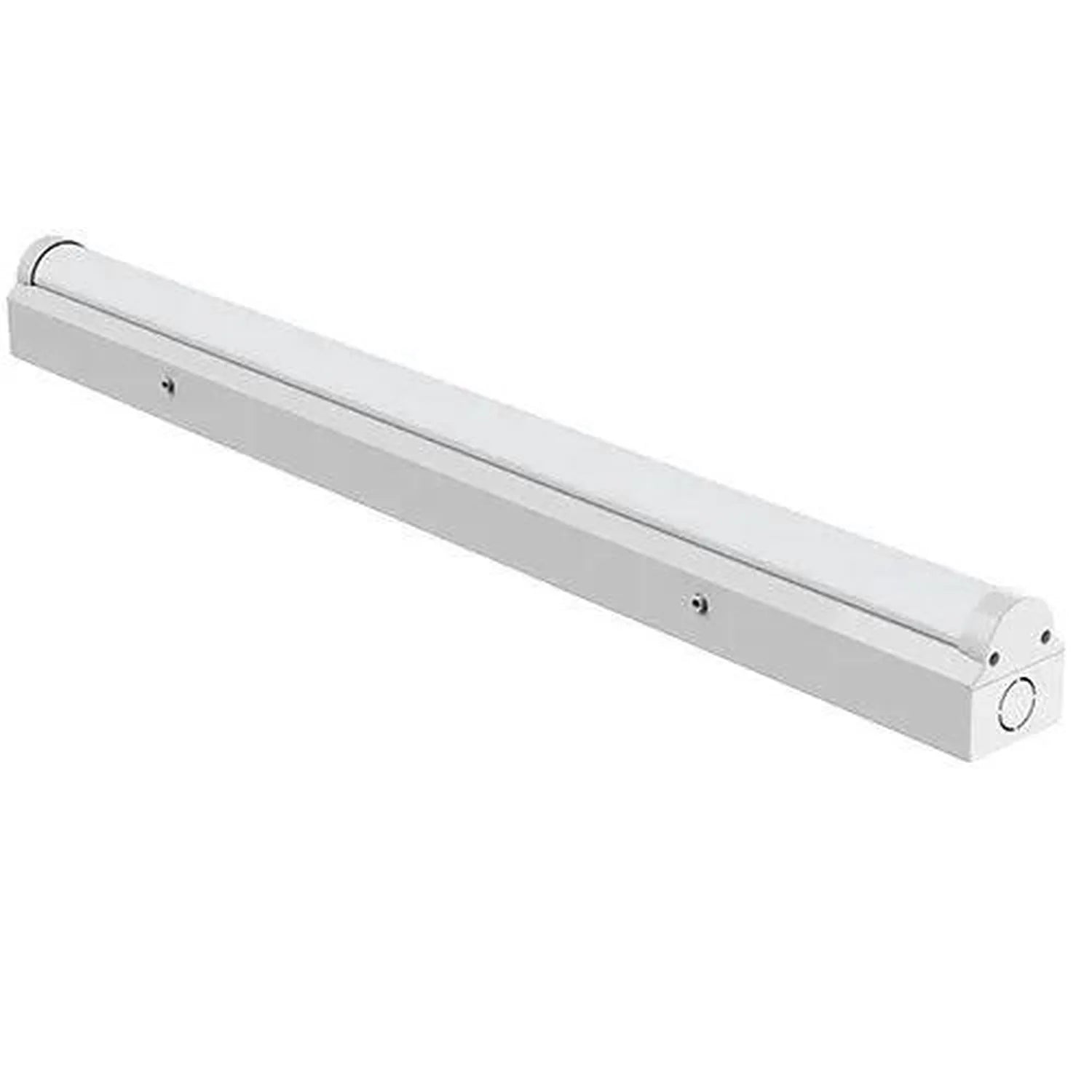

This Ledison 120cm LED batten light is a 4ft fitting made to replace a 4ft fluorescent T8 batten. It runs at 18 watts. The white metal housing is only 55mm deep, which gives a neat, low-profile look once it is up on the ceiling or wall.

120cm LED batten light features

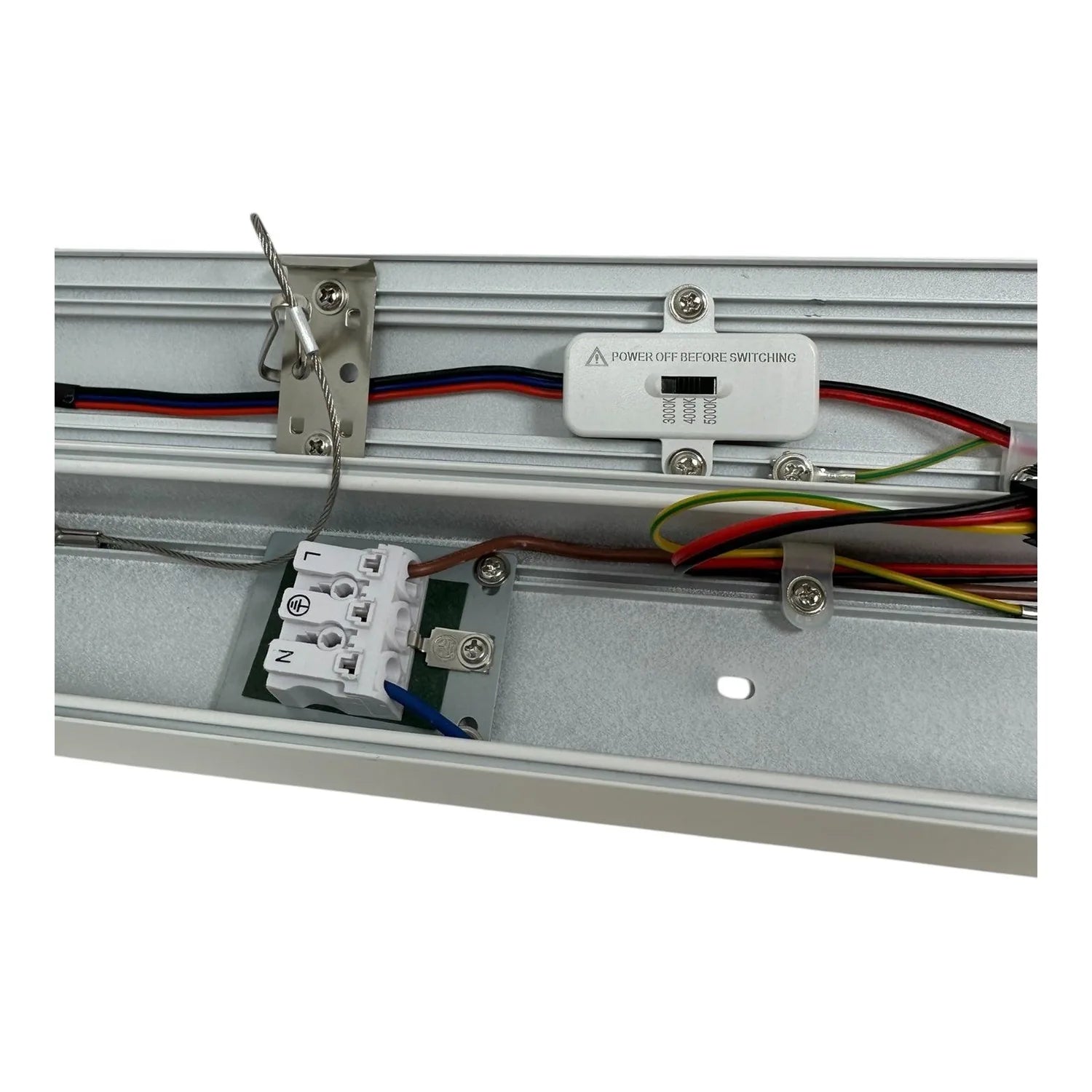

  • Selectable colour: a selector on the fitting sets 3000K warm white, 4000K natural white or 5000K cool white.

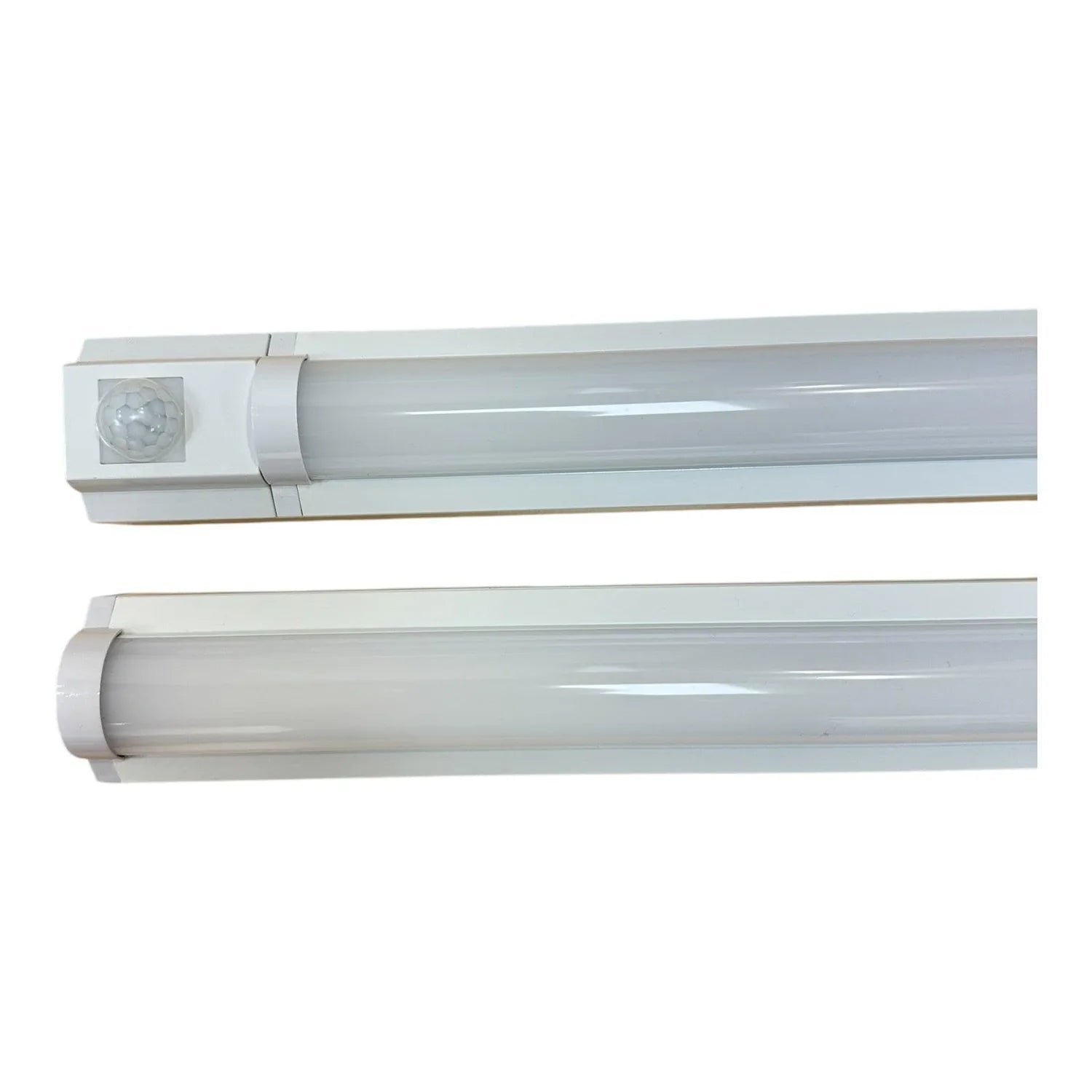

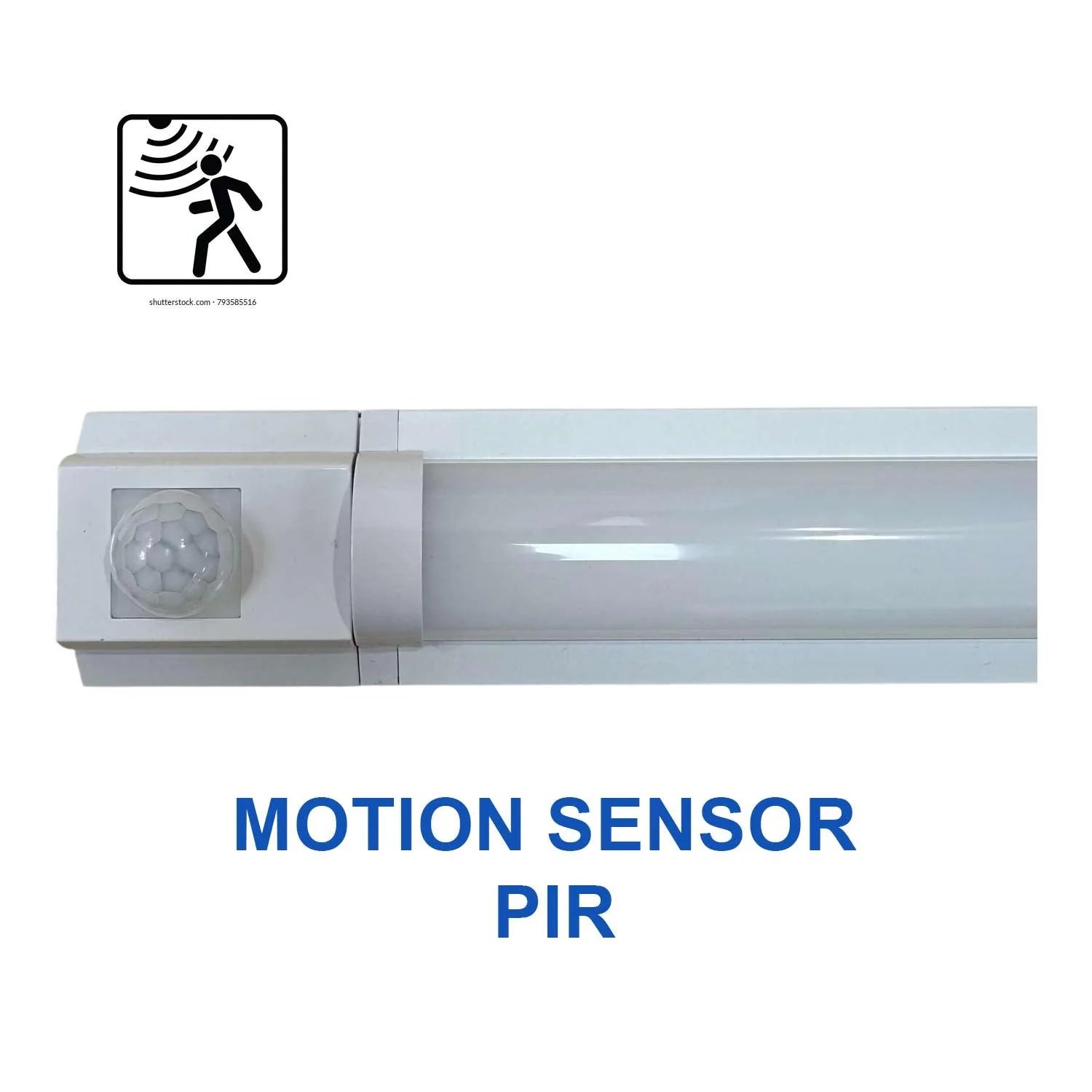

  • Two versions: standard, or with a PIR motion sensor so the light is only on when movement is detected.
  • Linkable: battens join for long runs, and the flat end caps line up neatly end to end.
  • Electrical: AC200~240V/50Hz input, PF >0.95, THD <10%, CRI Ra >80.
  • Size and weight: 1200 x 50 x 55mm, 880g.
  • Lifespan and warranty: rated 50,000 hours, with a 5-year warranty.

Where it is used

Utility rooms, offices, corridors, warehouses, workshops and storage areas are all listed uses for this batten. It carries an IP20 rating. Swapping out an old 4ft T8 fluorescent fitting is the most common job, since the length matches.

Installation

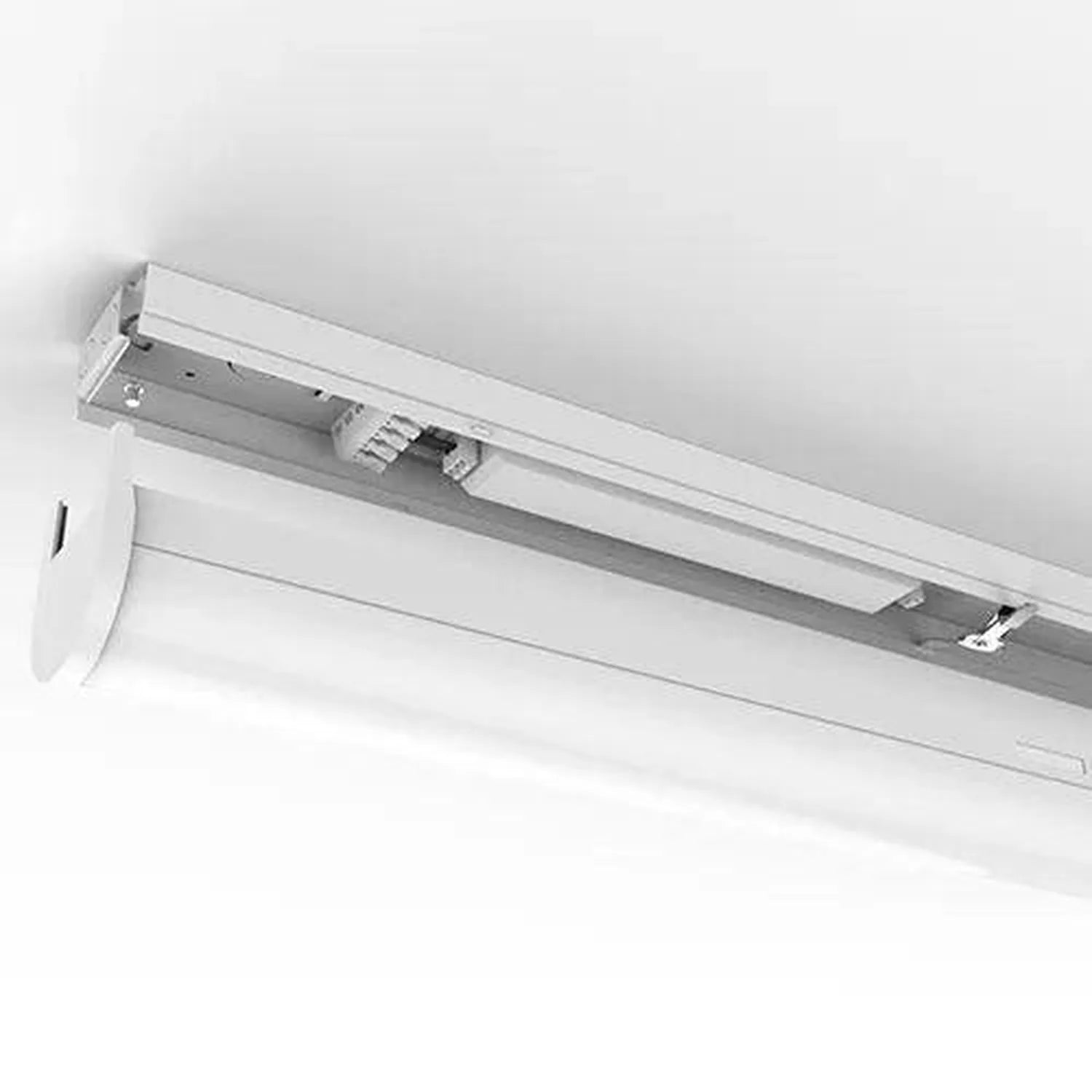

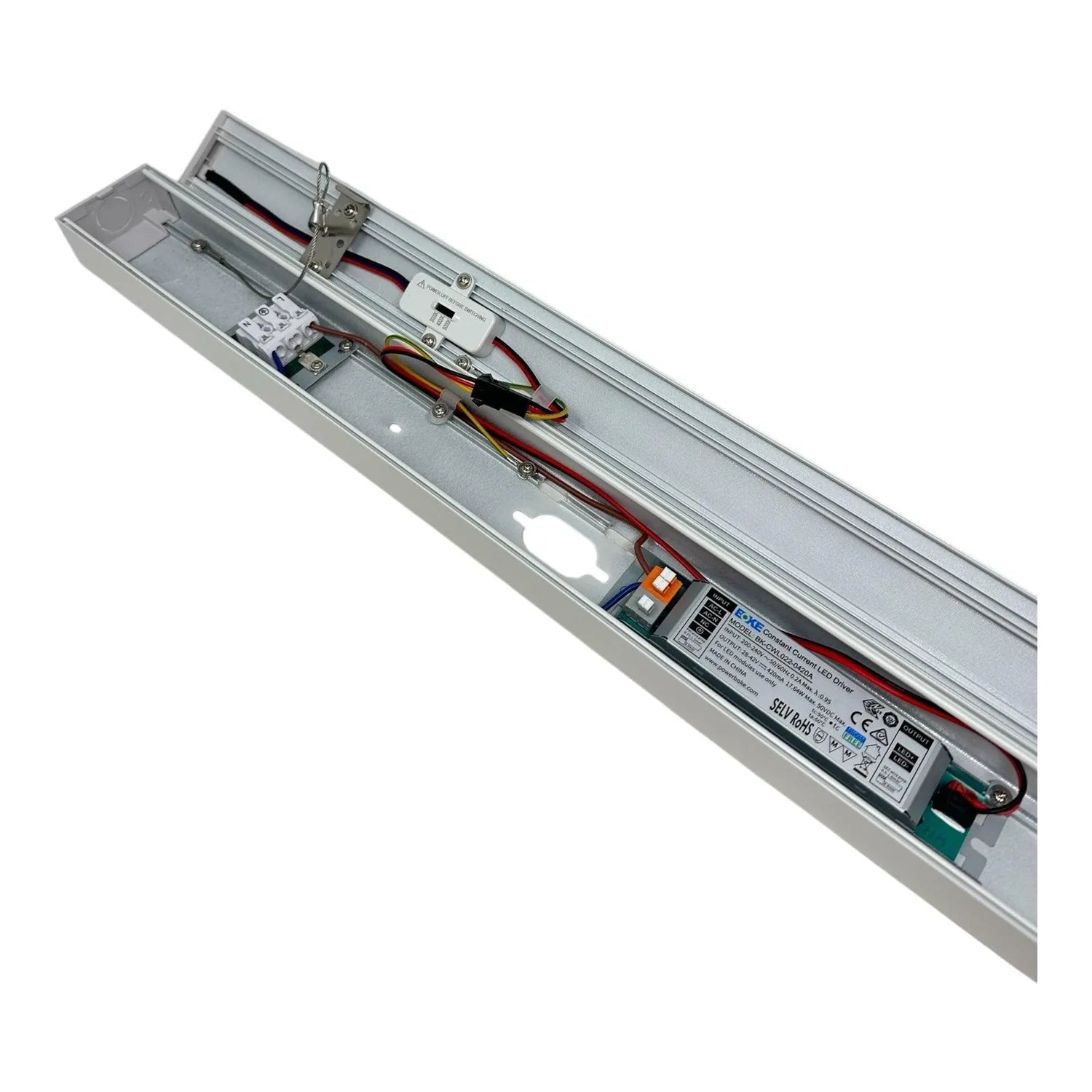

The fitting is surface mounted. Cable can come in through the rear or the end, and there is a 20mm knockout in the end cap for the end entry route. For linked runs, mounting clips and an interlocking connection hold each batten in line with the next, so a corridor or warehouse aisle can be lit with one continuous row.

Good to know

The standard fitting is non-dimmable unless stated otherwise. If you want the light to switch itself on only when someone walks past, choose the PIR motion sensor version. The colour temperature is set on the fitting itself, so the same batten can suit a warm domestic utility room or a cooler, brighter workshop.

Technical Specifications 18 rows Show
Product typeUltra-slim LED ceiling light batten
Length1200mm
Wattage (rated)18 Watt
Colour temperature3000K, 4000K or 5000K selectable
Input voltageAC200~240V/50Hz

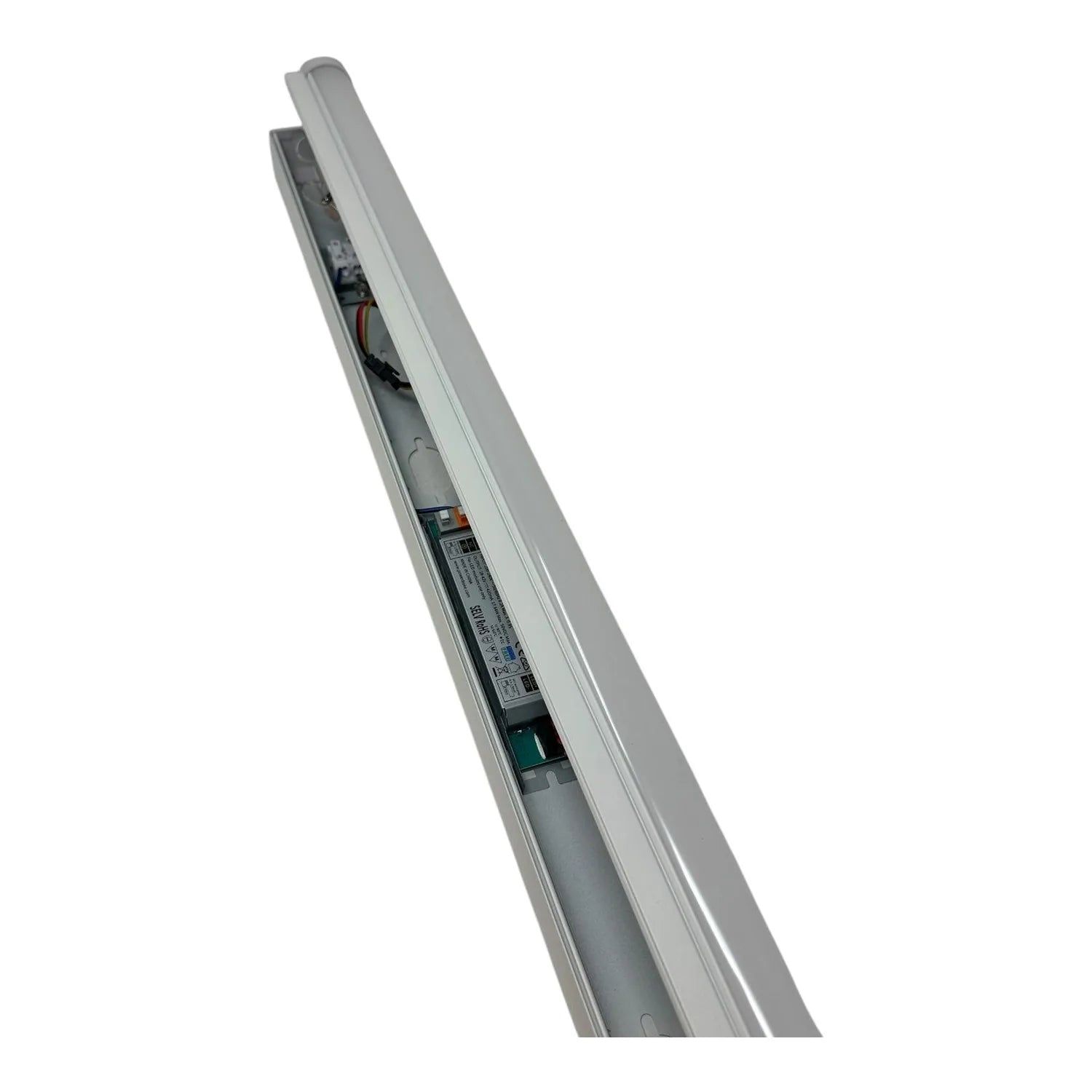

Operating voltageDC 36-42V
Total harmonic distortionTHD <10%
Power factorPF >0.95
Colour rendering indexCRI Ra >80
Beam angle120deg.
Lumen maintenanceMore than 80% after 50,000 hours
Switching cyclesUp to 100,000
IP ratingIP20
Width x height50x55mm
Net weight880g
Rated lifespan50,000 hours
CertificationTUV, ROHS, CE, UL
WarrantyFive years

Manufacturer datasheet. Figures as published by the manufacturer.
