Helukabel 95mm² NSGAFÖU Cable 500A 1.8/3kV | Per Metre Black

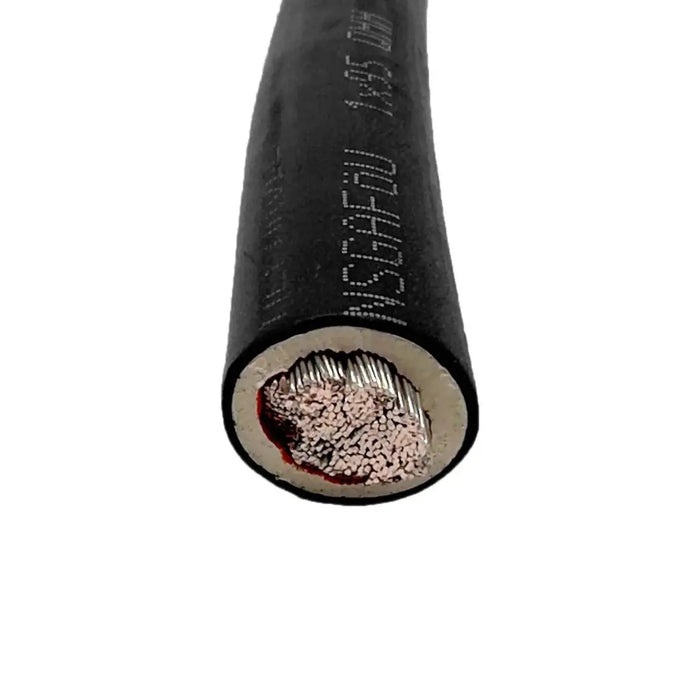

Helukabel NSGAFÖU 95mm² flexible rubber cable, made in Germany, rated at 500A with a nominal voltage of 1.8/3kV and a test voltage of 6kV. The double-insulated rubber construction resists oil and chemicals, and the cable suits fixed or flexible installations from -40°C to +90°C. Sold per metre in black.

95mm cable key specifications

• Cross-section, 1 x 95mm²
• Nominal voltage, U0/U = 1800V/3000V (NSGAFÖU)
• Test voltage, 6000V
• Maximum current, 500A
• Outside diameter, 19.0mm
• Temperature range, fixed +90°C to -40°C, flexible +90°C to -25°C
• Bend radius, fixed 6 x OD, flexible 10 x OD
• Core stranding, finely stranded, VDE 0295 Class 5 / IEC 60228 Class 5
• Standards, VDE 0250 part 602

Applications

This cable is used for solar battery interconnection and large battery bank wiring, inverter DC bus connections, welding equipment power feeds, industrial machinery and forklift wiring, and automotive high-current runs.

Installation notes

Choose the length needed for your run and fuse correctly at the source. Terminate with appropriate lugs using a hydraulic or ratchet crimp tool sized for 95mm². High-current DC wiring should be installed by a qualified electrician.
