Victron GX Touch 50 5-Inch Touchscreen Display | BPP900455050

The Victron GX Touch 50 is a 5-inch capacitive touchscreen display built to work with compatible Victron GX devices, including the Cerbo GX and Venus GX. It gives installers and system operators a clear view of system status, energy flows and device data directly on site, without needing a phone, tablet or laptop.

Key features

• Screen, 5-inch capacitive touchscreen with a graphical interface.

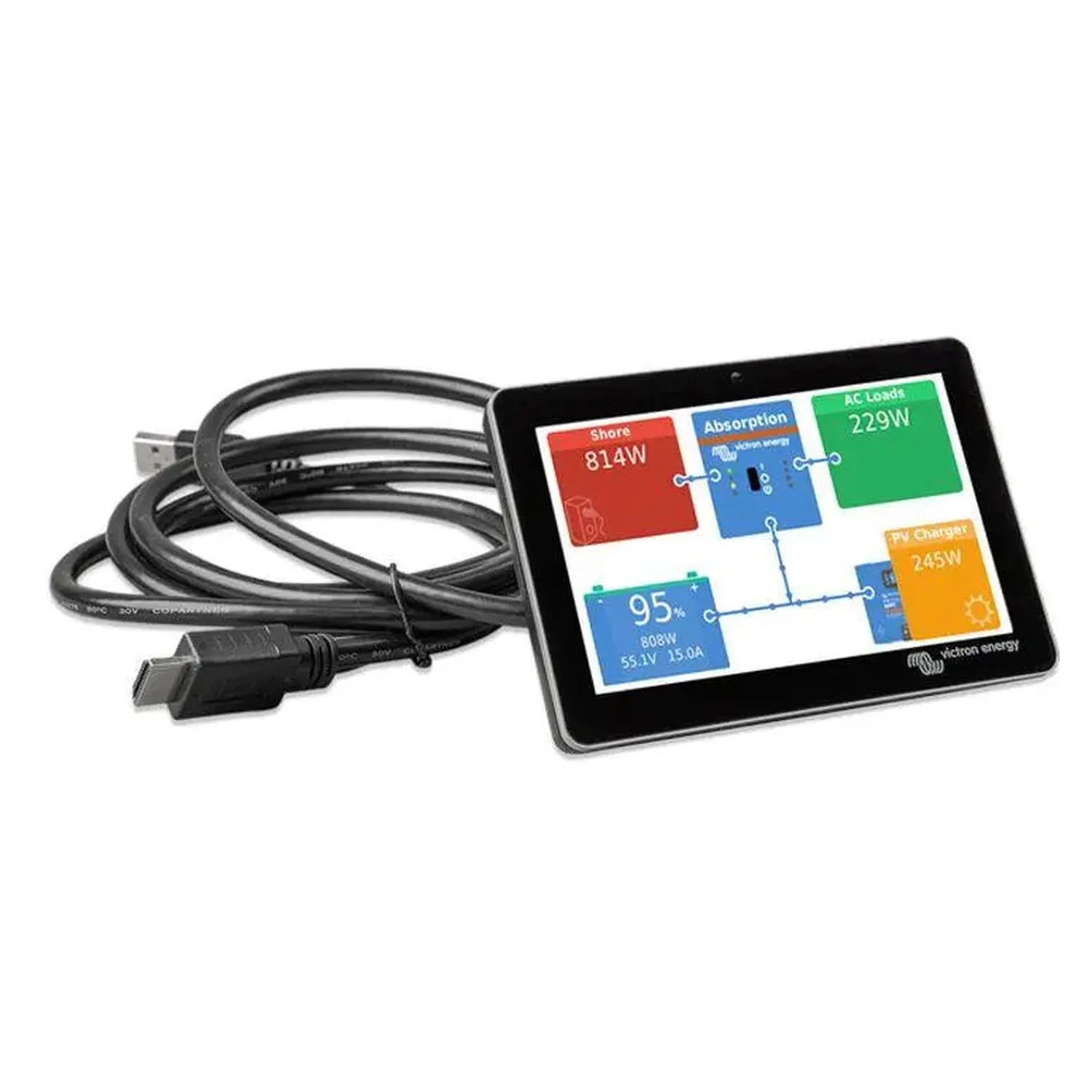

• Connection, links to a compatible GX device through a dedicated display port, carrying both power and data over one cable.

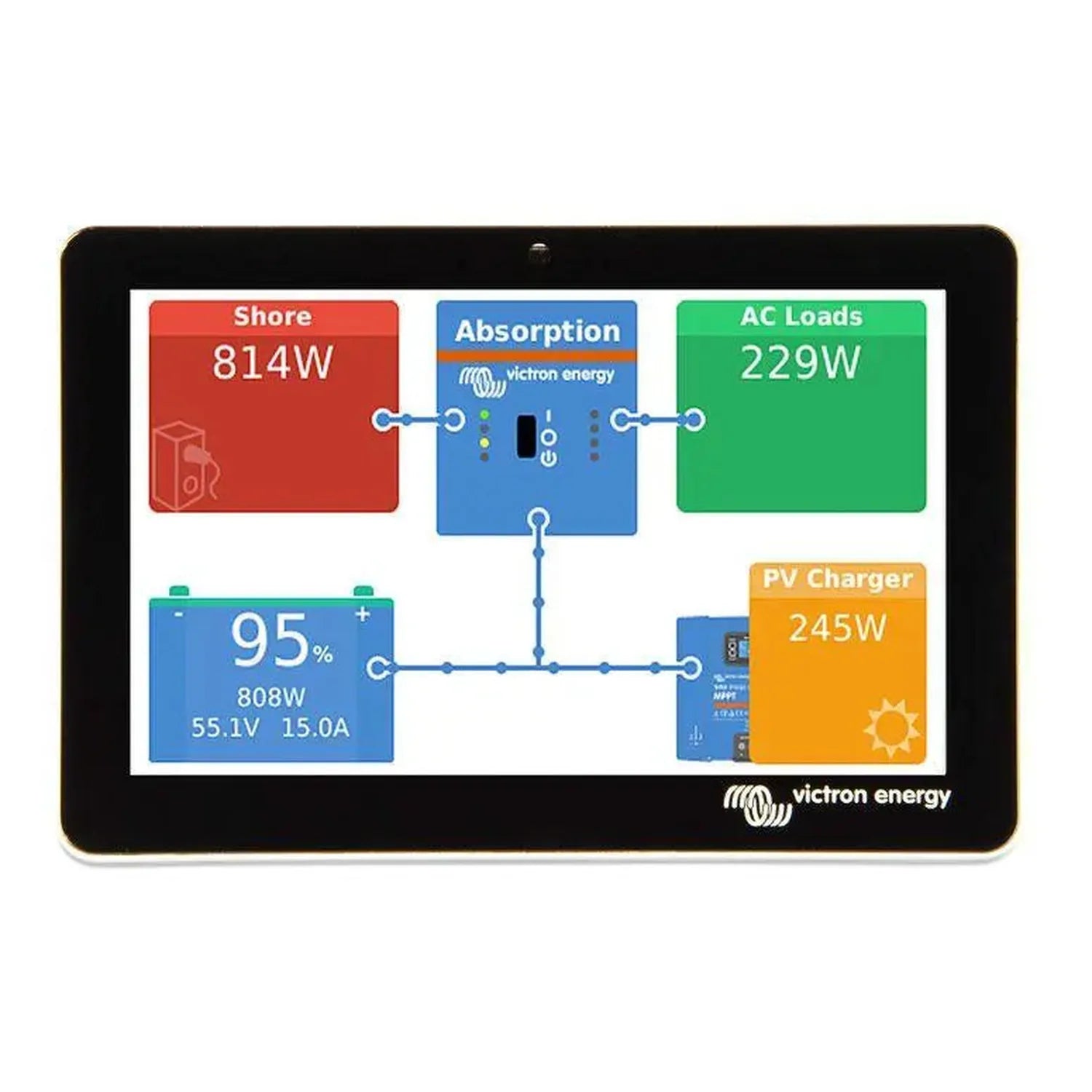

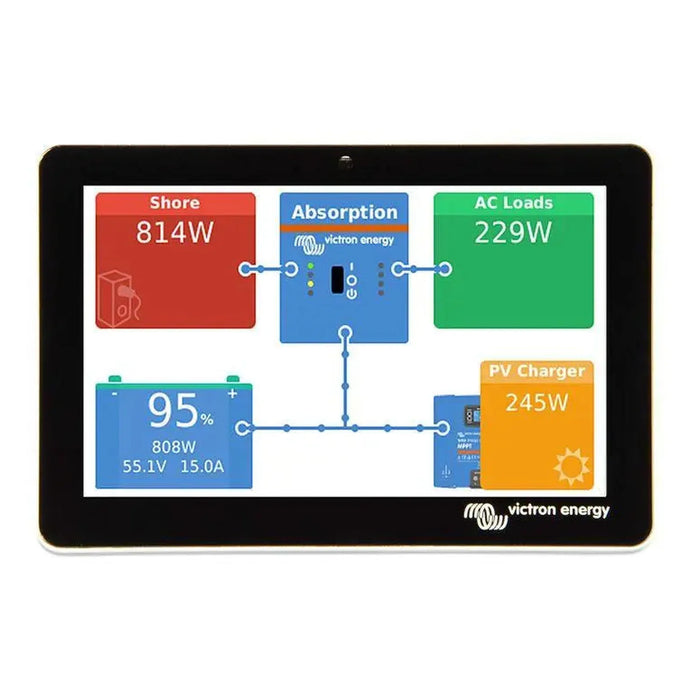

• Live data, shows battery state of charge, solar yield, AC loads, grid status and generator input.
• Navigation, touch-based access to the GX device menu for on-site configuration.
• Weight, 0.37 kg, suitable for panel mounting in various enclosures.

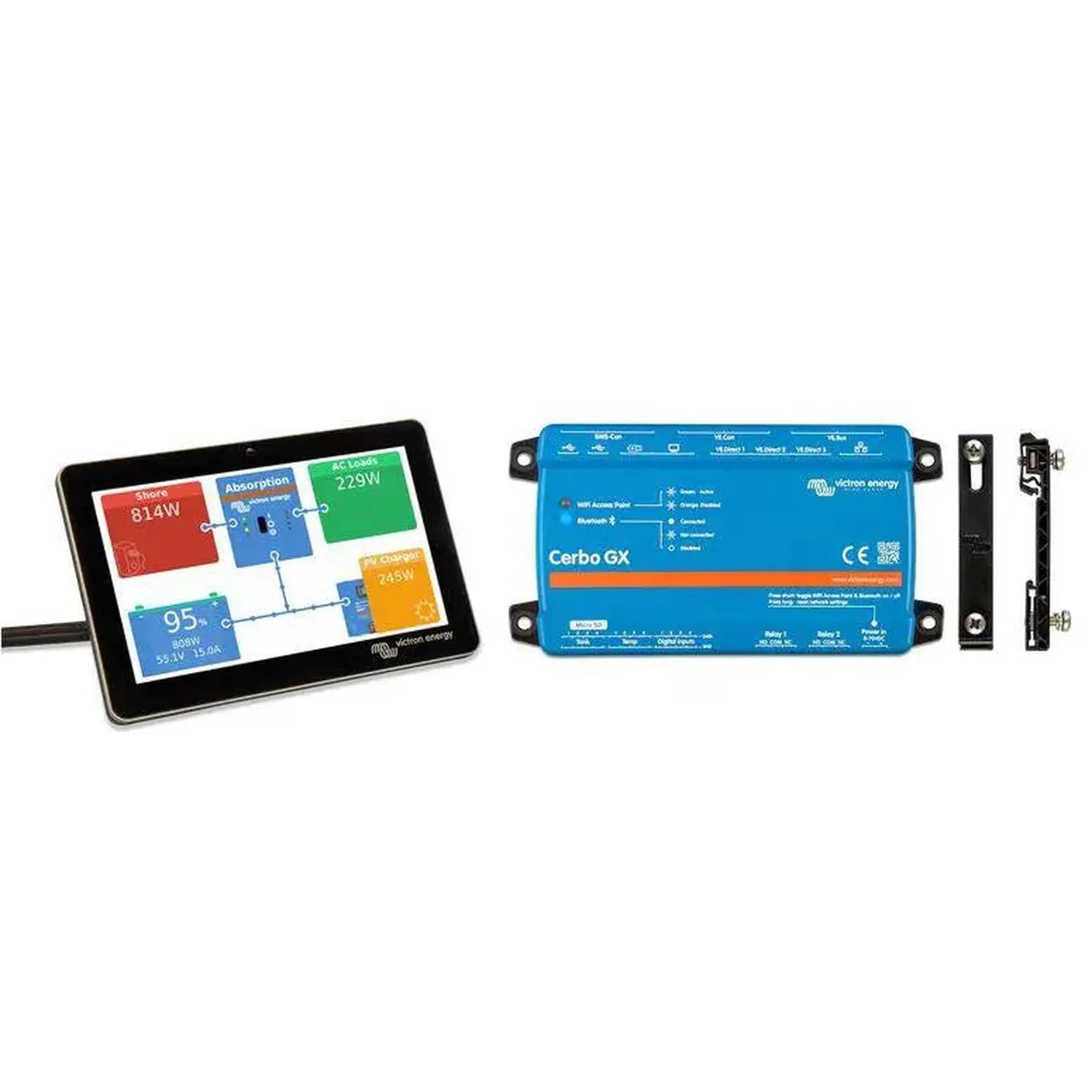

• Compatibility, works with Cerbo GX and other Victron GX devices that include a dedicated GX Touch port.

Product overview

The display connects to the GX Touch port on a compatible GX device and draws power and data through that single cable, so no separate power connection is needed. It mirrors the interface available through VRM or the GX device's web interface, giving the same information locally that would otherwise only be visible remotely. It is not a standalone monitoring device and needs a compatible GX unit to function; check compatibility with your specific GX device before ordering.

Applications

Useful as a local monitoring display for off-grid solar and battery storage systems, as an on-site status panel for commercial energy storage, and in marine, narrowboat, vehicle and motorhome electrical systems. It also suits residential solar installations where a wall or panel-mounted display is wanted alongside remote monitoring.

What's in the box

• 1 x GX Touch 50 touchscreen display unit

Installation notes

Must be connected to a compatible Victron GX device with a dedicated GX Touch port; it does not work as a standalone unit. Installation into a live electrical enclosure should be carried out by a qualified electrician familiar with Victron GX systems. For grid-connected installations, the wider system should meet G98 or G99 requirements as applicable.
