Victron GX Touch 50 Adapter for CCGX Cut-Out | BPP900460050

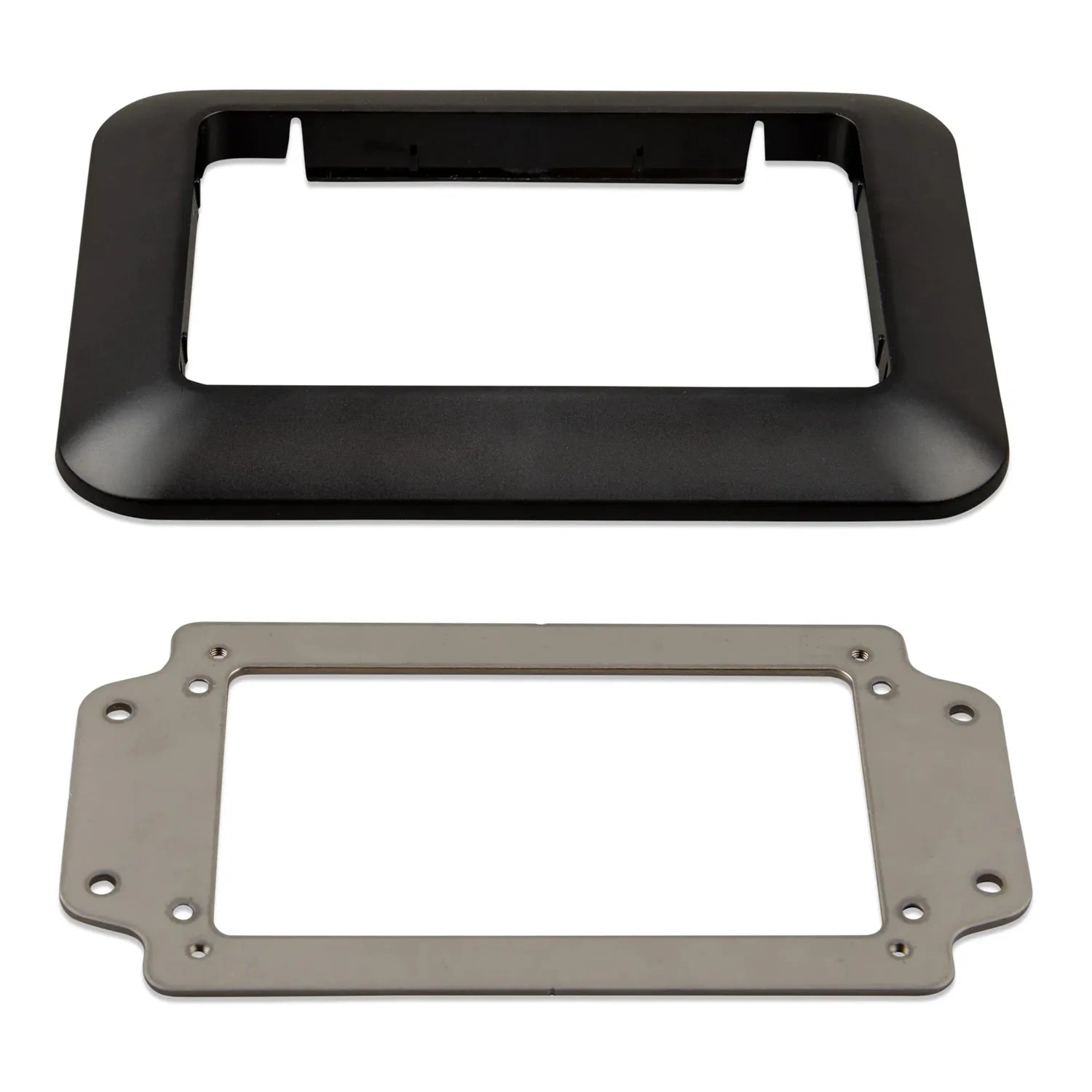

The GX Touch 50 adapter for CCGX cut-out is a mounting plate that lets a Victron GX Touch 50 display fit into a panel cut-out originally sized for the Color Control GX (CCGX). It suits installers upgrading a CCGX to a GX Touch 50 without reworking the enclosure or panel.

Key features

• Retrofit fit, bridges the dimensional difference between the CCGX cut-out and the GX Touch 50, allowing direct fitting.
• No enclosure changes, removes the need to cut, modify or replace the existing panel when upgrading from CCGX.
• Weight, 0.14 kg, adding minimal bulk.
• SKU, BPP900460050, GTIN 8719076053668, supplied by Victron Energy.
• Compatibility, designed for the Victron GX Touch 50 fitted into a CCGX panel cut-out.

Product overview

Upgrading from a Color Control GX to a GX Touch 50 usually means dealing with two different cut-out dimensions. Without this adapter, an installer would need to enlarge or rework the existing aperture in the enclosure or switchboard. The plate provides a correctly dimensioned frame that accepts the GX Touch 50 while filling the original CCGX opening.

It is a purely mechanical component with no electrical connections. Its purpose is practical: it saves installation time and avoids cosmetic or structural damage to an existing enclosure. Useful for fleet upgrades or servicing older Victron systems where the display is being modernised.

Applications

• Upgrading an existing CCGX installation to a GX Touch 50 without altering the panel or enclosure.
• Retrofit work in marine, motorhome and off-grid installations that already have a CCGX cut-out.
• Commercial and residential energy storage systems where the enclosure cannot easily be reworked.
• Fleet or batch upgrades across multiple Victron installations sharing the same enclosure type.

What's in the box

• 1 x GX Touch 50 adapter plate for CCGX cut-out

Installation notes

This is a mechanical mounting component with no electrical connections of its own. Fit it according to the GX Touch 50 installation instructions, with the display secured and wiring handled by a qualified installer. Where the GX Touch 50 forms part of a grid-connected or battery storage system, the wider installation must comply with applicable UK wiring regulations and any relevant G98 or G99 requirements.
