G4 LED Bulb 12V AC/DC 1.5W 10W Halogen Replacement | Ledison
- Vendor
- Ledison
- SKU
- 400004
- Availability
- In stock
- Weight
- 0.005 kg
£3.41inc VAT £2.84exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

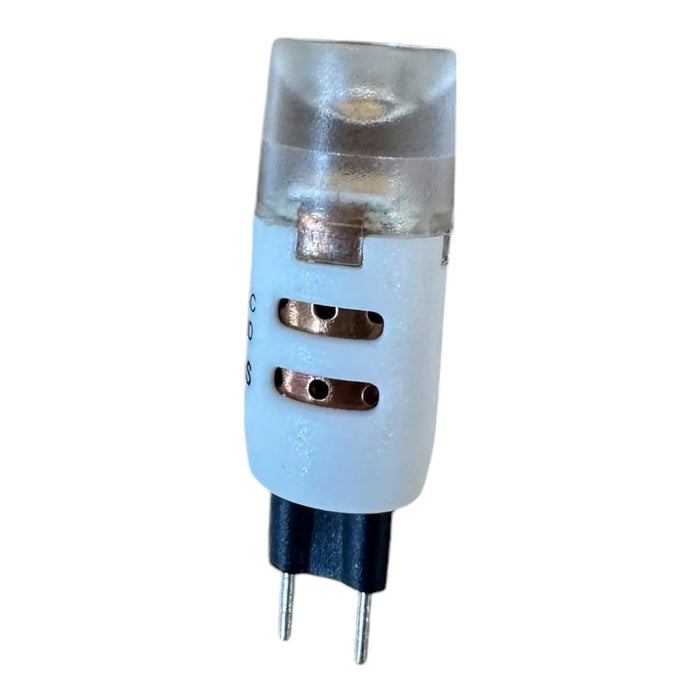

This 12V G4 LED bulb takes the place of a 10W halogen capsule while drawing just 1.5W. Output reaches up to 110 lumens, depending on the colour temperature you choose. It runs on either 12V AC or 12V DC, so most existing 12V G4 fittings will accept it without an extra LED driver.
G4 LED bulb features
- Power and output: 1.5W, giving 88lm warm white 2700K, 99lm natural white 4500K or 110lm cool white 6500K.
- Supply: 12V AC or DC.
- LED source: Samsung COB chip.
- Lens and housing: opaque anti-UV lens with a PBT housing that resists colour change.
- Heat management: copper heat sink.
- Lifetime and warranty: up to 25,000 hours, backed by a 5-year warranty.
Where to use it

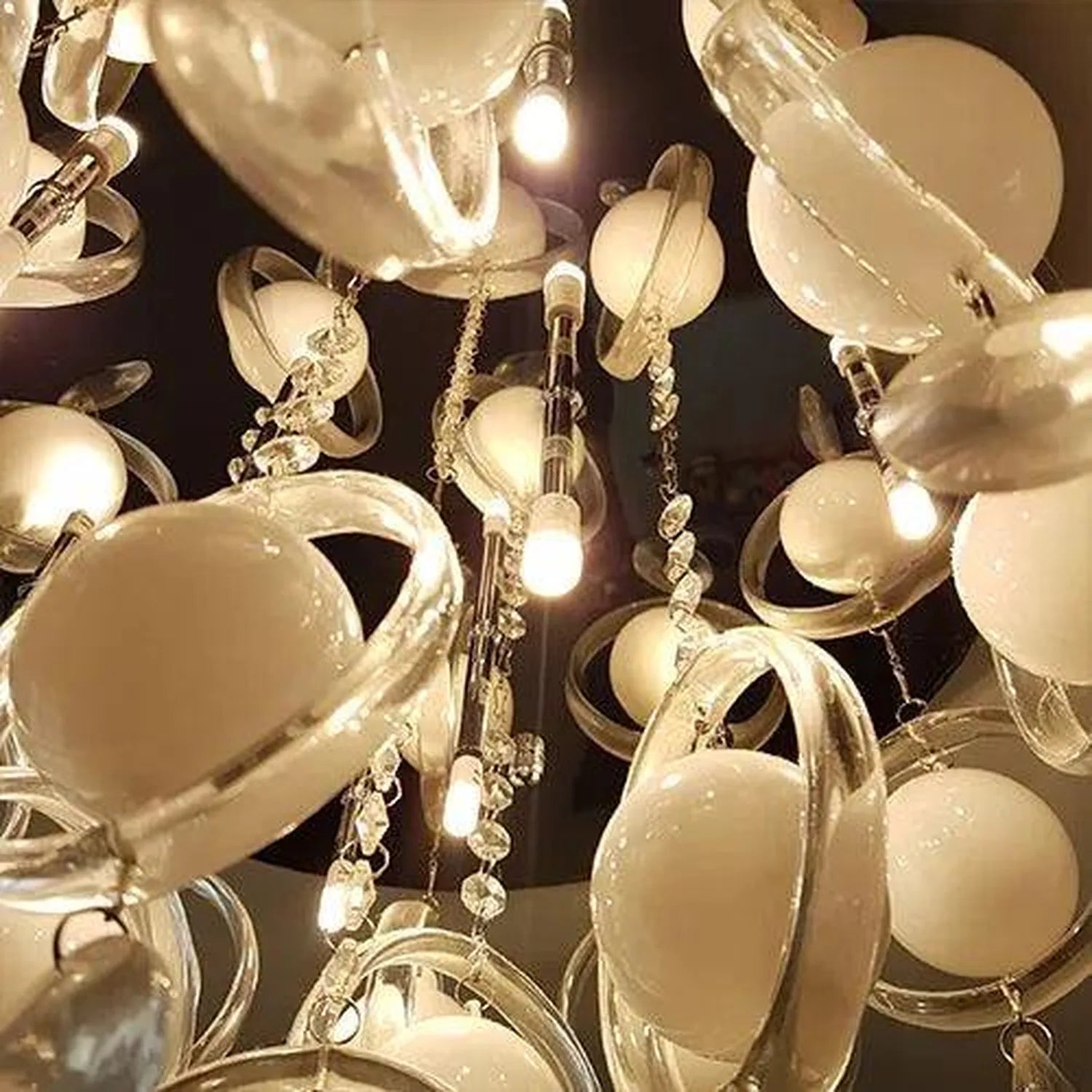

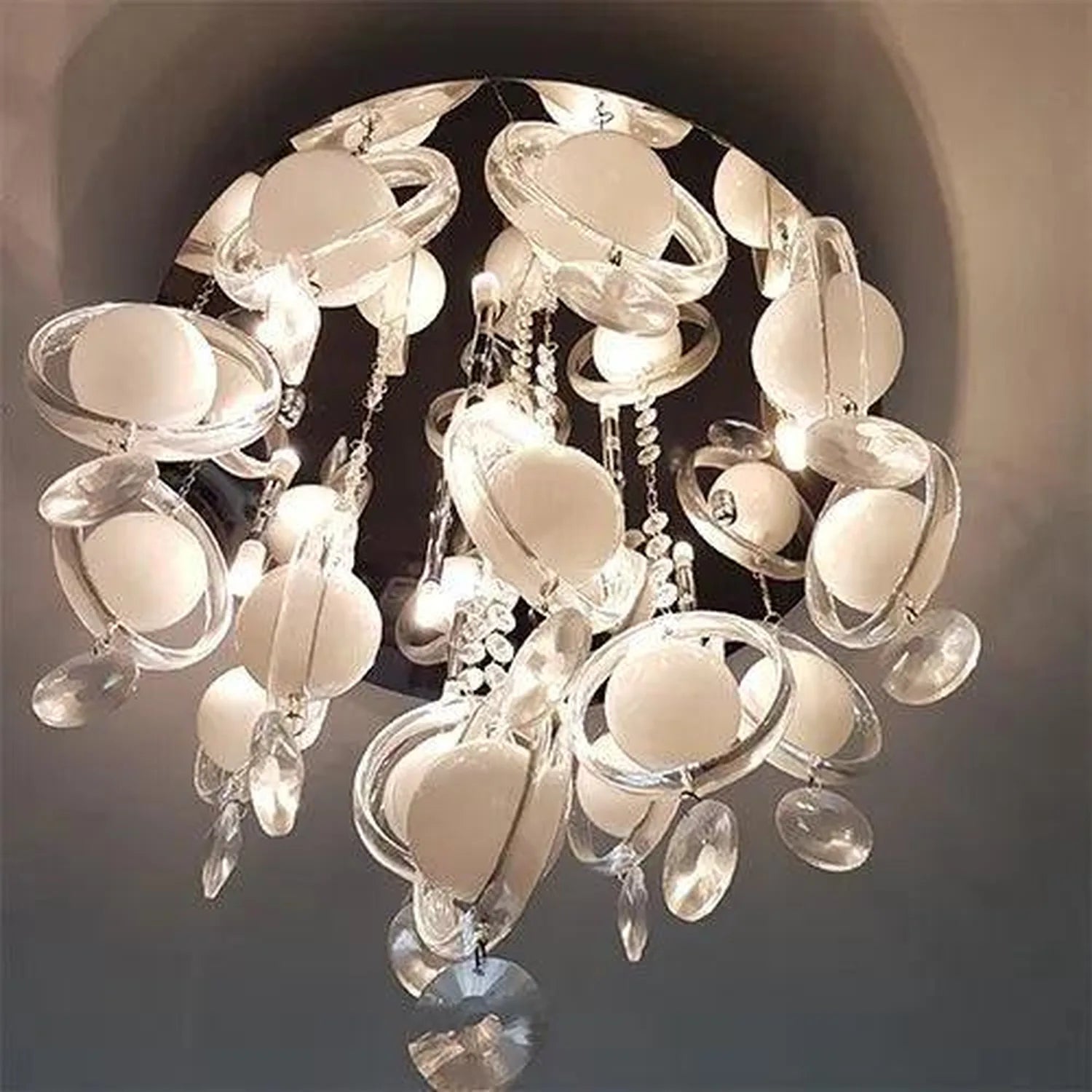

Task lighting and decorative lighting both suit this capsule. Typical settings include homes, shops, hotels and restaurants. It also fits well in caravans, boats and display cabinets, where 12V G4 fittings are common and space inside the fitting is tight.
Fitting and size

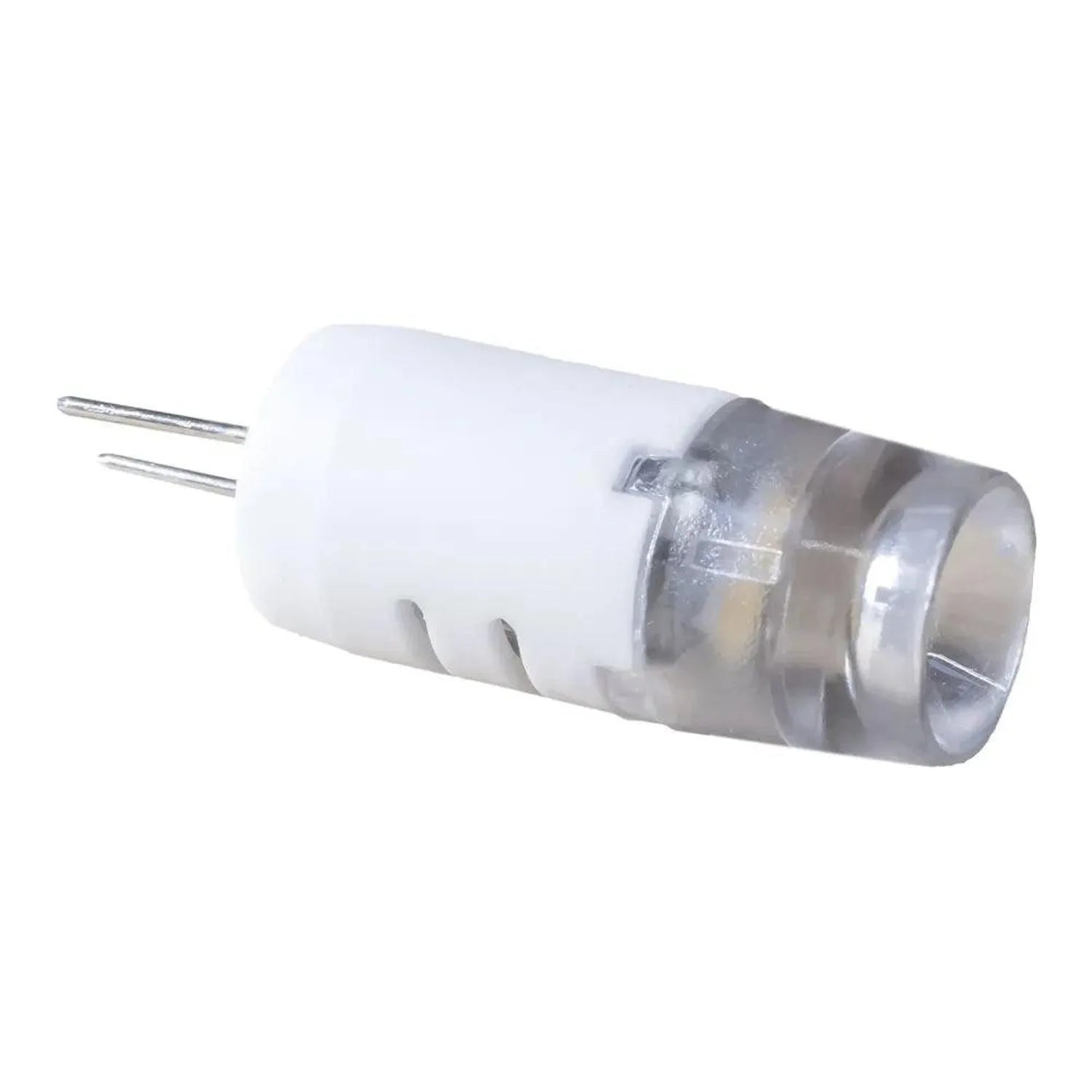

The bulb uses a standard G4 bi-pin base. At 10.2mm in diameter and 23mm long, it is similar in size to a standard Osram 10W halogen capsule. That matters in small enclosed fittings. Swap the old halogen out, push the new capsule in, and the job is done.
Choosing a colour
Warm white at 2700K gives a softer tone for living spaces and hospitality. Natural white at 4500K sits in the middle. Cool white at 6500K is the brightest of the three at 110lm, and the one to pick for display cabinets or task areas.
Technical Specifications 16 rows Show
| Fitting | G4 |
| Lumen output | 88lm warm white, 99lm natural white, 110lm cool white |
| Colour temperature | Warm white: 3000K, Natural white: 4000K, Cool white: 6000K |
| Wattage (rated) | 1.5Watt |
| Colour rendering index | >80 |
| Voltage | 12V DC or AC |
| Typical efficiency | 95lm/W |
| Line frequency | 50/60Hz |
| Beam angle | 350deg. |
| Average lifetime | 25,000 hours |
| Diameter | 10.2mm |
| Height | 23mm |
| Dimmable | YES |
| Operating temperature | -20 OC to 50 OC |
| Certification | ROHS Compliant, CE, UL |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
