Flexible Battery DC Cable 16mm² to 150mm² 100V | Helukabel

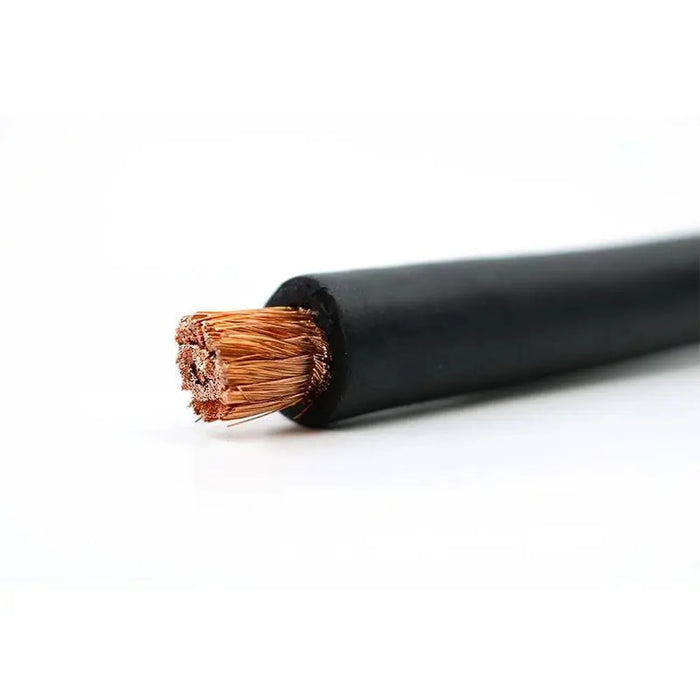

Helukabel flexible battery DC cable is sold per metre and available in cross-sections from 16mm² to 150mm². It suits 12V, 24V and 48V battery systems with a maximum operating voltage of 100V DC. Fine-stranded tinned copper conductors keep resistance low and flexibility high, which matters when routing cable through tight enclosures or around busbars.

Key features of this battery cable

• Cross-sections available, 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm²
• Construction, double insulated
• Maximum operating voltage, 100V DC
• Conductor, fine-stranded tinned copper (IEC 60228/cl.5)
• Ordering, sold per metre, so you order the exact length needed
• Compatible systems, 12V, 24V and 48V battery setups

Applications

This cable is used for battery to inverter and battery to busbar DC connections in off-grid and hybrid solar battery systems. It also suits traction, vehicle and marine applications carrying high current DC loads.

Installation and safety notes

Installation must be carried out by a qualified electrician. Cross-section should be chosen against the maximum continuous current, cable length, permissible voltage drop and installation method. Fuse both the positive and negative conductors appropriately.
