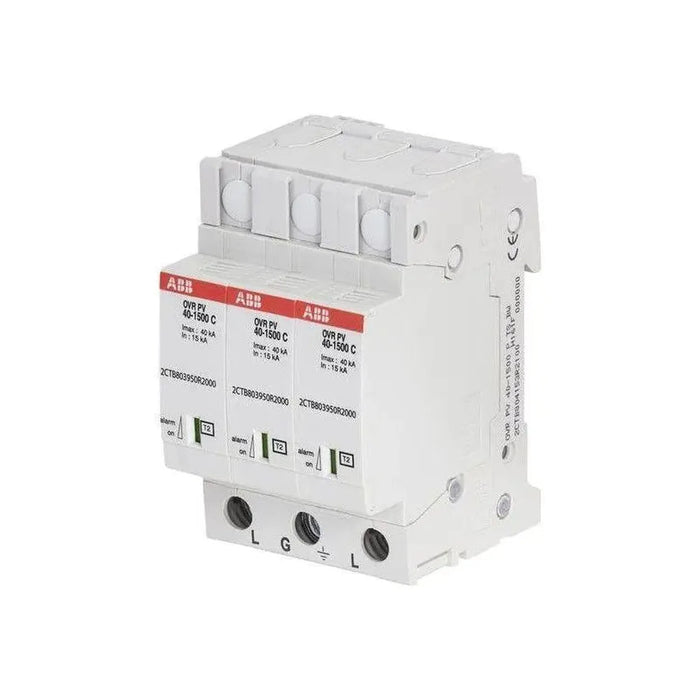

ABB OVR PV 40-1500 C surge protection device with three modules mounted on DIN rail, white casing with red labeling and alarm

ABB OVR T2 PV 40-1500 P QS DC Surge Protection Device

£44.00
Skip to product information
ABB OVR PV 40-1500 C surge protection device with three modules mounted on DIN rail, white casing with red labeling and alarm
ABB OVR T2 PV 40-1500 P QS DC Surge Protection Device

ABB OVR T2 PV 40-1500 P QS DC Surge Protection Device

Vendor
ABB
SKU
1101001110
Availability
Sold out
Weight
0.35 kg

£44.00inc VAT £36.67exc VAT

Sorry, this one is sold out

Tell us you want it and we will find out when it is back, or point you at the closest thing we have in stock.
Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The ABB OVR T2 PV 40-1500 P QS is a Type 2 surge protection device built for photovoltaic strings running up to 1500VDC. Fitted with removable cartridges and Y-configuration wiring, it shields solar panels and inverters from indirect lightning strikes and induced overvoltages.

Key features

  • Type 2 / Class II SPD for solar PV DC systems
  • Maximum continuous operating voltage: 1500VDC
  • Removable cartridges allow replacement after a surge event without rewiring
  • Y-configuration wiring for safe protection
  • Low residual voltage, matched to panel and inverter withstand voltage
  • Discharges indirect lightning-induced overvoltages

Applications

This DC surge protection device is fitted in DC combiner boxes and at string inverter DC inputs, giving PV surge protection to solar panels and inverters in residential and commercial installations.

Installation notes

Install in parallel with the DC cables of the solar PV string. Fitting must be carried out by a qualified electrician in accordance with IET Wiring Regulations.
