DC Isolator Switch for 2 Solar Strings IP66/67 | Kraus & Naimer

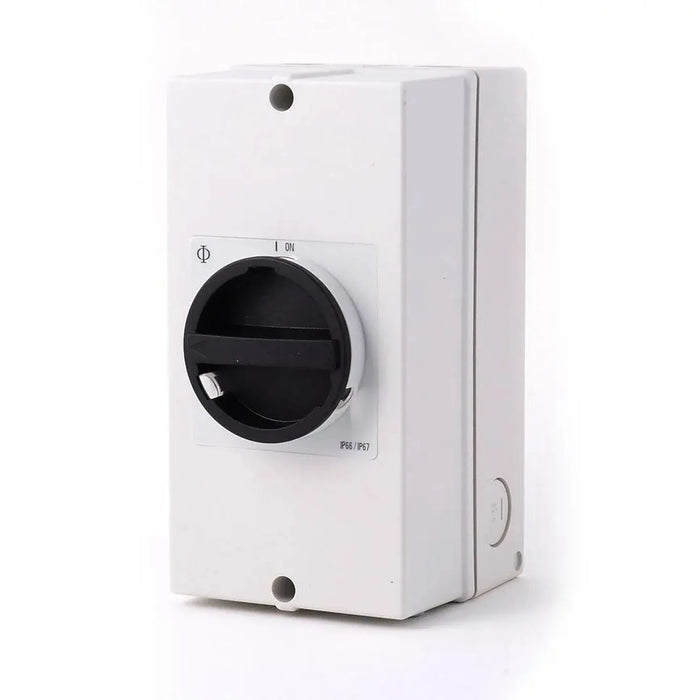

This Kraus & Naimer KG-Series DC switch disconnector isolates two photovoltaic string inputs from a single IP66/IP67 rated enclosure. It is a 4-pole design available in ratings from 220VDC to 1000VDC, built for residential and commercial solar PV systems that need weatherproof DC string isolation with a padlockable handle.

Key features of this dc isolator switch

• Poles, 4-pole DC switch disconnector for 2 solar panel strings
• Enclosure rating, IP66/IP67 weatherproof and dust-proof
• Voltage range, available from 220V to 1000V DC
• Handle, black and grey, padlockable
• Compliance, Class II compliant, grey insulated enclosure
• Interlock, switch interlocked with lid to prevent inadvertent opening under load

Applications

Fit this switch where two PV strings need DC isolation in one enclosure, on residential or commercial arrays. The IP66/IP67 rating means it can go outdoors, next to the array or at the inverter, wherever a weatherproof disconnection point is needed.

Installation and safety notes

DC solar circuits carry dangerous voltages, so installation must be carried out by a qualified electrician. Match the voltage rating to the maximum open circuit voltage of the connected string. Never operate the switch under load. Lock out the handle before carrying out any maintenance on the DC string.
