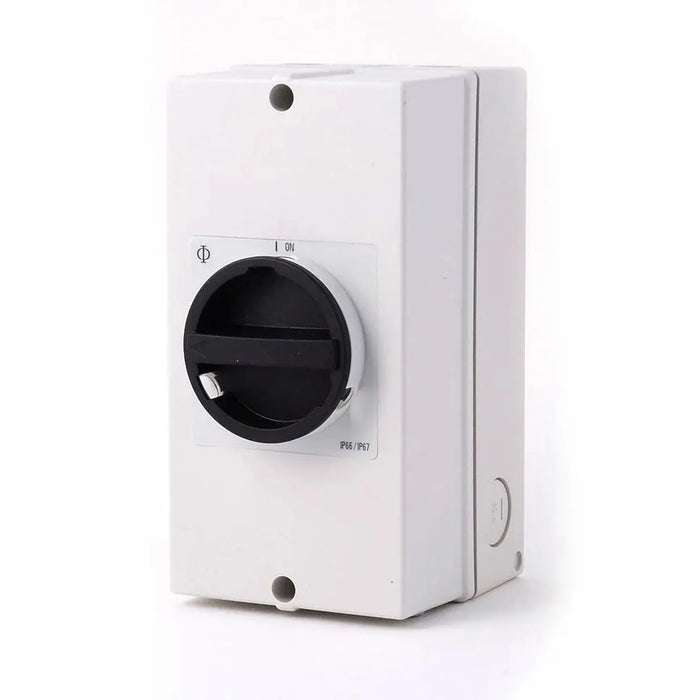

White IP66/IP67 rated DC switch disconnector with black rotary knob labeled ON, mounted on exterior wall box with cable entry

DC Switch Disconnector Single String IP66/67 | Kraus & Naimer

KG20 T104/D-P003 KL51V
£57.33
Skip to product information
White IP66/IP67 rated DC switch disconnector with black rotary knob labeled ON, mounted on exterior wall box with cable entry
DC Switch Disconnector Single String IP66/67 | Kraus & Naimer

DC Switch Disconnector Single String IP66/67 | Kraus & Naimer

Vendor
Kraus & Naimer
SKU
001744
Availability
Pre-order
Weight
0.5 kg

Not in stock right now. We will confirm the lead time before dispatch.

£57.33inc VAT £47.78exc VAT

Delivery from £3.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Kraus & Naimer KG-Series single string DC switch disconnector isolates a single solar PV string in a compact IP66/67 enclosure. It covers 250VDC to 1000VDC with current ratings from 25A to 50A, and is built in Germany to Class II insulation standards.

Key features

  • Application, for a single solar PV string
  • Current ratings, 25A to 50A
  • Voltage ratings, 250V to 1000VDC
  • Enclosure, IP66/IP67 weatherproof and dust-proof, Class II insulated, grey
  • Handle, black/grey, padlockable
  • Lid interlock, switch interlocked with lid

Applications

This dc isolator switch is used for single string DC isolation in residential and commercial solar PV systems. It gives installers a safe way to disconnect an individual PV string for maintenance work.

Installation and safety notes

DC solar circuits carry dangerous voltages. Installation must be carried out by a qualified electrician. Choose the voltage rating to match the maximum open circuit voltage of the connected string. Never operate the switch under load.
