DC PV Switch Disconnector 32A 1200V DIN Rail | Voltacon
- Vendor
- Voltacon
- SKU
- 738778
- Availability
- In stock
- Weight
- 0.2 kg
£29.39inc VAT £24.49exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

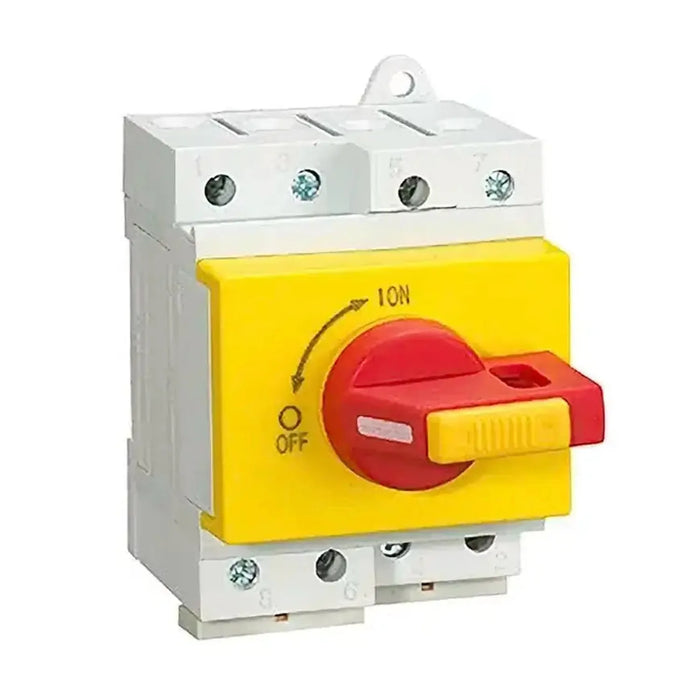

This DIN rail mounted DC isolator switch handles solar PV strings up to 32A and 1200VDC, with a lockable handle that locks in the off position for safe isolation during maintenance. It carries certification to IEC60947.3 and AS60947.3 DC-PV2 standards and can be configured for single or double string setups.
Key features of this dc isolator switch solar
- Rating, 32A, 1200VDC maximum
- Lockable handle, locks at the off position for safe isolation
- Arc suppression, 3ms for DC switching safety
- Certification, IEC60947.3 and AS60947.3 DC-PV2
- Configuration, single or double string solar panel setups
- Mounting, DIN rail
Applications
Used for DC string isolation in residential and commercial solar PV installations, and for disconnecting solar panel strings at the inverter or combiner box during maintenance work.
Installation and safety notes
DC solar circuits carry dangerous voltages. This switch must be installed by a qualified electrician. Never connect or disconnect it under load. Isolate the PV array before carrying out any maintenance on the DC system.
What's in the box

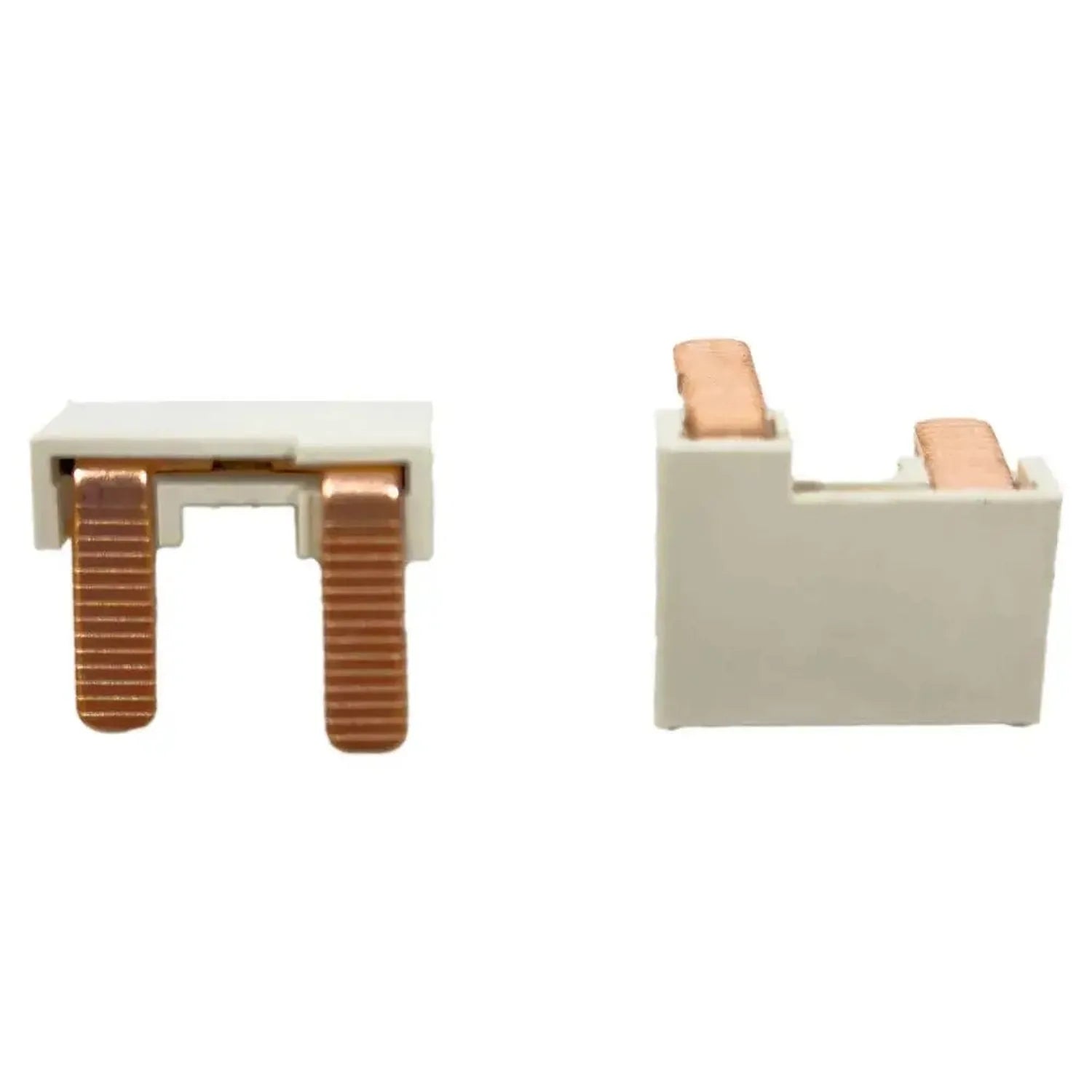

- DC PV switch disconnector with bus bar link connectors included
Technical Specifications 8 rows Show
| Specification | Value |
| Rated Current | 32A |
| Max DC Voltage | 1200V |
| Arc Suppression | 3ms |
| Handle | Lockable at off position |
| Certification | IEC60947.3, AS60947.3 DC-PV2 |
| Mounting | DIN rail |
| Accessories | Bus bar link connectors included |
Manufacturer datasheet. Figures as published by the manufacturer.
