Victron Current Transformer 100A:50mA for MultiPlus-II | CTR110002050

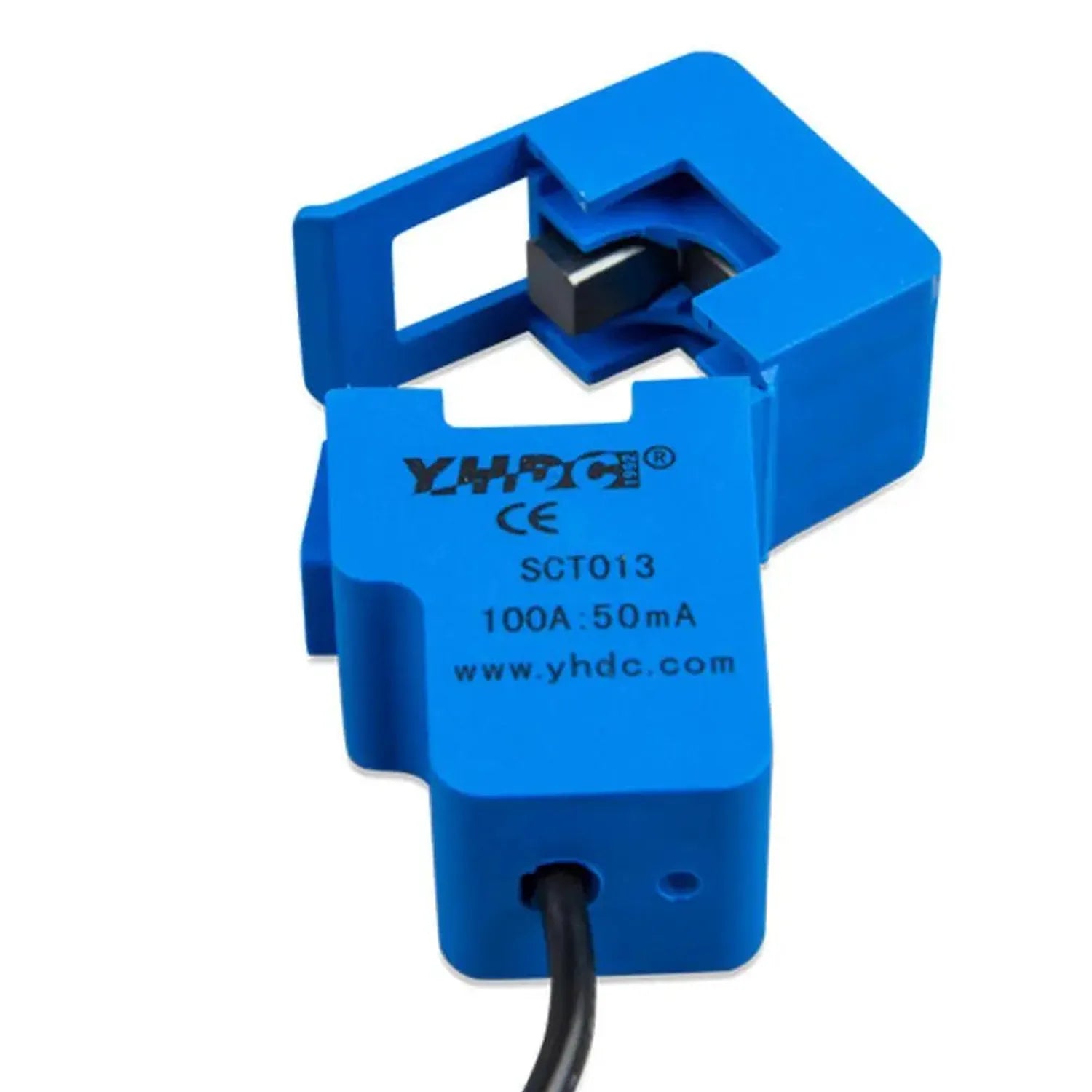

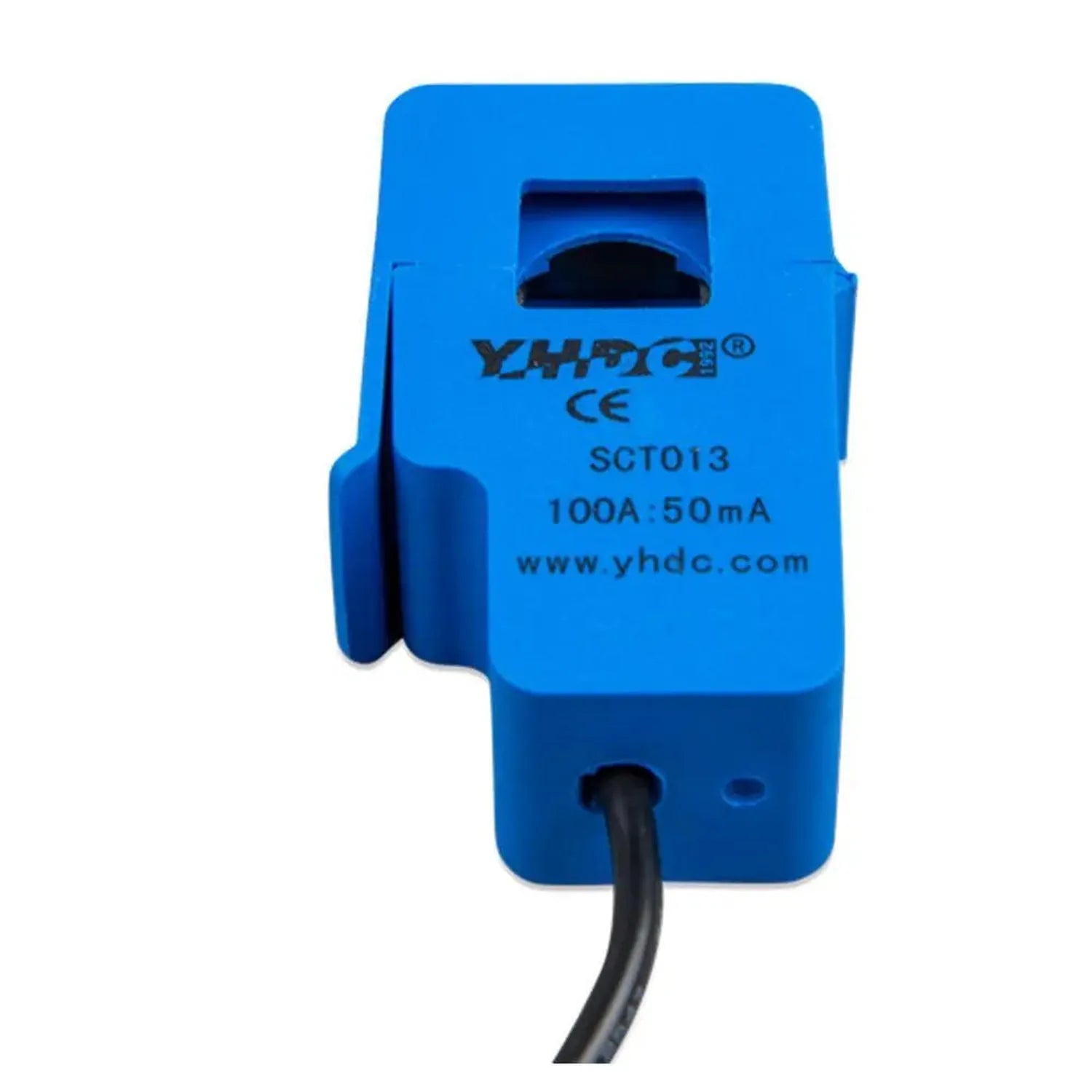

The Victron current transformer 100A:50mA clamps around a busbar or cable and feeds a proportional low current signal to a MultiPlus-II inverter/charger or GX device, giving the system an accurate read on current flow up to 100A without any direct high current wiring into the monitoring equipment. It ships with a 20 metre connecting cable, useful where the measurement point sits well away from the GX device or MultiPlus-II.

Current transformer 100A features

• Ratio, 100A:50mA, so every 100A on the monitored conductor produces a 50mA output signal.

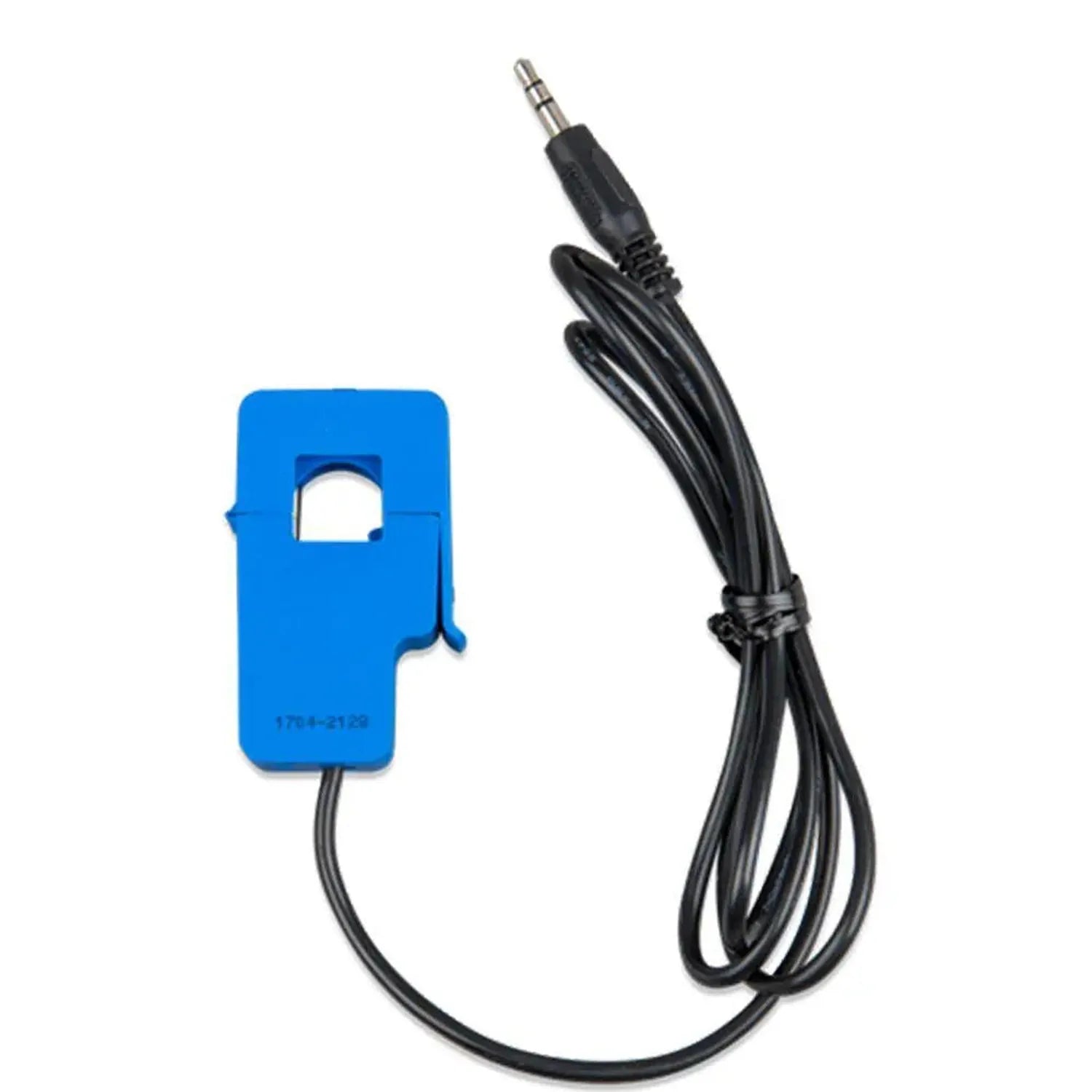

• Cable length, supplied with a 20 metre connecting cable, avoiding extensions or extra junctions on longer runs.
• Weight, 0.7 kg, easy to mount inside an enclosure or panel.
• Fitting, clamp-style body fits around an existing conductor without breaking the circuit.
• Compatibility, works with Victron MultiPlus-II inverter/chargers and GX devices for external current sensing.
• GTIN, 8719076057161 for stock identification and ordering.

Applications

Common in hybrid and ESS installations where a GX device needs to log grid import or export current, or where a MultiPlus-II needs an external reading for load or feed-in measurement. It also suits retrofitting current monitoring onto an existing distribution board without touching the main conductors, and commercial or plant room setups where the GX device sits some distance from the point being measured.

Installation notes

Fitting is around live conductors, so this should be done by a qualified electrician. Check it matches your MultiPlus-II or GX device configuration before installing.

What's in the box

• 1 x Current Transformer 100A:50mA
• 20 metre connecting cable
