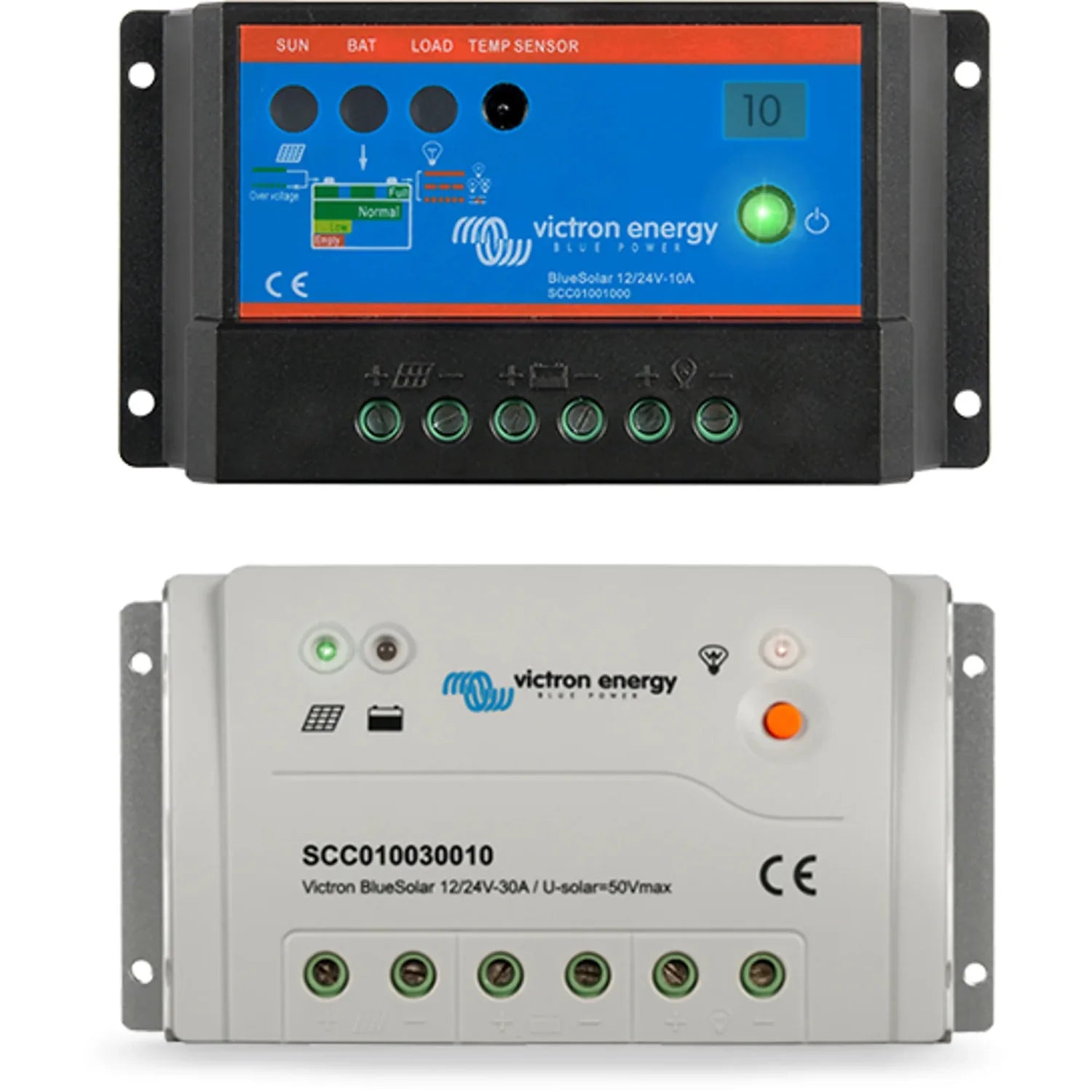

Victron BlueSolar PWM charge controller shown front and back. Top unit displays blue screen with status indicators and green

Victron BlueSolar PWM-Light Charge Controller 12/24V 10A | SCC010010000

£17.84
Skip to product information
Victron BlueSolar PWM charge controller shown front and back. Top unit displays blue screen with status indicators and green
Victron BlueSolar PWM-Light Charge Controller 12/24V 10A | SCC010010000

Victron BlueSolar PWM-Light Charge Controller 12/24V 10A | SCC010010000

Vendor
Victron Energy
SKU
SCC010010000
Availability
In stock
Weight
0.16 kg

£17.84inc VAT £14.87exc VAT

Delivery from £3.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Victron BlueSolar PWM-Light is a compact PWM solar charge controller rated at 10A, working with either 12V or 24V battery systems through automatic voltage detection. It suits small off-grid setups where a straightforward, low-cost controller is all that's needed.

Key features of this victron charge controller

  • Charge current, 10A rating for 12V and 24V systems
  • Automatic voltage detection, no manual configuration between 12V and 24V
  • PWM charging, pulse width modulation reduces battery stress compared with basic on/off controllers
  • Weight, 0.13kg, compact enough for tight installation spaces
  • Load output, includes low voltage disconnect to protect against deep discharge
  • Battery types, designed for sealed, gel and flooded lead-acid batteries

How it works

PWM controllers connect the solar panel directly to the battery, modulating that connection to hold the correct charge voltage. It's a simple method that works well when panel voltage is closely matched to battery voltage. The BlueSolar PWM-Light is the smallest unit in Victron's PWM range, built without Bluetooth or VictronConnect connectivity to keep things basic and affordable. If remote monitoring or programmable charge profiles matter, Victron's MPPT range is the better fit.

Applications

This controller is aimed at small 12V or 24V off-grid systems: caravans, motorhomes and campervans, leisure boats with modest solar input, garden buildings and sheds running basic lighting or low-power loads, and small remote monitoring or telecoms setups running from a single panel.

Installation notes

Fit this controller with a competent understanding of 12V/24V DC wiring. Connect the battery before the solar panel and disconnect in reverse order. Check the panel's open-circuit voltage stays within the controller's maximum PV input rating. It is not suitable for lithium battery chemistries unless Victron documentation confirms compatibility.

What's included

  • 1x Victron BlueSolar PWM-Light Charge Controller 12/24V 10A
