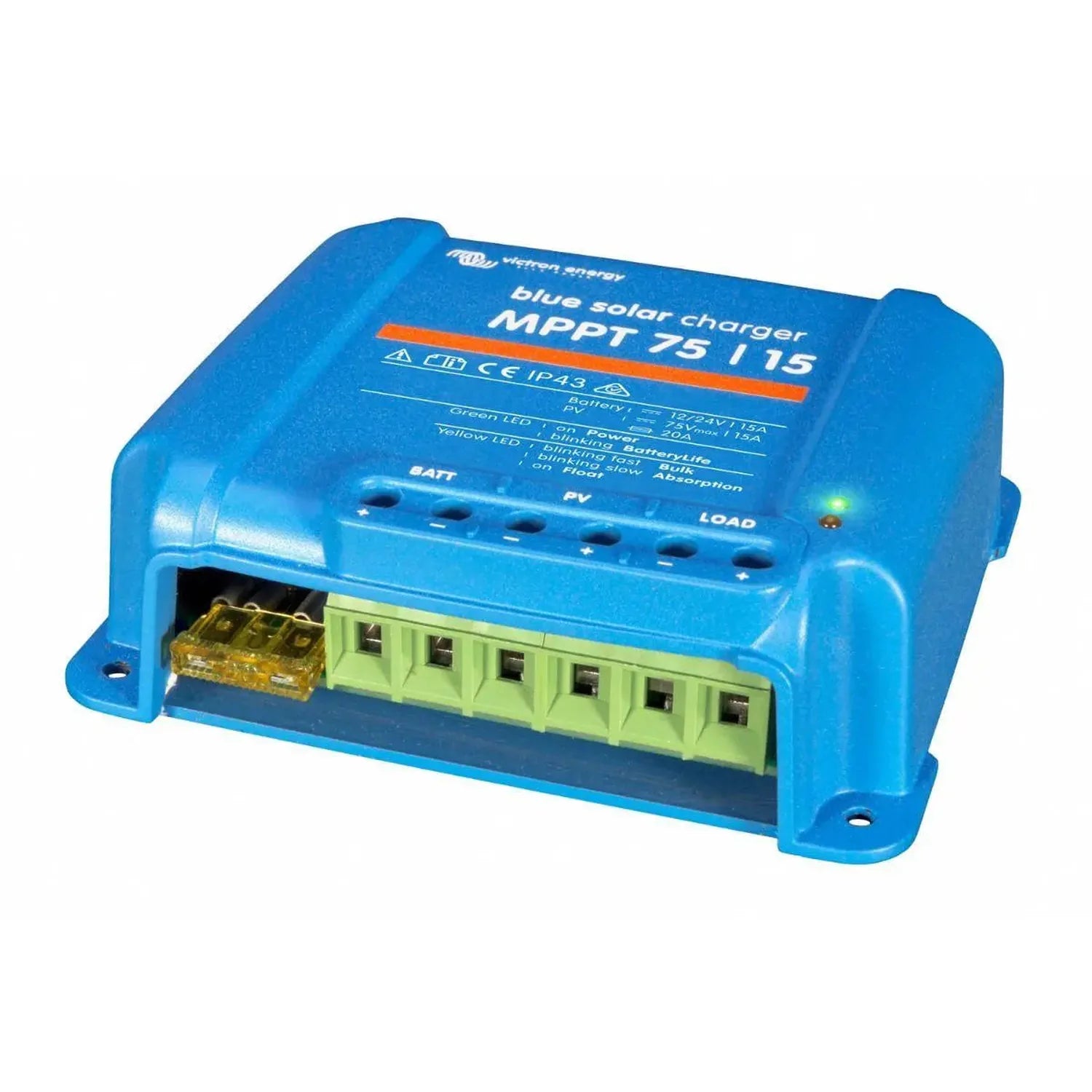

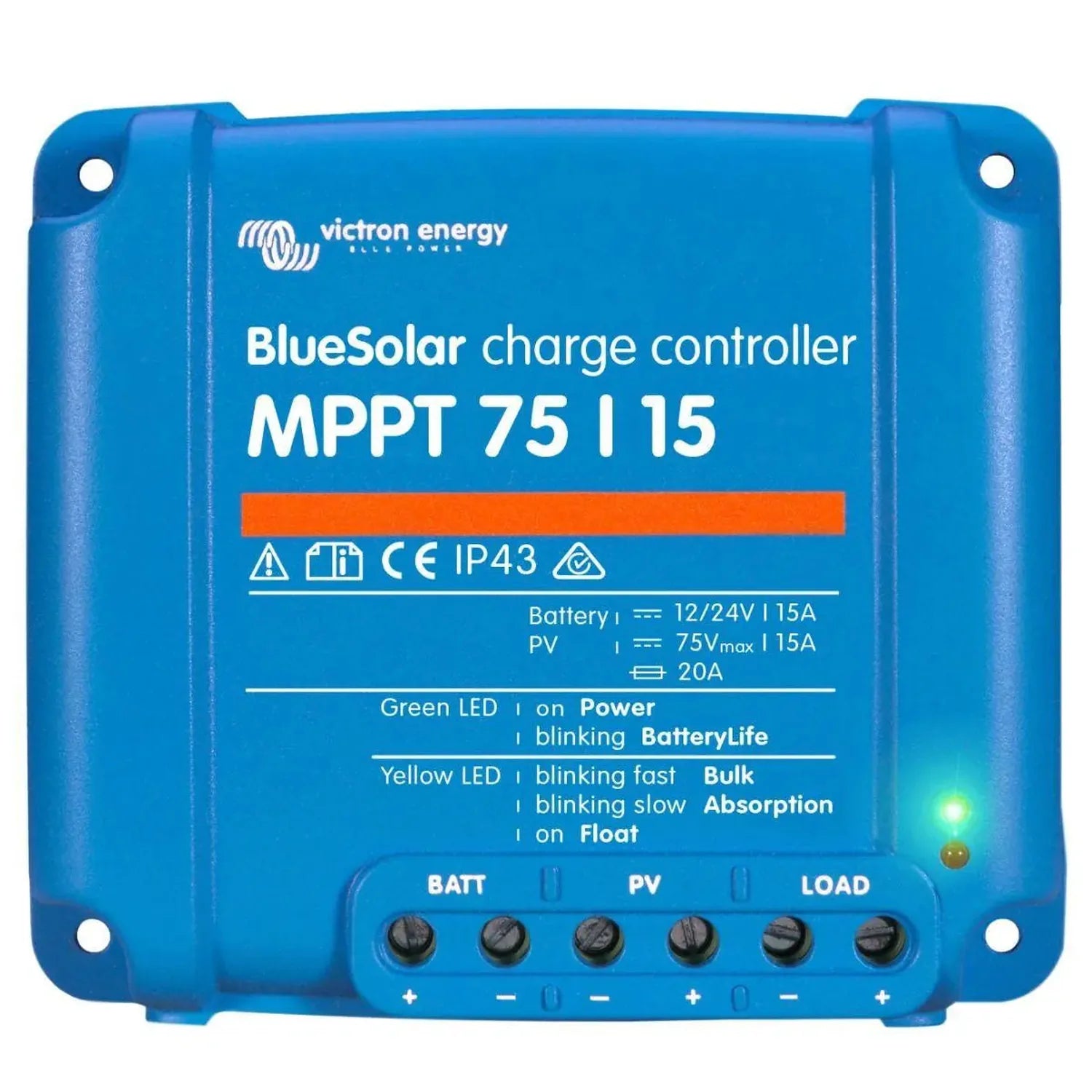

Victron BlueSolar MPPT 75/15 Solar Charge Controller | SCC010015050R

The Victron BlueSolar MPPT 75/15 (SCC010015050R) is a solar charge controller for 12V and 24V battery systems, accepting PV arrays up to 75V open circuit voltage and delivering up to 15A of charge current.

Key features of the Victron MPPT 75/15

• Charge current, 15A rated, with a maximum PV short circuit current of 15A.
• Voltage range, 12V/24V auto select battery voltage, 75V maximum PV open circuit voltage.
• Nominal PV power, 220W at 12V, 440W at 24V.
• Efficiency, 98%.
• Charge algorithm, multi-stage adaptive MPPT.
• Load output, includes low-voltage disconnect to protect the battery from deep discharge.
• Communication, VE.Direct port, compatible with the VictronConnect app via an optional VE.Direct Bluetooth Smart dongle, sold separately.

Applications

Suited to small off-grid cabins, marine and narrowboat 12V/24V house battery charging, campervans and motorhomes, remote monitoring stations, and agricultural uses such as electric fencing and water pumping controls.

Enclosure and build

The unit carries an IP43 rating for the electronic components and IP22 for the connection area, with dimensions of H100 x W113 x D40mm. It is supplied with a 5 year warranty.

What's in the box

• Victron BlueSolar MPPT 75/15 charge controller, retail packaged (SCC010015050R)
