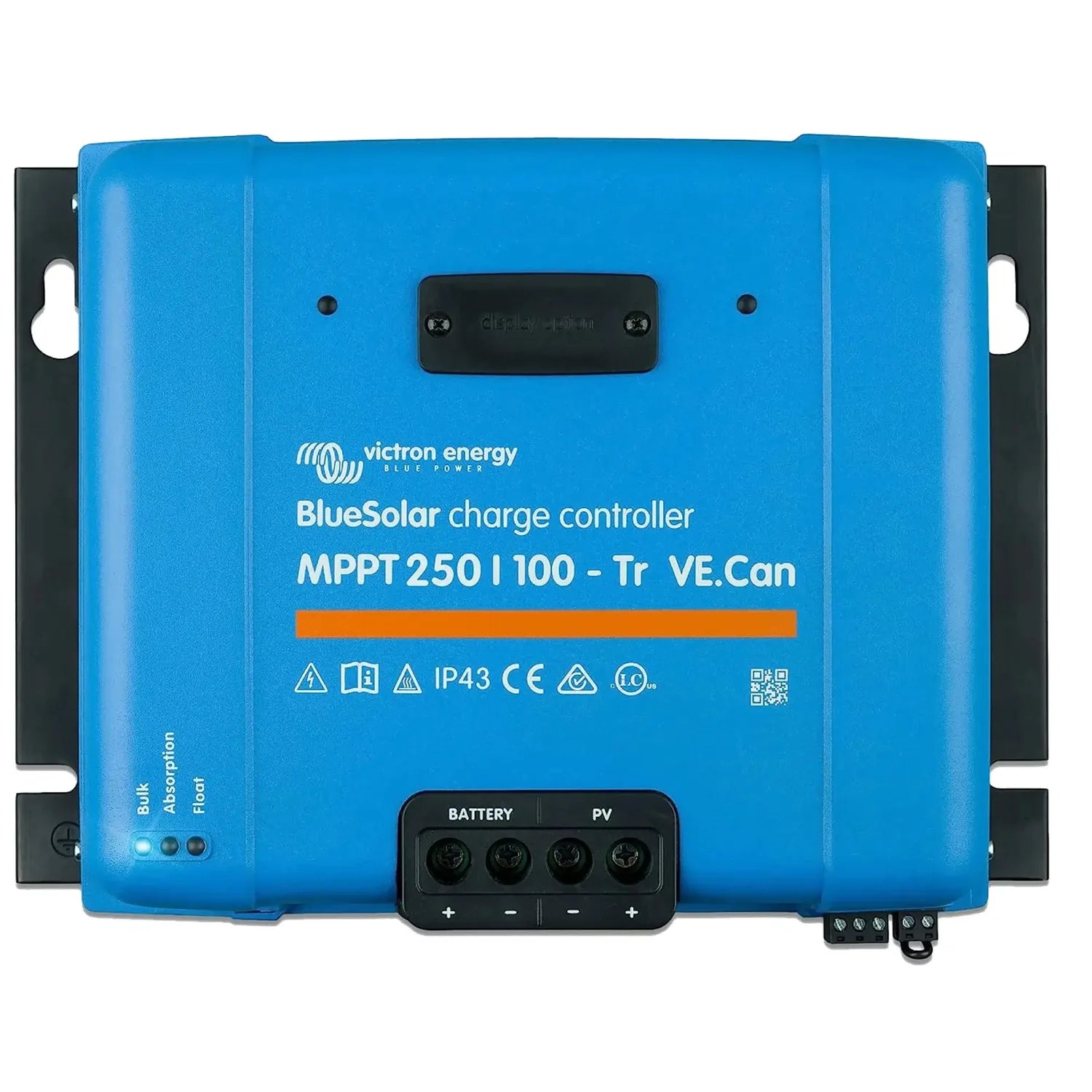

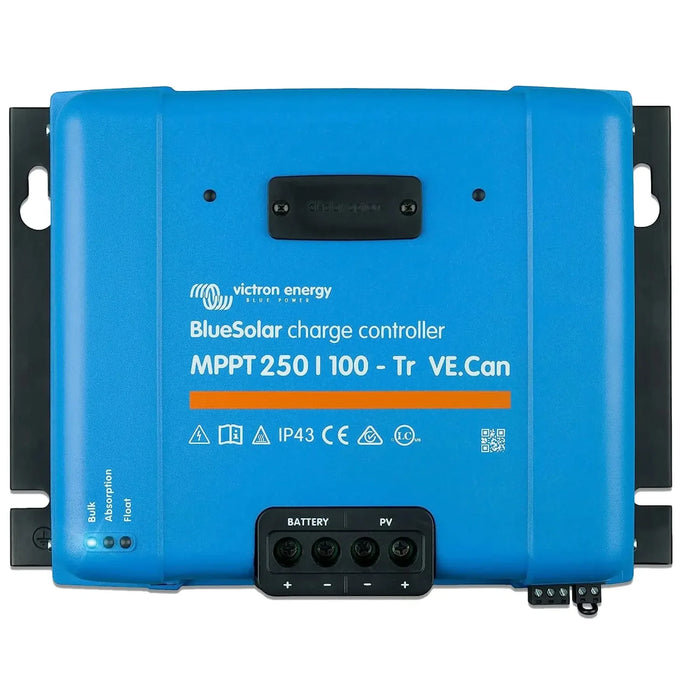

Victron BlueSolar MPPT 250/100-Tr VE.Can Solar Charge Controller | SCC125110441

The Victron BlueSolar MPPT 250/100-Tr VE.Can is a high-capacity solar charge controller built for large off-grid, marine and commercial systems. It accepts a PV open-circuit voltage of up to 250V and delivers up to 100A of charge current, with a VE.Can interface for integration into wider Victron monitoring networks.

Key features

• PV input, 250V maximum open-circuit voltage, suited to large series-connected panel strings.
• Charge current, 100A maximum output for substantial battery banks.
• Tracking, MPPT algorithm continuously optimises energy harvest from the array.
• Connectivity, VE.Can interface links to Victron GX devices, Color Control GX and Venus GX for centralised monitoring.
• Connection type, screw terminal (Tr) for fixed, permanent wiring.
• Battery compatibility, works with lead-acid types such as AGM, gel and flooded, and with lithium-ion.

Technical specifications

Applications

Large off-grid systems with 48V or higher battery banks, commercial rooftop installations on a Victron VE.Can network, marine and yacht arrays with centralised monitoring, multi-controller systems needing VE.Can synchronisation, and remote telecoms or industrial sites monitored via a GX device and the VRM portal.

Installation notes

This controller carries up to 250V DC on the PV input, a hazardous voltage, so installation should be carried out by a qualified electrician. Confirm the PV string open-circuit voltage stays within 250V across all temperature conditions. The VE.Can bus needs correct termination resistors at each end of the network, and battery chemistry settings should be checked before commissioning. Note this model does not include Bluetooth; monitoring runs through VE.Can or an optional VE.Direct connection.

What's included

• 1 x Victron BlueSolar MPPT 250/100-Tr VE.Can charge controller
