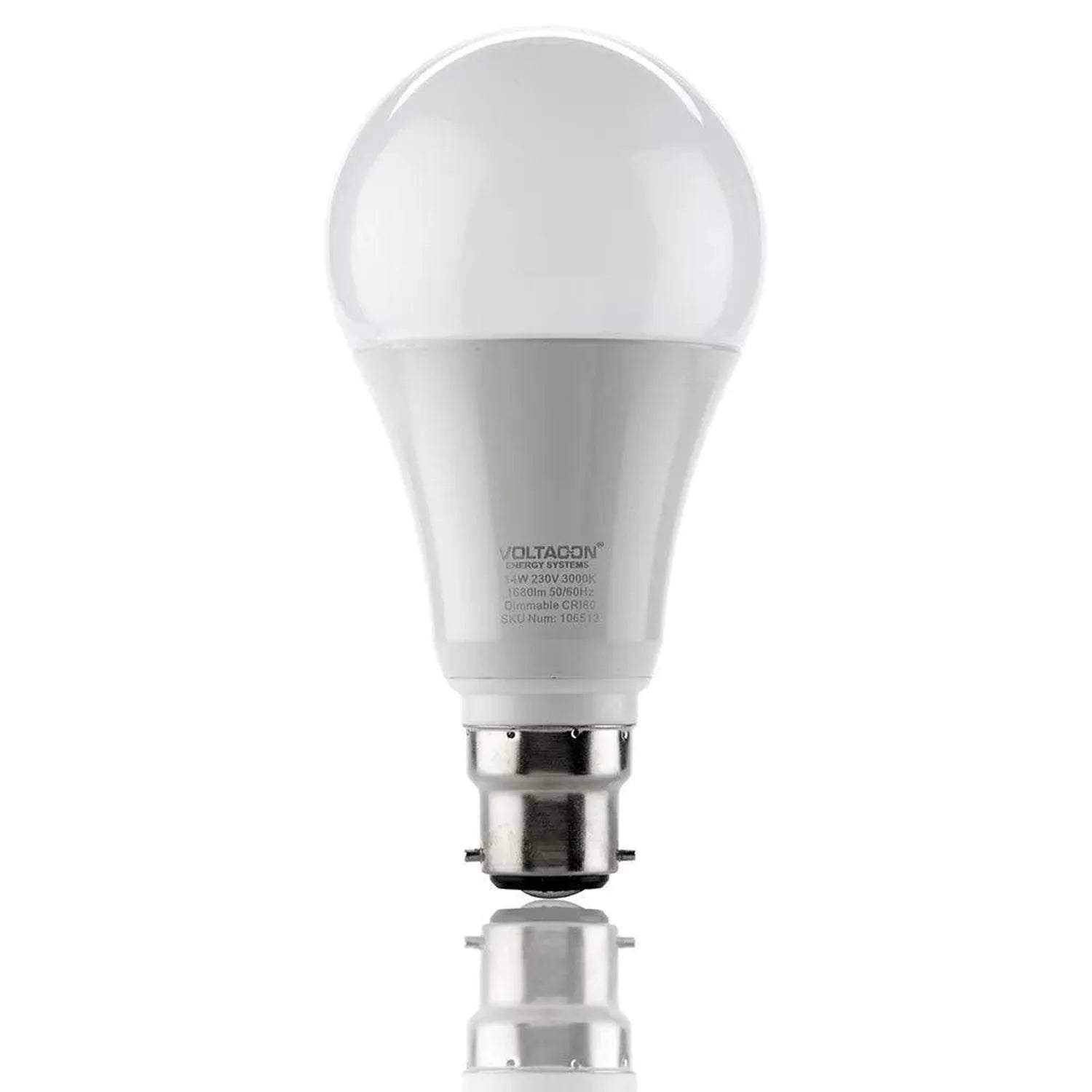

Voltagon 14W B22 dimmable LED globe bulb in warm white, shown against white background with reflection below.

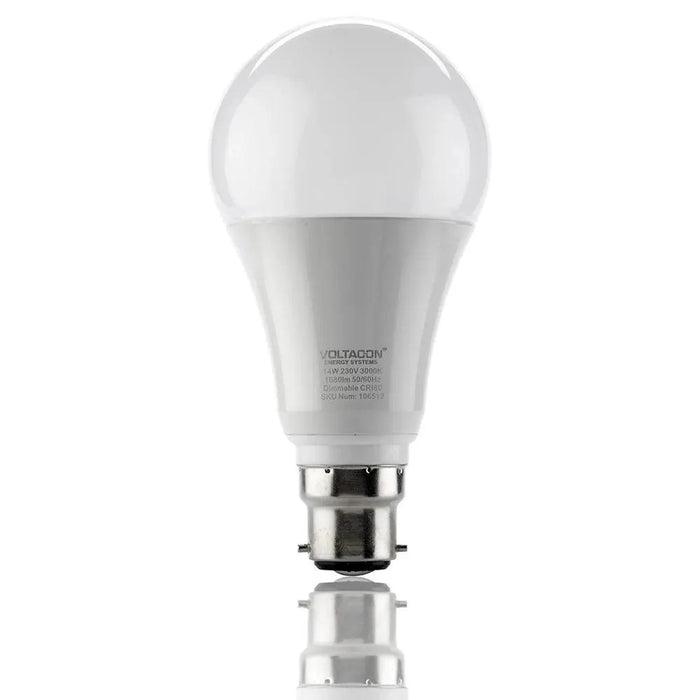

LED Globe Bulb Bayonet B22 14W 1680 lm Warm White 70mm | Ledison

£11.12
Skip to product information
Voltagon 14W B22 dimmable LED globe bulb in warm white, shown against white background with reflection below.

LED Globe Bulb Bayonet B22 14W 1680 lm Warm White 70mm | Ledison

Vendor
Ledison
SKU
106513
Availability
In stock
Weight
0.05 kg

£11.12inc VAT £9.27exc VAT

Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This Ledison globe bulb fits a standard bayonet B22 lampholder and draws 14W. It puts out 1680 lumens of warm white light, which is bright enough for a dining area or a kitchen ceiling pendant.

LED globe bulb bayonet features

  • Output: 14 watts, 1680 lumens, 120 lm/W
  • Light colour: warm white with a colour rendering index of >85
  • Protection: IP65
  • Size: 70mm diameter, 136.0mm high
  • Lifetime: 40,000 hours average
  • Warranty: 5 years

Construction

Heat is the main thing that shortens the life of an LED. Here the body is made from pure 1070 cold-forged aluminium, and it draws heat away from the Epistar SMD LEDs inside. The housing has a heat dissipation index of up to 226w/m.k.

It runs on 100-265Volt at 50/60Hz, with a power factor of >0.9.

Where to use it

Dining areas and kitchens are the obvious fit. Warm white light suits rooms where people sit and eat, and the 1680 lumen output gives enough brightness for food preparation. The globe shape works well in open fittings where the bulb is on show.

Standards and approvals

The bulb carries ROHS, CE and UL certification. It has been EMC tested to EN IEC 55015, EN 61547 and EN IEC 61000-3-2, so it is a sound choice for installers who need documented compliance on a job.

Technical Specifications 21 rows Show
FittingB22
Wattage (rated)14 Watt
Luminous flux1680LM
Light colourWarm white
Typical efficiency120 lm/W
Colour rendering index>85
Voltage100-265Volt
Line frequency50/60Hz
Power factor>0.9
IP ratingIP65
Diameter70mm
Height136.0mm
Net weight per piece220grams
LEDsSMD Power LED Inside from Epistar
Housing1070 pure cold-forged aluminium
Heat dissipation indexup to 226w/m.k
Average lifetime40,000 hours
Operating temperature-20oC to +40oC
CertificationROHS , CE,UL
EMC standardsEN IEC 55015, EN 61547, EN IEC 61000-3-2
Warranty5 years

Manufacturer datasheet. Figures as published by the manufacturer.
