AR111 Triple Fixture Gimbal Housing IP20 | Ledison Vega

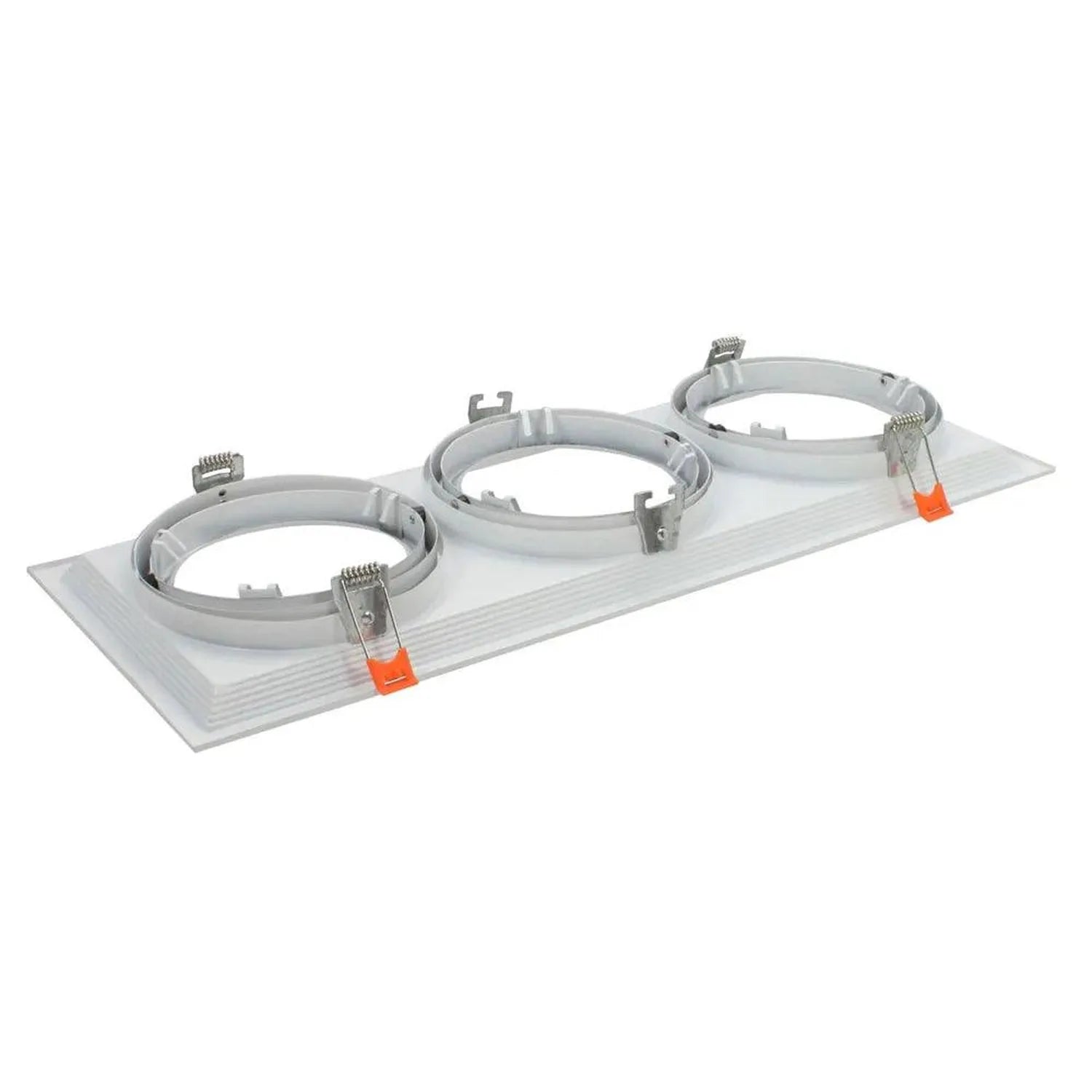

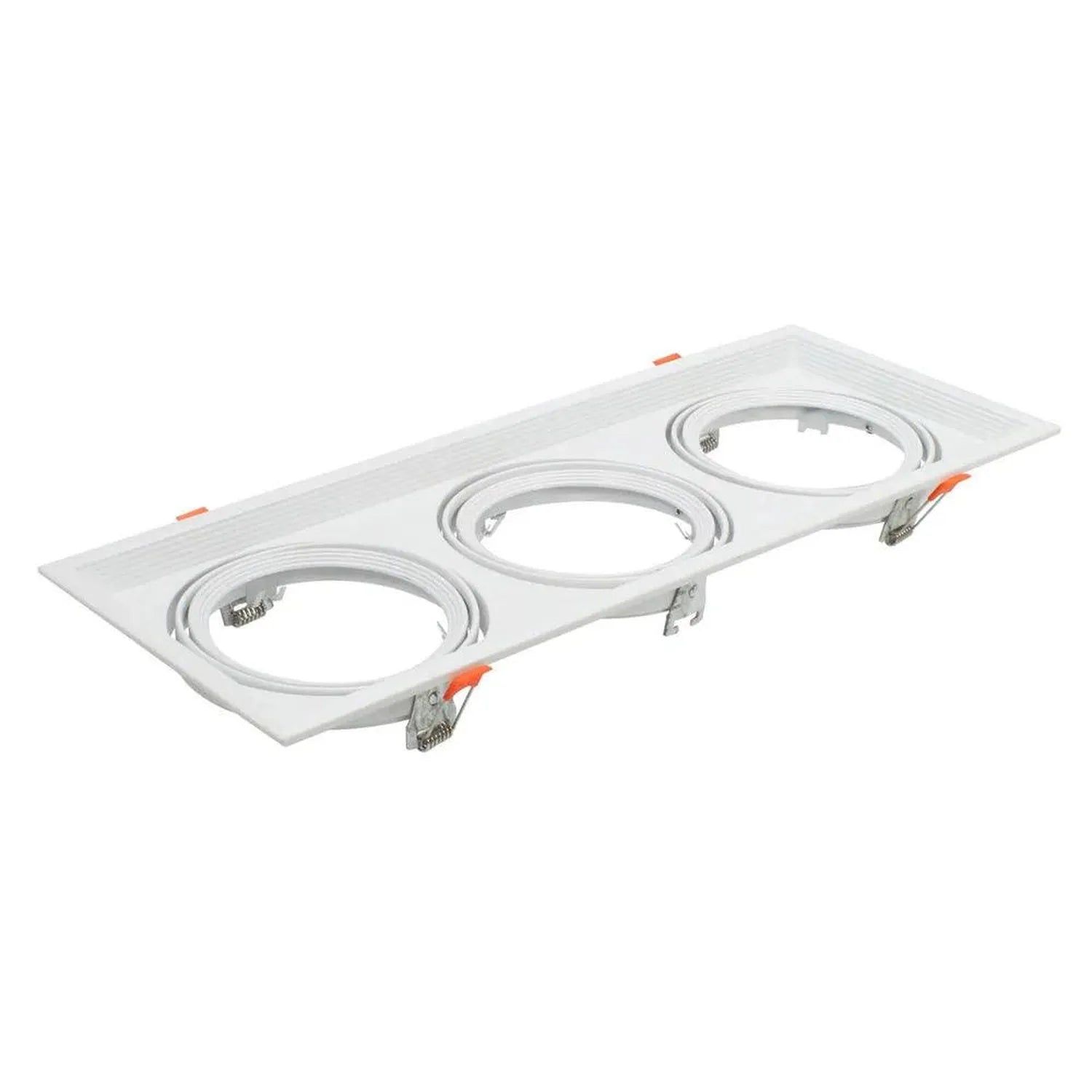

The SLIM AR111 Triple Fixture is an adjustable gimbal housing built for three AR111 G53 or GU10 lamps. Supplied without lamps, it is a drop-in replacement for old AR111 halogen fittings and is finished in the Ledison Vega trim of aluminium and steel.

Key features of this AR111 light fitting

• Gimbal movement, dual ring gimbal system rotates horizontally and vertically up to 180 degrees.
• Housing material, aluminium and steel construction for a sturdy, flexible fixture.
• Shape, standard square profile for straightforward installation.
• Lamp compatibility, accommodates AR111 LED 12V and AR111 LED 230V, in dimmable and non-dimmable versions.
• Protection rating, IP20, suitable for indoor installation.
• Dimensions, 485mm x 192mm overall, 165mm total height.
• Cut out, 460mm x 160mm.

Applications

The square gimbal shape and free two-axis rotation make this fixture suited to accent lighting in shops, restaurants and showrooms. Because it is a direct swap for AR111 halogen housings, it works well in retrofit projects where the ceiling cut out already matches the AR111 format.

Installation

As this is a housing only, three separate AR111 G53 or GU10 lamps are needed to complete the fixture. An installation guide is available to help with fitting.
