14.4kWh 48V GEL Battery Bank on Steel Racks | Voltacon

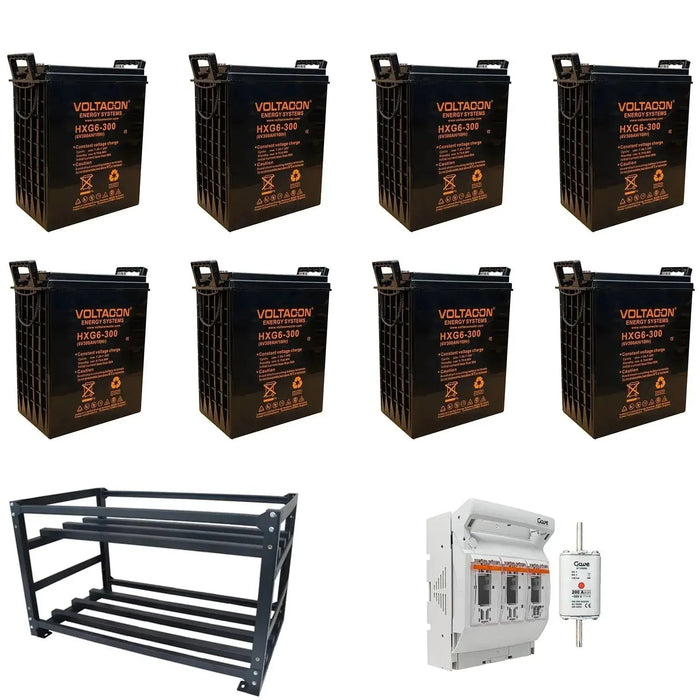

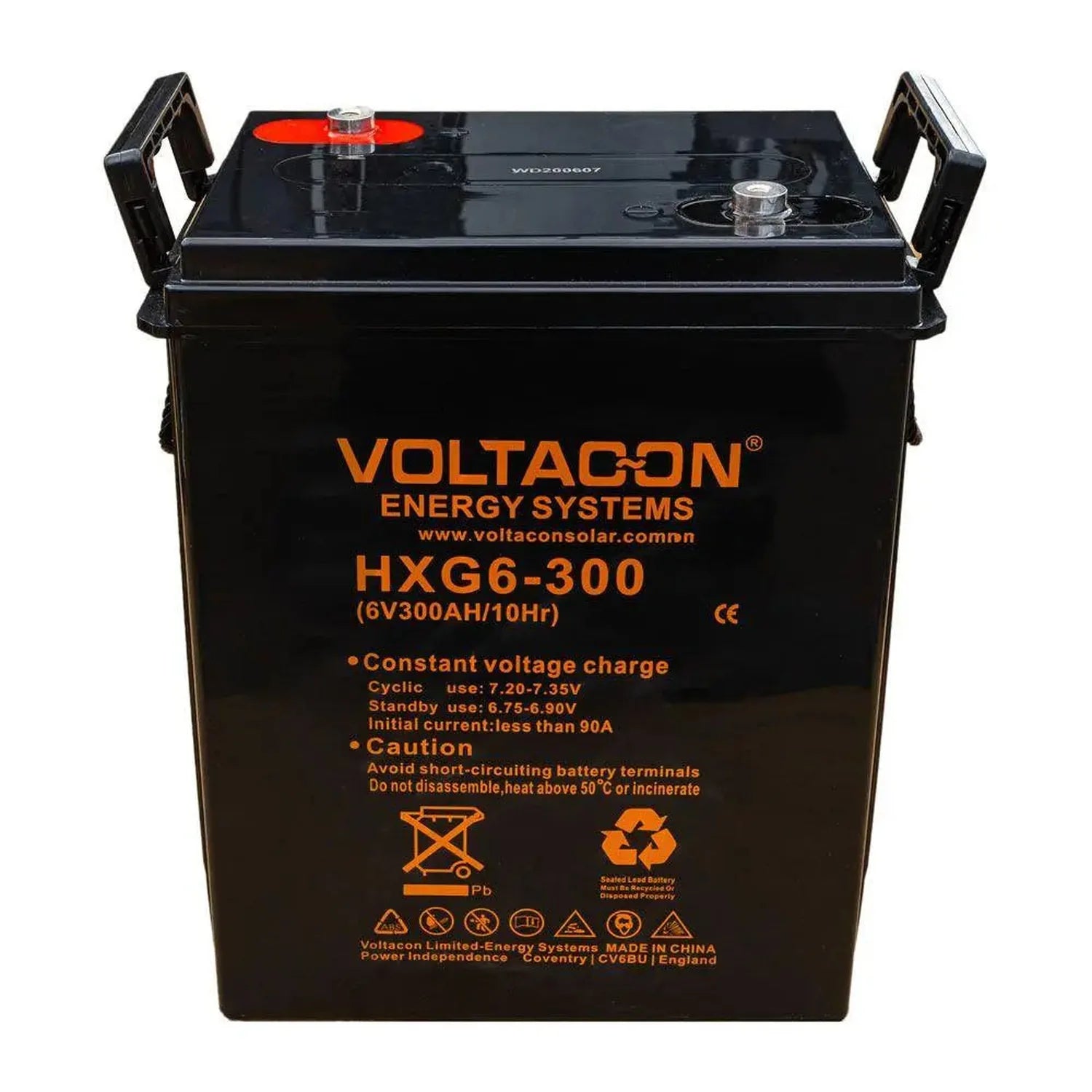

This 14.4kWh 48V GEL battery bank is a pre-configured energy storage system built from 8x Voltacon 6V 300Ah GEL batteries mounted on a steel rack. It can be set up for either 24V or 48V hybrid and off-grid inverters with MPPT charging, giving installers a ready-to-fit power bank rather than a pile of loose cells.

Key features of this 48v gel battery bank

• Total storage, 14.4kWh from 8x 6V 300Ah GEL batteries.

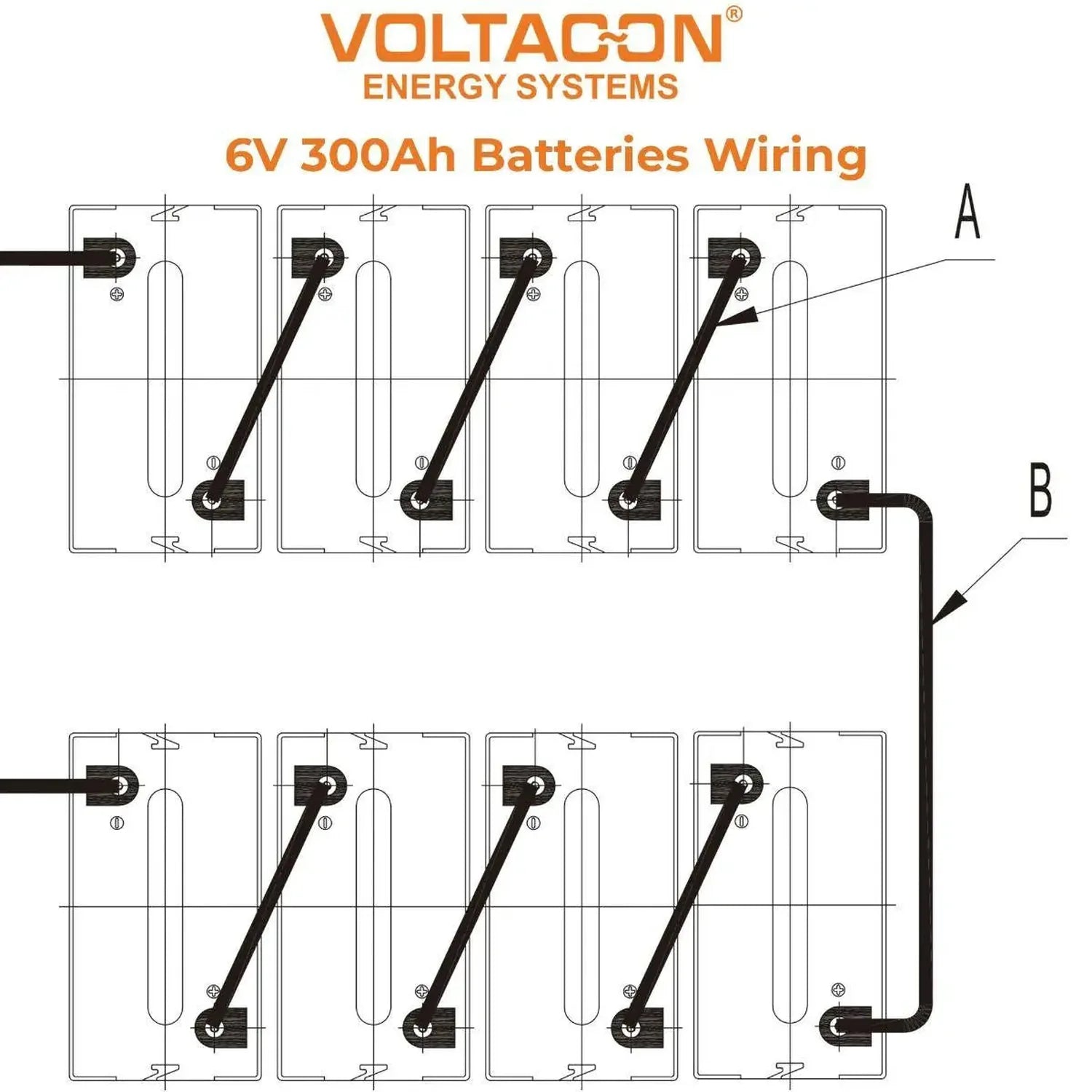

• Voltage configuration, configurable for 24V or 48V systems.
• Technology, maintenance-free sealed GEL construction, no electrolyte top-ups.
• Design life, 10 to 12 years when discharged to approximately 50%.
• Mounting, supplied on a steel rack for the full battery set.

Applications

The bank suits off-grid and hybrid solar setups paired with an MPPT inverter-charger. It also works well as backup power or general energy storage on remote and rural properties where mains supply is unreliable.

Installation notes

All battery connections must be made by a qualified electrician. Batteries need a ventilated, temperature-controlled space, and the charging parameters on the inverter must be set correctly for GEL technology rather than a different chemistry.
